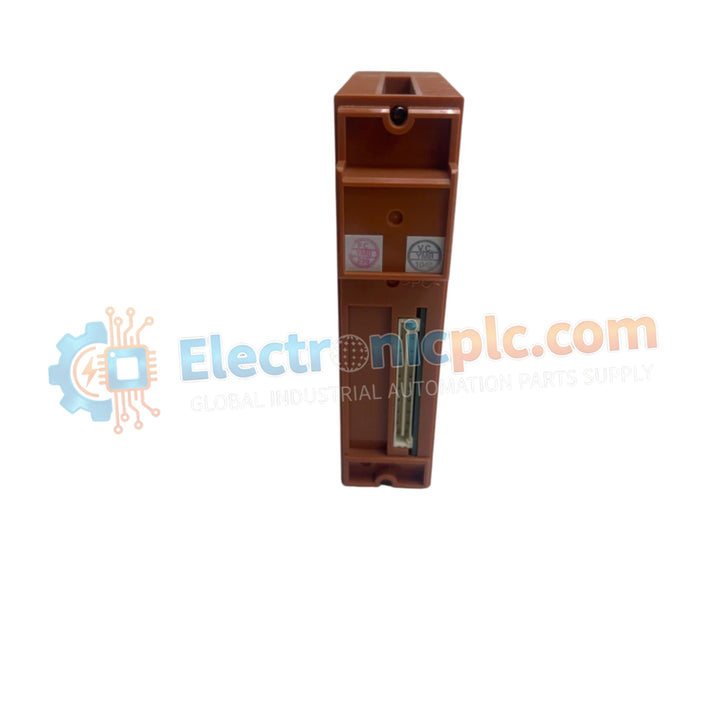

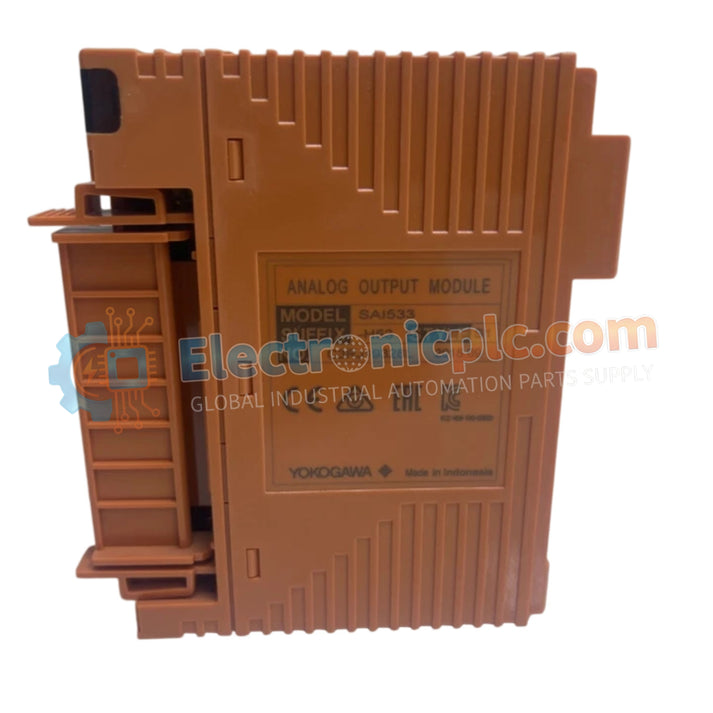

Configured for high-precision current loop command execution in industrial automation, the YOKOGAWA SAI533-H53/A4S00 (SAI533-H53/A4S00 Analog Output Module) provides 8 isolated channels with HART communication capability for direct field actuator control.

Suffix Breakdown & Model Matrix

• SAI533-H53: Base model for 8-channel analog output with HART support and standard precision output logic.
• /A4S00: Defines the terminal interface configuration and safety-rated architecture compatibility.

Hardware Specifications

Process Control Signal Execution

The SAI533-H53/A4S00 employs galvanic isolation on each of its 8 channels, preventing ground loops and cross-talk when interfacing with diverse field actuators. By integrating HART communication protocol support, the module facilitates bidirectional data exchange, allowing for real-time monitoring of actuator health and configuration parameters directly through the control loop. This architecture ensures robust fail-safe state execution in redundant configurations, preserving process stability even during module-level fault conditions.

Frequently Asked Questions

Q: Does the dual redundancy support require specialized cabling?

A: The module is designed for dual redundant operation using the designated pressure clamp terminal interface. Redundancy is achieved through parallel output configuration at the field junction box, managed by the primary DCS controller.

Q: How does the load resistance affect the output linearity?

A: The module is specified for a load resistance between 230 and 600 Ohm. Operating outside this range may force the output stage into saturation, resulting in non-linear signal delivery and potential current clamping.

Field Installation Guidelines

• Ensure the pressure clamp terminals are torqued to the manufacturer’s specification to prevent intermittent contact resistance on the 4-20 mA current loops.
• Use shielded twisted-pair instrumentation cable; terminate the cable shield at the designated ground rail to minimize electromagnetic interference (EMI).
• When implementing dual redundancy, verify that the output signals from both modules are synchronized at the field side to prevent current loop conflicts.
• Monitor the ambient cabinet temperature to ensure the -20 to 70 deg C operating range is maintained, as the temperature drift coefficient is +/- 16 uA per 10 deg C.
• Confirm that the HART master is correctly configured to communicate through the module, avoiding impedance mismatches that could attenuate the overlaid frequency-shift keying signal.
