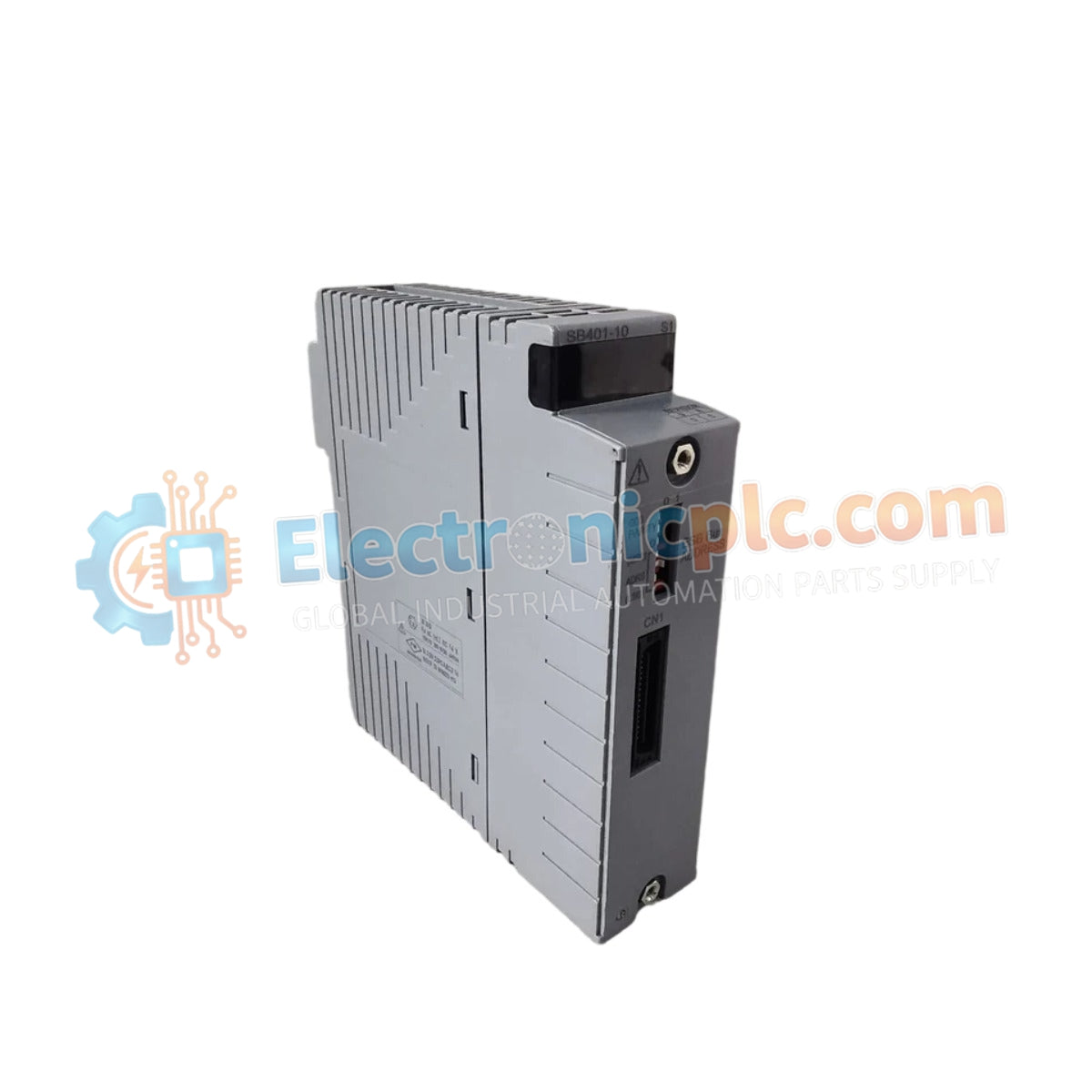

The Yokogawa SB401-10 (SB401-10 ESB Bus Interface Slave Module) operates as a dedicated hardware component for managing I/O communication between field control stations and remote slave nodes within distributed control systems. This module serves as the primary interface utilized to execute data synchronization and command routing across the Extended Standard Bus (ESB) architecture in Yokogawa CENTUM platforms.

Hardware Specifications

DCS Process Control Features

The SB401-10 integrates into the DCS architecture to provide deterministic communication between the control processor and remote I/O subsystems. It utilizes channel-to-channel isolation to decouple the ESB bus from field-side electrical noise, preventing ground potential differences from affecting the integrity of the data stream. The module supports robust bus timing synchronization, ensuring that high-speed I/O updates are captured without latency, thus maintaining accurate loop control across the distributed network.

Frequently Asked Questions

Q: Is the SB401-10 compatible with standard CENTUM VP ESB bus configurations?

A: Yes, the SB401-10 is specifically engineered for full compatibility with standard CENTUM VP ESB bus master-slave architectures.

Q: Does this module require manual bus termination during installation?

A: Proper bus termination is critical for ESB network stability; users must ensure the final slave node in the bus segment is correctly terminated according to the system installation manual.

Field Installation Guidelines

1. Mount the module onto the dedicated DIN-rail or rack-mount backplane, ensuring a secure mechanical and electrical ground connection.
2. Verify that all ESB bus cabling is routed through shielded conduits to prevent inductive coupling from high-power equipment.
3. Tighten the module's front-panel retaining screws to ensure proper bonding to the chassis, which is essential for electromagnetic compatibility.
4. Inspect the backplane connectors for any signs of oxidation or pin misalignment before seating the module to avoid intermittent communication errors.
5. After installation, confirm the module’s diagnostic LED states to ensure a successful handshake with the ESB bus master controller.
