Description

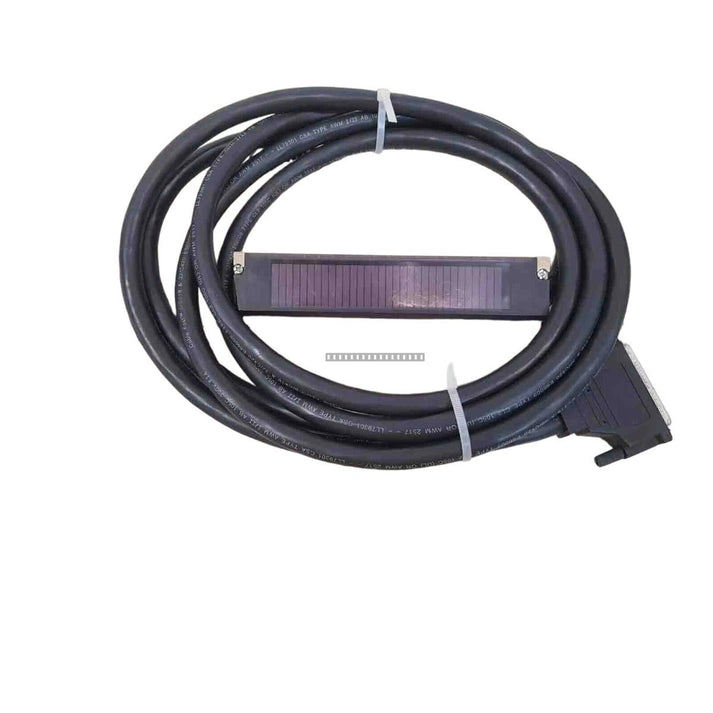

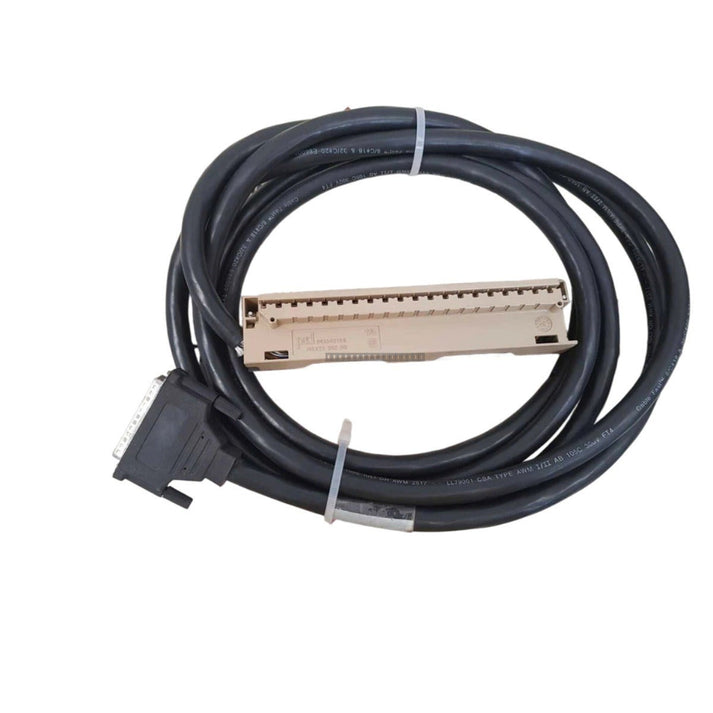

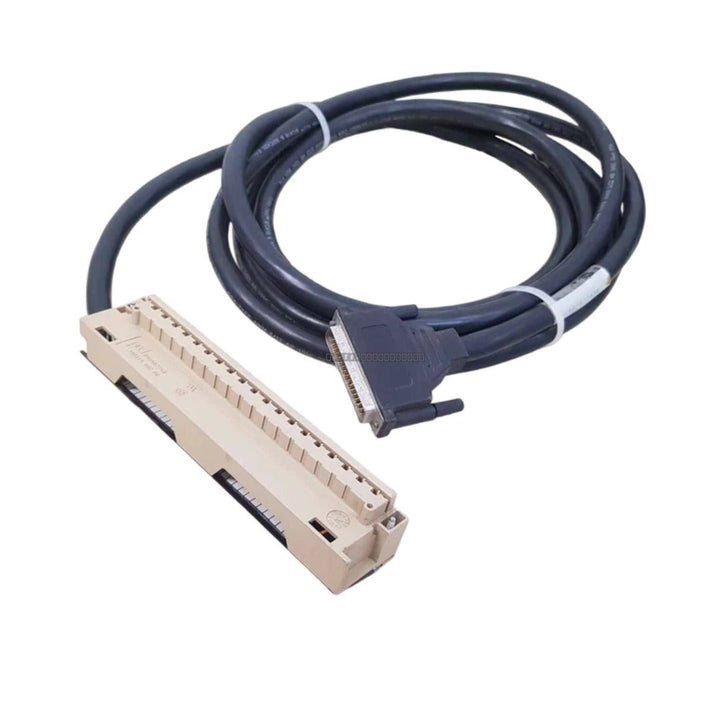

The Schneider 140XTS01212 is a high-performance CableFast assembly designed for reliable and efficient signal transmission in industrial automation environments. This 12-foot (3.66-meter) cable is engineered to integrate seamlessly with compatible Schneider Electric control systems, providing robust connectivity and facilitating rapid installation in complex wiring configurations.

Features

• High-performance CableFast design for industrial reliability.
• 12-foot length for flexible routing in control cabinets and field applications.
• Durable, high-quality insulation suitable for demanding operational environments.
• Optimized for seamless integration with Schneider Electric automation hardware.

Technical Specifications

Installation Guidelines

• Ensure the cable is routed away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Verify that both ends of the CableFast connectors are fully seated and locked into their respective modules before powering on the system.
• Avoid sharp bends or excessive tension on the cable during installation to prevent damage to the internal conductors.
• Inspect the cable periodically for signs of wear, abrasion, or environmental degradation, especially in high-vibration areas.

FAQ

What is the primary use of the 140XTS01212 cable?

This cable is used for high-performance signal connectivity within Schneider Electric automation systems, specifically designed for the CableFast interconnection series to simplify I/O wiring.

Can this cable be used in extreme temperatures?

The cable is rated for an operating temperature range of 0 degC to 70 degC. It should not be installed or operated outside of these specified thermal limits.
