Description

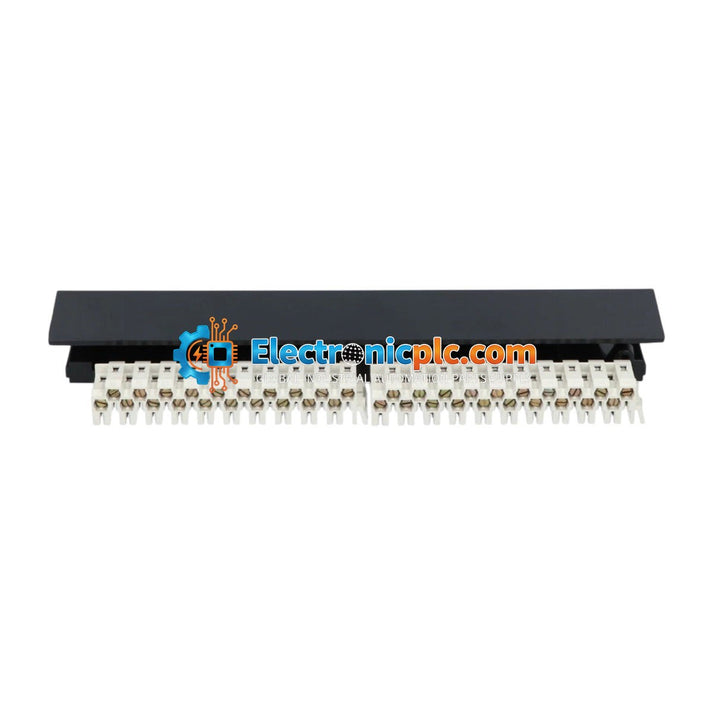

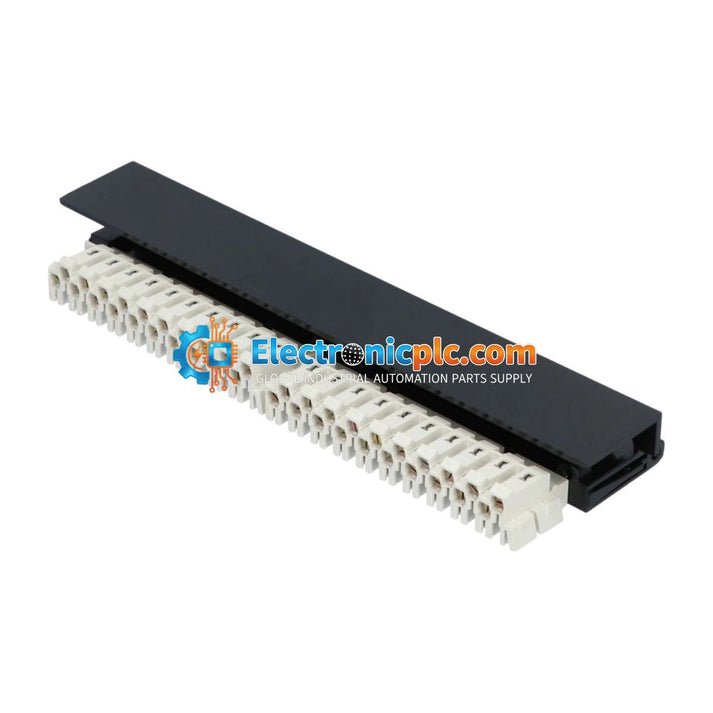

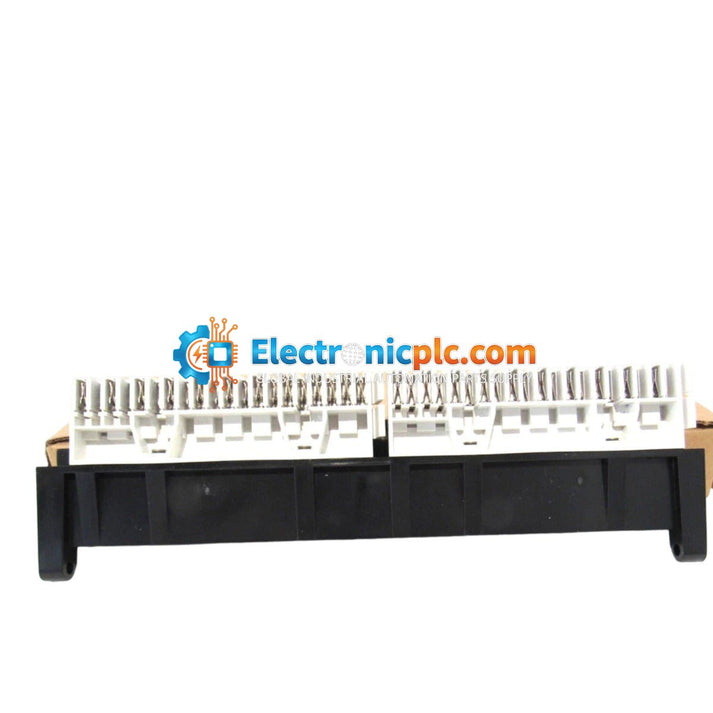

The Schneider AS8535000 is a robust high/low-density connector engineered for integration within industrial automation architectures, specifically compatible with the Modicon platform. This component facilitates reliable signal and data transmission for systems requiring up to 800 I/O points. Designed for versatility, it supports both high and low-density configurations, ensuring consistent performance in demanding industrial environments.

Features

• Designed for seamless integration with the Modicon series platform.
• Supports high and low-density I/O configurations.
• Maximum system capacity of 800 I/O points.
• Durable polycarbonate housing for industrial protection.
• Secure screw terminal interface for reliable connectivity.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the connector to prevent electrical damage.
• Mount the unit on a standard DIN rail, ensuring a secure click-in fit to maintain structural integrity.
• Verify that all screw terminals are tightened to the recommended torque to prevent loose connections and intermittent signal loss.
• Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Maintain adequate ventilation around the module to ensure operating temperatures remain within the specified -20 degC to 70 degC range.

FAQ

What is the primary function of the AS8535000?

The AS8535000 serves as a high/low-density connector module for the Schneider Modicon series, designed to facilitate reliable I/O connectivity for up to 800 points.

Is this connector suitable for high-density applications?

Yes, the module is specifically engineered to handle both high and low-density I/O requirements within the Modicon platform.

What type of mounting does this module support?

The AS8535000 is designed for standard DIN rail mounting, allowing for efficient installation in industrial control cabinets.
