Description

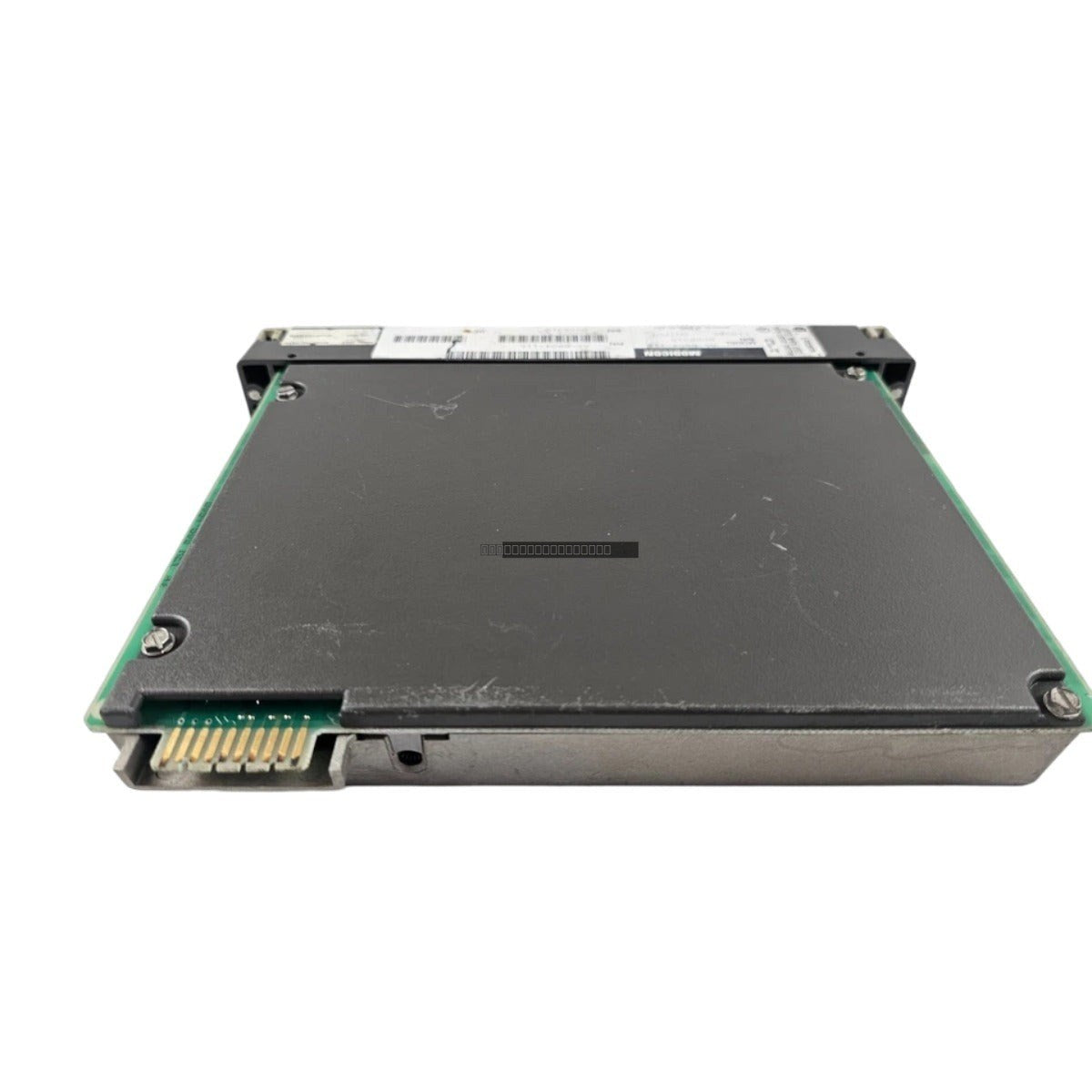

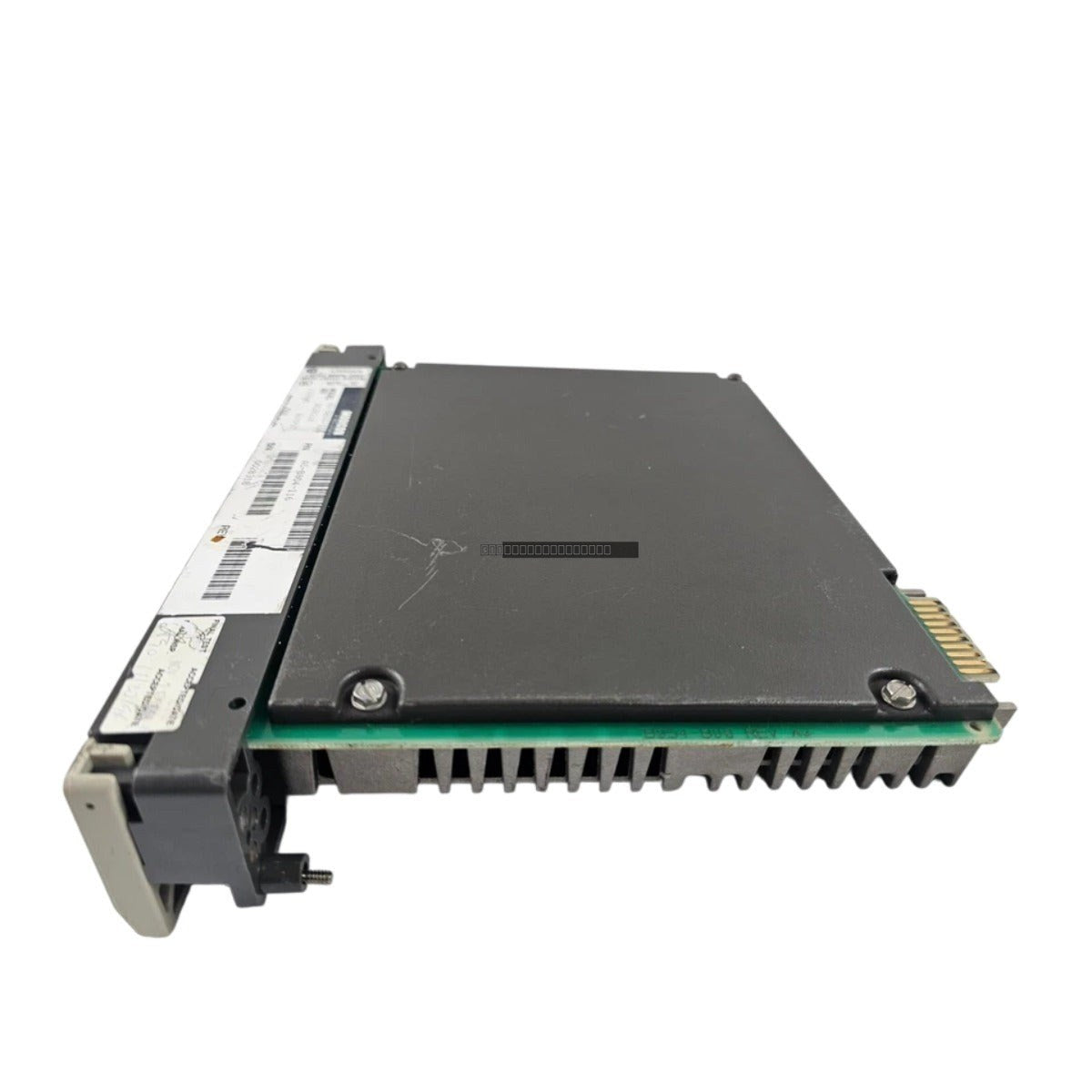

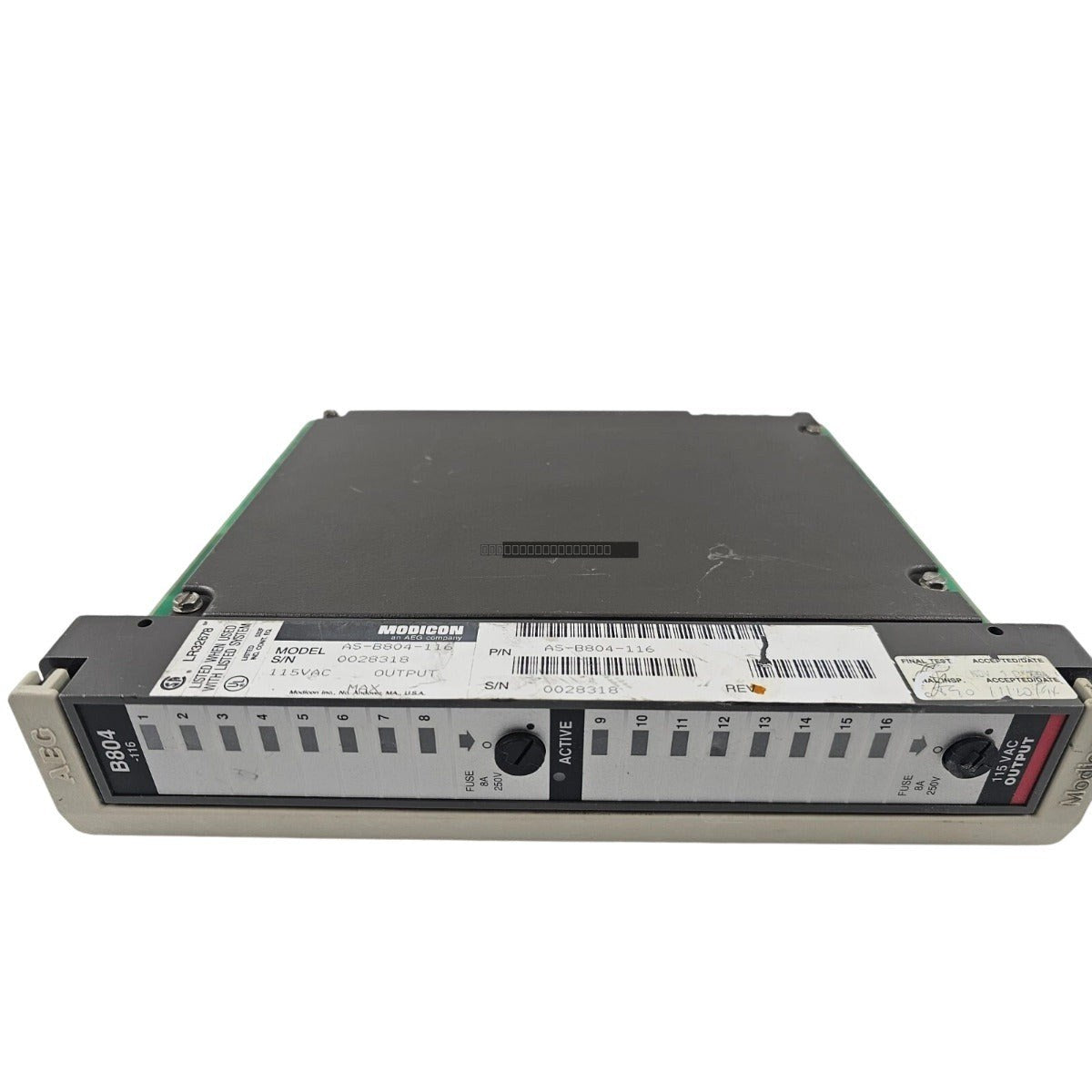

The Schneider ASB804116 is a high-performance output module engineered to provide reliable switching control within industrial automation environments. Designed for seamless integration with the RMS-TSG-TZ-C series PLC rack systems, this module facilitates precise control over field devices, supporting complex process automation and manufacturing requirements.

Features

• Equipped with 16 discrete output channels for high-density control.
• Designed for 230 VAC operation at 50/60 Hz, ensuring compatibility with standard industrial power grids.
• Compact, modular form factor allows for efficient space utilization within PLC racks.
• Engineered for robust performance in demanding manufacturing, processing, and assembly line applications.
• Discrete relay output type provides electrical isolation and reliable switching.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is correctly seated in the designated PLC slot or DIN rail mounting position.
• Ensure all field wiring is properly secured to the terminal blocks and that the correct wire gauge is used for the 230 VAC load.
• Maintain adequate clearance around the module to allow for proper ventilation and heat dissipation.
• Follow standard ESD (Electrostatic Discharge) mitigation practices during handling to protect internal electronic components.

FAQ

What type of output does the ASB804116 provide?

This module features 16 discrete relay outputs, which are suitable for switching various industrial loads within the specified voltage and current ratings.

Is this module compatible with other Schneider PLC series?

The ASB804116 is specifically designed for integration with the RMS-TSG-TZ-C series PLC racks. Please consult your system documentation to ensure compatibility with your specific rack configuration.

What is the maximum load current per channel?

The module supports a load current of 0.25 A per output point.
