Description

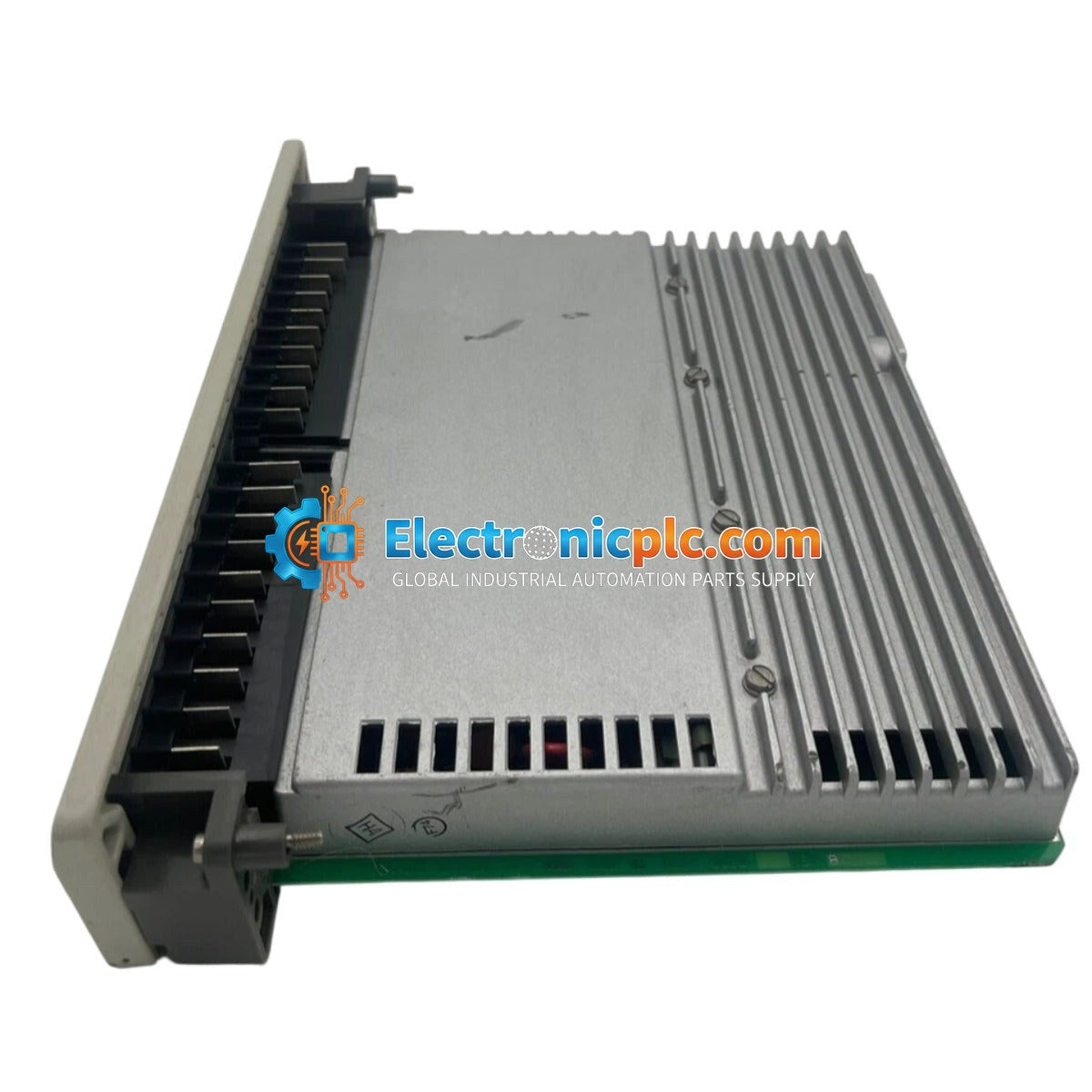

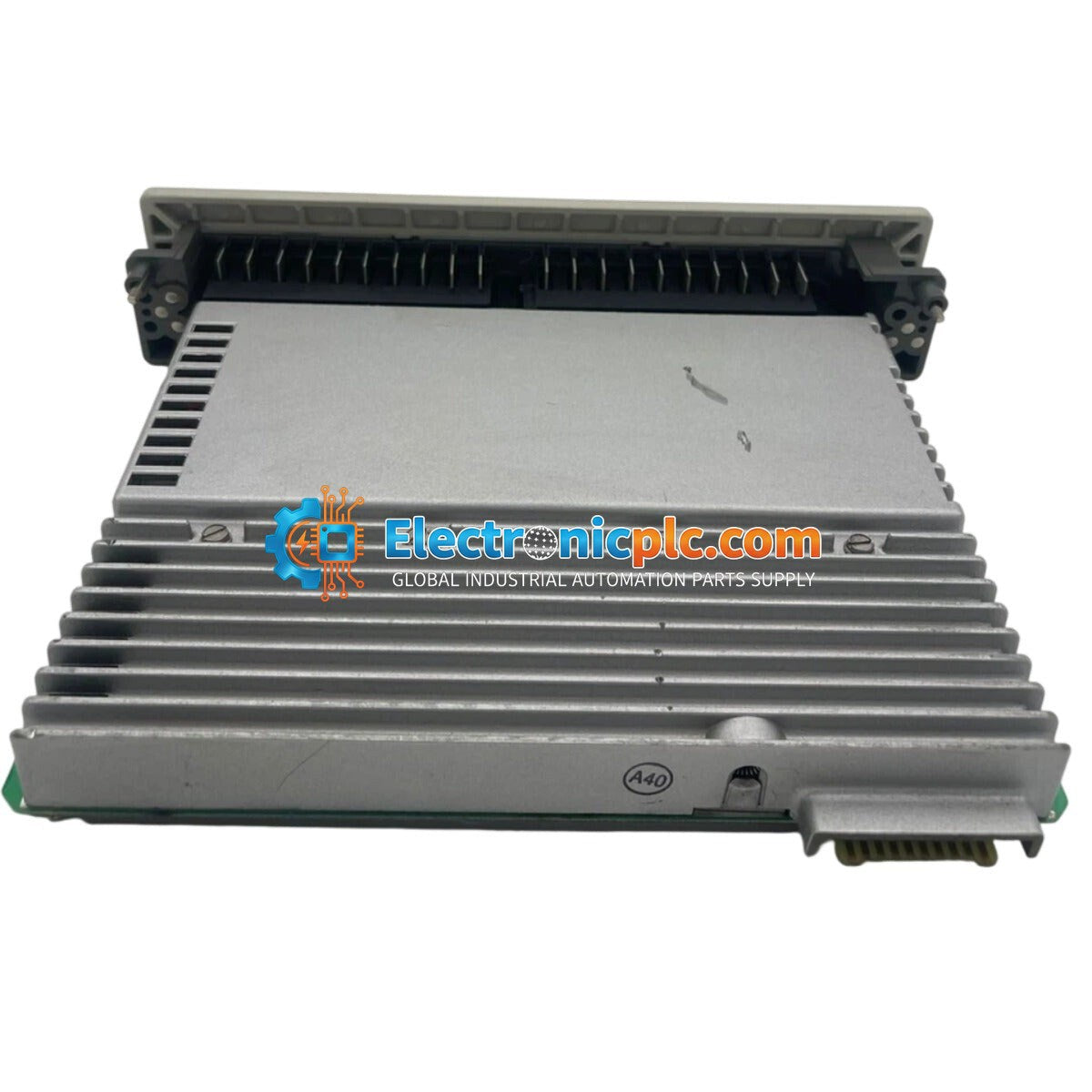

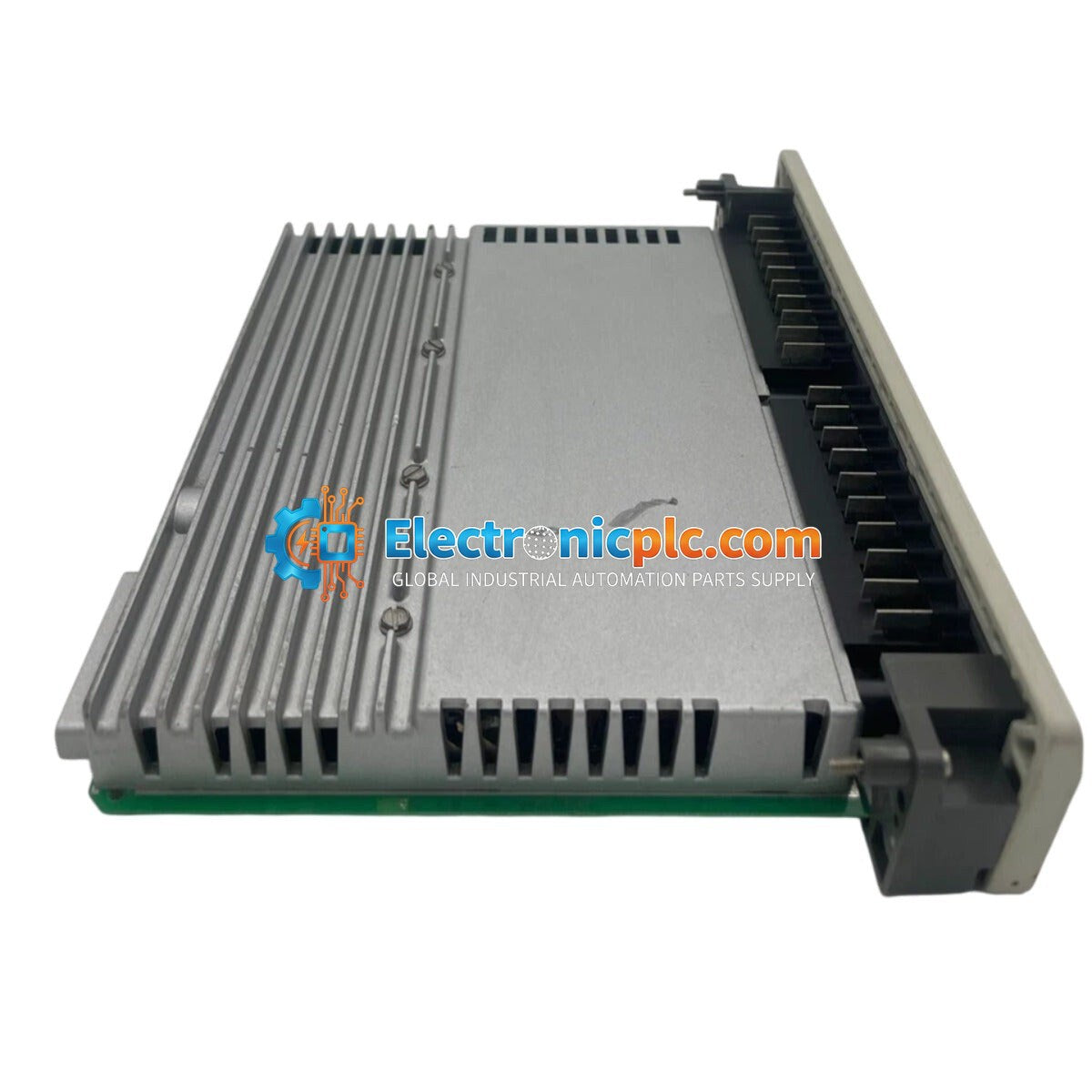

The Schneider ASB808016 is a high-performance 16-point discrete output module designed for integration into RMS-TSG-TZ-C series industrial automation systems. This module provides reliable switching control for field devices, operating at a standard industrial voltage of 230 VAC. It is engineered for modular PLC architectures, allowing for efficient system expansion and streamlined control of multiple discrete loads in demanding industrial environments.

Features

• 16 discrete output channels for high-density control applications.
• Designed for 230 VAC operation at 50/60 Hz.
• Maximum load current of 0.5 A per channel.
• Optimized for seamless integration within the Schneider RMS-TSG-TZ-C series PLC ecosystem.
• Compact, rack-mountable form factor for efficient control panel space utilization.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the slot is compatible with the RMS-TSG-TZ-C series architecture before seating the module.
• Use appropriate ESD protection when handling the module to prevent damage to internal circuitry.
• Ensure all field wiring is properly secured to the terminal blocks and routed to minimize EMI interference from high-voltage power lines.
• Confirm proper grounding of the PLC rack to maintain signal integrity and safety.

FAQ

What is the primary function of the ASB808016 module?

The ASB808016 is a discrete output module that provides 16 channels of 230 VAC switching, allowing the PLC to control external field devices such as relays, contactors, or indicators.

Is this module compatible with other Schneider series?

This module is specifically designed for the RMS-TSG-TZ-C series. Please consult your system documentation to ensure compatibility with your specific PLC rack configuration.
