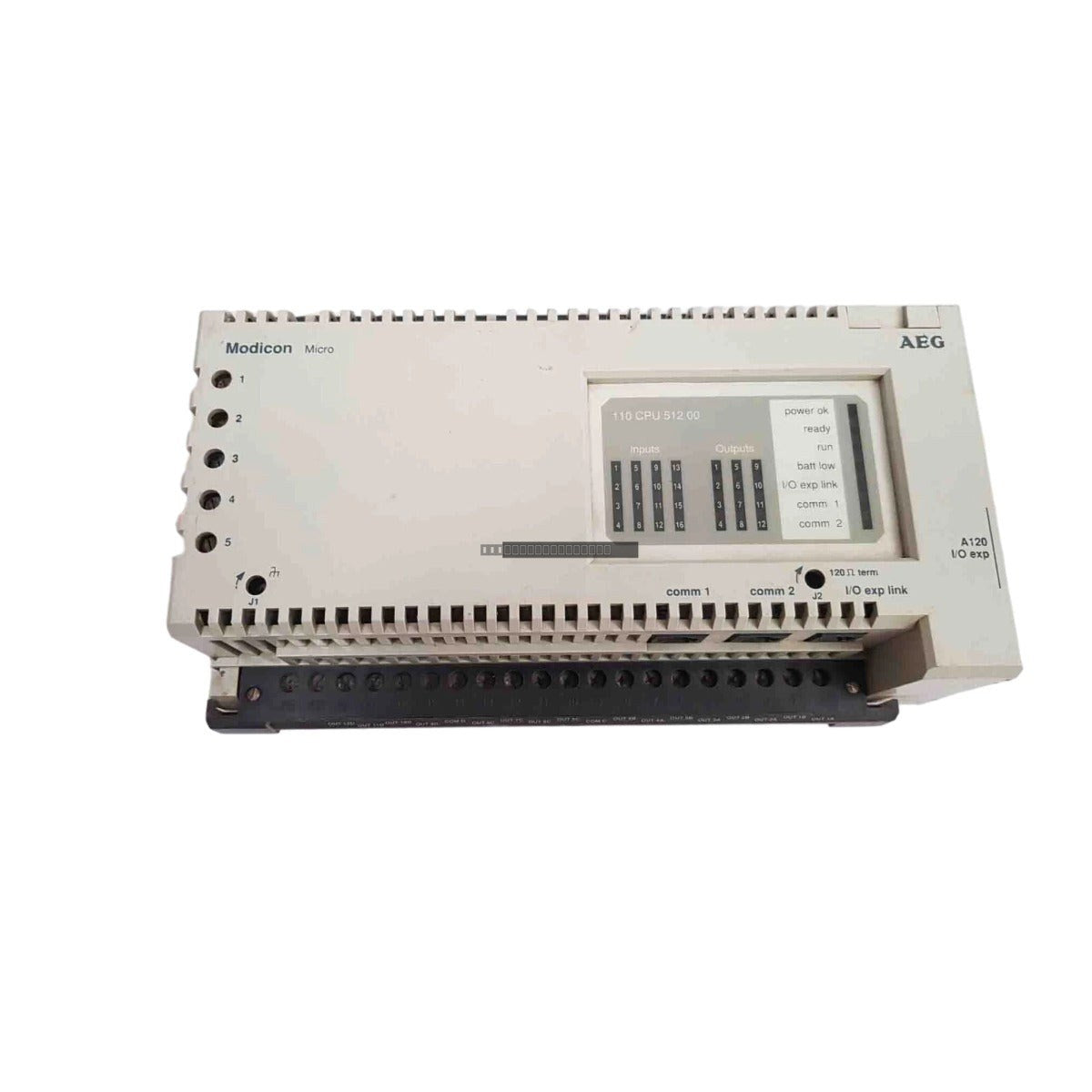

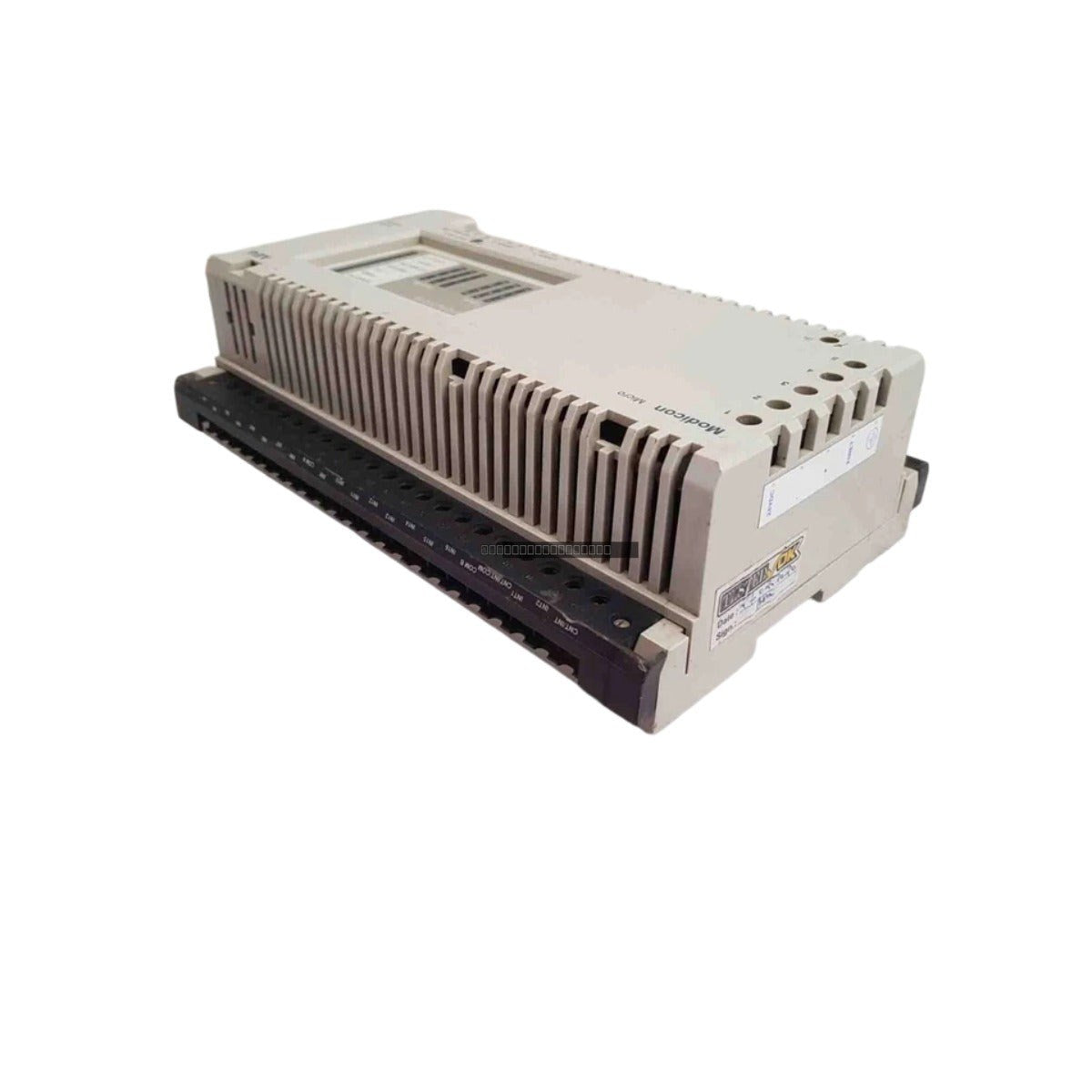

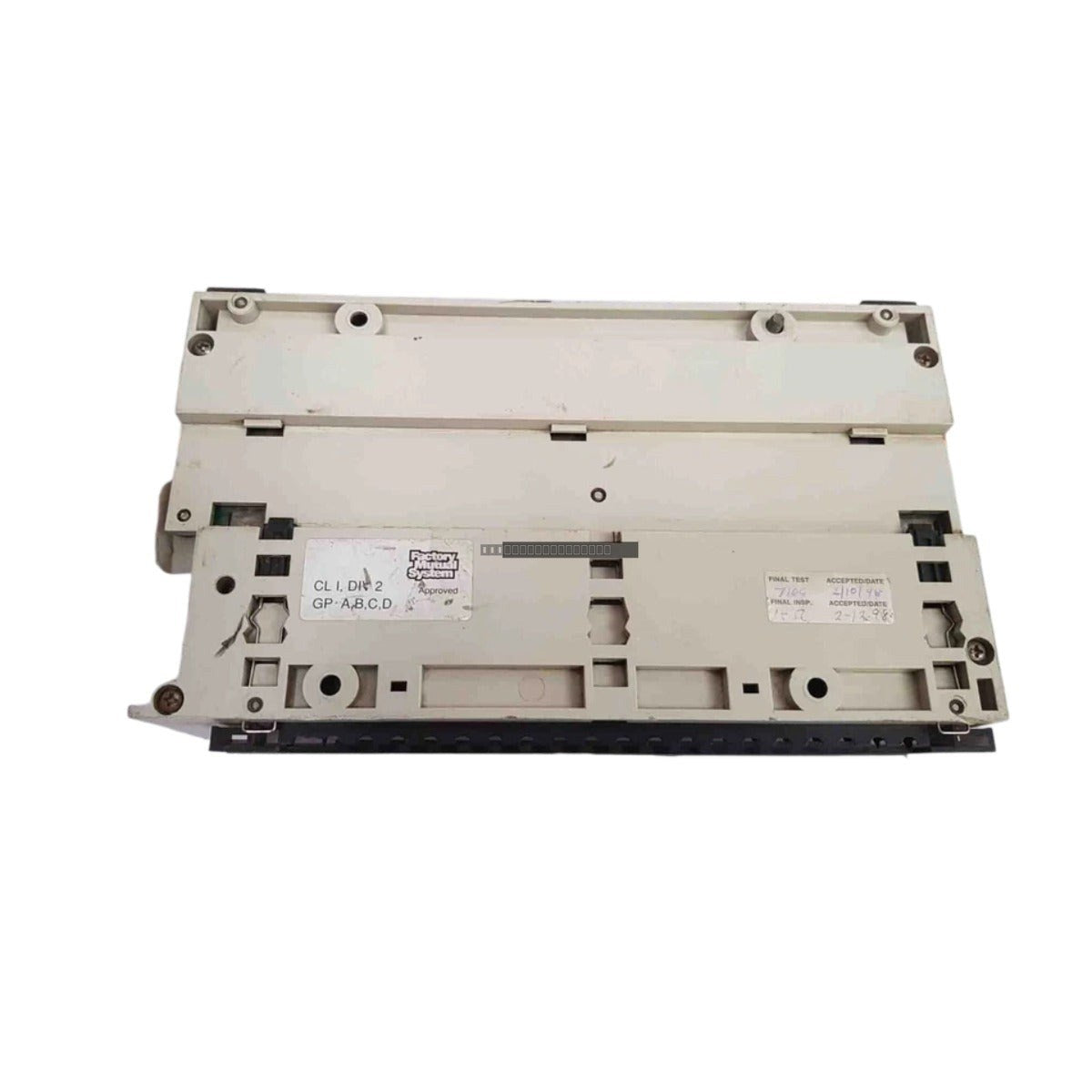

The Schneider 110CPU51200 is a compact CPU module belonging to the Modicon Micro PLC series. Designed for small-to-medium scale automation tasks, this unit integrates processing capabilities with onboard I/O, providing a space-efficient solution for machine control applications.

Features

• Integrated CPU for Modicon Micro PLC systems.
• 16-point digital input capacity (24 VDC).
• 12-point relay output configuration.
• Compact hardware design suitable for modular rack mounting.
• Reliable performance for discrete automation and logic control.

Applications

This module is typically utilized in industrial automation environments requiring local control logic, such as packaging machinery, small conveyor systems, and process control stations where space-saving footprint is critical.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before installing or removing the CPU module to prevent electrical damage.
• Verify that the module is fully seated in the designated rack slot and secured with the appropriate locking mechanism.
• Maintain proper grounding practices for the rack assembly to minimize electromagnetic interference (EMI).
• Ensure adequate ventilation around the controller to prevent overheating during operation.
• Use shielded cabling for input/output signals where high-noise environments are present.

FAQ

Is this module still in production?

No, the 110CPU51200 has been discontinued by the manufacturer. We provide this unit as a refurbished or surplus component.

What is the input voltage for this module?

The digital inputs on this CPU are rated for 24 VDC operation.
