Description

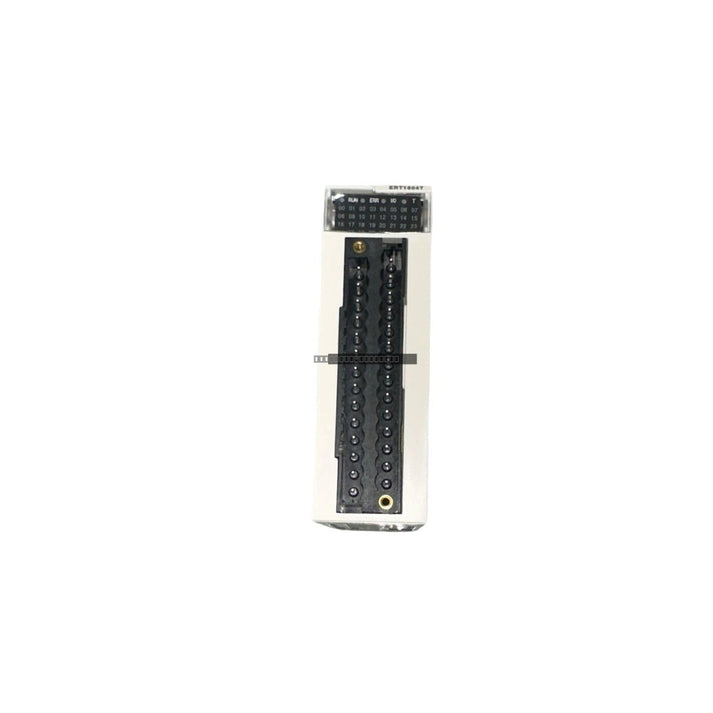

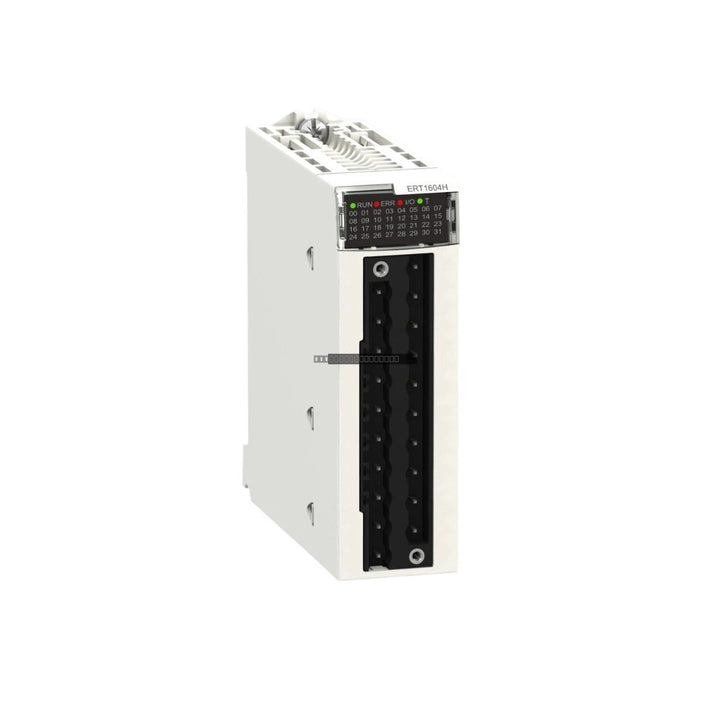

The Schneider BMXERT1604T is a high-performance multifunction input module designed for integration within Modicon M340 automation platforms. This versatile unit is engineered to consolidate mixed-signal processing by accepting a wide range of analog and digital inputs, effectively reducing the total module count required for complex control applications.

Features

• 16 configurable channels providing high I/O density in a compact form factor.
• Integrated support for multiple analog signal types including voltage (0-10V, +/-10V) and current (0-20mA, 4-20mA).
• Comprehensive temperature measurement capabilities supporting various thermocouples (J, K, T, N, E, R, S, B) and RTD sensors (PT100, PT1000, Ni100, Ni1000).
• Dedicated high-speed digital input channels capable of supporting counting frequencies up to 100 kHz for position feedback or pulse monitoring.
• 16-bit analog-to-digital conversion for high-precision signal acquisition.

Technical Specifications

Installation Guidelines

• Ensure the M340 rack is powered down before inserting or removing the module to prevent electrical damage.
• Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperature limits.
• Use shielded cabling for all analog signal inputs to minimize electromagnetic interference (EMI) and ensure signal integrity.
• Verify that the 28-position terminal block is securely seated and properly wired according to the specific channel configuration.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect internal circuitry.

FAQ

Q: Can the BMXERT1604T handle both RTD and thermocouple inputs simultaneously?
A: Yes, the module is designed for multifunctionality and can be configured to handle various analog signal types across its 12 analog channels.

Q: What is the maximum frequency for the high-speed digital inputs?
A: The dedicated high-speed digital channels support counting frequencies up to 100 kHz.
