Description

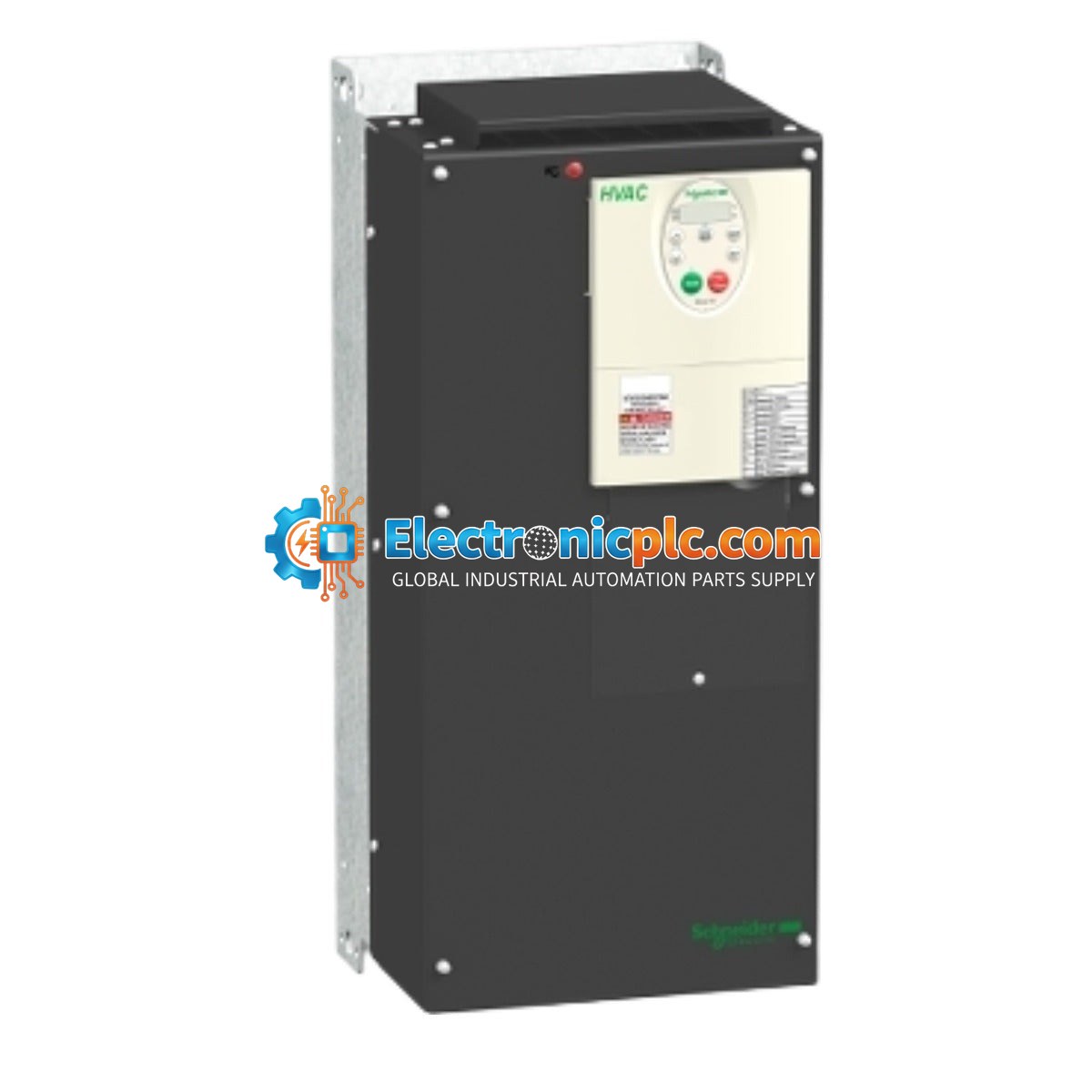

The Schneider Electric ATV212HD45N4 is a high-performance variable speed drive from the Altivar 212 series, specifically engineered for the control of asynchronous motors in HVAC and building management applications. This drive offers precise motor speed regulation and energy efficiency, supporting a power output of 45 kW (60 hp) in a robust, IP21-rated enclosure.

Features

• Optimized for HVAC applications including pumps, fans, and compressors.
• Integrated EMC filter for electromagnetic compatibility.
• Wide supply voltage range (380-480V) to accommodate various industrial power grids.
• Advanced motor control algorithms for asynchronous motor efficiency.
• Compact design with IP21 protection rating for indoor installation.

Technical Specifications

Installation Guidelines

• Ensure the drive is installed in a clean, dry, and well-ventilated environment to maintain optimal operating temperatures.
• Maintain required clearance distances around the unit to ensure proper airflow for cooling.
• Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
• Ensure the drive is properly grounded according to local electrical codes before applying power.
• Always disconnect the power supply and wait for the internal capacitors to discharge before performing any maintenance or wiring changes.
• Verify that the supply voltage matches the specifications on the drive nameplate before commissioning.

FAQ

What is the primary application for the ATV212HD45N4?

This drive is specifically designed for HVAC applications, including the control of fans, pumps, and compressors in commercial and industrial buildings.

Does this unit include an EMC filter?

Yes, the ATV212HD45N4 comes with an integrated EMC filter to help meet electromagnetic compatibility standards in industrial environments.
