Description

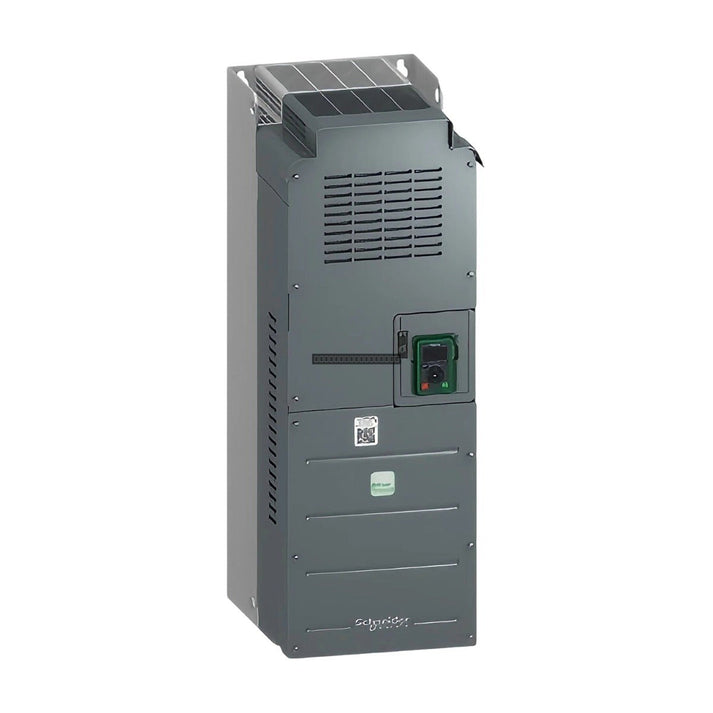

The Schneider Electric Altivar Process ATV610C16N4 is a high-performance variable speed drive designed for industrial motor control applications. Part of the Easy Altivar 610 series, this drive provides reliable speed and torque regulation for three-phase asynchronous motors. It is engineered to optimize energy efficiency and process control in a wide range of industrial environments, offering robust operation within a 380 to 480V power supply range.

Features

• Designed for 3-phase motor control applications.
• Supports a wide output frequency range from 0.1 to 500 Hz.
• Integrated protection features for motor and drive safety.
• Optimized for energy efficiency in industrial process environments.
• Compact IP20-rated enclosure suitable for cabinet mounting.

Applications

This drive is suitable for various industrial sectors, including water and wastewater treatment, HVAC systems, material handling, and general machine automation where precise speed control of 3-phase induction motors is required.

Technical Specifications

Installation Guidelines

• Ensure the drive is mounted in a vertical position to allow for proper heat dissipation.
• Maintain adequate clearance around the unit for ventilation as specified in the manufacturer's manual.
• Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
• Ensure all power connections are tightened to the specified torque values to prevent overheating.
• Always disconnect the power supply and wait for the internal capacitors to discharge before performing any maintenance or wiring tasks.
• Verify that the supply voltage matches the drive's rated input voltage before energizing.

FAQ

What is the primary function of the ATV610C16N4?
This device is a variable speed drive used to control the speed and torque of 3-phase asynchronous motors in industrial processes.

What is the enclosure rating for this drive?
The ATV610C16N4 features an IP20 protection rating, making it suitable for installation within an electrical control cabinet.

Can this drive be used with single-phase power?
No, this specific model is designed for 3-phase power input and output.
