Description

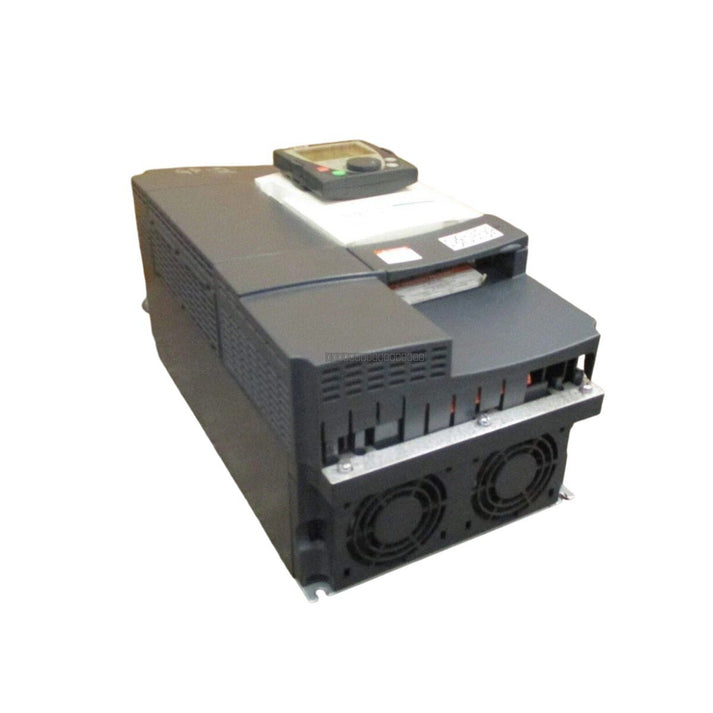

The Schneider Electric Altivar 61 ATV61HD15N4 is a high-performance variable speed drive designed for precise motor control in industrial applications. Engineered for reliability and efficiency, this drive is specifically optimized for pumping and ventilation systems, providing advanced control features and seamless integration into industrial automation networks.

Features

• Designed for 15 kW (20 HP) motor applications.
• Supports 3-phase power supply ranging from 380V to 480V.
• Integrated graphic terminal for intuitive configuration and monitoring.
• IP20 protection rating suitable for cabinet-mounted installations.
• Built-in EMC filtering to reduce electromagnetic interference in sensitive environments.

Applications

This drive is ideal for HVAC systems, centrifugal pumps, fans, and compressors where energy efficiency and precise flow or pressure control are required.

Technical Specifications

Installation Guidelines

• Ensure the drive is installed in a clean, dry, and well-ventilated environment to prevent overheating.
• Maintain adequate clearance around the unit as specified in the installation manual to allow for proper airflow.
• Ensure all power connections are tightened to the specified torque settings to prevent arcing or loose contacts.
• Verify that the supply voltage matches the drive specifications before applying power.
• Always disconnect and lock out power sources before performing any wiring or maintenance.
• Use shielded cables for motor connections to minimize electromagnetic interference.
• Ground the drive according to local electrical codes and the manufacturer's grounding diagram.

FAQ

Is this drive suitable for heavy-duty industrial motors?

The ATV61HD15N4 is specifically optimized for pumping and ventilation applications. For high-torque or heavy-duty industrial machinery, please consult the product datasheet to ensure the drive's current rating matches your motor's full-load amperage.

Does this unit include a control interface?

Yes, this model comes equipped with a graphic terminal, allowing for easy parameter adjustment, diagnostics, and real-time status monitoring.
