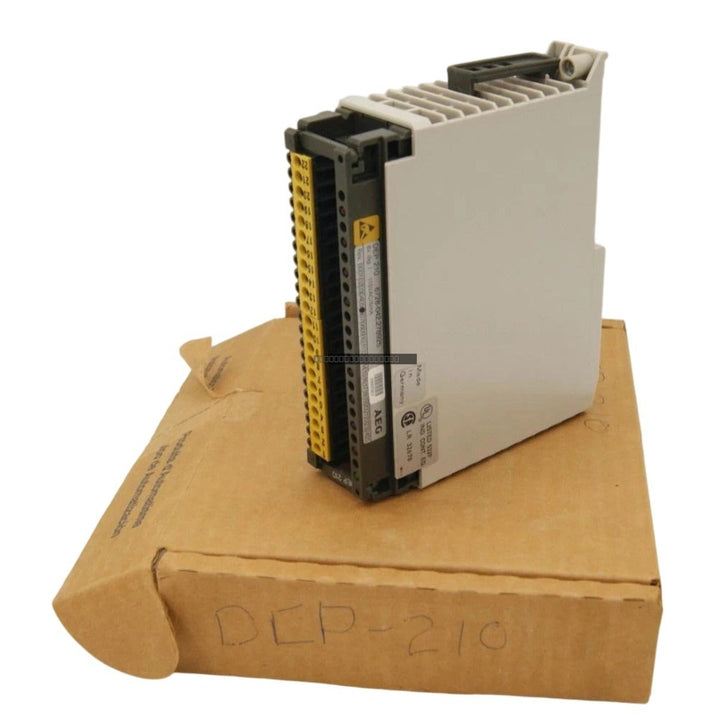

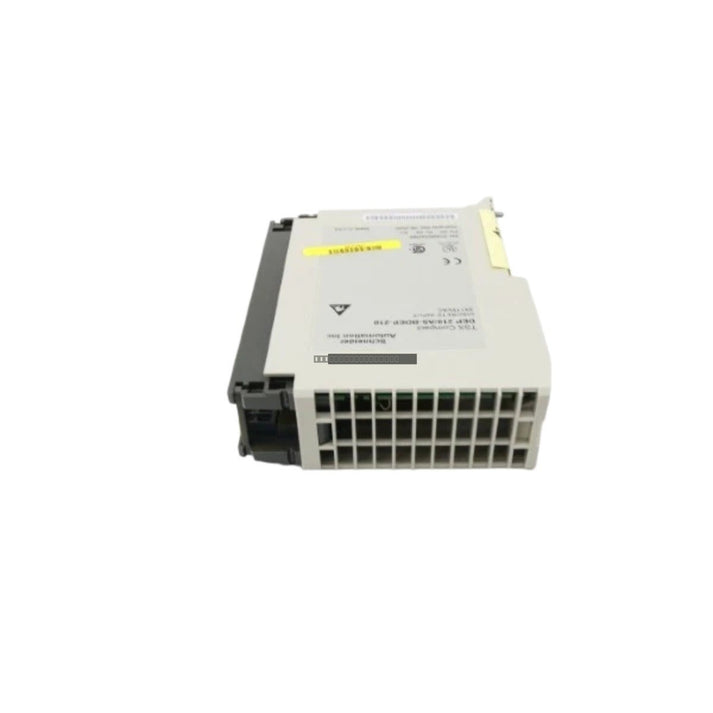

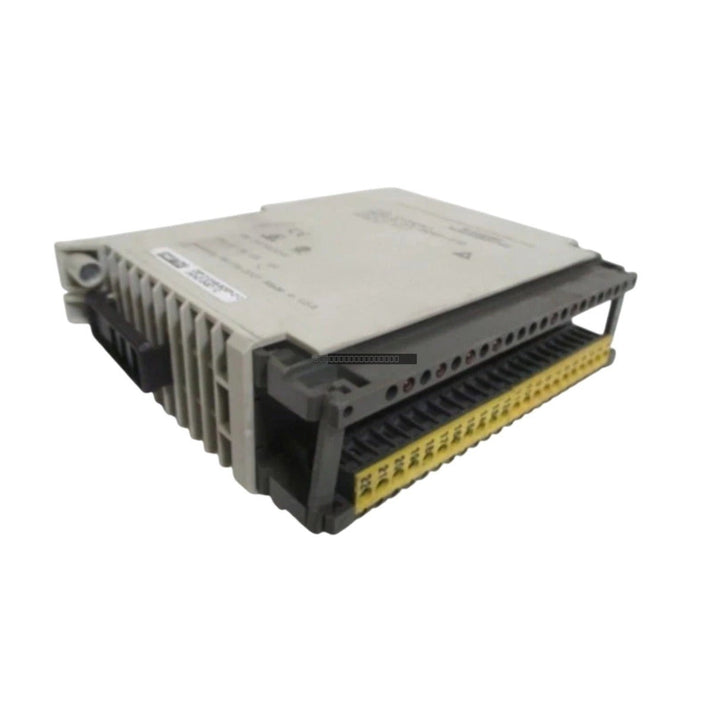

The Schneider Electric DEP-210 is an 8-point discrete input module designed for industrial control applications. This module provides isolated signal processing for 120 V AC inputs, operating at standard industrial frequencies of 50/60 Hz. Please note that this specific model has been discontinued by the manufacturer.

Features

• 8-point discrete input configuration
• Isolated input channels for enhanced signal integrity
• Compatible with 120 V AC input signals
• Supports 50/60 Hz line frequencies
• Designed for integration into standard PLC rack systems

Applications

This module is typically utilized in legacy automation systems requiring reliable 120 V AC discrete input sensing. It is commonly found in manufacturing, process control, and machine automation environments where isolated digital input monitoring is required for system status and feedback.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the input voltage matches the module specifications (120 V AC) before wiring.
• Use shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Ensure proper grounding of the control cabinet to maintain signal isolation integrity.
• Handle the module with care to prevent electrostatic discharge (ESD) damage to internal components.

FAQ

Is the DEP-210 still being manufactured?

No, the Schneider Electric DEP-210 has been discontinued by the manufacturer. We provide this unit as a reliable replacement for existing legacy systems.

What is the input voltage for this module?

The DEP-210 is designed for 120 V AC discrete input signals at 50/60 Hz.

Does this module support isolation?

Yes, the DEP-210 features isolated inputs to help protect the control system from voltage spikes and ground loops.
