Description

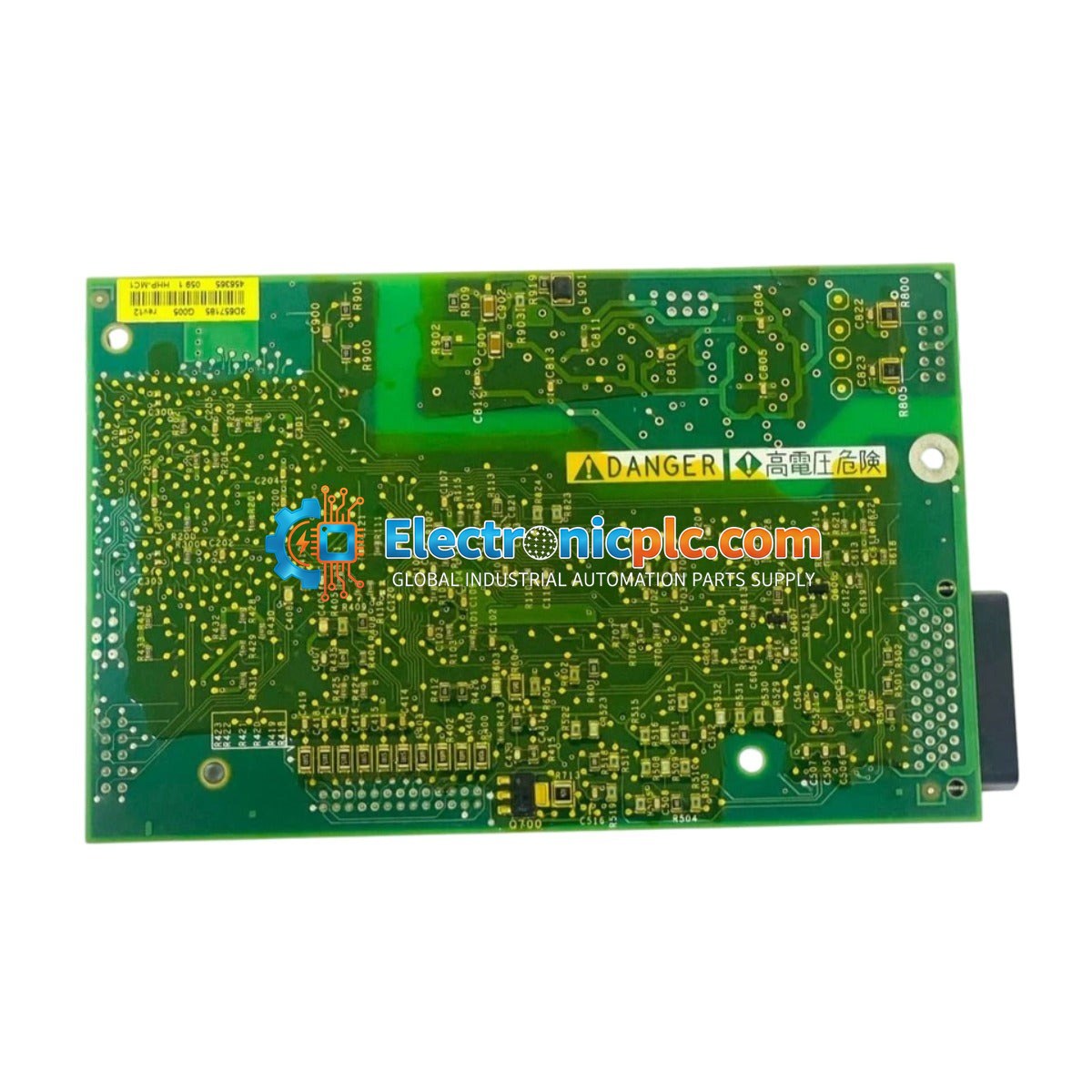

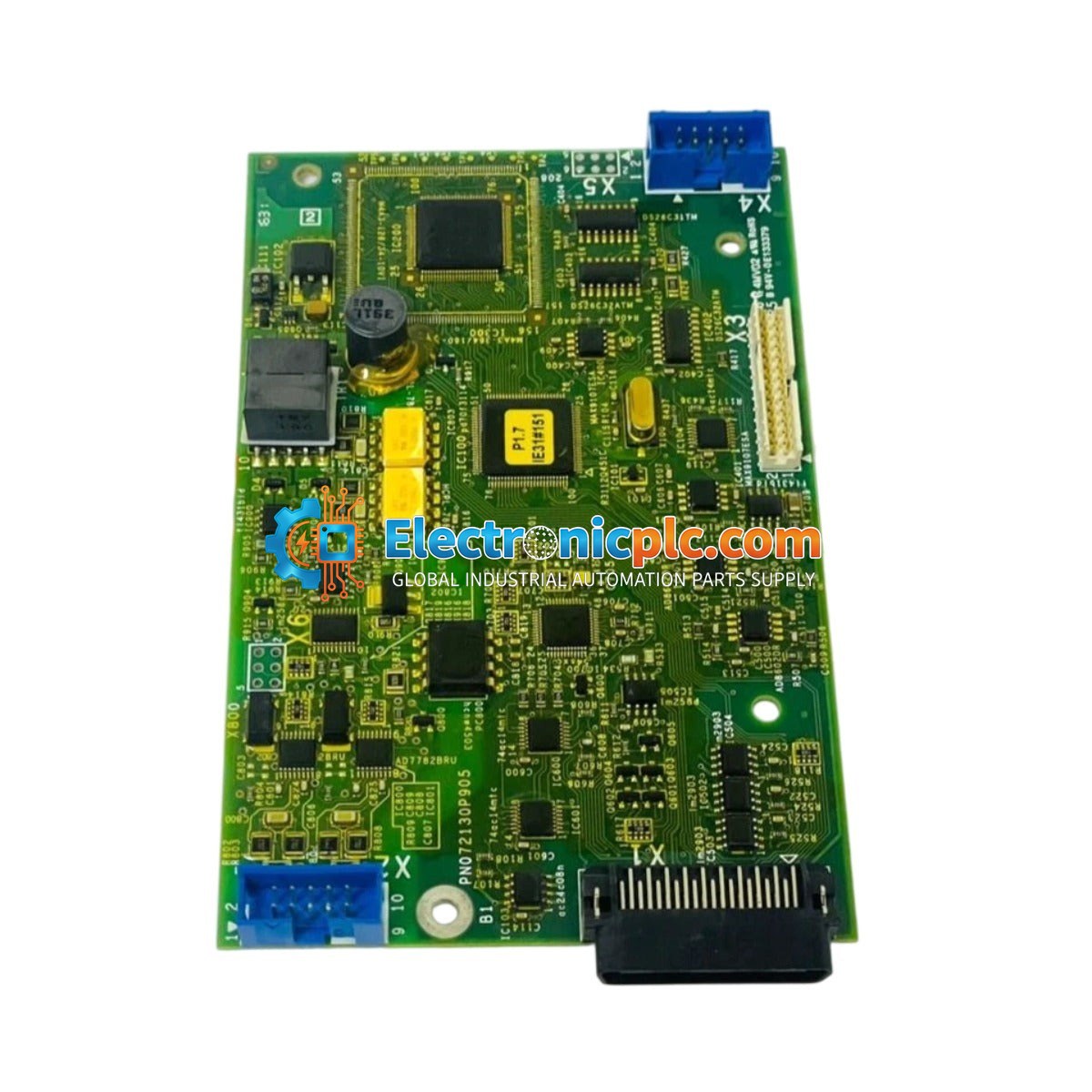

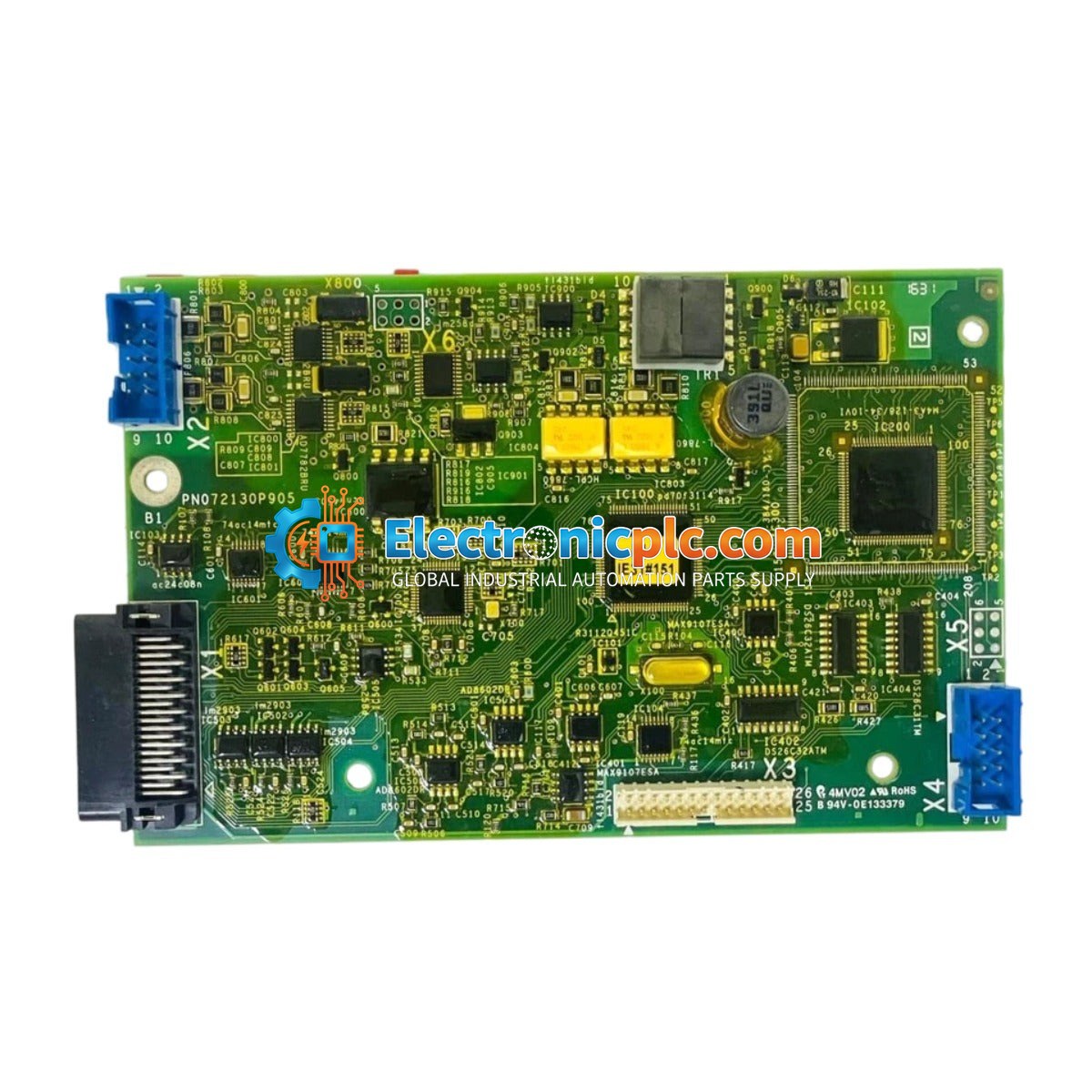

The Schneider Electric PN072130P905 is a specialized Inverter Control Power Board designed for use within the Modicon Premium automation and drive control ecosystem. This component serves as a critical power management interface, regulating control-side voltage and ensuring stable operation of the inverter logic circuitry under industrial power conditions.

Features

• Engineered for high-reliability industrial inverter control applications.
• Supports a wide input voltage range for 3-phase AC systems.
• Designed for integration within the Modicon Premium series architecture.
• Robust construction to withstand standard industrial environmental conditions.

Technical Specifications

Installation Guidelines

• Ensure the main power supply is disconnected and locked out before attempting to install or remove the control board.
• Handle the PCB using ESD-safe practices to prevent damage to sensitive electronic components.
• Verify that the mounting surface is clean and free of conductive debris.
• Ensure proper seating of all connectors and ribbon cables to prevent intermittent signal loss.
• Maintain adequate ventilation around the inverter housing to ensure the board operates within the specified temperature range.

FAQ

Is this board compatible with all Modicon Premium drives?

This board is specific to the PN072130P905 model configuration. Please verify your existing drive's part number and revision level to ensure compatibility before installation.

What should I do if the board shows a fault?

If the board indicates a fault, check the input voltage levels against the specified 380-690V AC range and inspect the physical connections for signs of corrosion or loose wiring. If the fault persists, professional diagnostic testing of the inverter control section is recommended.
