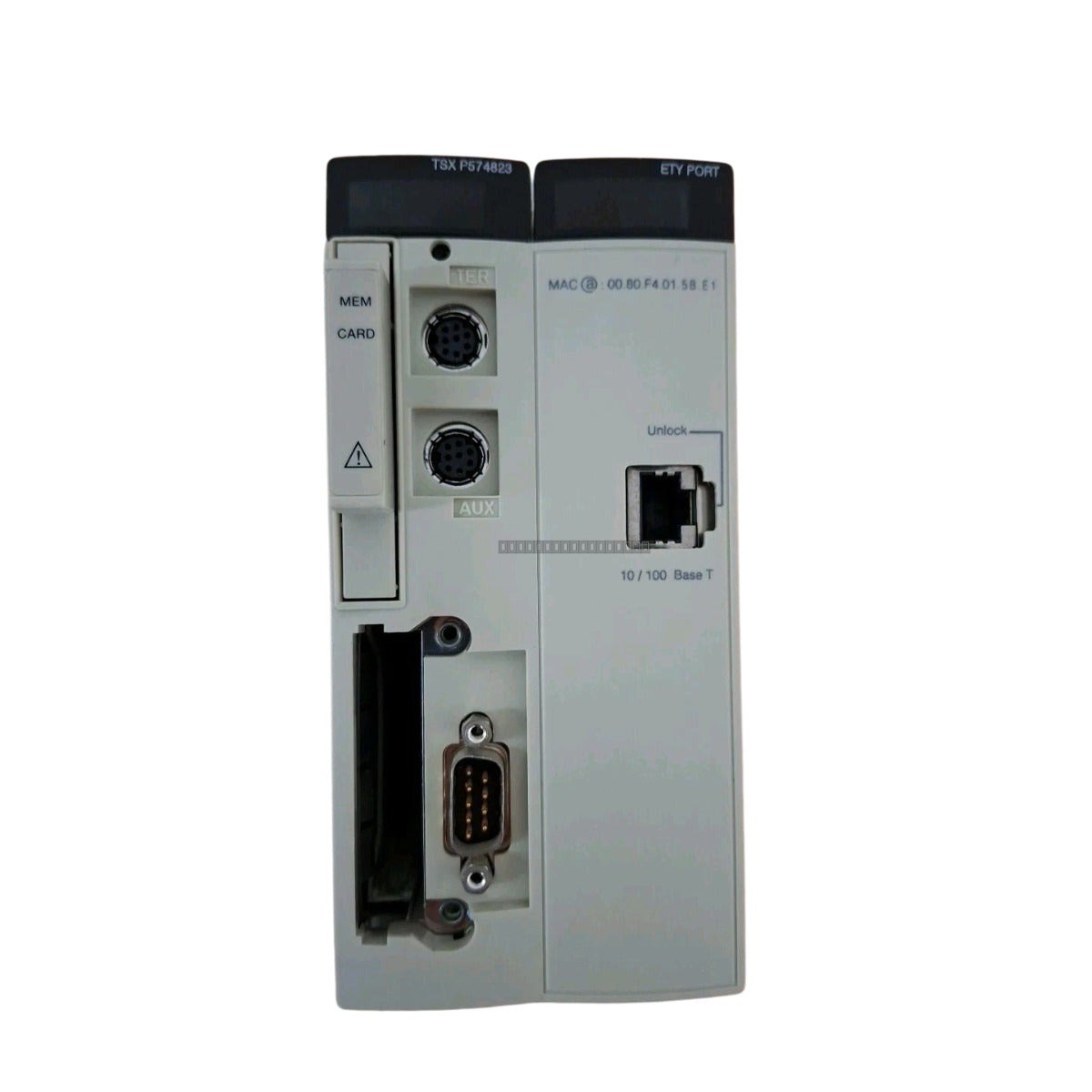

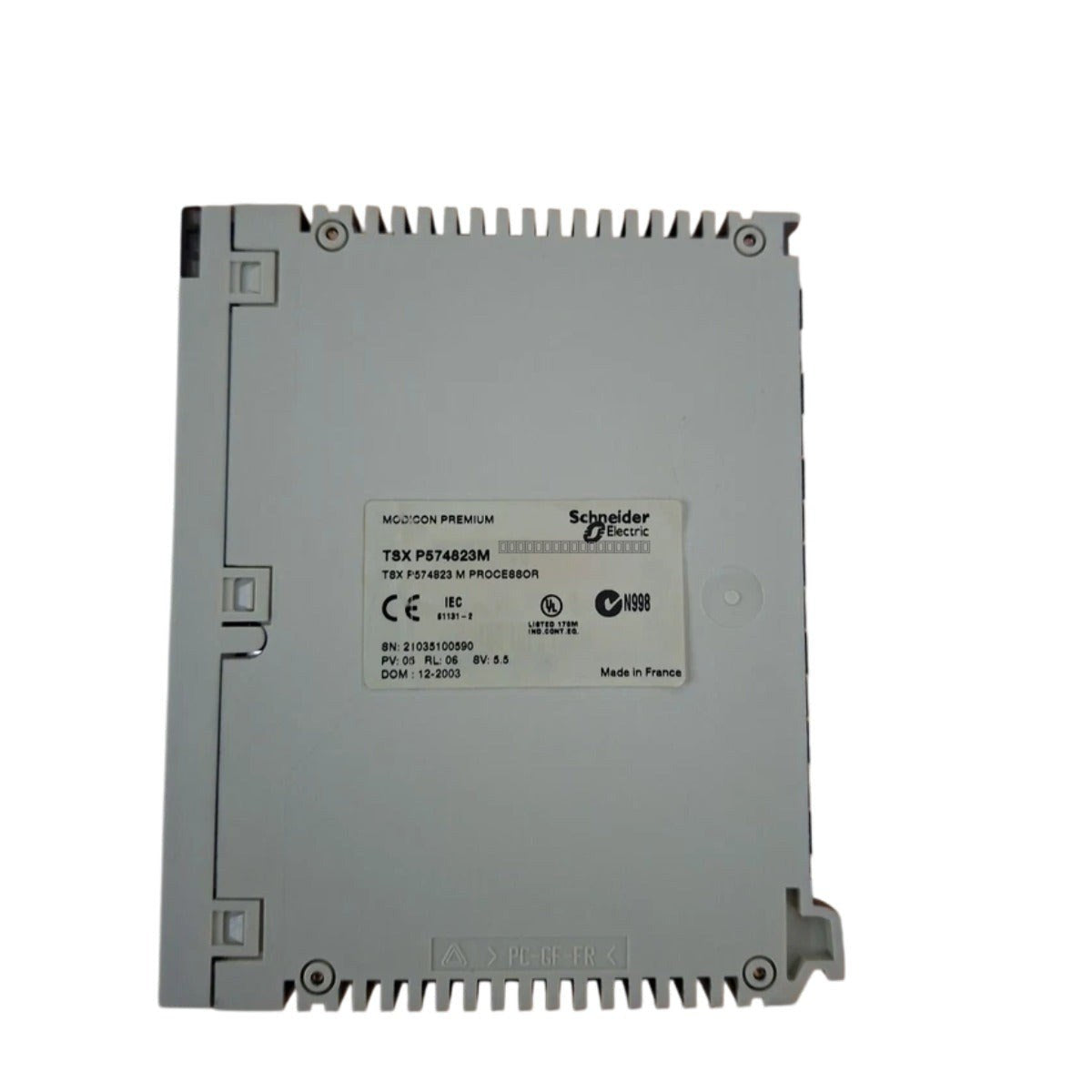

The Schneider Electric TSXP574823M is a high-performance standalone processor module designed for the Modicon Premium automation platform. Engineered for demanding industrial control applications, this processor provides robust execution of complex logic and high-speed data processing for large-scale automation systems.

Features

• Advanced 32-bit RISC processor architecture for efficient instruction execution.
• Integrated memory configuration including 768 KB RAM and 256 KB Flash.
• High-speed processing capability with an instruction cycle time of 0.23 microseconds.
• Supports extensive I/O configurations, managing up to 512 digital and 128 analog points.
• Integrated communication interfaces including Modbus RS-485 and USB for flexible connectivity.

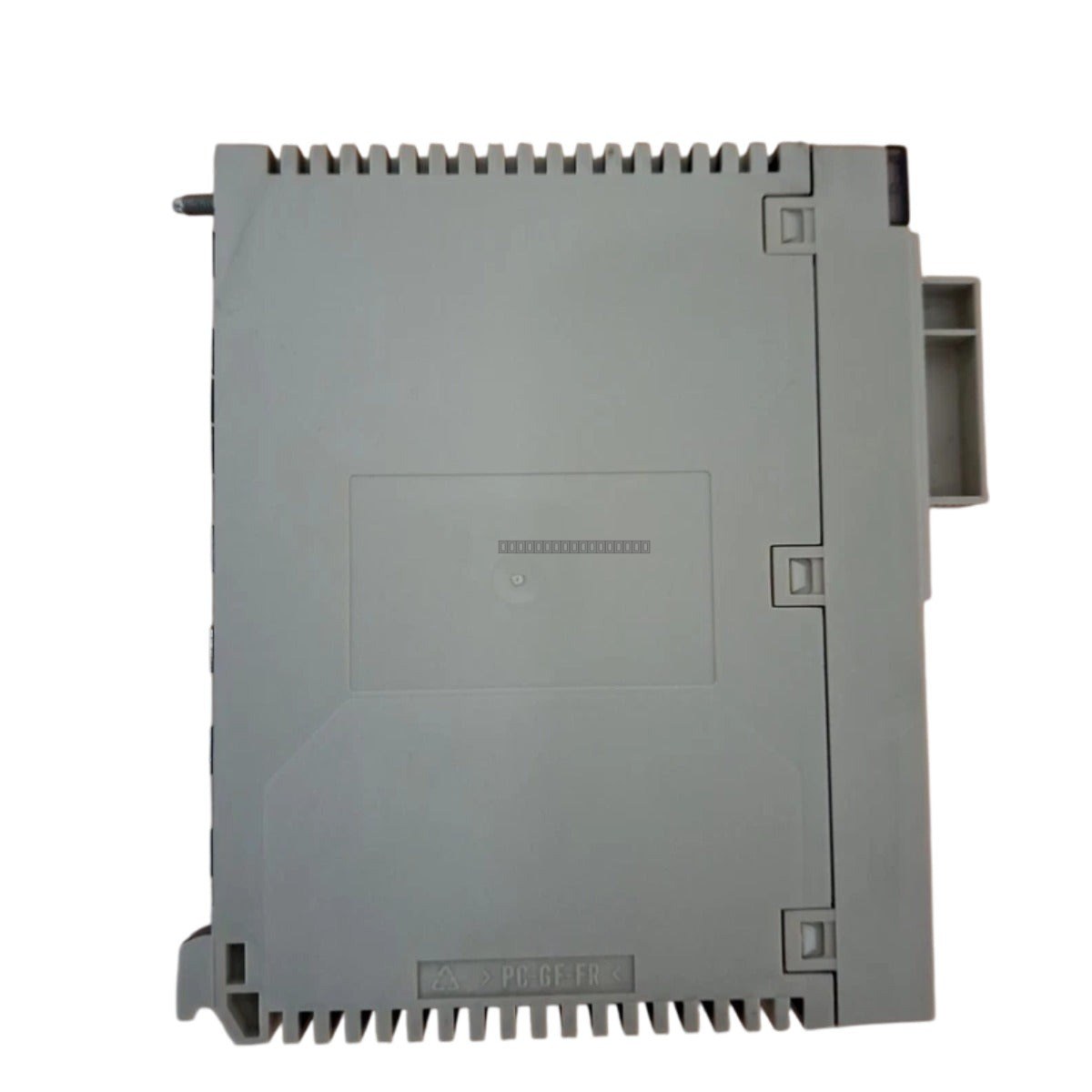

• Durable housing with integrated heat dissipation fins to ensure thermal stability in industrial environments.

Applications

This processor module is suitable for complex machine control, process automation, and supervisory tasks within the Modicon Premium ecosystem, providing reliable performance in manufacturing, water treatment, and infrastructure control systems.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before installing or removing the processor module to prevent electrical damage.
• Verify that the module is correctly seated in the designated slot and that the locking mechanism is engaged.
• Maintain adequate clearance around the module to allow for proper airflow and heat dissipation.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module.
• Ensure all communication cables are properly shielded and routed away from high-voltage power lines to minimize EMI interference.

FAQ

What is the primary function of the TSXP574823M?
The TSXP574823M is a standalone processor module for the Modicon Premium series, responsible for executing control logic and managing I/O data for industrial automation processes.

Does this module require a backup battery?
Yes, the unit includes an integrated 3V lithium backup battery to maintain memory and real-time clock functions during power loss.
