Description

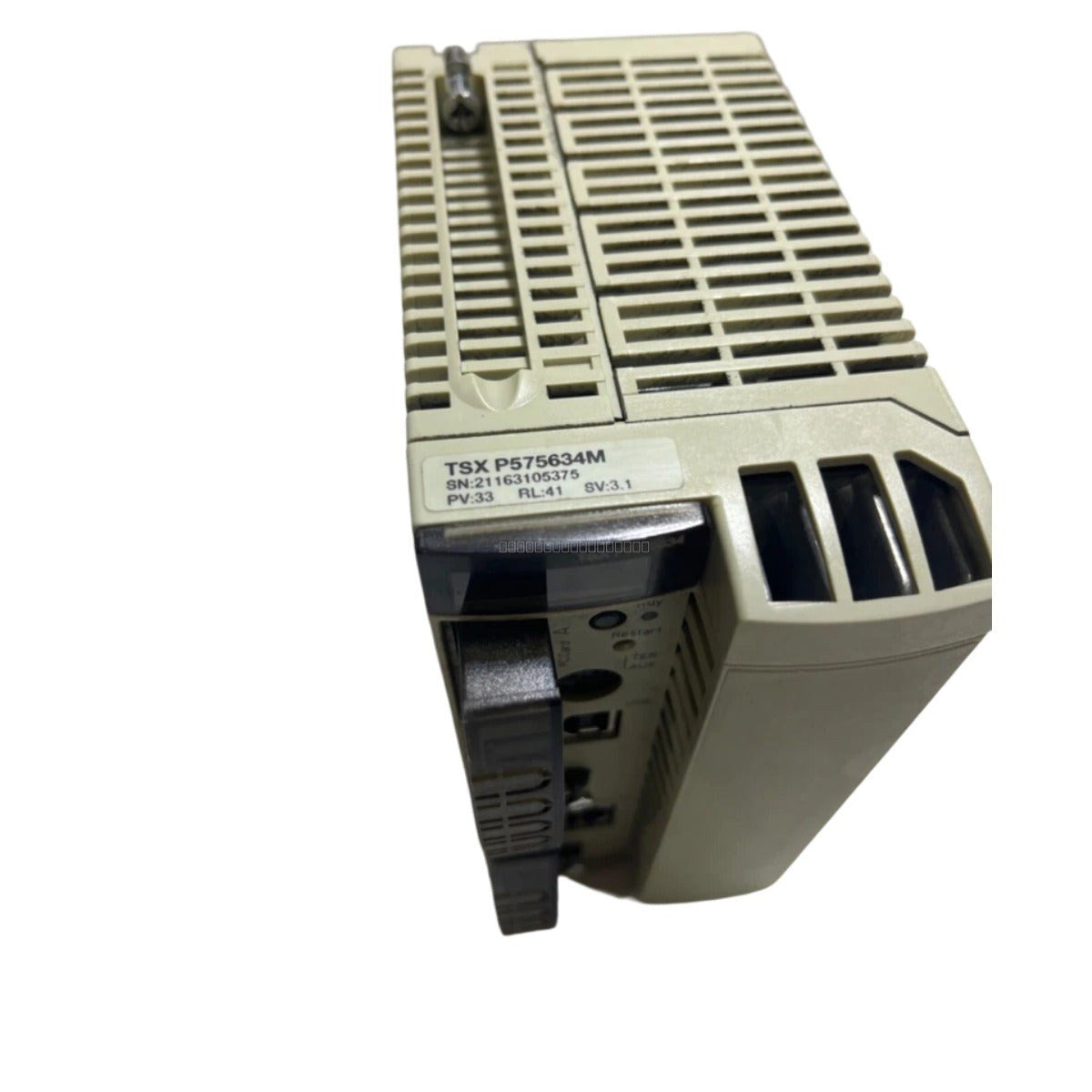

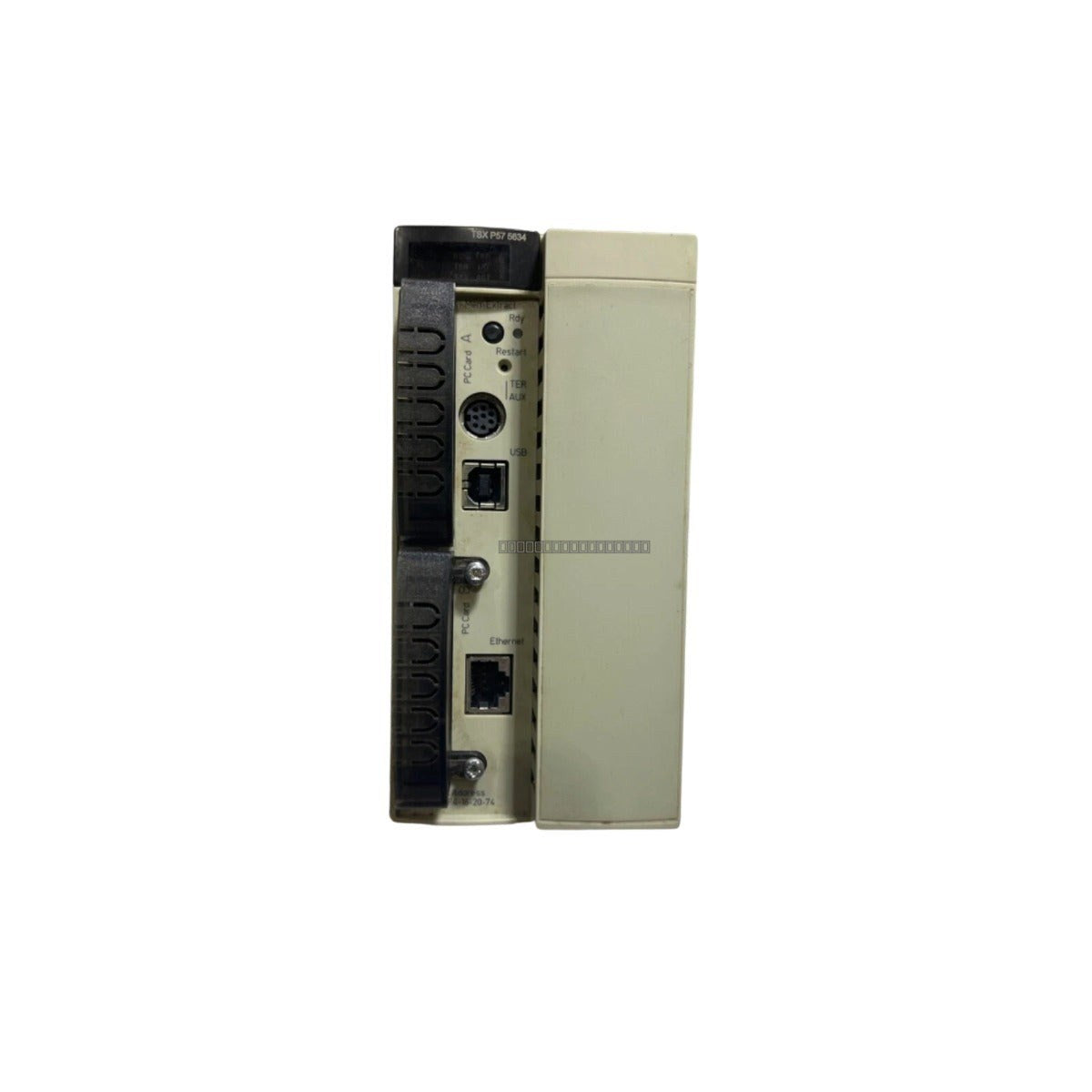

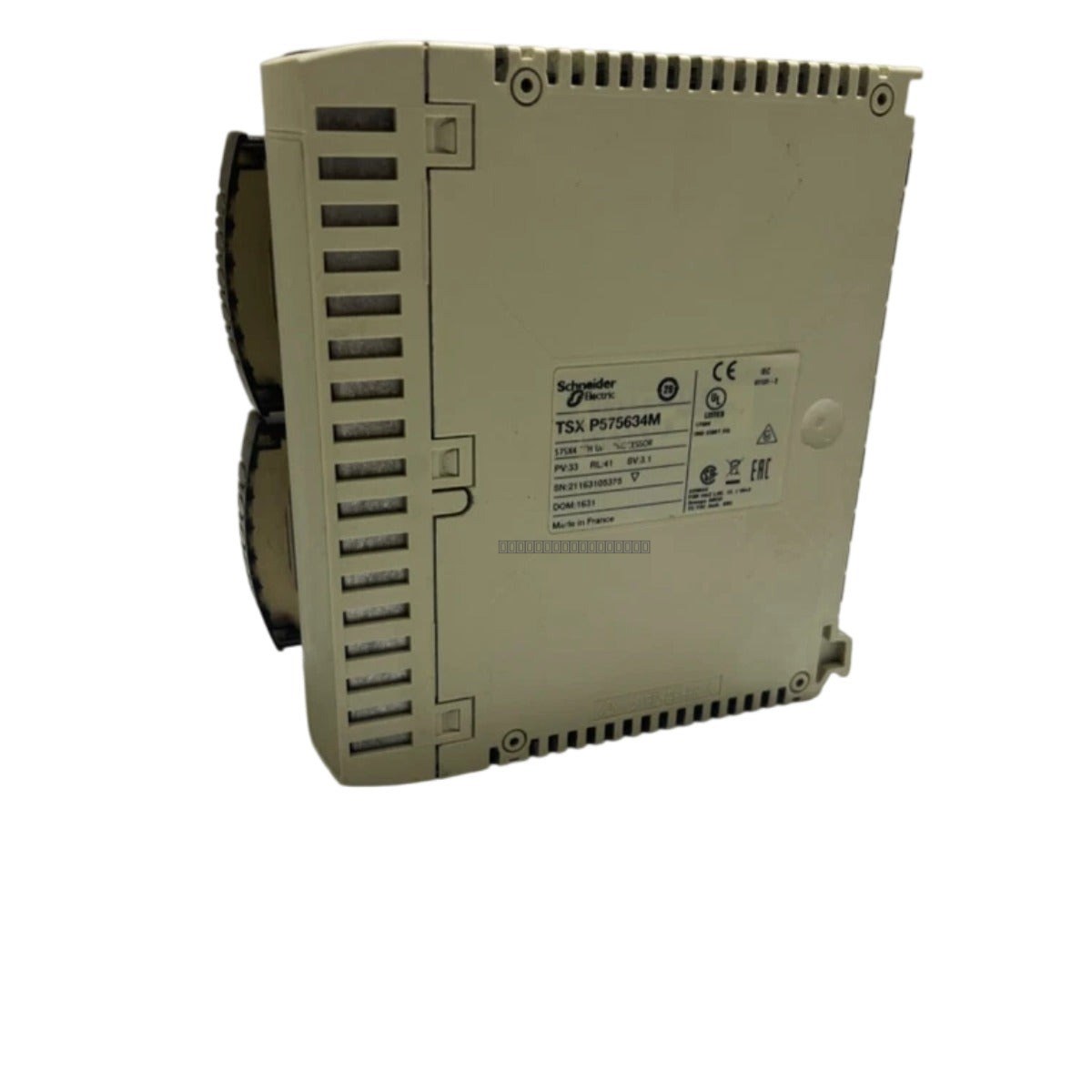

The Schneider Electric TSXP575634M is a high-performance Unity processor designed for the Modicon Premium automation platform. This module serves as the central processing unit, engineered to execute complex control logic and manage large-scale automation tasks with high reliability and speed. It is built to support the scalable architecture required for demanding industrial control environments.

Features

• Advanced Unity processing platform for optimized execution of control programs.
• Designed for seamless integration within Modicon Premium rack-based systems.
• High-speed processing capabilities suitable for complex automation strategies.
• Robust architecture ensuring stability in industrial environments.

Applications

This processor is typically deployed in large-scale manufacturing, process control, and infrastructure automation systems where high-speed logic execution and scalable I/O management are required.

Technical Specifications

Installation Guidelines

• Ensure the rack power is disconnected before inserting or removing the processor module.
• Verify that the module is correctly seated in the designated Premium rack slot to ensure proper backplane communication.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.
• Ensure adequate ventilation around the rack assembly to maintain operating temperatures within specified limits.
• Check that all firmware and software configurations are compatible with the Unity platform requirements before commissioning.

FAQ

Is this processor compatible with all Premium series racks?

Yes, the TSXP575634M is designed for standard Modicon Premium rack assemblies. Please ensure your specific rack configuration and power supply are rated for this processor model.

Does this unit require specific software for programming?

The TSXP575634M is part of the Unity platform and typically requires the Unity Pro (now EcoStruxure Control Expert) software suite for configuration and programming.
