Description

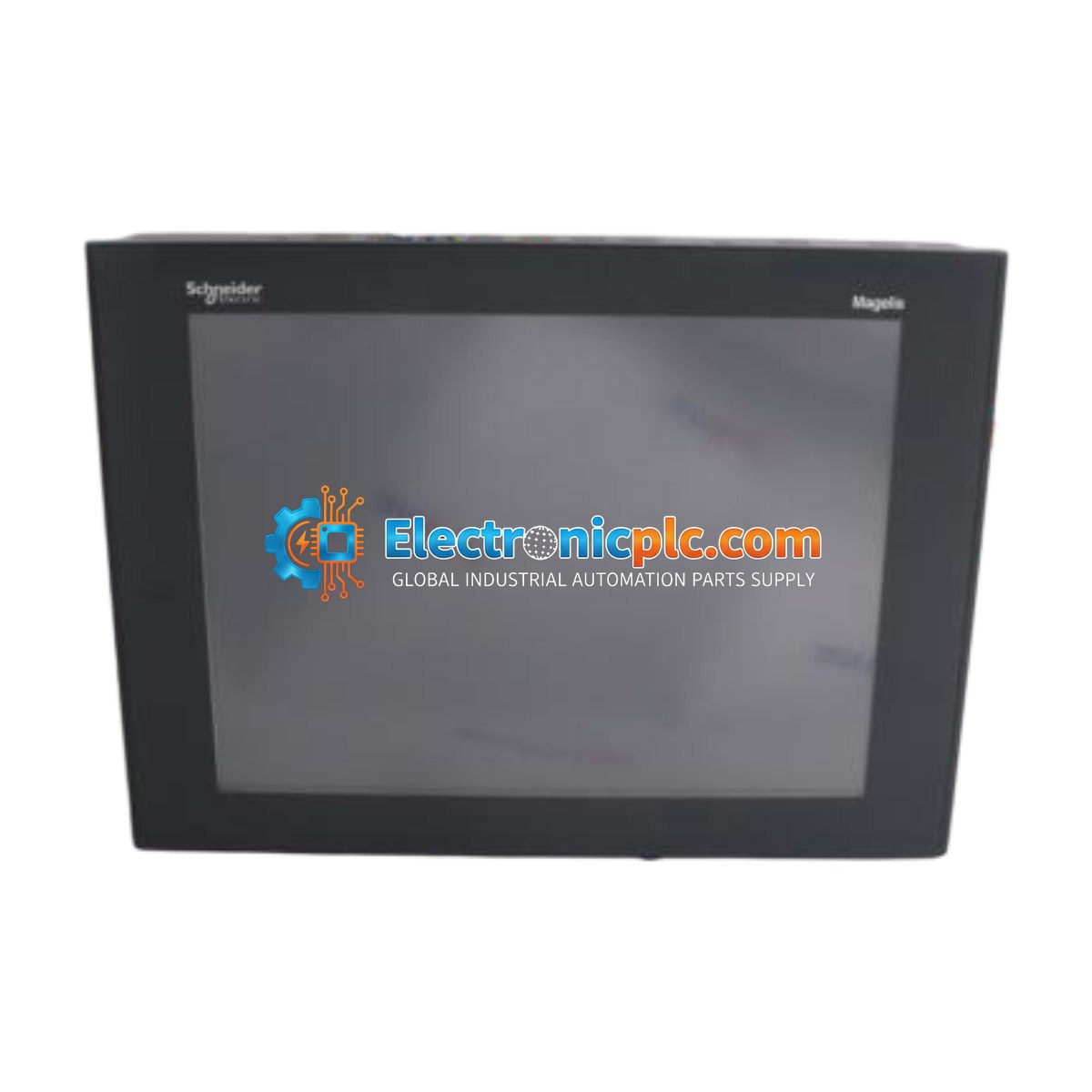

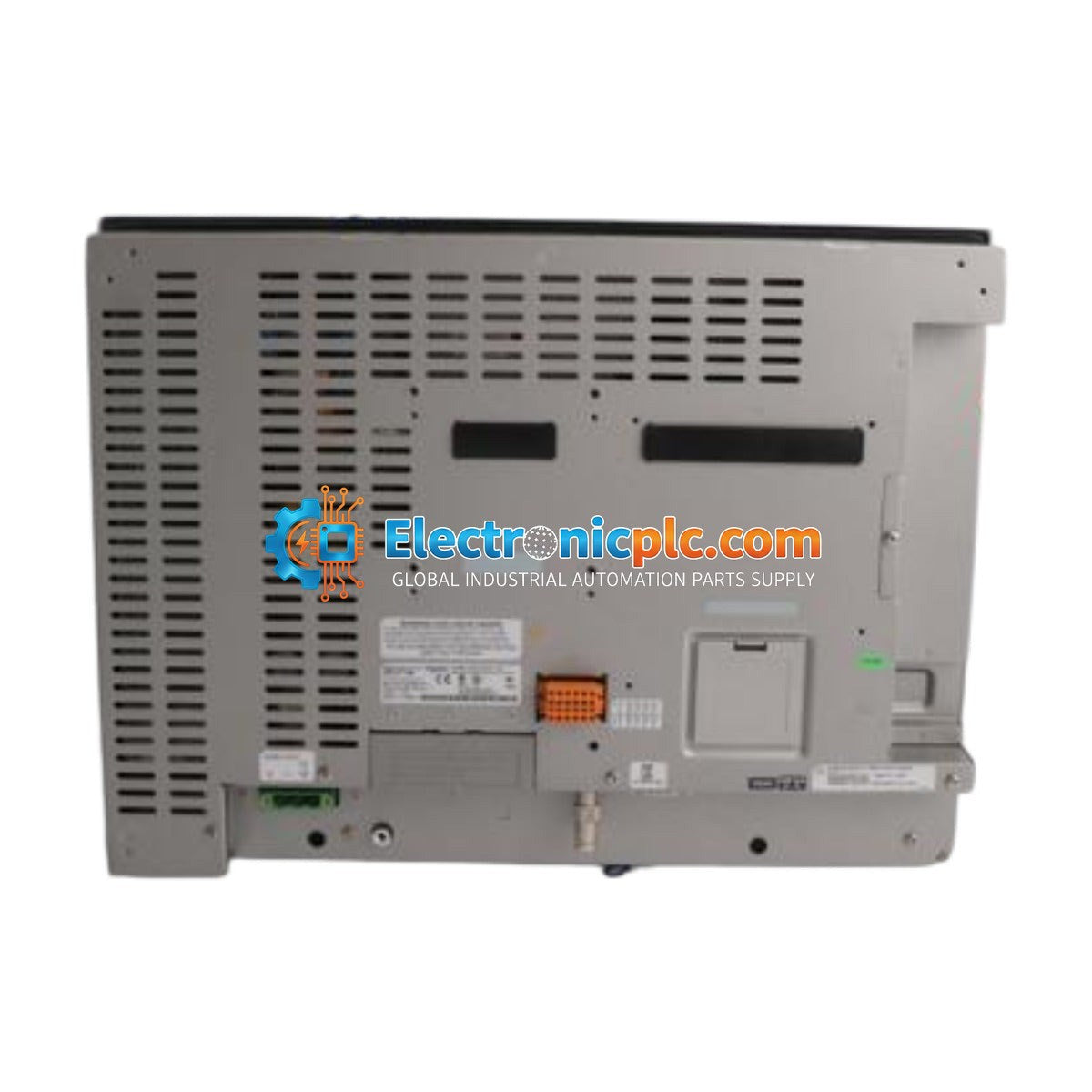

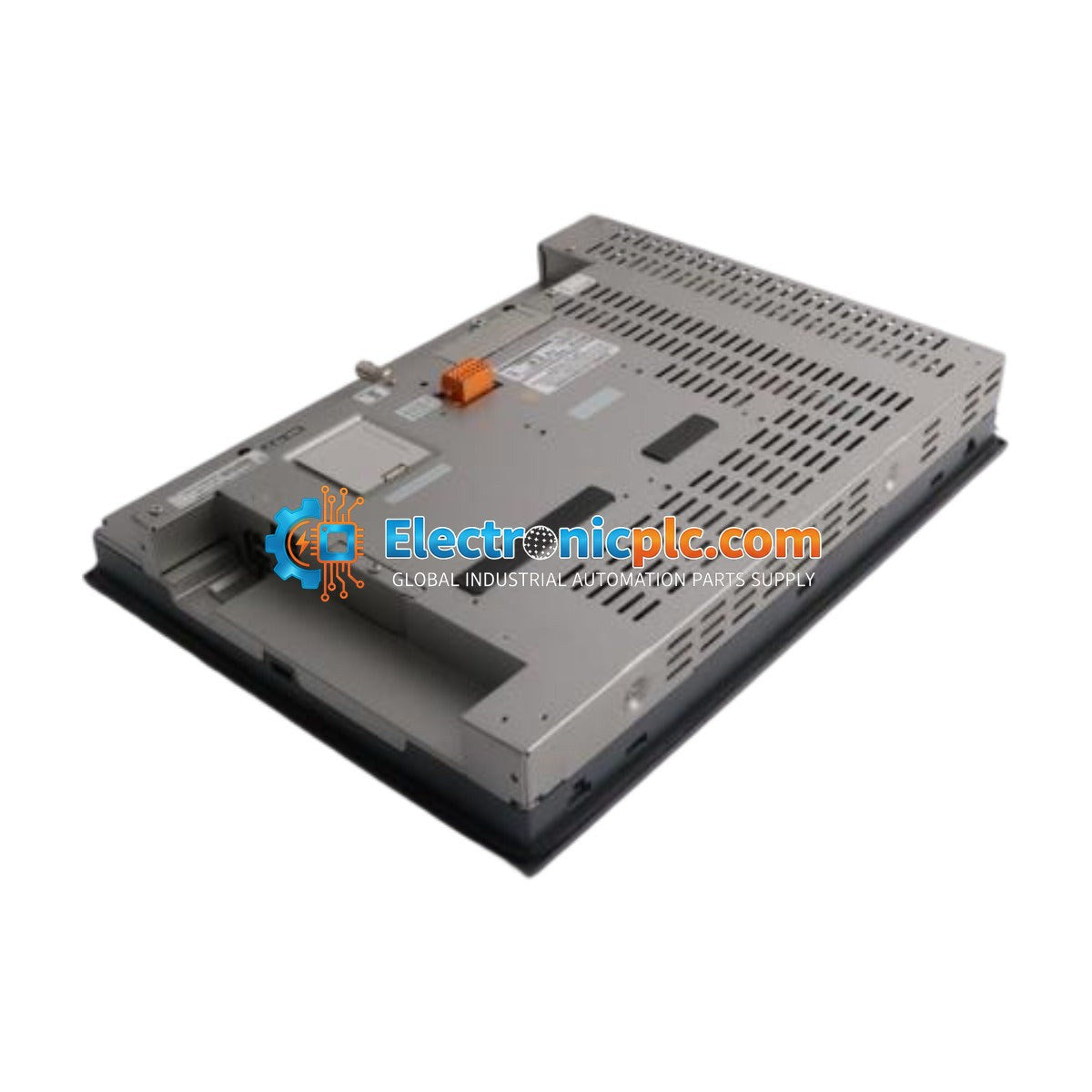

The Schneider Electric XBTGT2220 is an advanced touchscreen operator interface terminal designed for industrial automation and visualization applications. Featuring a 5.7-inch color display, this unit provides clear monitoring and control capabilities for PLC systems and machine processes. Although now discontinued by the manufacturer, the XBTGT2220 remains a widely utilized HMI for legacy system maintenance and replacement.

Features

• 5.7-inch QVGA display with 320 x 240 pixel resolution.
• Supports 4096 display colors for clear process visualization.
• Integrated 133 MHz RISC processor for responsive interface performance.
• 16 MB Flash EPROM for project storage and 512 KB SRAM for backup data.
• Robust industrial design suitable for panel-mount integration.

Applications

This HMI panel is typically used in manufacturing environments for machine control, parameter setting, and alarm monitoring. It is compatible with various Schneider Electric automation platforms and is often found in packaging machinery, material handling systems, and assembly line control panels.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout dimensions are verified against the official installation manual before mounting.
• Use the provided mounting gaskets to maintain the required IP rating for the enclosure.
• Ensure the unit is installed in an environment free from excessive vibration and extreme temperatures.
• Verify that the power supply voltage matches the specifications on the device nameplate before wiring.
• Always disconnect power before performing any wiring or maintenance tasks to prevent electrical damage.
• Route communication cables away from high-voltage power lines to minimize EMI interference.

FAQ

Is the XBTGT2220 still available from the manufacturer?
No, the XBTGT2220 has been discontinued by Schneider Electric. We provide refurbished or surplus units to support legacy system maintenance.

What is the primary use of this HMI?
The XBTGT2220 serves as an operator interface for monitoring and controlling industrial machinery, allowing users to interact with PLC data through a graphical interface.
