Description

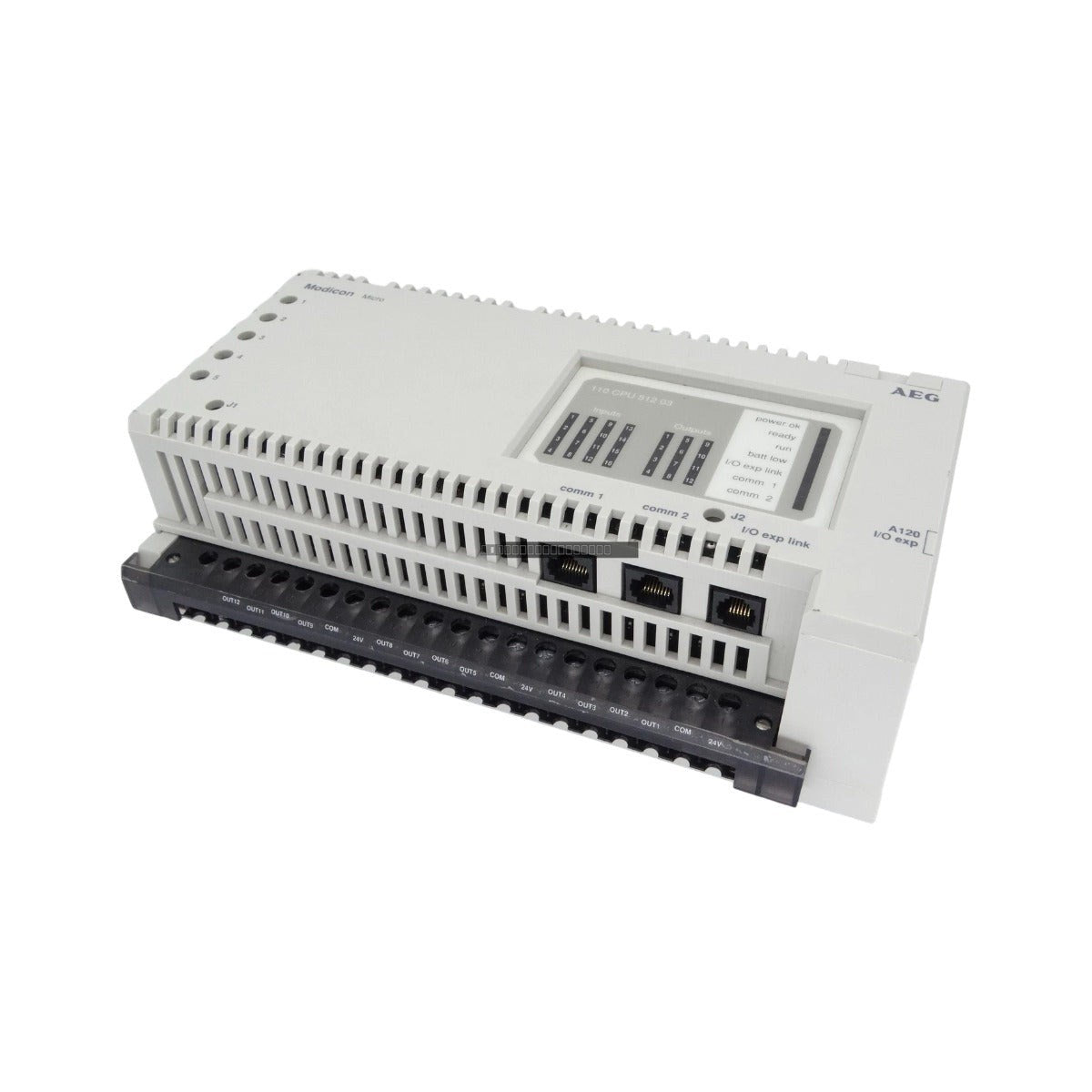

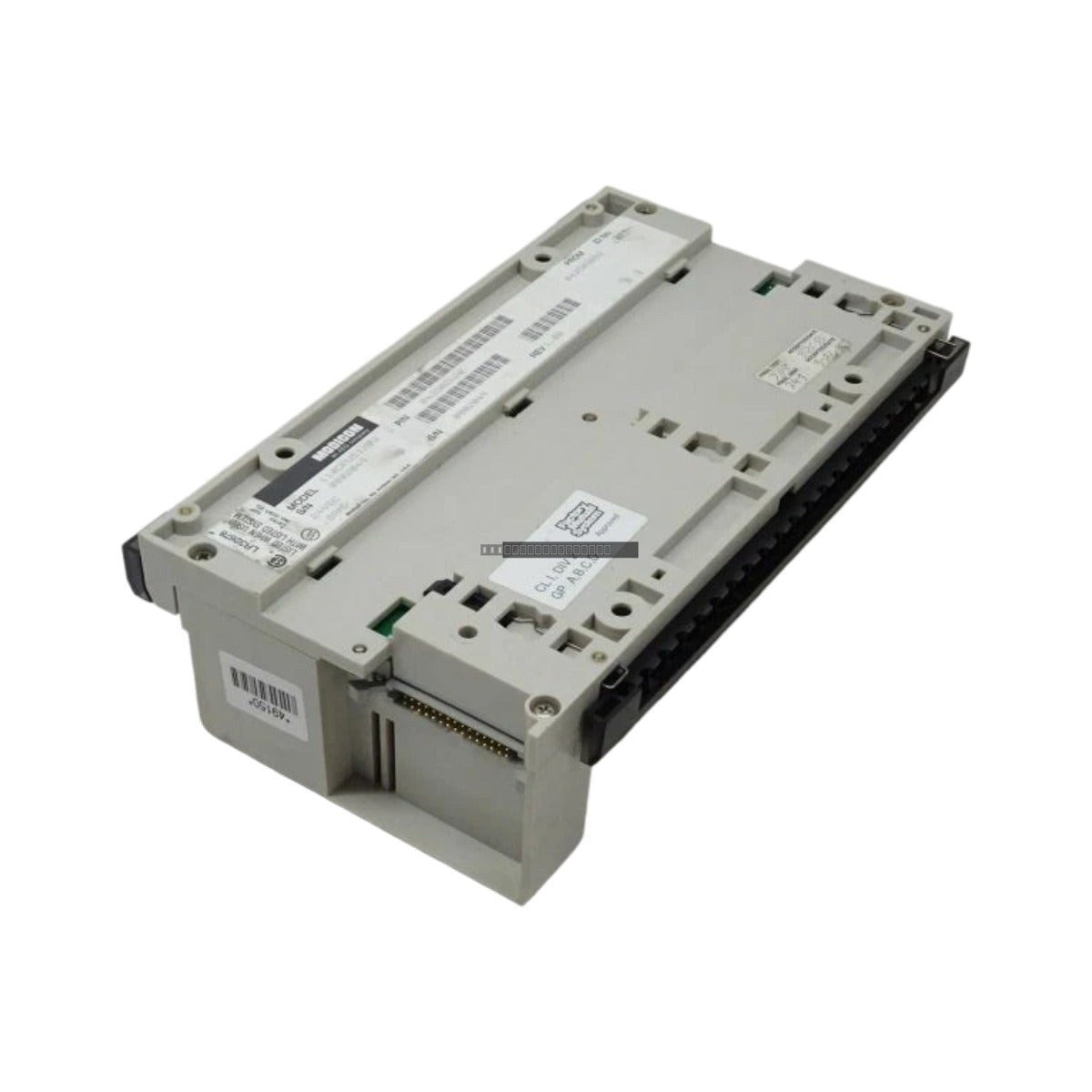

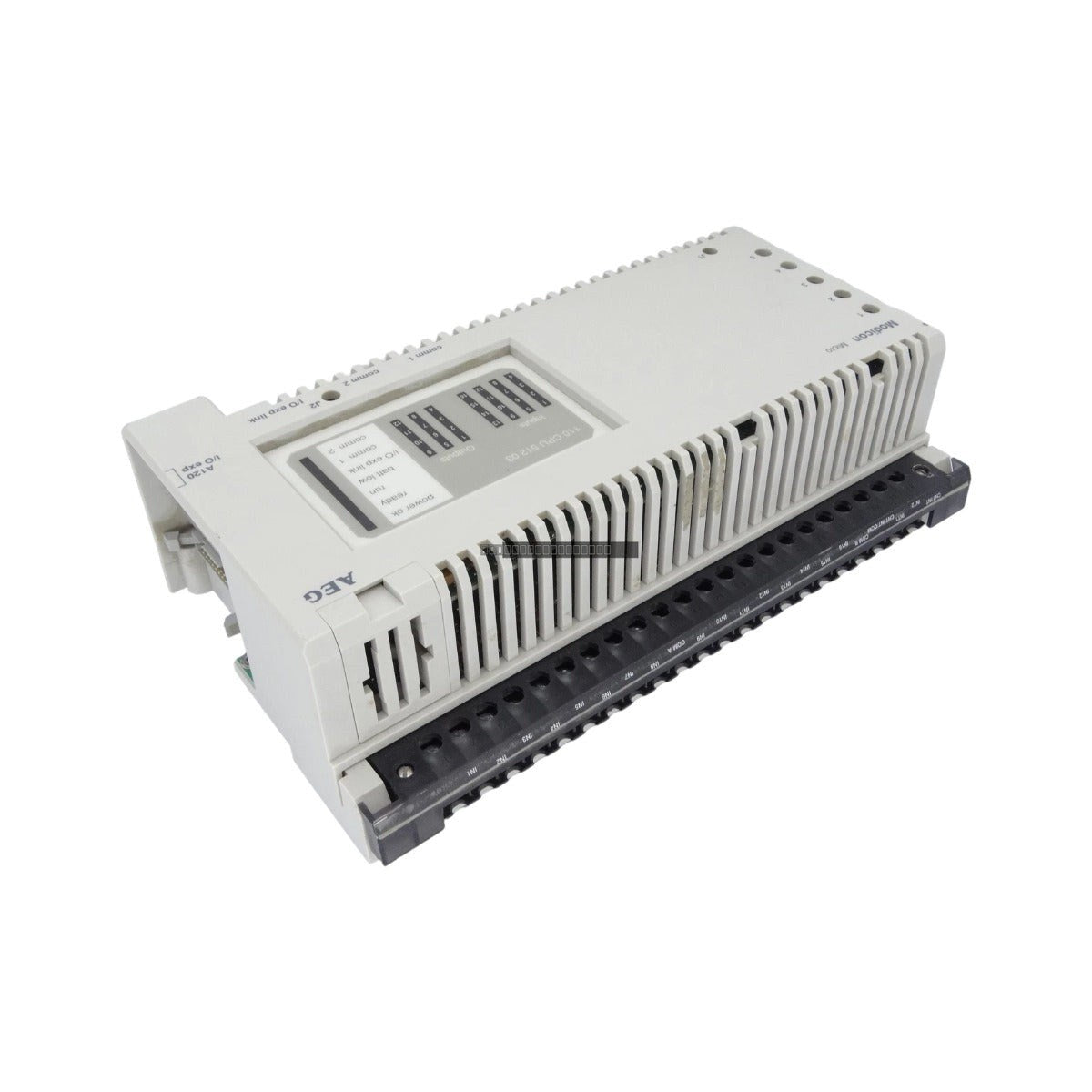

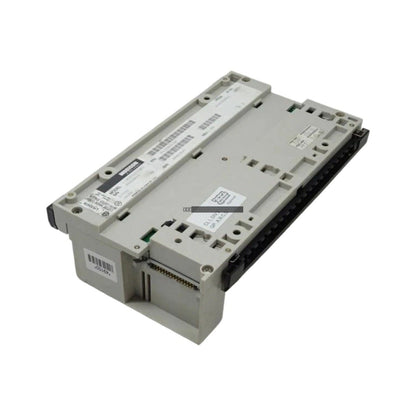

The Schneider Electric 110CPU51203 is a high-reliability central processing unit designed for the Modicon Micro PLC platform. This compact controller serves as a robust solution for localized automation tasks, combining processing power with integrated I/O capabilities to manage machine sequencing, relay control, and basic analog signal handling. Engineered for durability, the module is housed in a rugged enclosure that provides protection against industrial electrical interference and mechanical vibration, ensuring stable performance in demanding environments such as power generation, material handling, and process manufacturing.

Features

• Integrated CPU, memory, and I/O architecture for space-efficient control cabinet design.
• On-board discrete I/O configuration featuring 16 inputs and 12 outputs.
• Native support for Modbus RTU (ASCII) and Uni-Telway communication protocols.
• Persistent memory storage backed by an integrated battery circuit to maintain logic and data during power loss.
• Front-panel LED status indicators for real-time monitoring of run status, diagnostics, and network bus activity.
• RS232/RS485 serial interfaces for seamless integration with HMIs and peripheral automation devices.

Applications

This processor module is widely utilized in legacy industrial automation systems requiring deterministic logic execution. Typical applications include sub-system timing control in thermal power plants, localized logic processing in petroleum extraction facilities, and relay-based sequence control in automated distribution centers.

Technical Specifications

Installation Guidelines

• Ensure the PLC is installed in a clean, dry, and adequately ventilated enclosure to maintain operating temperatures within the specified 0 to 60 degC range.
• Always disconnect the 24 VDC power supply before inserting or removing the module from the rack to prevent electrical arcing or damage to the backplane pins.
• Use shielded communication cables for RS232/RS485 connections and route them away from high-voltage power lines to minimize EMI interference.
• Maintain proper grounding of the chassis to the system common to ensure signal integrity and compliance with safety standards.
• Periodically verify the status of the internal battery to ensure data retention integrity during power cycles.

FAQ

Does this module require external software for programming?

Yes, the 110CPU51203 requires compatible Schneider Electric programming software to configure logic, set communication parameters, and download user applications to the onboard RAM.

Can this module communicate with third-party devices?

Yes, the integrated serial ports support the Modbus RTU protocol, allowing the controller to communicate with a wide variety of third-party HMIs, drives, and sensors that support standard Modbus communication.
