Product Overview

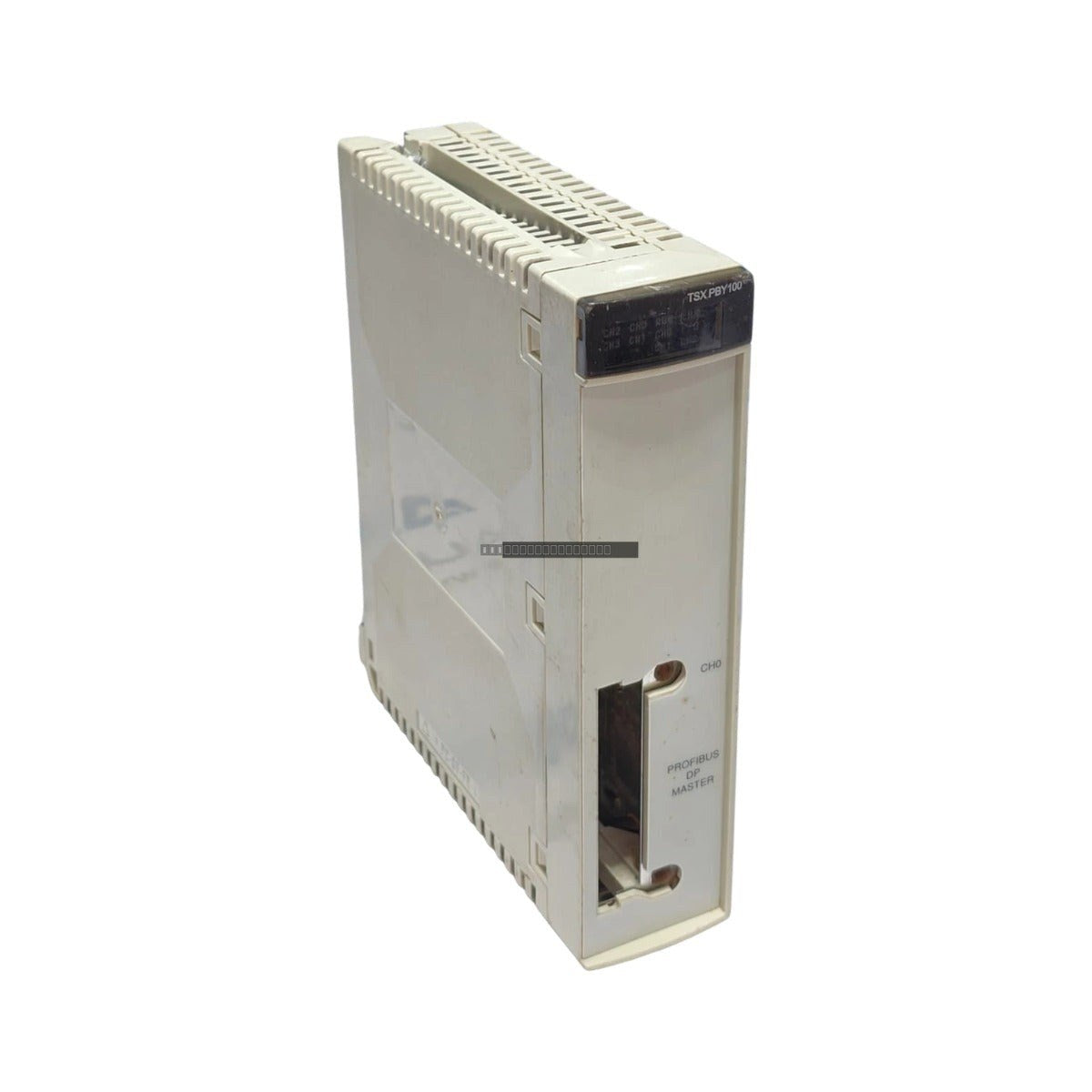

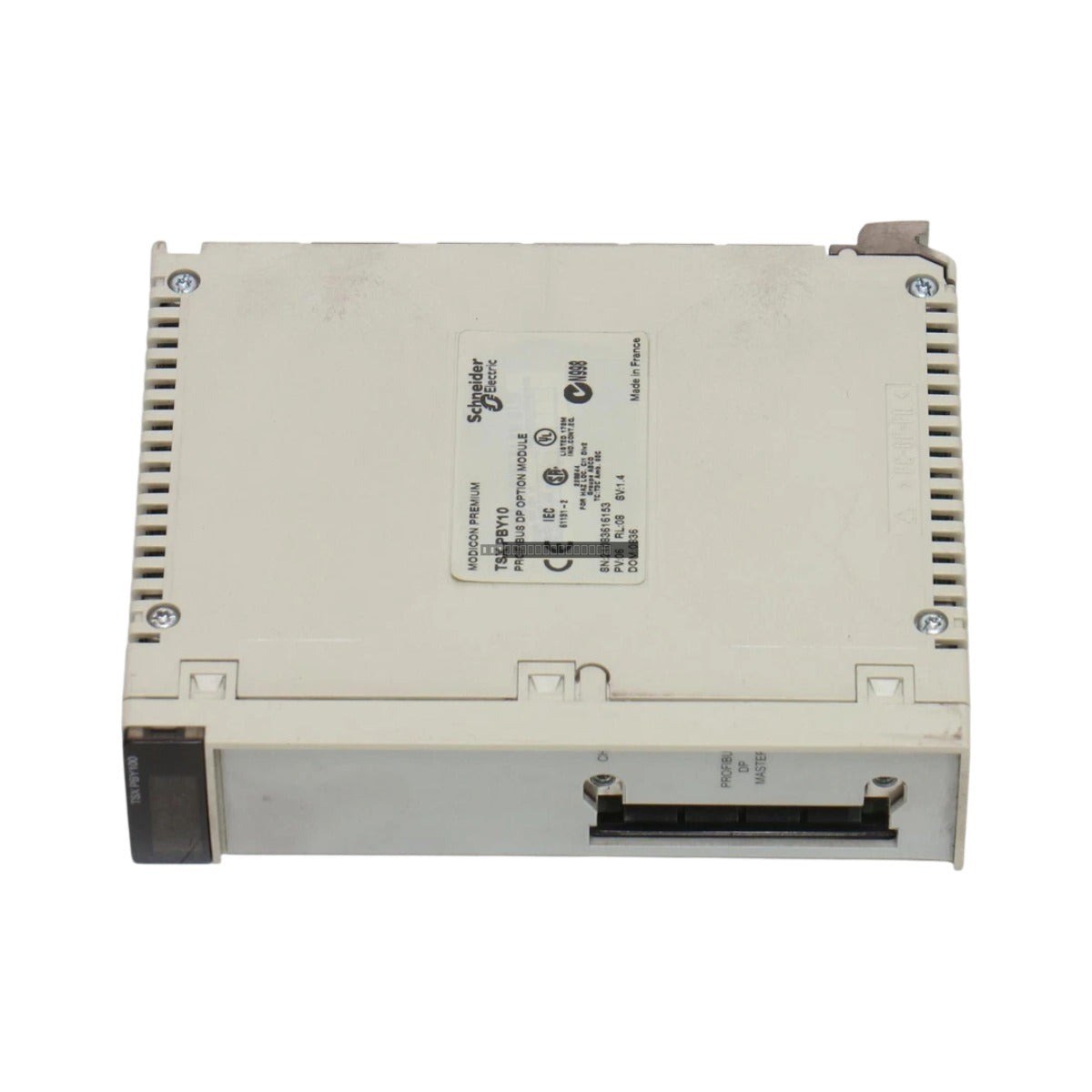

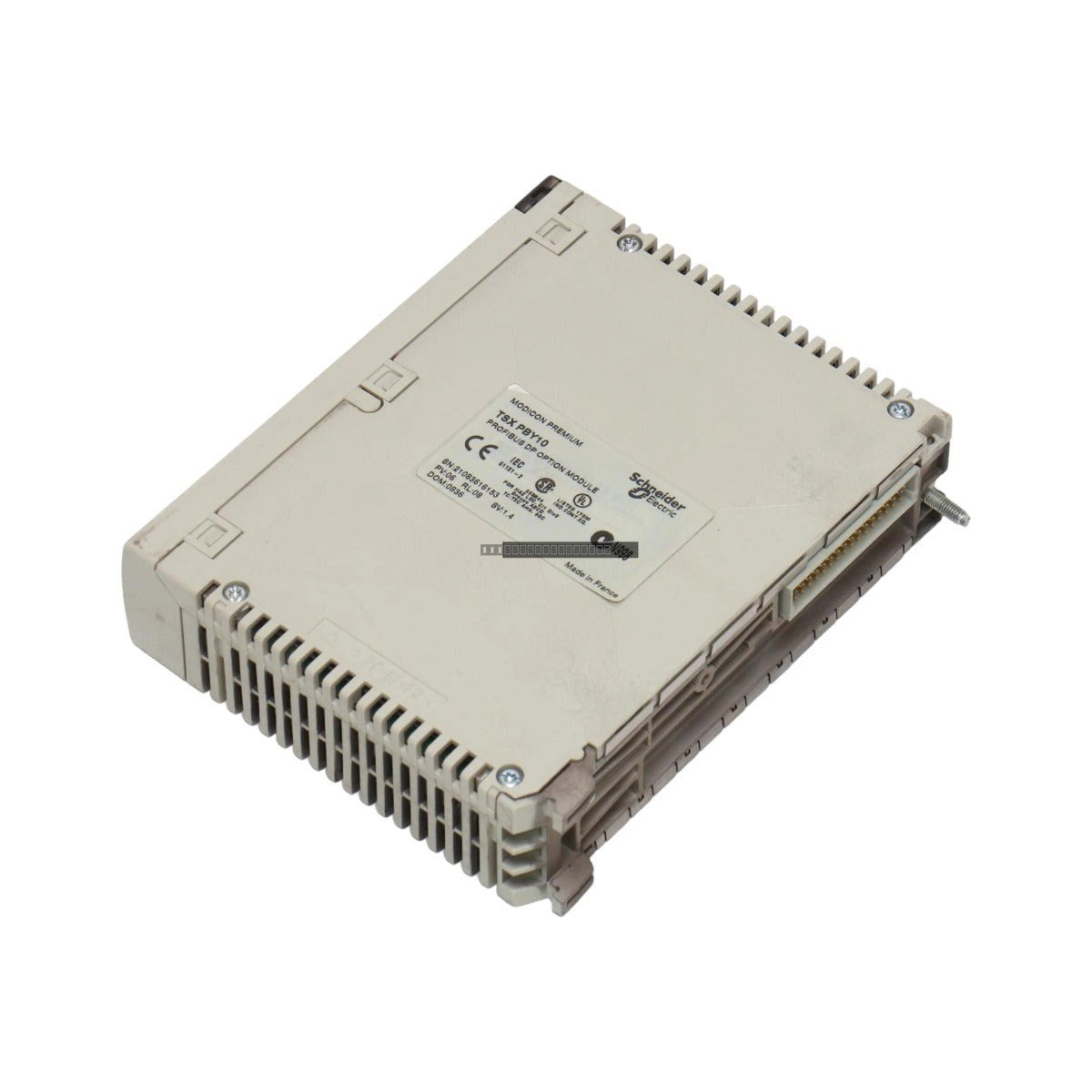

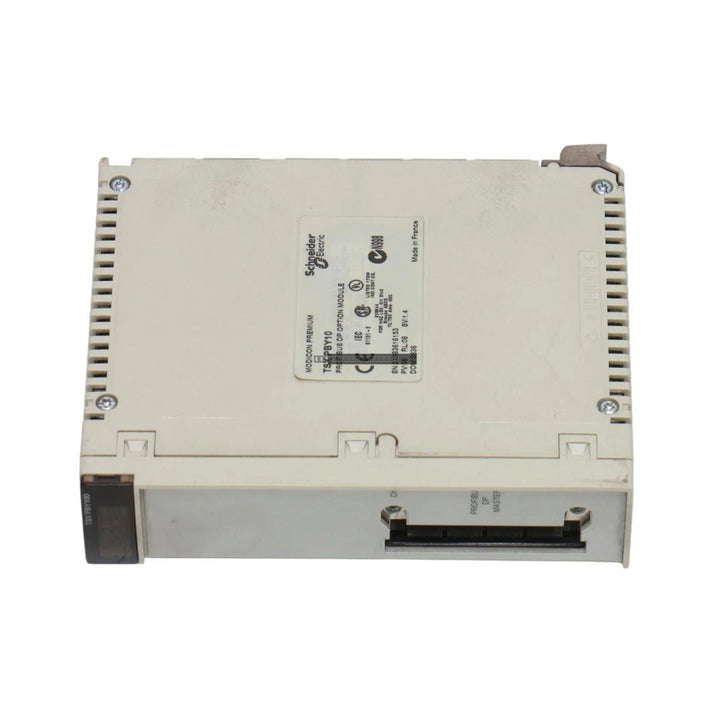

The Schneider Electric TSX PBY10 (often referenced as TSXPBY100) is a dedicated Profibus DP Master communication module designed for integration within the Modicon Premium automation platform. This module facilitates high-speed, deterministic data exchange between the central PLC and distributed field devices, including remote I/O, variable speed drives, and intelligent instrumentation. By offloading communication tasks to an on-board processor, the TSX PBY10 ensures efficient network management without burdening the primary CPU scan cycle.

Features

• Supports Profibus DP V0 master functionality for robust fieldbus control.
• Manages up to 125 slave nodes per network segment, providing scalability for complex automation architectures.
• Features a wide range of selectable transmission speeds from 9.6 Kbps up to 12 Mbps.
• Integrated diagnostic LEDs provide real-time status monitoring of bus activity, module health, and communication faults.
• Designed with optical isolation to protect the internal backplane from electrical transients and common-mode interference.
• Utilizes a standard RS-485 physical layer for reliable industrial communication.

Applications

This communication module is widely utilized in demanding industrial environments where deterministic fieldbus performance is critical. Common applications include oil and gas processing facilities, thermal power generation plants, and large-scale mineral extraction operations where reliable communication with remote motor control centers and sensor arrays is required to minimize downtime.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the TSX PBY10 module to prevent backplane damage.
• Mount the module in a standard Modicon Premium slot, ensuring the connector is fully seated.
• Use shielded twisted-pair cabling for RS-485 connections to minimize EMI/RFI interference in high-noise industrial environments.
• Properly terminate the Profibus network at both ends to prevent signal reflections.
• Maintain adequate ventilation clearance around the rack to adhere to the specified operating temperature range.
• Handle the module using ESD-safe procedures to protect sensitive onboard electronic components.

FAQ

What is the primary function of the TSX PBY10?
The TSX PBY10 acts as a Profibus DP master, allowing the Modicon Premium controller to communicate with and command up to 125 slave devices over an RS-485 network.

Can this module handle high-speed data transmission?
Yes, the module supports software-selectable baud rates ranging from 9.6 Kbps up to 12 Mbps, depending on your specific network architecture and cable length requirements.
