Description

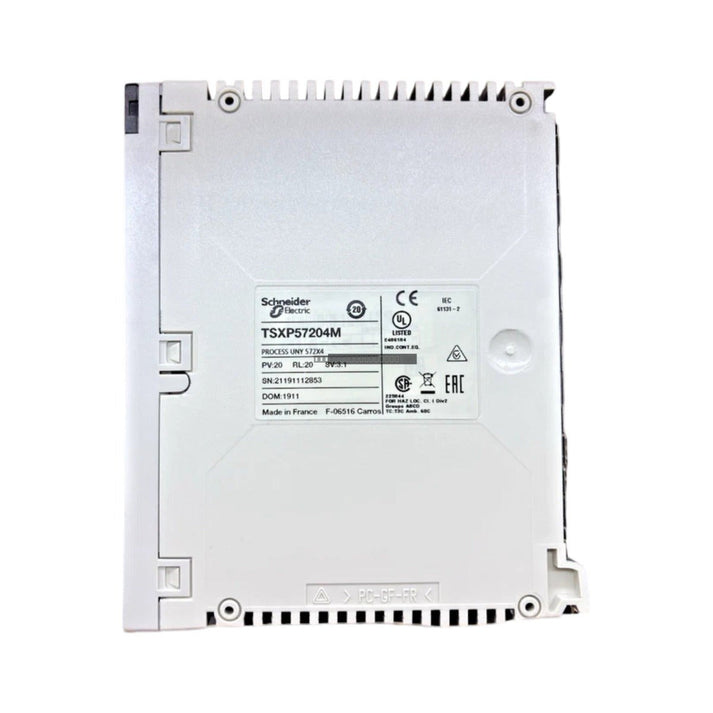

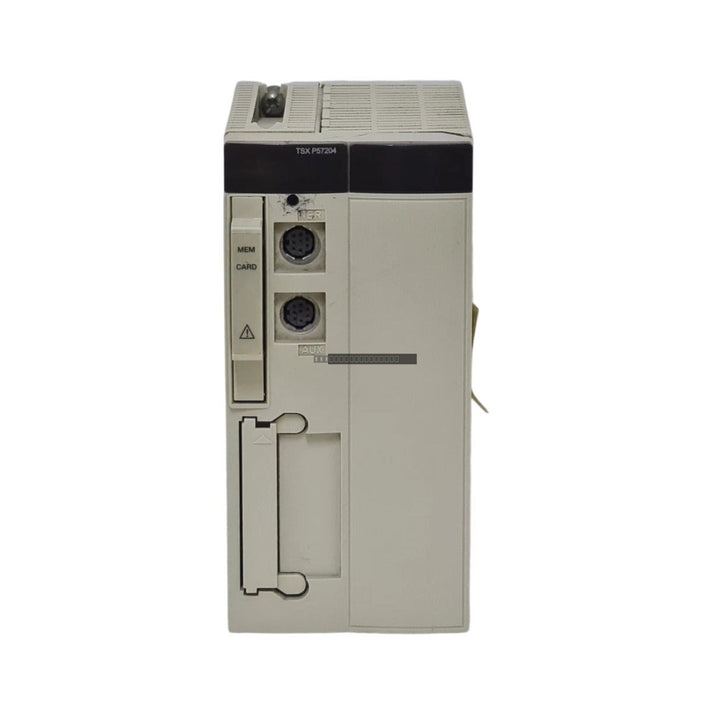

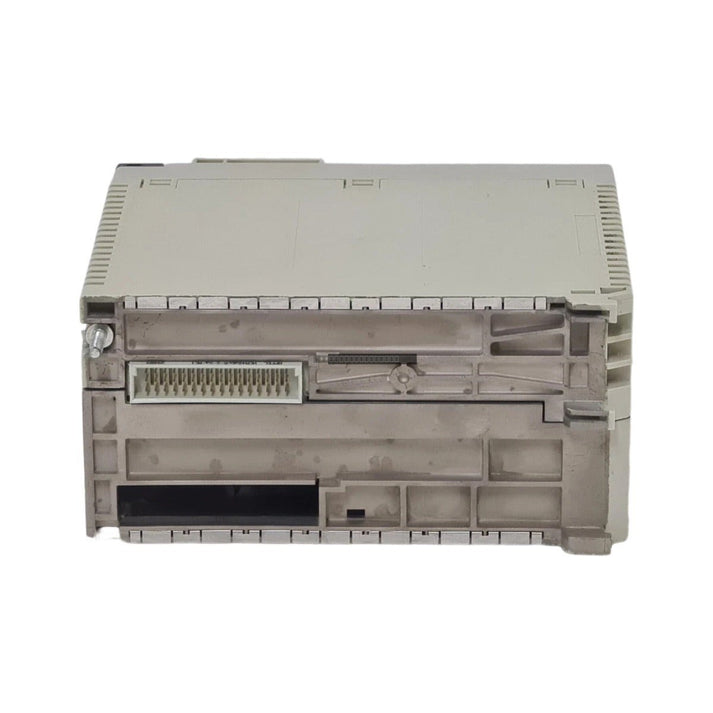

The TSXP57204M is a high-performance CPU module designed for the Schneider Electric Modicon Premium automation platform. Engineered for demanding industrial environments, this processor supports Unity Pro configuration software and provides a robust, deterministic execution environment for complex logic and mathematical routines. With 160 kB of internal RAM, it efficiently manages program code and process variables, making it suitable for critical control tasks in sectors such as water treatment, power generation, and petrochemical processing.

Features

• Internal memory architecture: 160 kB total RAM, segmented into 112 kB for program storage and 48 kB for data.
• Expandable memory: Supports PCMCIA memory cards for enhanced data logging and recipe management.
• High-speed communication: Equipped with a dedicated terminal port and a secondary port supporting Modbus and Uni-Telway protocols for seamless multi-node integration.
• Diagnostic monitoring: Front-facing LED indicators provide real-time status updates on CPU health, backplane communication, and battery longevity.
• Deterministic performance: Designed for rapid execution cycles to ensure consistent process timing under heavy load conditions.

Technical Specifications

Installation Guidelines

• Ensure the CPU is installed in the designated master slot of the Modicon Premium rack.
• Power off the backplane supply before inserting or removing the module to prevent electrical damage or bus errors.
• Maintain proper ventilation within the control cabinet to stay within the 0 to 60 deg C operating range.
• Route communication cables away from high-voltage lines or sources of electromagnetic interference (EMI) to ensure signal integrity.
• Verify that the backplane is properly grounded according to site-specific industrial standards to mitigate electrical noise.

FAQ

Does this module support Unity Pro software?

Yes, the TSXP57204M is fully compatible with Unity Pro configuration software, allowing for streamlined programming and diagnostic management.

Can the memory be expanded?

Yes, the internal memory can be supplemented using a compatible PCMCIA memory card, which is recommended for applications requiring large data logs or complex recipe storage.

What communication protocols are supported?

The module features a dedicated terminal port and a communication port capable of handling Modbus and Uni-Telway protocols for HMI and network connectivity.
