Description

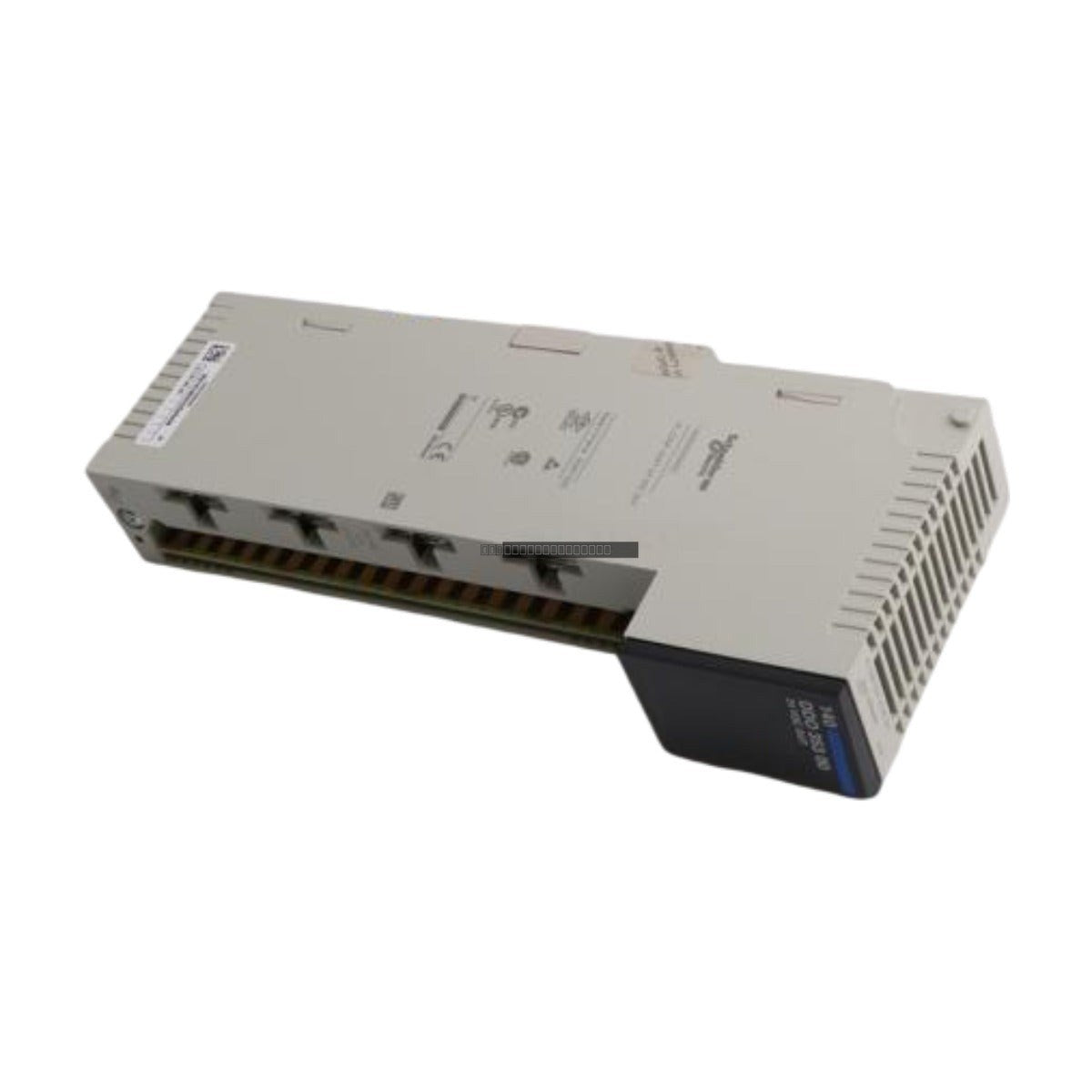

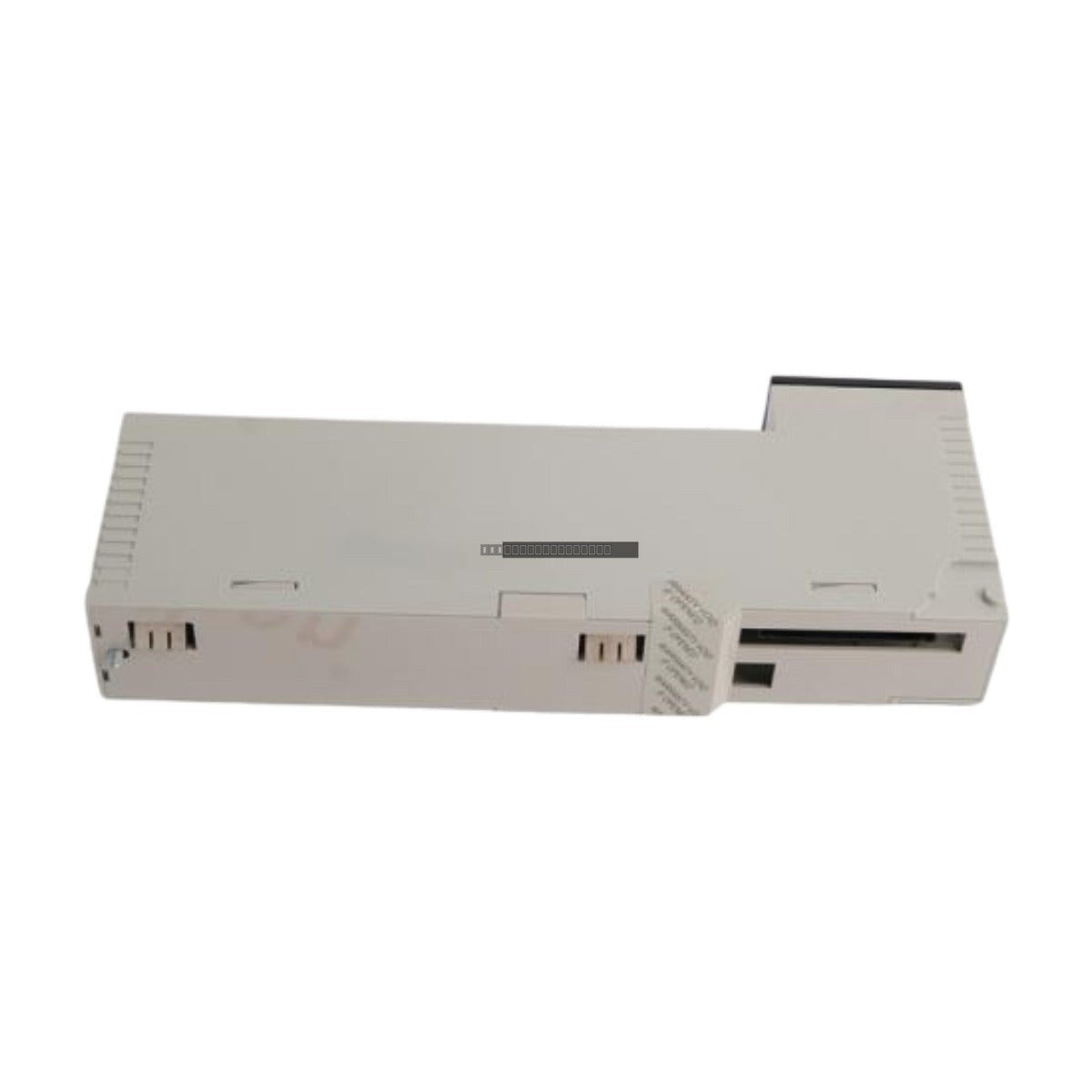

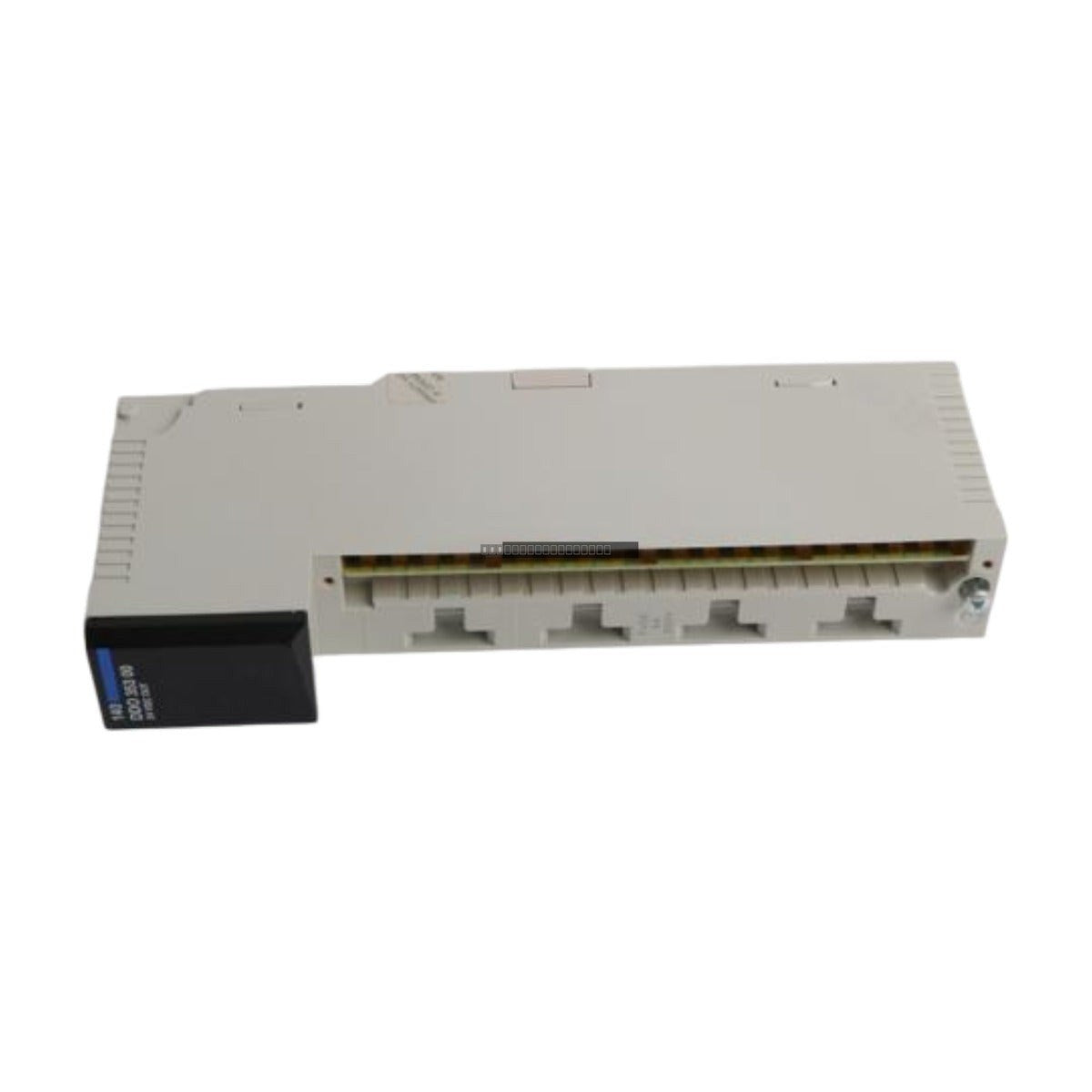

The Schneider Electric 140DDO36400 is a high-density DC output module designed for the Modicon Quantum automation platform. This module provides reliable switching capabilities for industrial control applications, featuring 96 discrete output channels configured as source outputs. It is engineered to operate within a 24VDC control environment, ensuring seamless integration into existing Quantum I/O racks and distributed control architectures.

Features

• 96 discrete DC output channels for high-density I/O requirements.
• Source output configuration suitable for standard industrial load switching.
• Designed for 24VDC nominal voltage operation.
• Compatible with the Modicon Quantum backplane for rapid installation and modular expansion.
• Robust construction for demanding industrial environments.

Applications

This output module is primarily utilized in large-scale industrial automation systems, including manufacturing process control, material handling systems, and power distribution monitoring. It is ideal for driving actuators, relays, and indicators that require a 24VDC source signal within a Quantum-based PLC architecture.

Technical Specifications

Installation Guidelines

• Ensure the Quantum rack is powered down before inserting or removing the module to prevent electrical damage or backplane faults.
• Verify that the module is fully seated in the rack slot and secured with the integrated locking mechanisms.
• Use appropriate shielded cabling to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain adequate ventilation around the rack to prevent thermal buildup, adhering to standard clearance requirements for the Quantum series.
• Always verify polarity of the 24VDC supply before connecting field wiring to the terminal blocks.

FAQ

Is the 140DDO36400 compatible with all Quantum processors?
Yes, this module is designed for use within the standard Modicon Quantum I/O rack system and is compatible with the Quantum processor family.

What is the output configuration of this module?
The 140DDO36400 is a source-type output module, meaning it provides the positive voltage to the load.
