Product Overview

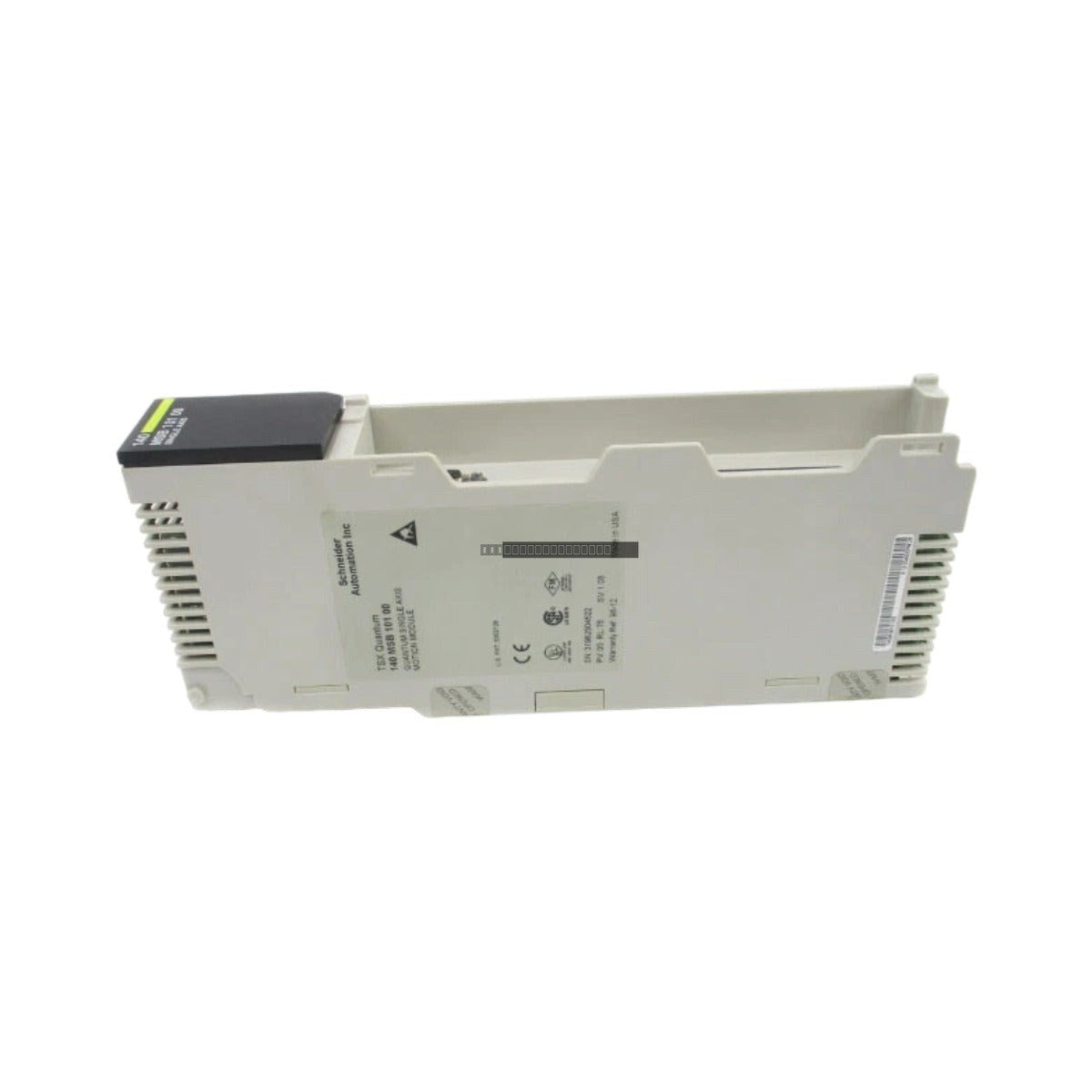

The Schneider Electric 140MSB10100 is a dedicated Multi-Server S908 module engineered for the Modicon Quantum automation architecture. This communication interface facilitates high-performance, deterministic data exchange across distributed I/O networks. It is specifically designed to handle complex communication tasks in industrial environments, such as power generation, petrochemical processing, and heavy mining, where reliable, collision-free data transmission between multiple server nodes is required to maintain system integrity.

Features

• Optimized for deterministic S908 remote I/O network communication.
• Supports multi-server database synchronization without increasing CPU scan cycle overhead.
• Integrated galvanic isolation between the backplane and external line networks to protect sensitive internal logic.
• Dual-channel media support for enhanced network redundancy and continuous health monitoring.
• Robust hardware design suitable for demanding industrial temperature ranges.

Applications

This module is primarily utilized in large-scale distributed control systems where multiple controllers must access shared register data. It is ideal for applications requiring high-speed, low-latency communication across remote I/O drops, ensuring consistent network availability in continuous-process industries.

Technical Specifications

Installation Guidelines

• Ensure the Modicon Quantum backplane is powered down before inserting or removing the module.
• Use appropriate ESD protection when handling the module to prevent damage to internal circuitry.
• Secure the module firmly into the designated rack slot to ensure proper backplane connection.
• Maintain proper cable routing for coaxial lines to minimize EMI exposure and ensure signal integrity.
• Verify that the F-type connectors are fully seated and free from debris before operation.
• Ensure adequate ventilation in the cabinet to maintain ambient temperatures within the specified 0 to 60 deg C range.

FAQ

What is the primary function of the 140MSB10100?
This module acts as a high-speed communication interface for the Modicon Quantum platform, specifically managing S908 remote I/O data transfers between multiple server nodes.

How many nodes does this module support?
The 140MSB10100 supports up to 32 drop addresses per network branch.

Is the module galvanically isolated?
Yes, it features 500 V DC channel-to-backplane isolation to protect against electrical noise and voltage spikes.
