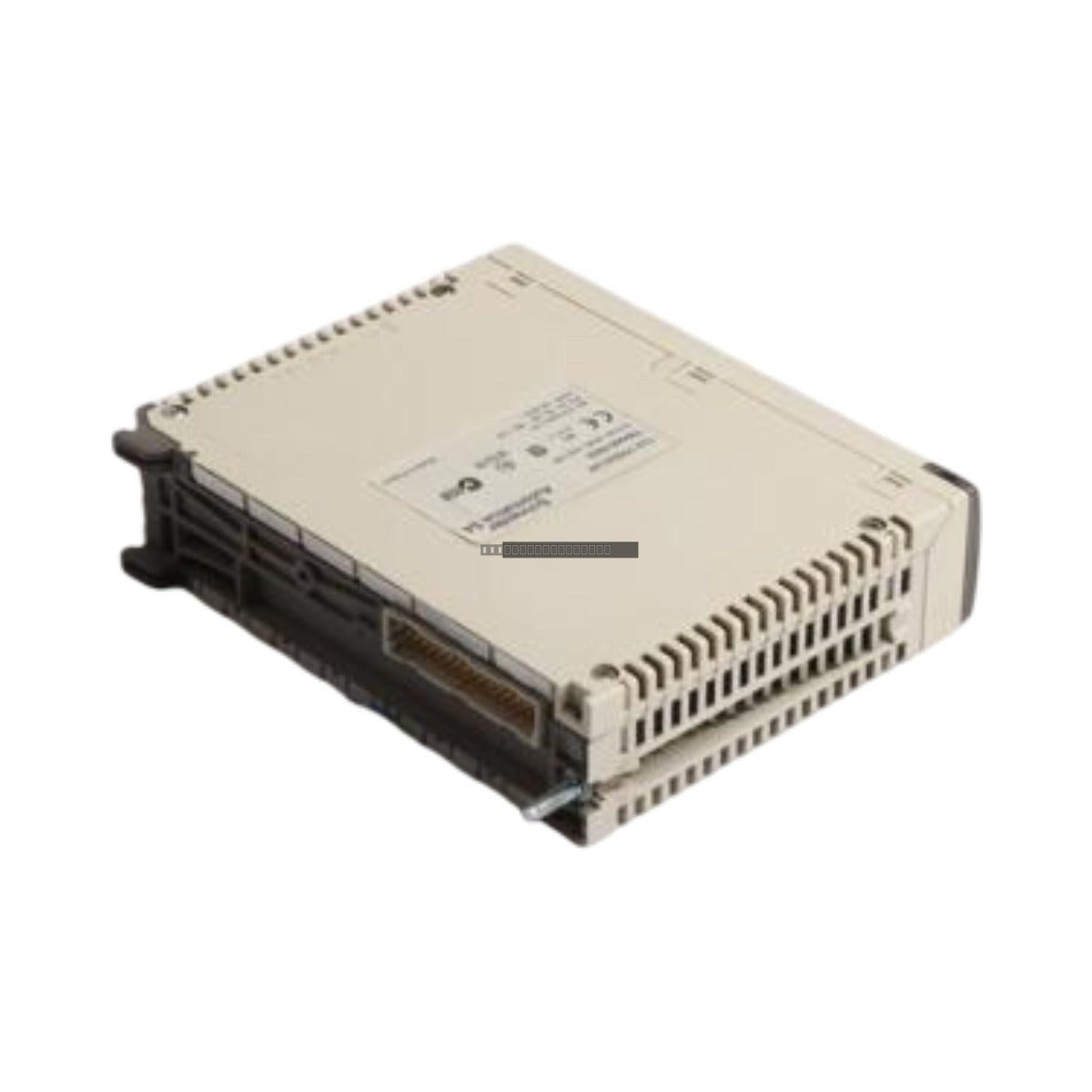

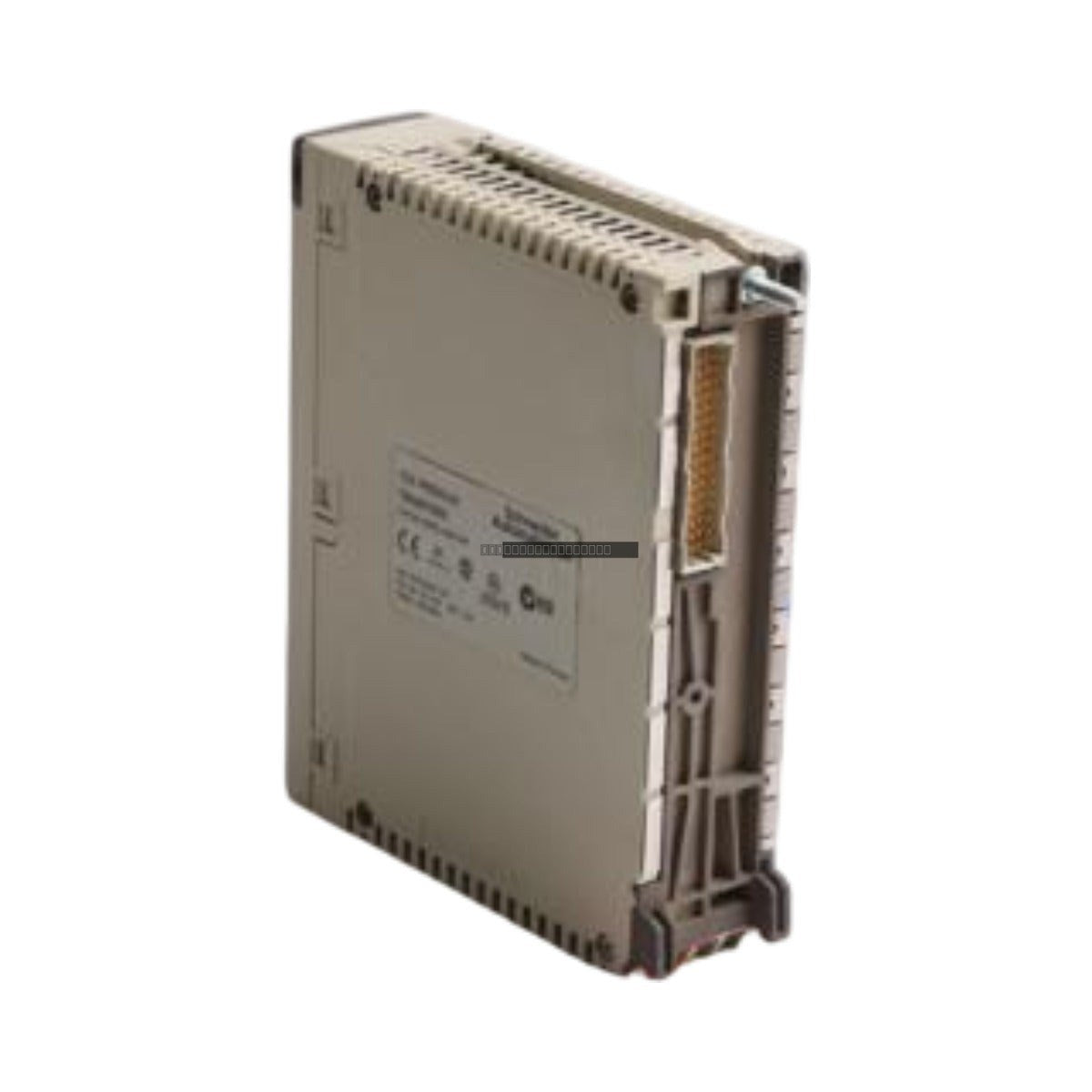

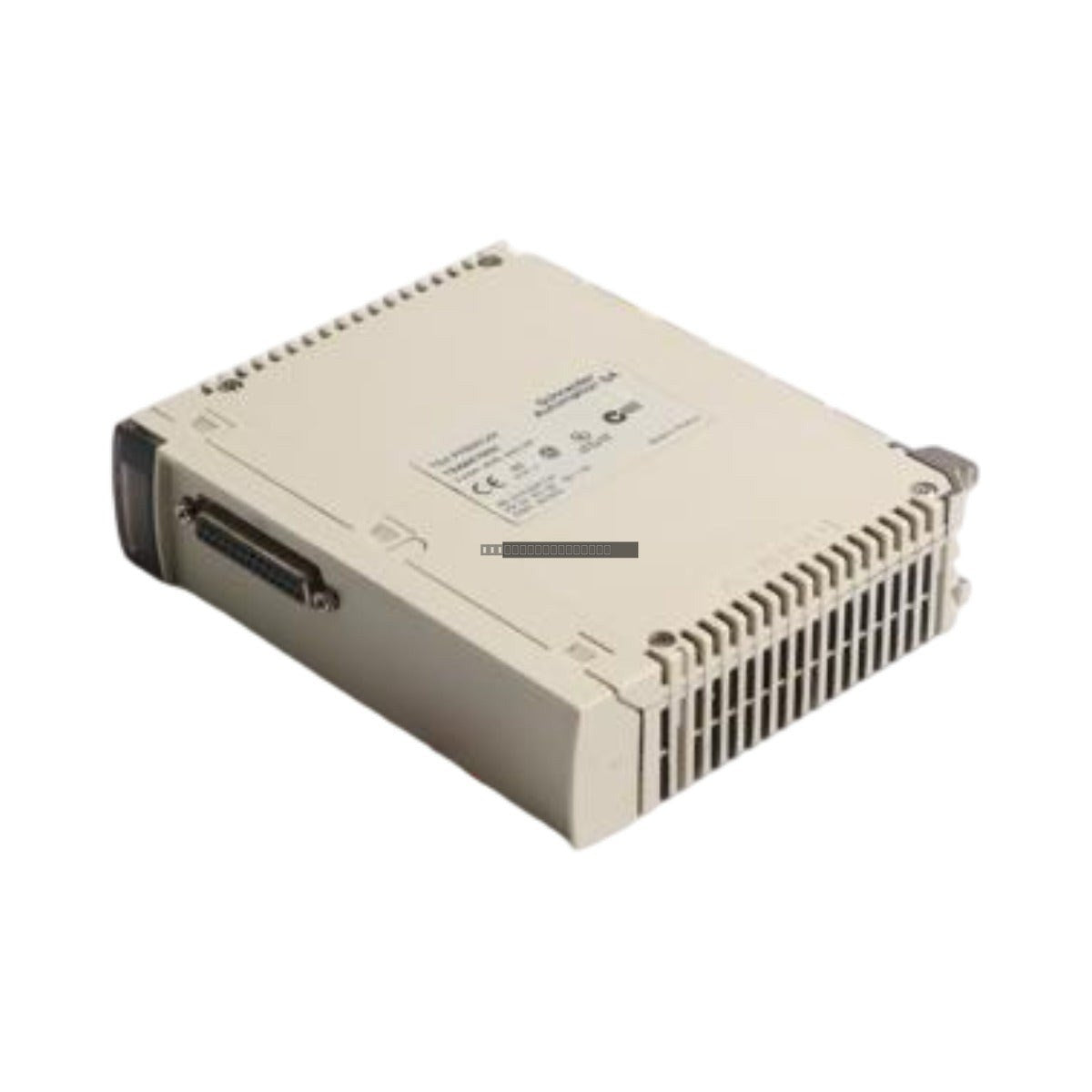

The Schneider Electric TSXP57153M is a high-performance PL7 processor designed for the TSX Premium automation platform. As a core component of the Premium series, this single-format CPU module provides robust processing capabilities for industrial control applications, managing logic, data, and communication tasks within the rack system.

Features

• Designed specifically for the TSX Premium PLC architecture.
• PL7 software compatibility for legacy system maintenance and expansion.
• Single-format module design for efficient rack space utilization.
• Operating voltage of 5 VDC with a current consumption of 530 mA.
• Reliable operation in demanding industrial environments.

Applications

This processor is intended for use in automated manufacturing lines, process control systems, and complex machine automation where the TSX Premium platform is deployed. It serves as the primary controller for I/O management and sequence execution.

Technical Specifications

Installation Guidelines

• Ensure the rack is powered down before installing or removing the CPU module to prevent electrical damage.
• Verify that the module is correctly seated in the TSX Premium rack slot to ensure proper backplane communication.
• Maintain adequate ventilation around the rack to prevent thermal buildup during operation.
• Handle the module using ESD-safe practices to protect sensitive internal circuitry.
• Check that all firmware and software configurations match the specific requirements of the application before initial deployment.

FAQ

Is the TSXP57153M still manufactured by Schneider Electric?
No, this model has been discontinued by the manufacturer. We provide access to these units for maintenance and legacy system support.

What software is required to program this CPU?
The TSXP57153M is designed for use with the PL7 programming environment.
