Description

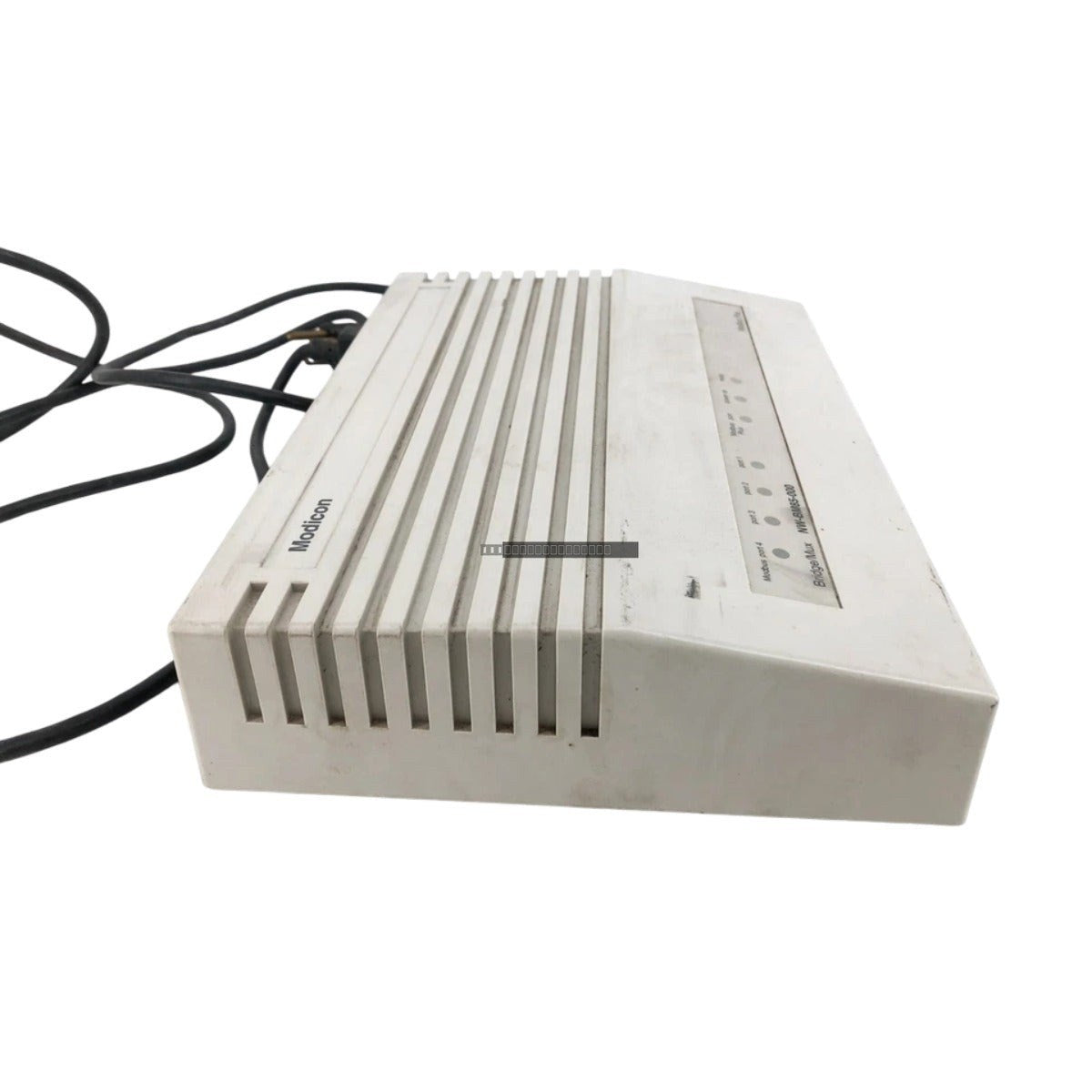

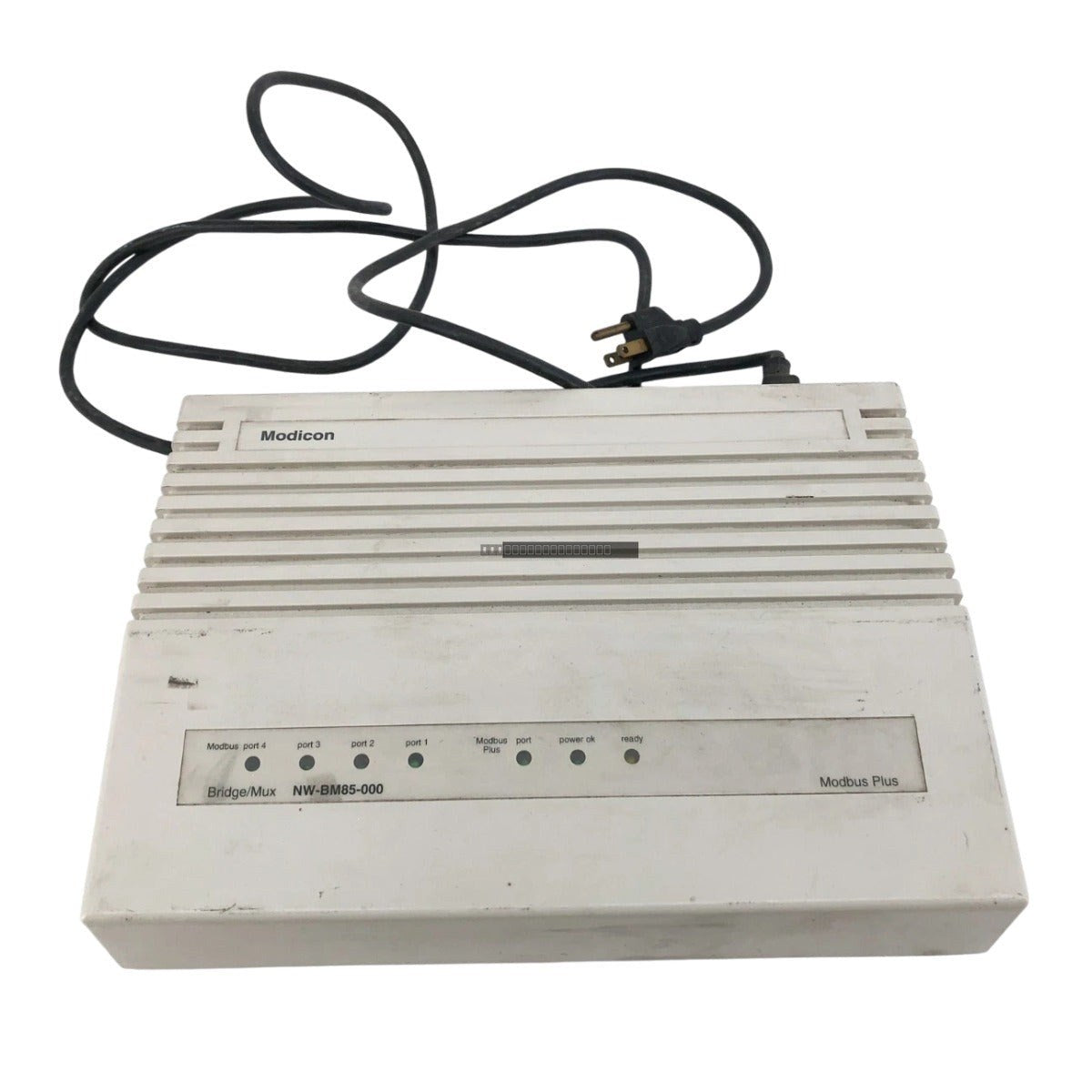

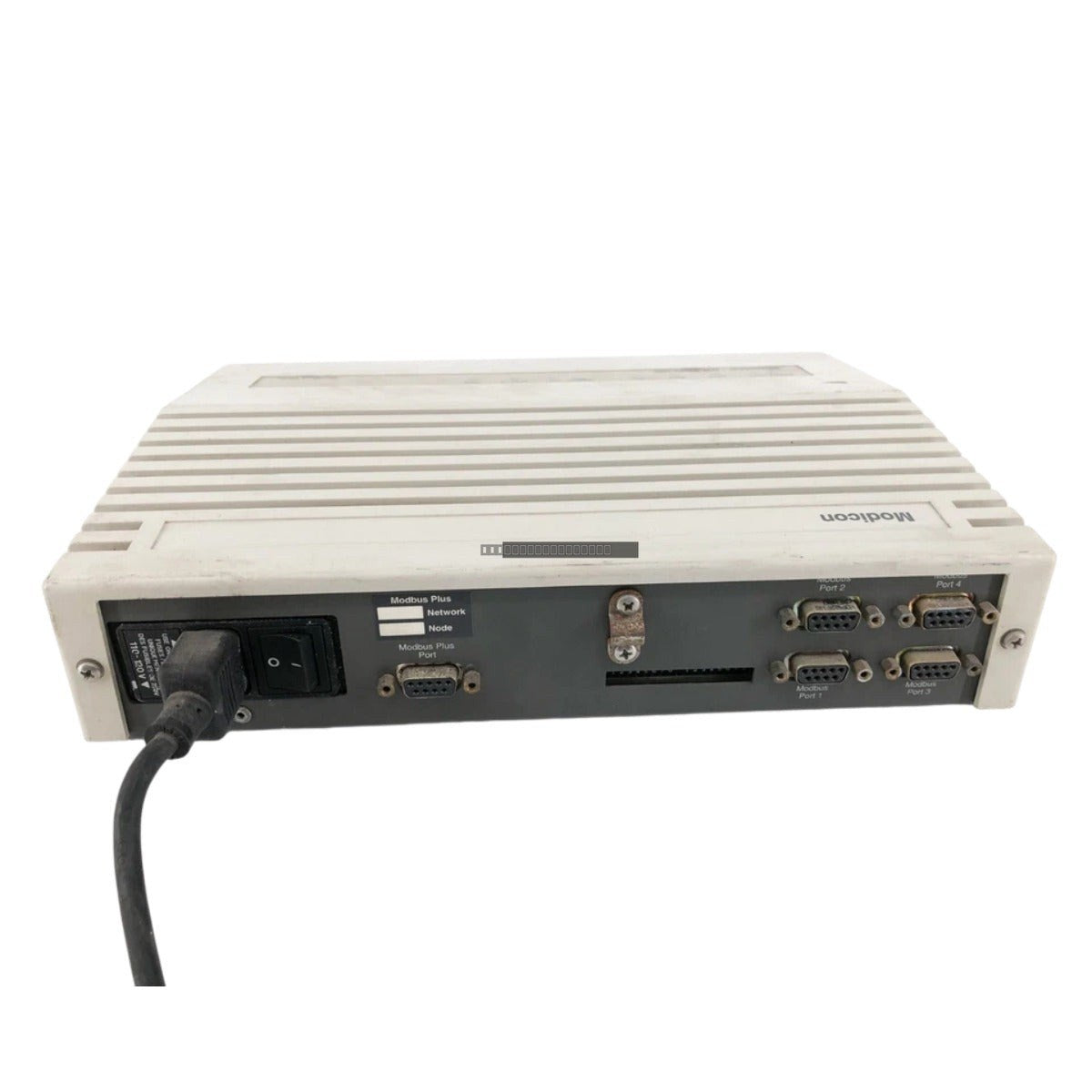

The Schneider NWBM85000 is a high-performance bridge multiplexer engineered to facilitate seamless data routing across complex industrial communication networks. This module serves as a critical interface, consolidating signals from diverse field devices into a unified network stream. By managing data flow across multiple network segments, it ensures reliable transmission and prevents signal degradation in demanding automation environments.

Features

• Efficient consolidation of field device signals into a single network interface.
• Optimizes communication bandwidth by reducing the port load on primary controllers.
• Robust industrial-grade construction for long-term operational reliability.
• Supports system expansion by increasing effective I/O capacity without requiring controller replacement.
• Designed for standard DIN rail mounting to simplify cabinet integration.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the module to prevent electrical damage.
• Mount the unit on a standard 35mm DIN rail within a clean, dry, and well-ventilated control cabinet.
• Maintain adequate clearance around the module to allow for proper heat dissipation.
• Use shielded communication cables where applicable to minimize EMI/RFI interference in high-noise industrial environments.
• Verify that the 24 VDC power input is correctly polarized according to the terminal markings before applying power.
• Handle with care to avoid electrostatic discharge (ESD) during installation.

FAQ

What is the primary function of the NWBM85000?
The NWBM85000 acts as a bridge multiplexer, allowing multiple field devices to communicate through a single interface, which helps in consolidating network traffic and expanding system I/O capacity.

Is this module compatible with standard DIN rails?
Yes, the NWBM85000 is designed for standard DIN rail mounting, making it suitable for most industrial control panel configurations.

What power supply is required for this unit?
This module operates on a 24 VDC power supply.
