Description

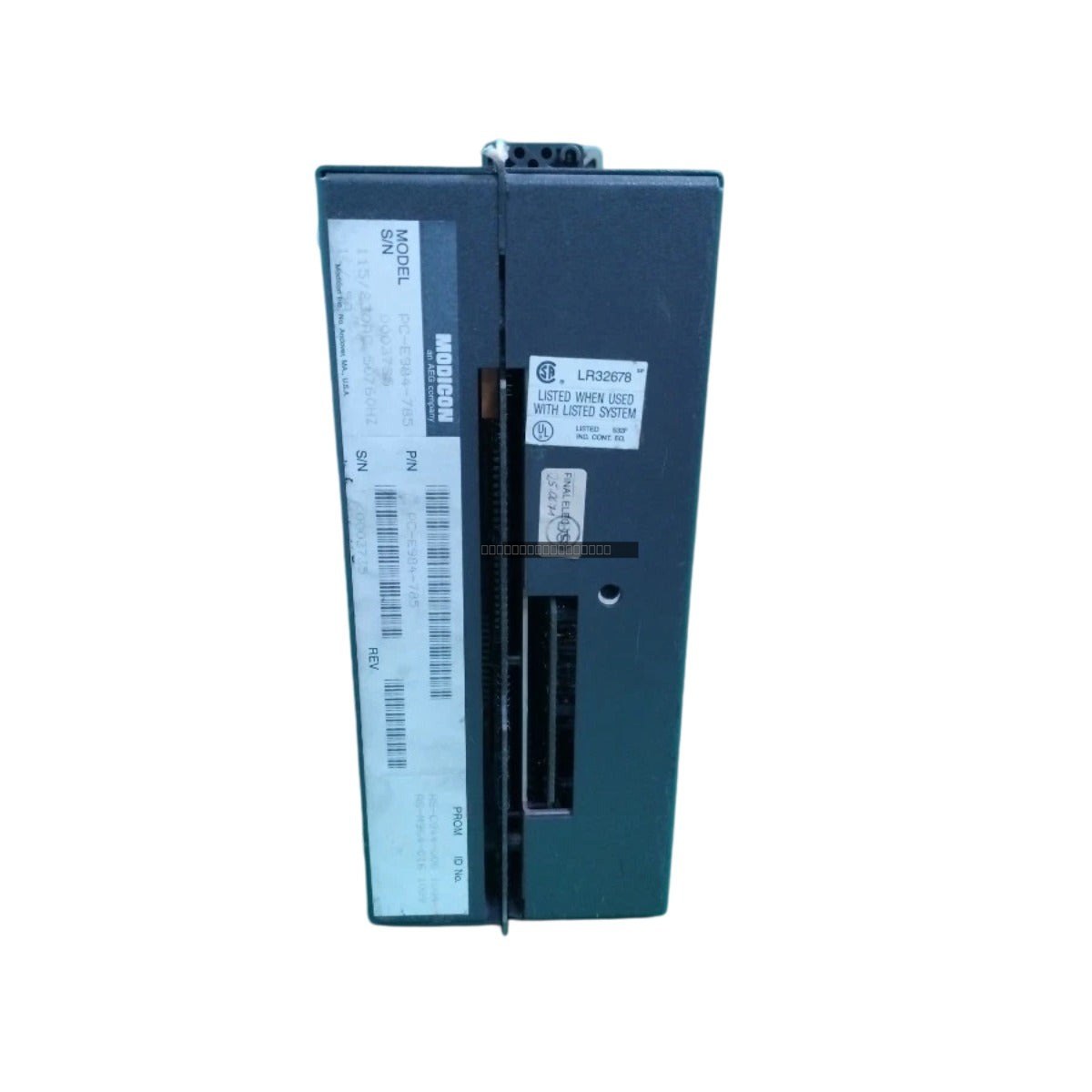

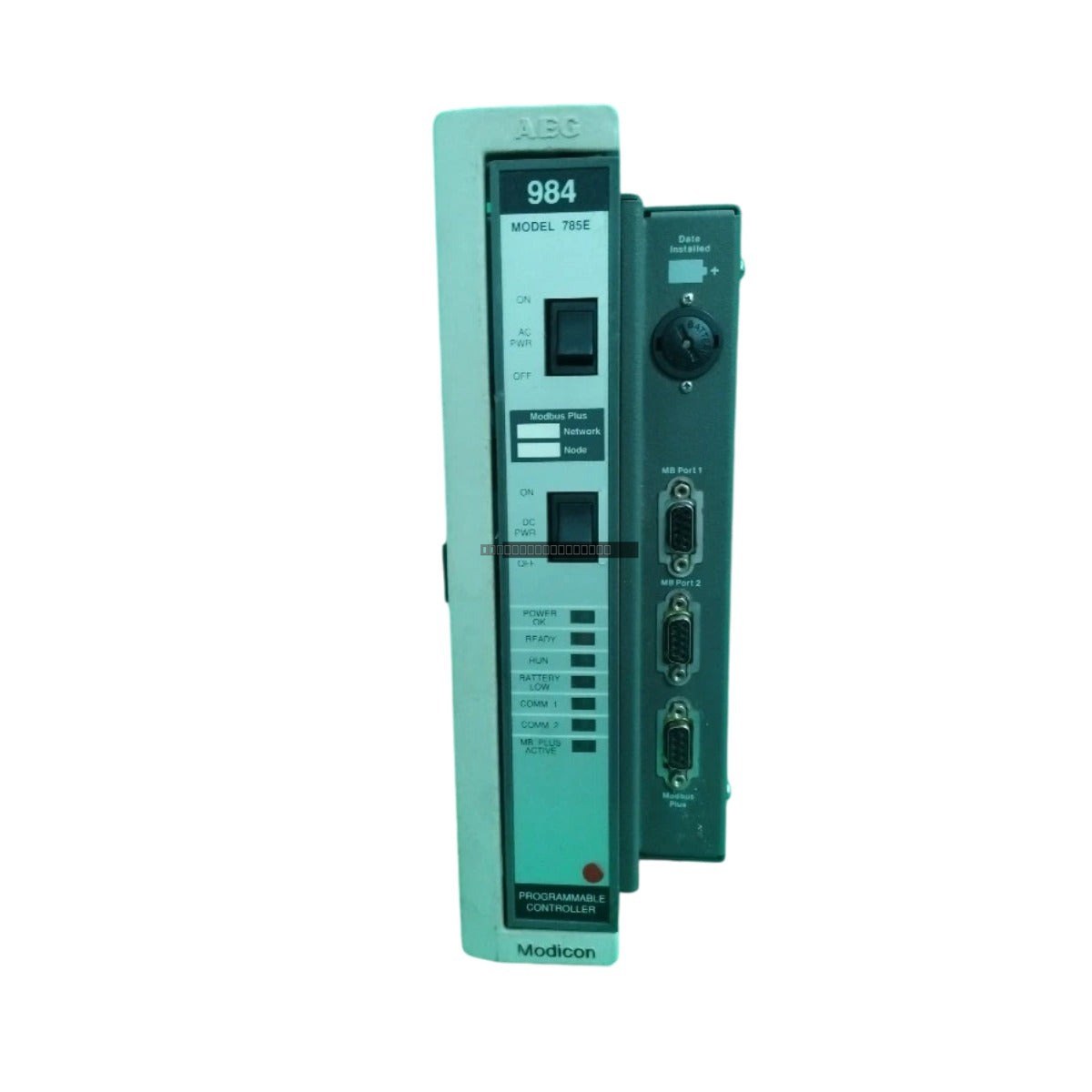

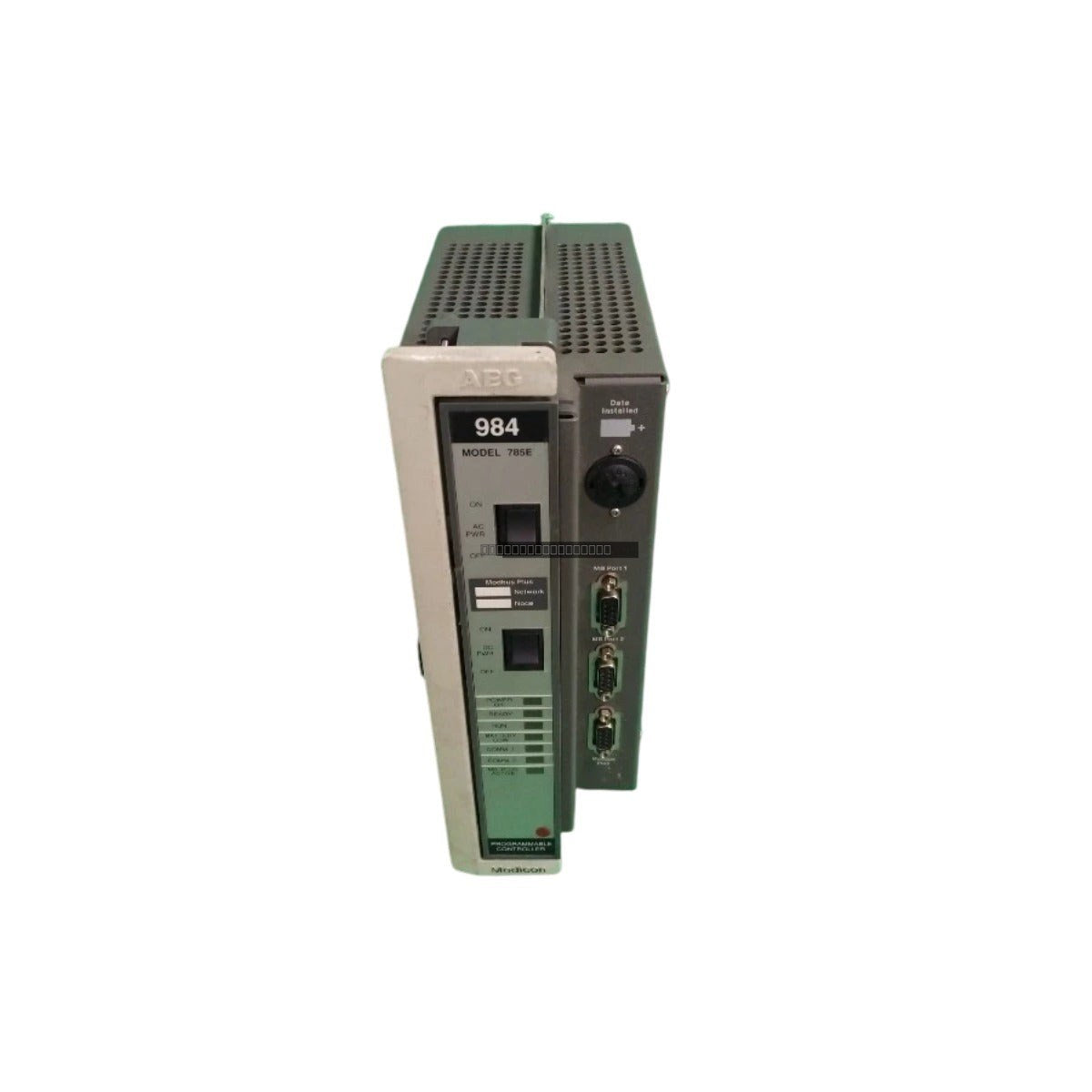

The Schneider PCE984785 is a high-performance Programmable Controller CPU module engineered for demanding industrial automation environments. Designed to provide robust computational power, this module facilitates precise control, rapid decision-making, and efficient data processing for complex automation tasks. Its architecture is optimized for high-speed execution, ensuring reliable performance in large-scale control applications.

Features

• High-speed processor for real-time control and minimized response times.
• Integrated 32/48 K memory capacity for efficient program and data storage.
• Supports multiple industrial communication protocols for seamless system integration.
• Designed for stable operation with a 24V DC power supply.
• Compact form factor suitable for space-constrained control panels.
• Supports standard DIN rail mounting for secure and efficient installation.
• Wide operating temperature range from -20 degC to 60 degC.

Applications

This CPU module is suitable for a variety of industrial applications, including:

• Automated manufacturing and assembly lines.
• Process control and monitoring systems.
• Material handling and logistics automation.
• Complex machine control requiring high-speed logic processing.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the module to prevent electrical damage.
• Mount the module on a standard DIN rail within a clean, ventilated enclosure to maintain optimal operating temperatures.
• Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
• Use shielded communication cables where applicable to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Verify that the 24V DC power source is stable and properly grounded according to local electrical codes.
• Handle with care to avoid electrostatic discharge (ESD) damage to sensitive internal components.

FAQ

What is the primary function of the PCE984785?
The PCE984785 acts as the central processing unit for programmable control systems, executing logic, managing I/O, and facilitating communication with other industrial devices.

Does this module require a specific power supply?
Yes, the module is designed to operate on a 24V DC power supply.

Is this module suitable for high-temperature environments?
The module is rated for operation in temperatures ranging from -20 degC to 60 degC, making it suitable for most standard and many harsh industrial environments.
