Description

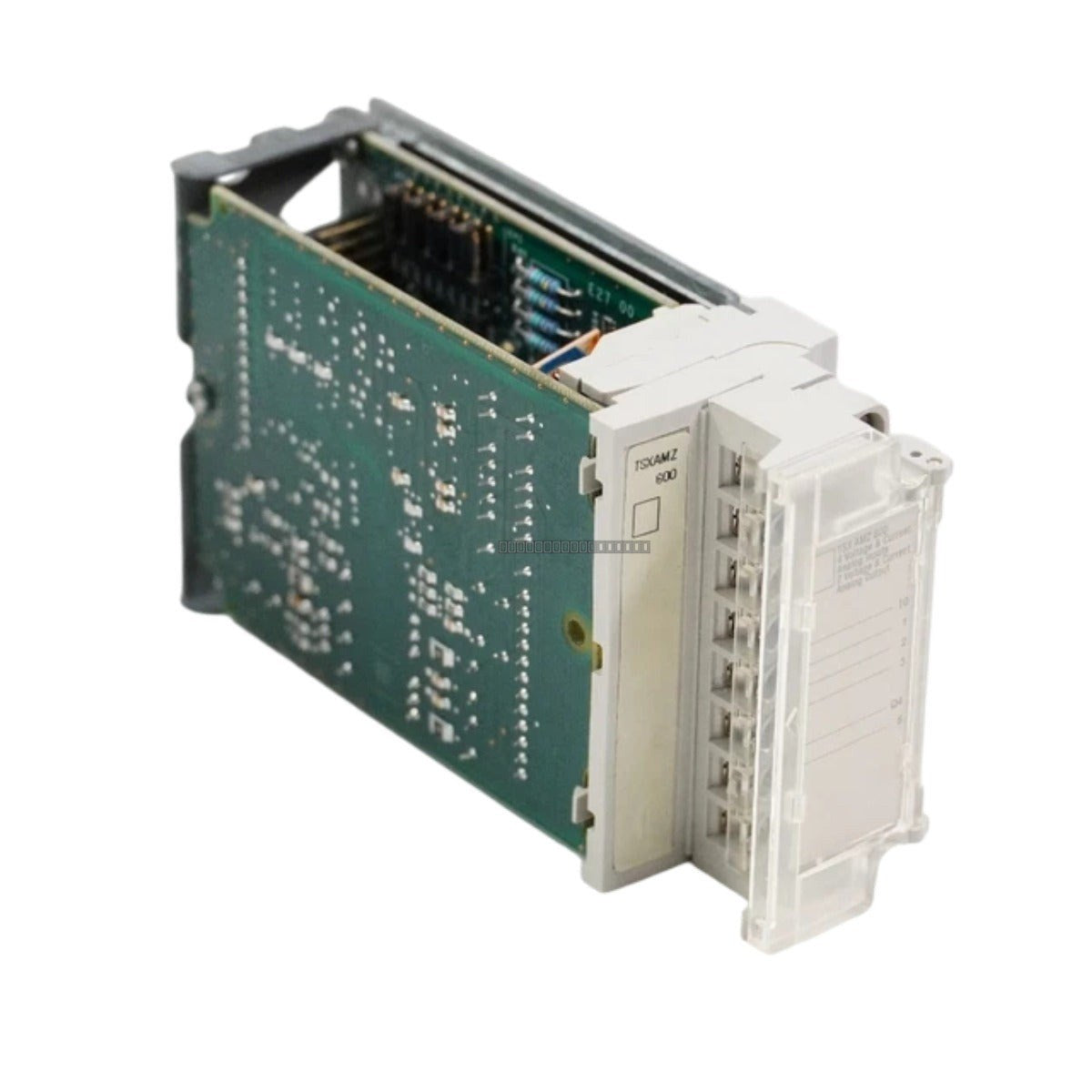

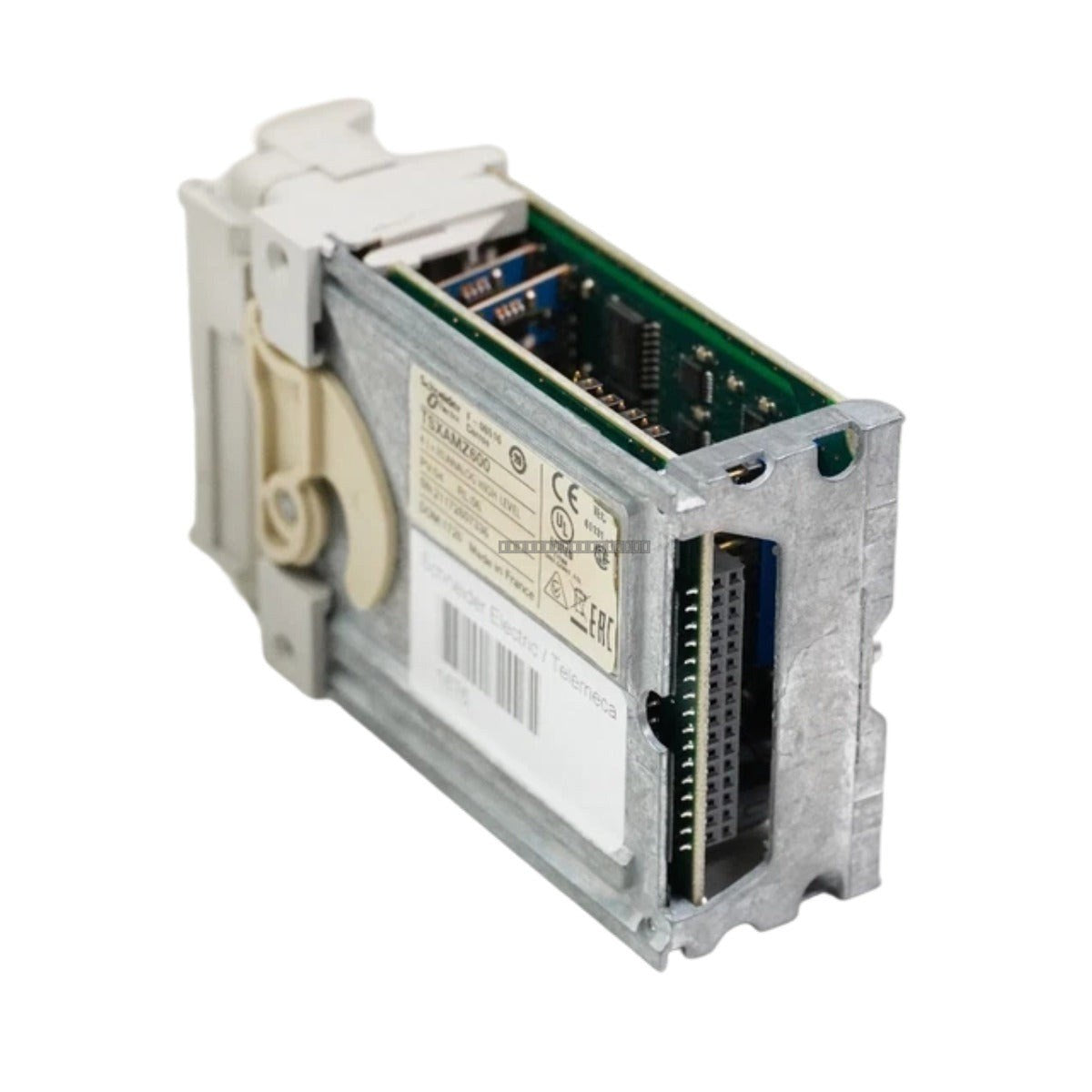

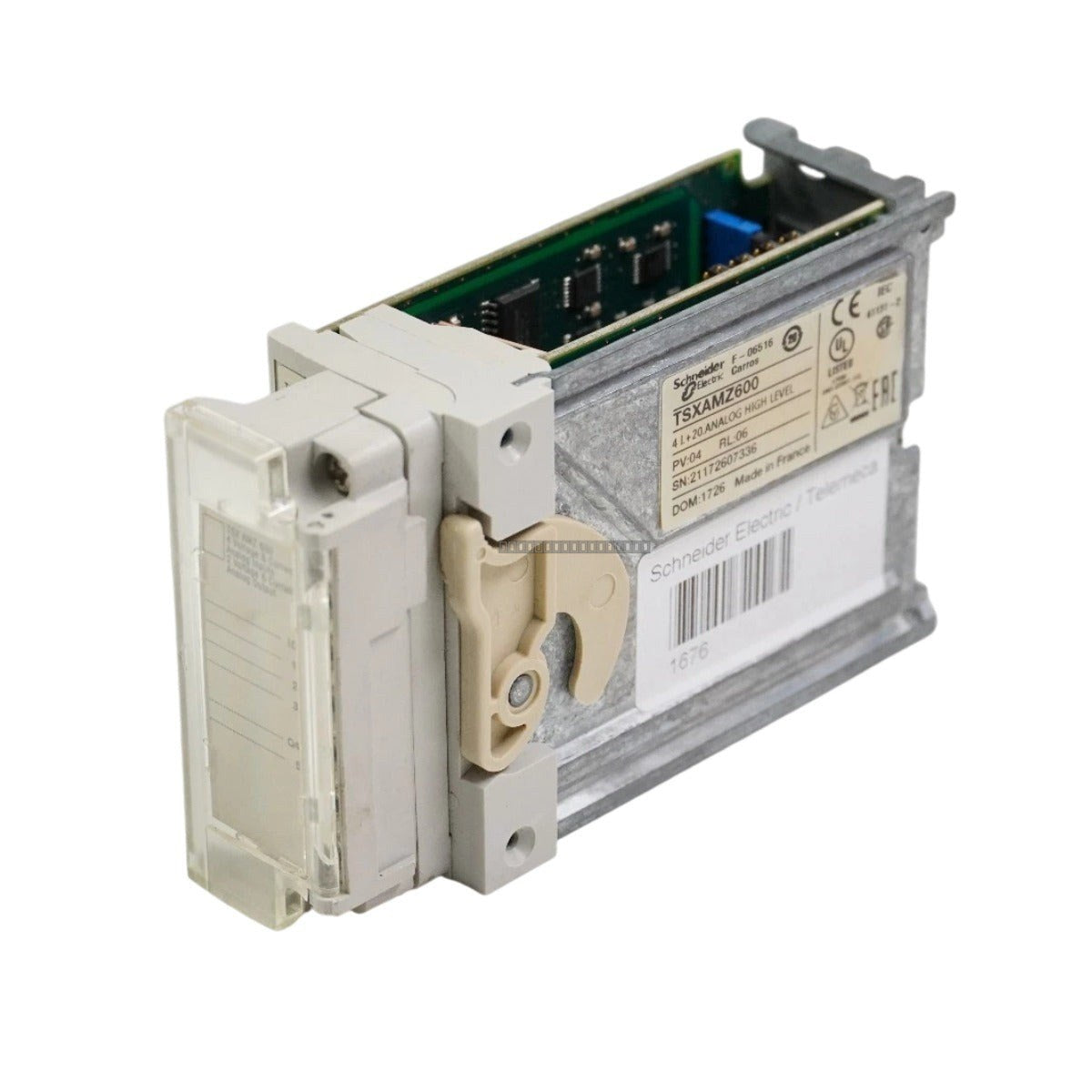

The Schneider TSXAMZ600 is a high-performance analogue I/O module designed for integration within industrial automation systems. This module provides precise signal acquisition and control capabilities, featuring four analogue inputs and two analogue outputs. It is specifically engineered for compatibility with the RMS-TSG-TZ-C series PLC architecture, offering a reliable solution for modular process control and monitoring applications.

Features

• Four configurable analogue input channels supporting voltage (0-10 V) or current (0-20 mA) signals.
• Two analogue output channels for precise control of actuators and process instrumentation.
• High-resolution 12-bit conversion for accurate data processing.
• Compact, space-saving design suitable for standard PLC rack mounting.
• Robust construction designed for industrial environments with an operating temperature range of 0 degC to 60 degC.

Applications

This module is suitable for various industrial automation tasks, including process variable monitoring, actuator control, and integration into complex PLC-based control loops within manufacturing and process industries.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Mount the module securely in the designated rack slot, ensuring proper alignment with the backplane connector.
• Use shielded twisted-pair cabling for all analogue signal connections to minimize electromagnetic interference (EMI).
• Maintain proper grounding practices for the PLC system to ensure signal integrity and safety.
• Keep the module away from high-voltage power lines and high-EMI equipment to prevent signal noise.
• Ensure adequate ventilation within the control cabinet to maintain operating temperatures within the specified 0-60 degC range.

FAQ

What is the resolution of the TSXAMZ600 module?
The module features 12-bit resolution for both input and output channels.

Can this module handle both voltage and current signals?
Yes, the module is designed to support both 0-10 V voltage and 0-20 mA current signals for its input and output channels.

What is the required power supply for this module?
The TSXAMZ600 operates on a 24 VDC power supply.
