Description

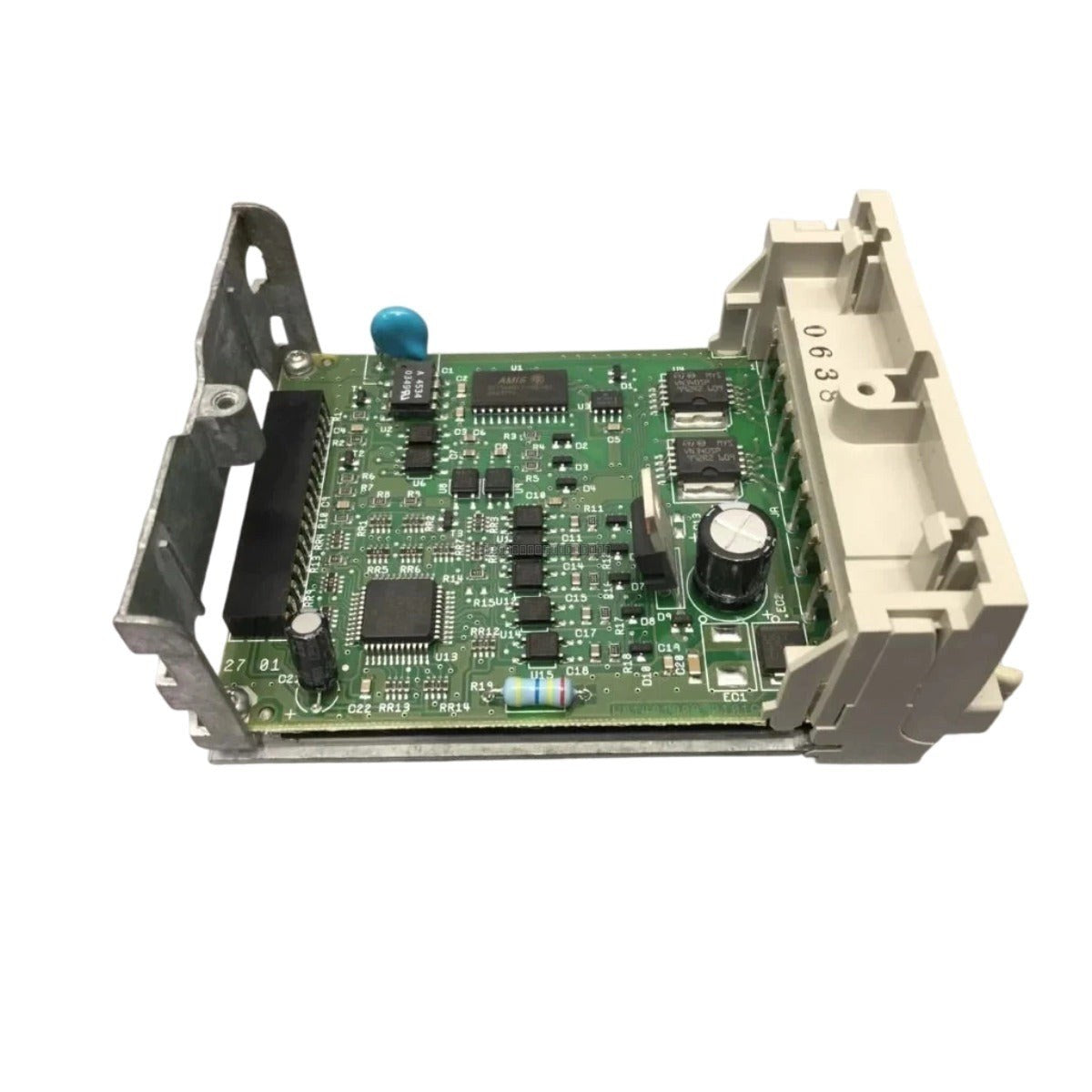

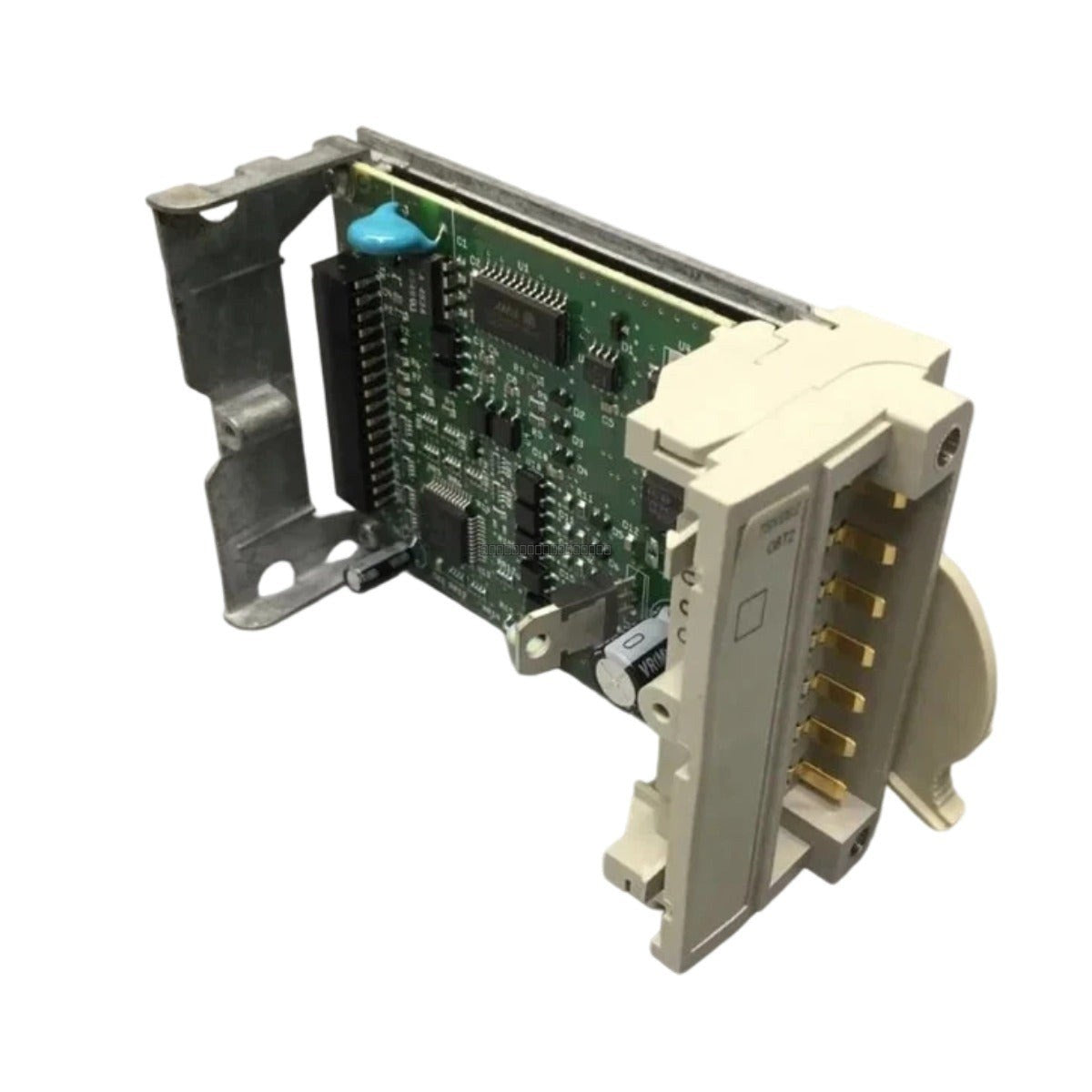

The Schneider TSXDSZ08T2 is a high-performance relay discrete output module designed for integration within industrial automation systems. This module provides eight independent, isolated relay output channels, offering robust switching capabilities for various field devices. It is engineered for compatibility with the RMS-TSG-TZ-C series PLC architecture, ensuring seamless communication and reliable control in demanding industrial environments.

Features

• Equipped with 8 discrete relay output channels for versatile control of field actuators and signaling devices.
• Optimized for 24 VDC operation, supporting standard industrial control voltage requirements.
• Compact, modular form factor designed for efficient space utilization within control panels and standard PLC racks.
• IP20-rated enclosure provides protection against solid objects, ensuring operational safety.
• Engineered for high reliability and consistent performance in automated control loops.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before inserting or removing the module to prevent electrical damage or unintended operations.
• Mount the module securely on a standard DIN rail or within the designated PLC rack slot, ensuring proper alignment with the backplane connector.
• Use shielded cabling for output connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain adequate clearance around the module to facilitate proper airflow and cooling, adhering to the specified operating temperature range.
• Verify that all field wiring is properly terminated and that the load current does not exceed the 0.25 A per-point rating.

FAQ

What is the primary function of the TSXDSZ08T2 module?

The TSXDSZ08T2 is a relay output module used to interface a PLC with external field devices, providing eight isolated channels for discrete switching control.

Is this module compatible with other Schneider series?

This module is specifically designed for use with the RMS-TSG-TZ-C series. Please verify your specific PLC rack configuration before installation.

What is the maximum current capacity per output?

Each of the eight relay output channels is rated for a maximum load current of 0.25 A.
