Description

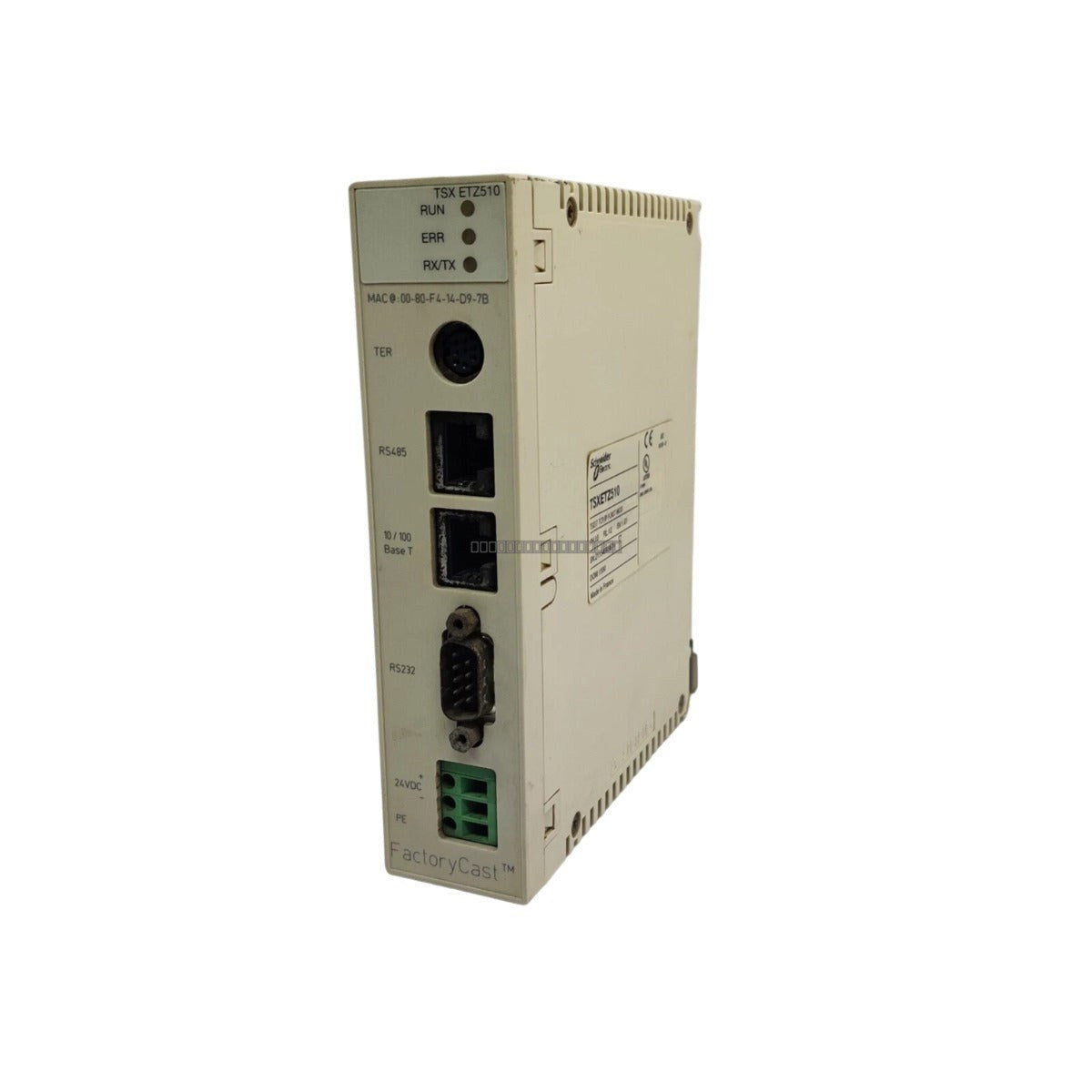

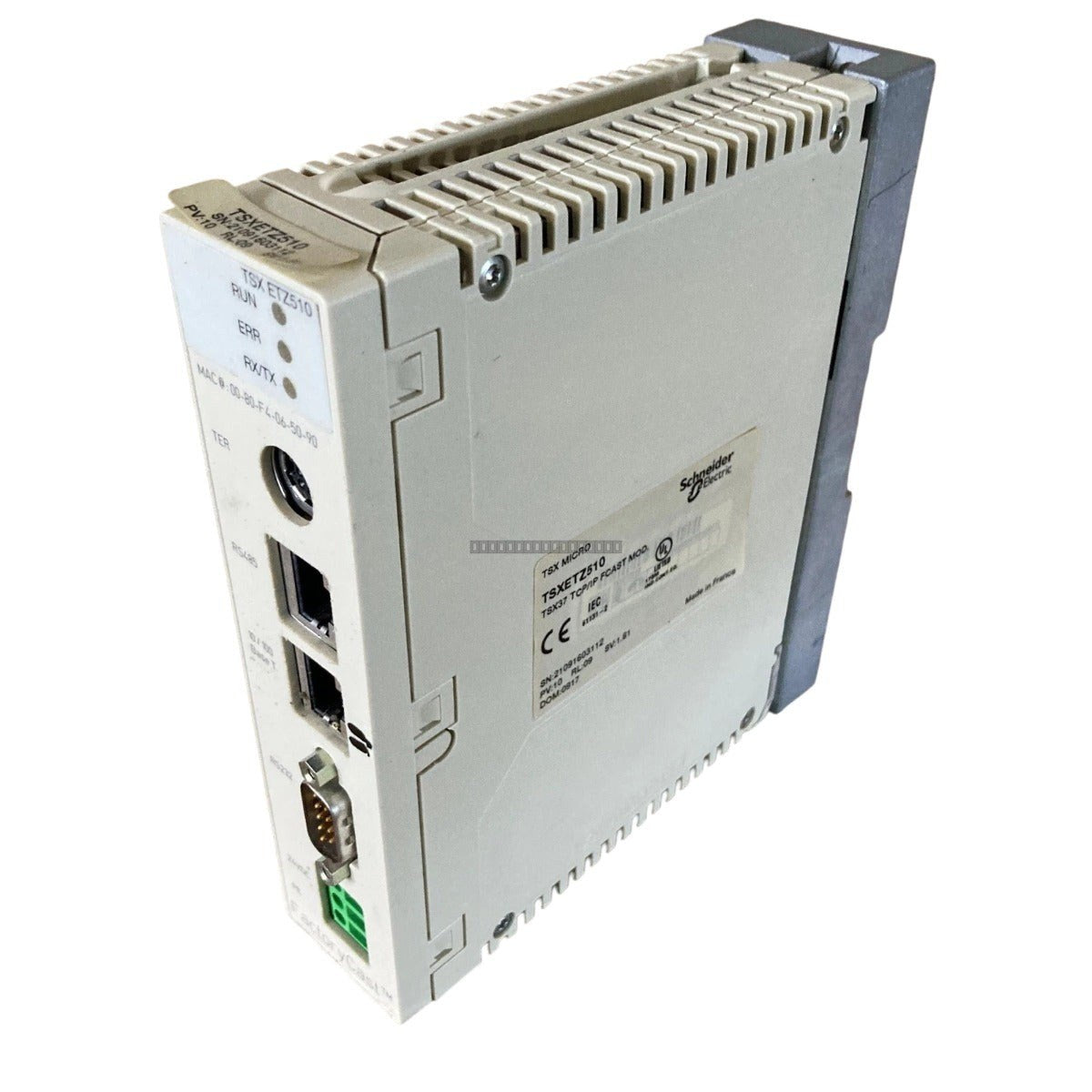

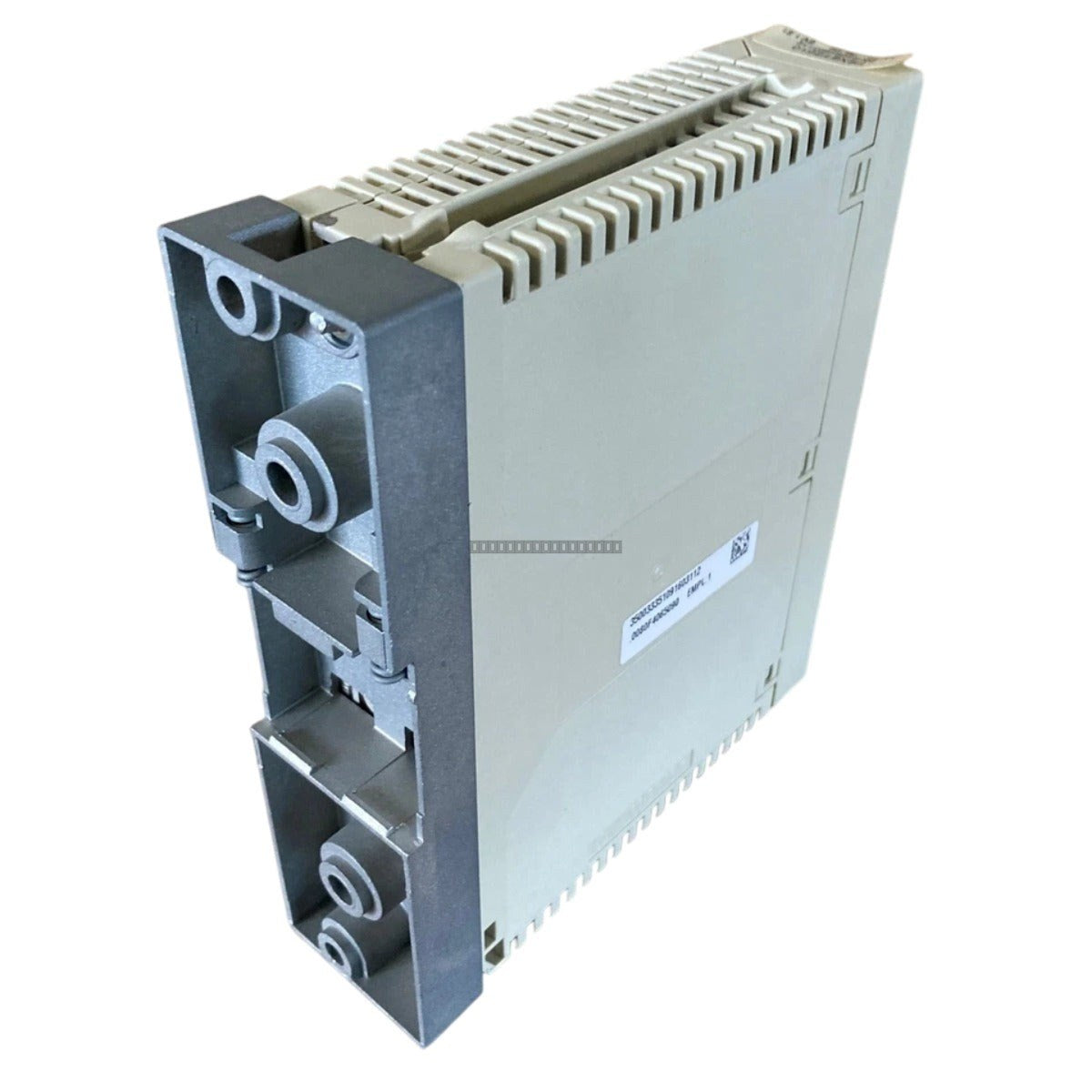

The Schneider TSXETZ510 is a high-performance Ethernet communication module specifically engineered for integration with the TSX Micro PLC platform. This module facilitates robust network connectivity, enabling seamless data exchange within industrial automation architectures. By supporting standard Ethernet data rates, it ensures reliable and efficient communication for monitoring and control applications.

Features

• Transparent Ready: Designed for easy integration into existing Ethernet-based network infrastructures.
• Communication Speed: Supports 10/100 Mbit/s Ethernet data rates for optimized system throughput.
• Device Capacity: Capable of supporting up to 64 devices via Ethernet and 2 devices via modem serial link.
• Energy Efficient: Operates with a low power dissipation range of 2.4 to 4 watts, supporting sustainable system operation.

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect power from the PLC rack before installing or removing the communication module to prevent electrical damage.
• Slot Alignment: Ensure the module is correctly aligned with the backplane connector before applying pressure to seat it into the TSX Micro rack.
• Environment: Install in a clean, dry environment protected from excessive dust, moisture, and extreme temperatures.
• EMI Protection: Route communication cables away from high-voltage power lines and sources of electromagnetic interference to maintain signal integrity.
• Grounding: Follow standard industrial grounding practices for the PLC chassis to ensure proper shielding and noise immunity.

FAQ

What is the primary function of the TSXETZ510?

The TSXETZ510 serves as an Ethernet communication interface for the Schneider TSX Micro PLC, allowing the controller to communicate over standard Ethernet networks.

Does this module support serial connections?

Yes, the module supports up to 2 devices via a modem serial link in addition to its Ethernet capabilities.
