Description

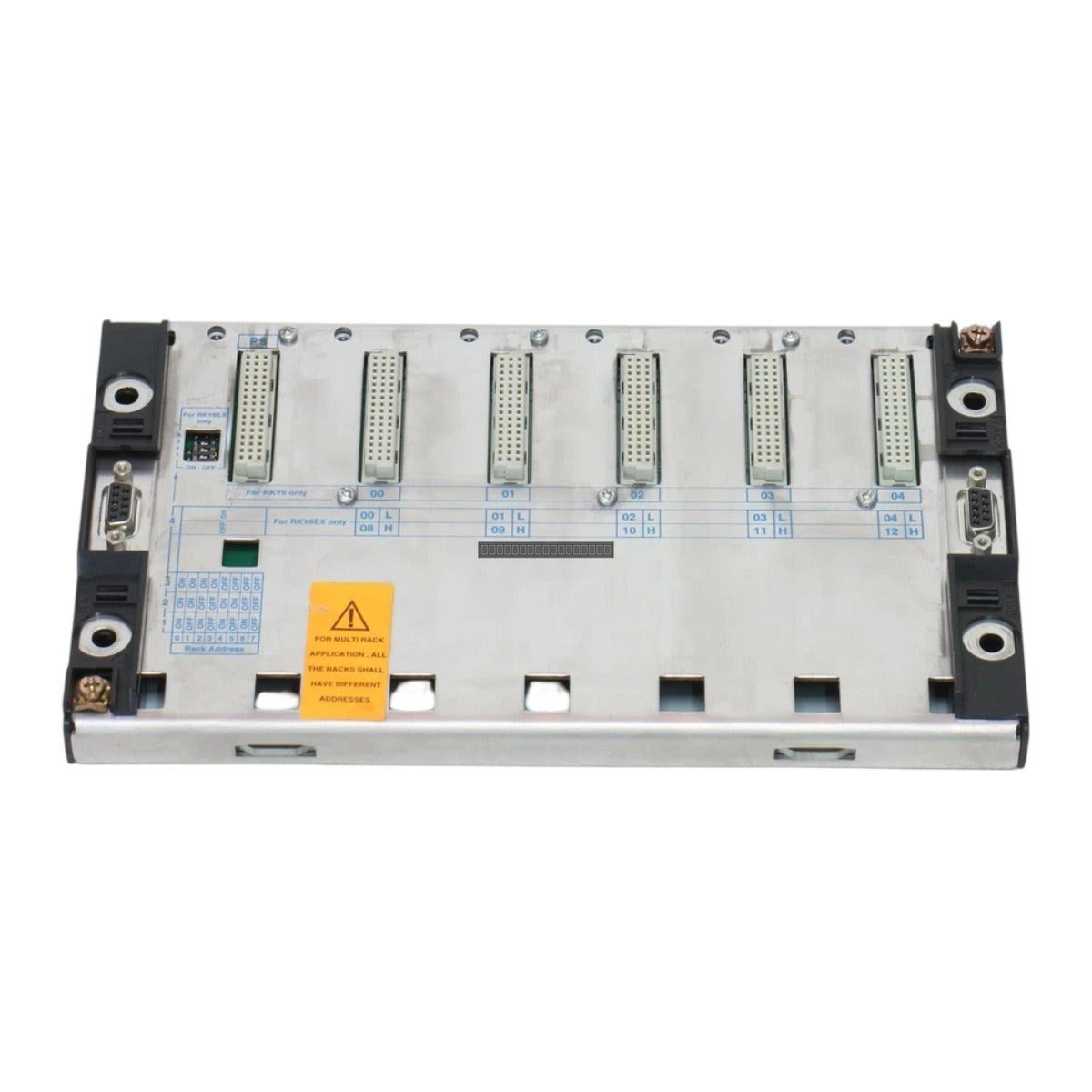

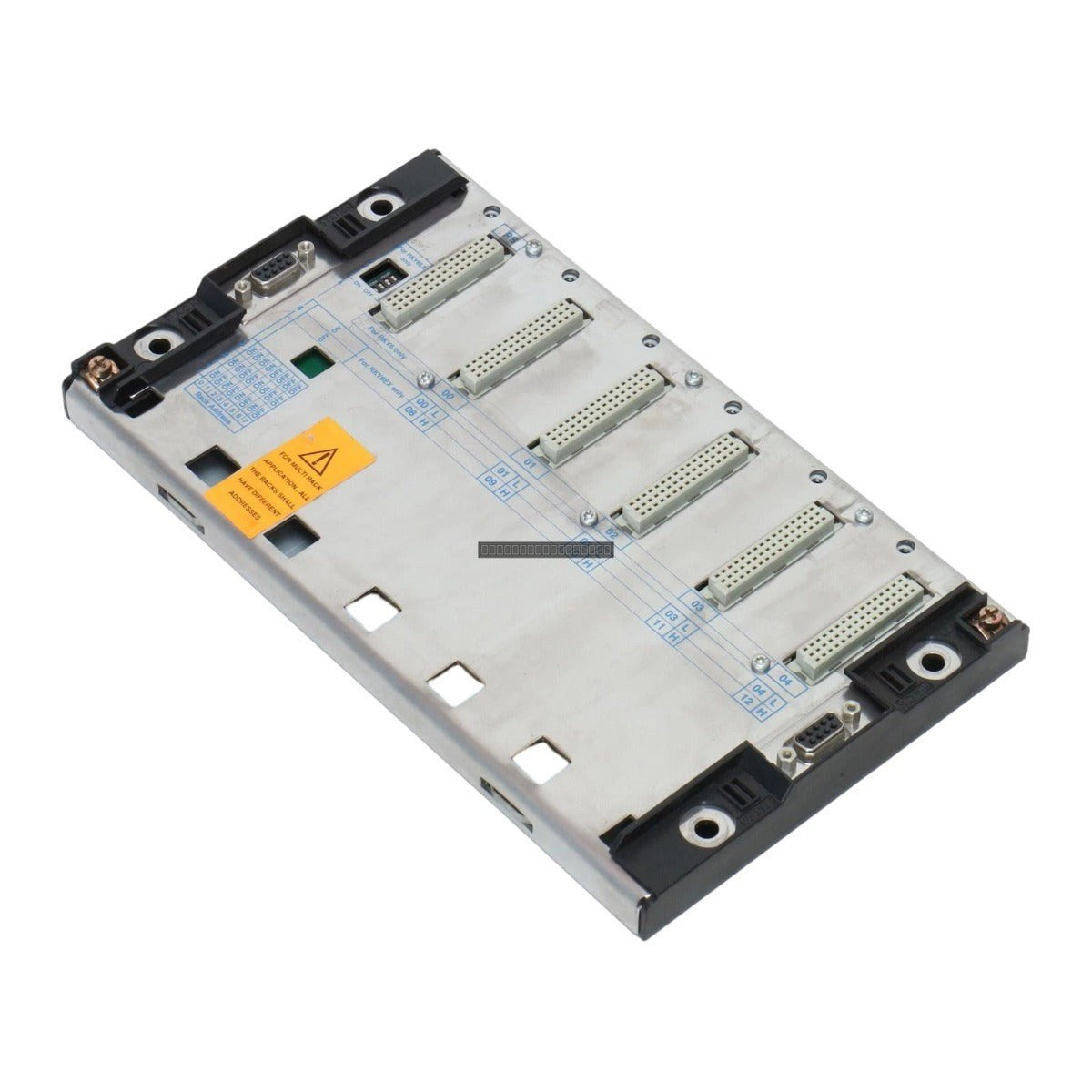

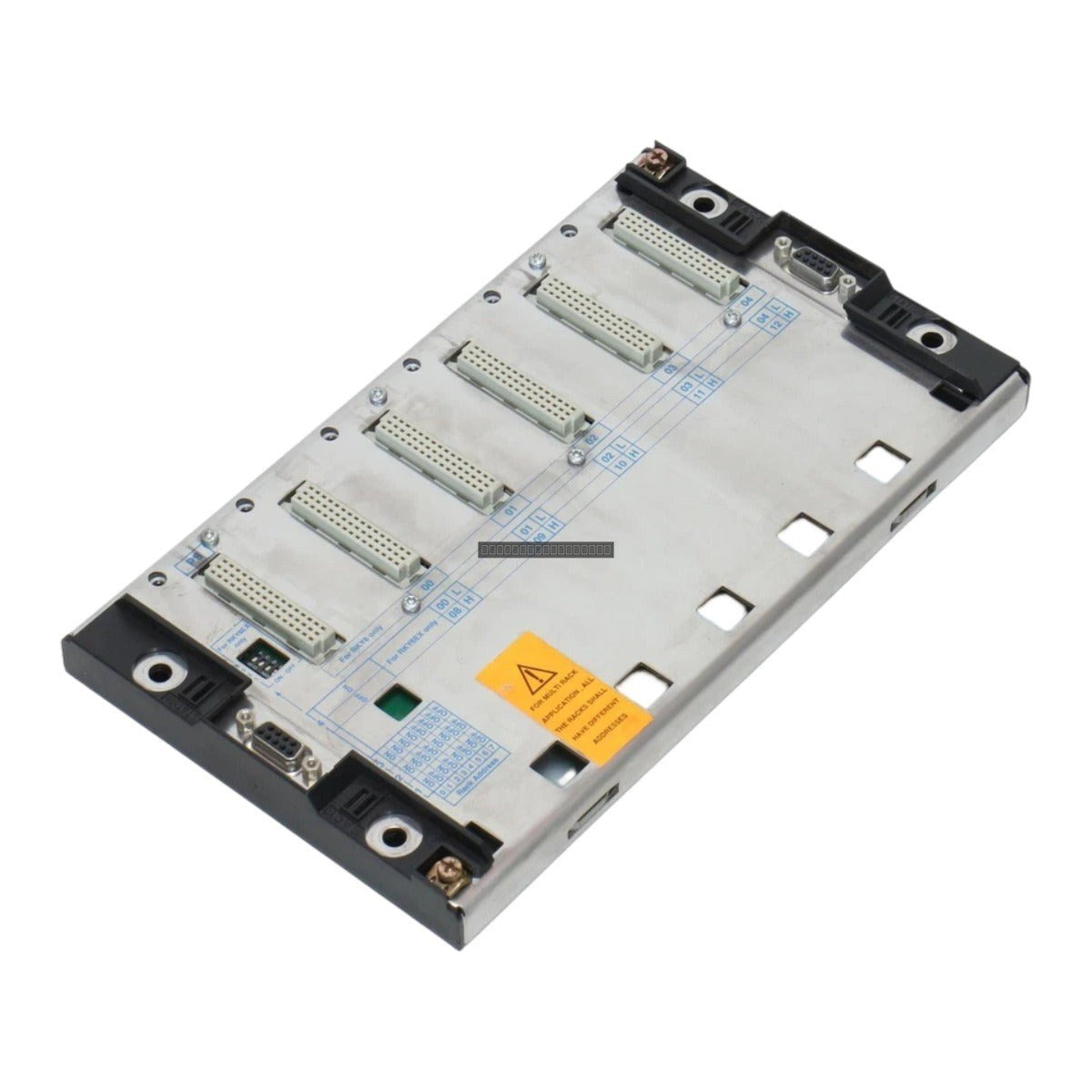

The Schneider Electric TSXRKY6EX is a 6-slot extendable rack engineered for the Modicon Premium automation platform. This rack serves as a foundational component for multi-rack configurations, providing the necessary backplane connectivity for TSXP57 processors, various I/O modules, and TSXPSY power supply units. Its extendable design is specifically intended for distributed control architectures requiring scalable I/O capacity.

Features

• 6-slot capacity for high-density module installation.
• Integrated remote bus X connection via two female SUB-D 9 connectors.
• Supports modular expansion within Modicon Premium systems.
• Robust mechanical design for industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted on a flat, vibration-resistant surface or a standard 35 mm DIN rail.
• Verify that the power supply is disconnected before installing or removing any modules from the rack slots.
• Maintain adequate clearance around the rack to facilitate proper airflow and cooling, preventing thermal derating.
• Use shielded cables for remote bus connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Ensure all grounding connections are secure to maintain system integrity and safety.

FAQ

What is the primary function of the TSXRKY6EX rack?

The TSXRKY6EX is a 6-slot rack designed to house Modicon Premium modules, including processors and I/O, and it supports system expansion through its integrated remote bus X interface.

Can this rack be mounted on a DIN rail?

Yes, the rack is compatible with standard 35 mm symmetrical DIN rails, or it can be secured directly to a panel using four M6 screws.
