Description

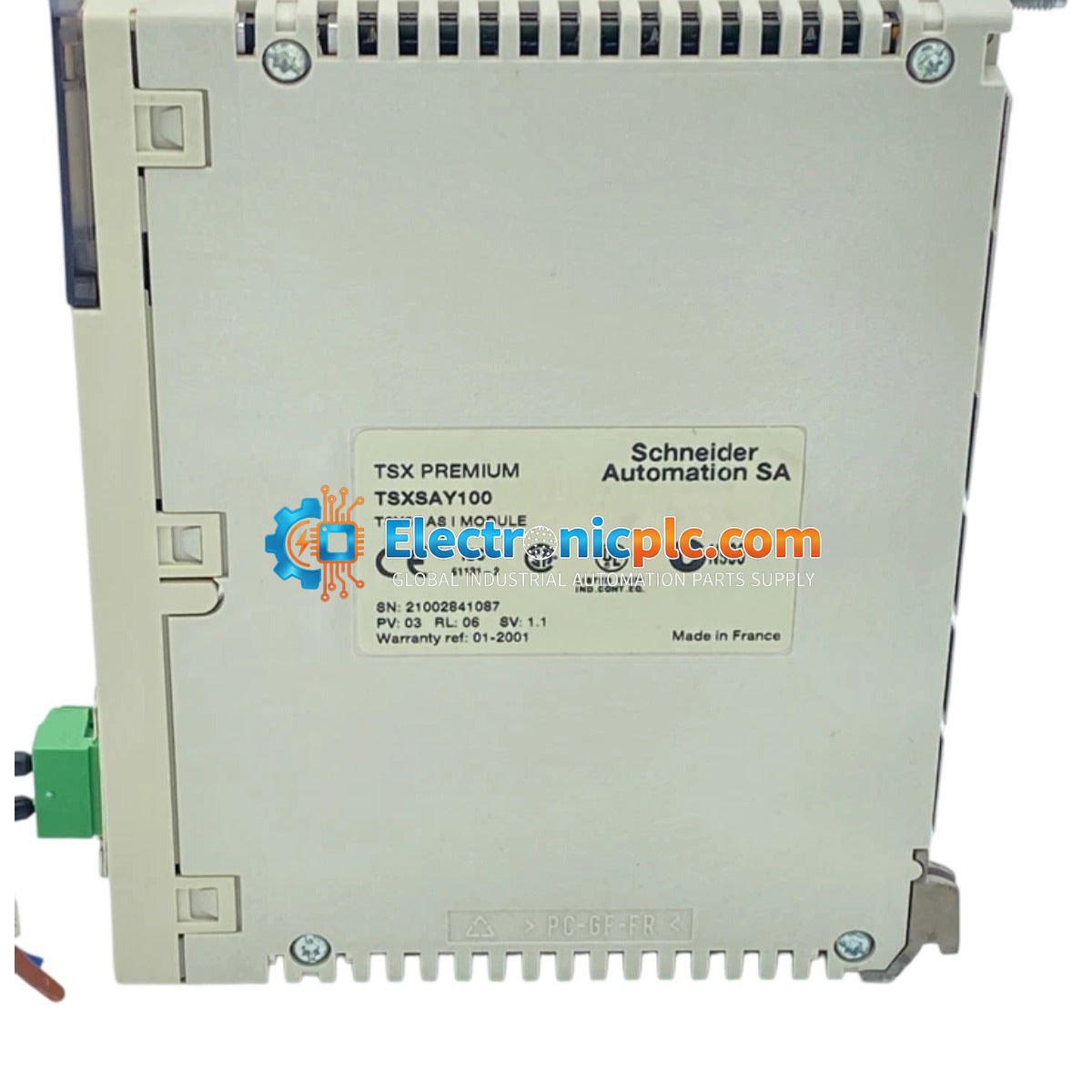

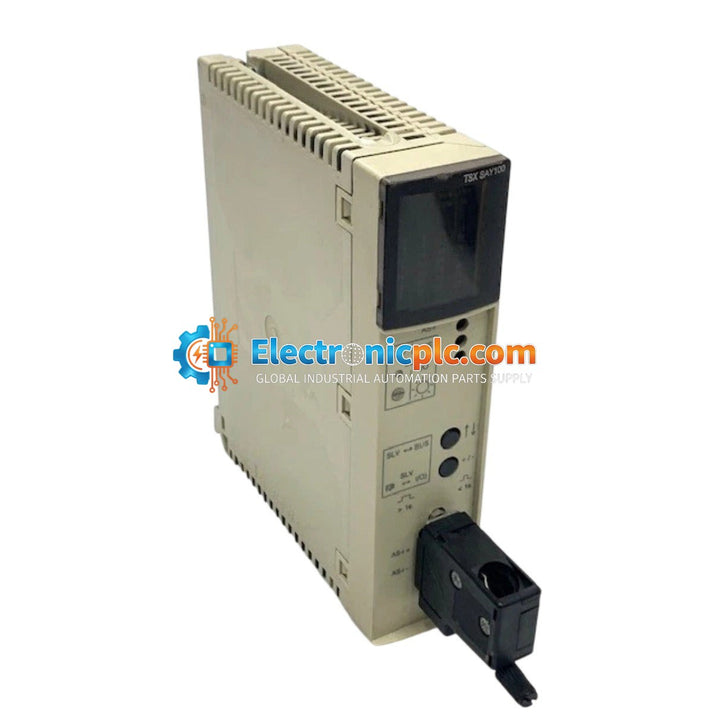

The Schneider TSXSAY100 is a high-performance BUS Coupler Module belonging to the Modicon TSX series. This module is engineered to facilitate reliable communication between industrial control systems and various field devices. It acts as a critical interface component, ensuring seamless data exchange and synchronization across complex automation architectures.

Features

• Reliable Data Transfer: Provides stable and consistent communication for demanding industrial integration tasks.
• Protocol Versatility: Supports multiple industrial protocols, including Profibus DP, Modbus, and CANopen, for broad system compatibility.
• High-Speed Communication: Optimized for fast data transfer rates to support real-time, low-latency control applications.
• Compact Form Factor: Designed for space-efficient installation within standard control cabinets and system racks.
• Rugged Construction: Built to operate reliably in harsh industrial environments with a wide operating temperature range.

Technical Specifications

Installation Guidelines

• Mounting: Designed for standard DIN rail mounting. Ensure the module is securely snapped into place to prevent vibration-related disconnections.
• Power Supply: Verify that the input power is a stable 24V DC source before connecting. Ensure correct polarity to avoid damage to internal circuitry.
• Grounding: Follow standard industrial grounding practices for the DIN rail and the cabinet to minimize EMI interference.
• Handling: Observe ESD (Electrostatic Discharge) precautions when handling the module. Avoid touching the connector pins or internal components.
• Environment: Ensure adequate ventilation around the module to maintain operating temperatures within the specified -10 degC to 60 degC range.

FAQ

What is the primary function of the TSXSAY100?

The TSXSAY100 serves as a BUS coupler module within the Modicon TSX series, enabling communication between the controller and various field devices using protocols like Modbus, Profibus DP, or CANopen.

Can this module be used in high-temperature environments?

The module is rated for an operating temperature range of -10 degC to 60 degC. Please ensure your cabinet cooling systems maintain the ambient temperature within these limits for optimal performance.
