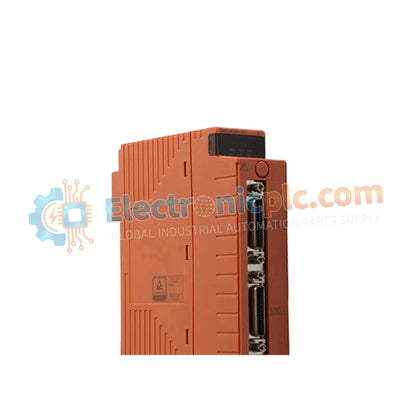

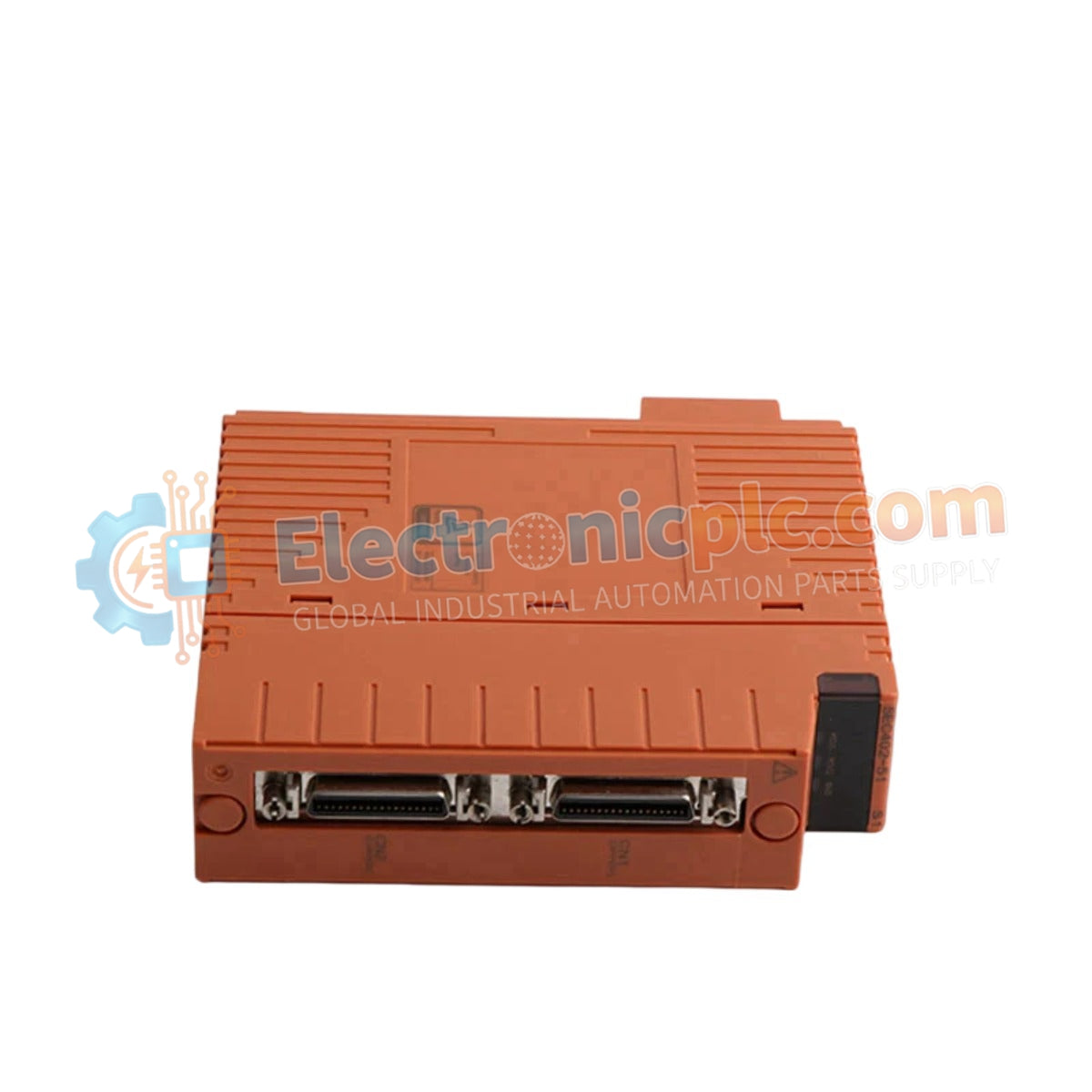

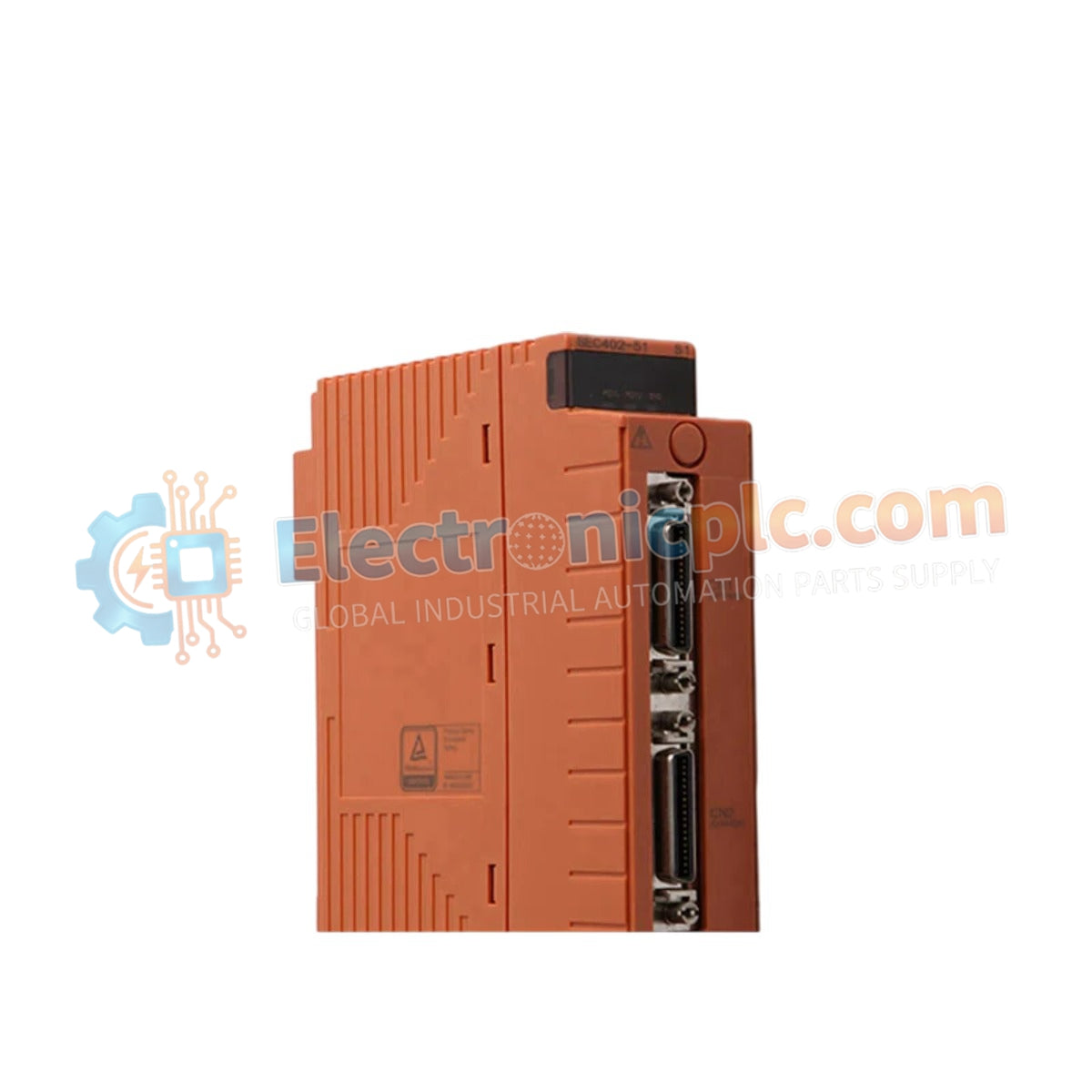

Configured for high-speed master control in CENTUM VP control systems, the Yokogawa SEC402-51 (SEC402 ESB Bus Coupler Module) provides direct physical execution of bus master interface functions to facilitate data exchange between the Field Control Unit (FCU) and peripheral node units.

Hardware Specifications

DCS Process Control & Data Integrity

The SEC402-51 operates as a high-speed bus master, managing I/O data cycles at a throughput of 128 Mbps. The module incorporates robust signal isolation to protect the FCU backplane from transient interference originating on the ESB bus. By maintaining precise timing synchronization, the unit ensures that cyclic process data is processed within the system's required scan interval, preserving the operational reliability of the distributed control architecture.

Frequently Asked Questions

Q: Can the SEC402-51 be hot-swapped during active system operation?

A: No, the module does not support hot-swapping. The FCU and node unit power must be fully isolated before module removal to prevent electrical arcing and backplane logic errors.

Q: Is the 10-meter transmission distance limit absolute for the ESB bus?

A: Yes, the 10-meter limit is defined by the signal attenuation and timing constraints of the ESB bus protocol. Exceeding this distance will result in increased frame retransmission rates and potential loss of communication synchronization.

Field Installation Guidelines

• Verify that the ESB bus cable is correctly seated and locked within the designated interface port to ensure ground continuity and signal integrity.
• Maintain a clear cable path away from high-power EMI sources (e.g., variable frequency drives or high-voltage relays) to prevent signal jitter on the 128 Mbps data line.
• Before initialization, ensure the node unit addressing is configured correctly according to the system layout, as duplicated node addresses will cause bus conflicts.
• Periodically inspect the backplane connector pins for oxidation; if environmental conditions are harsh, apply a minimal amount of contact cleaning agent to maintain low-resistance signal paths.
