Description

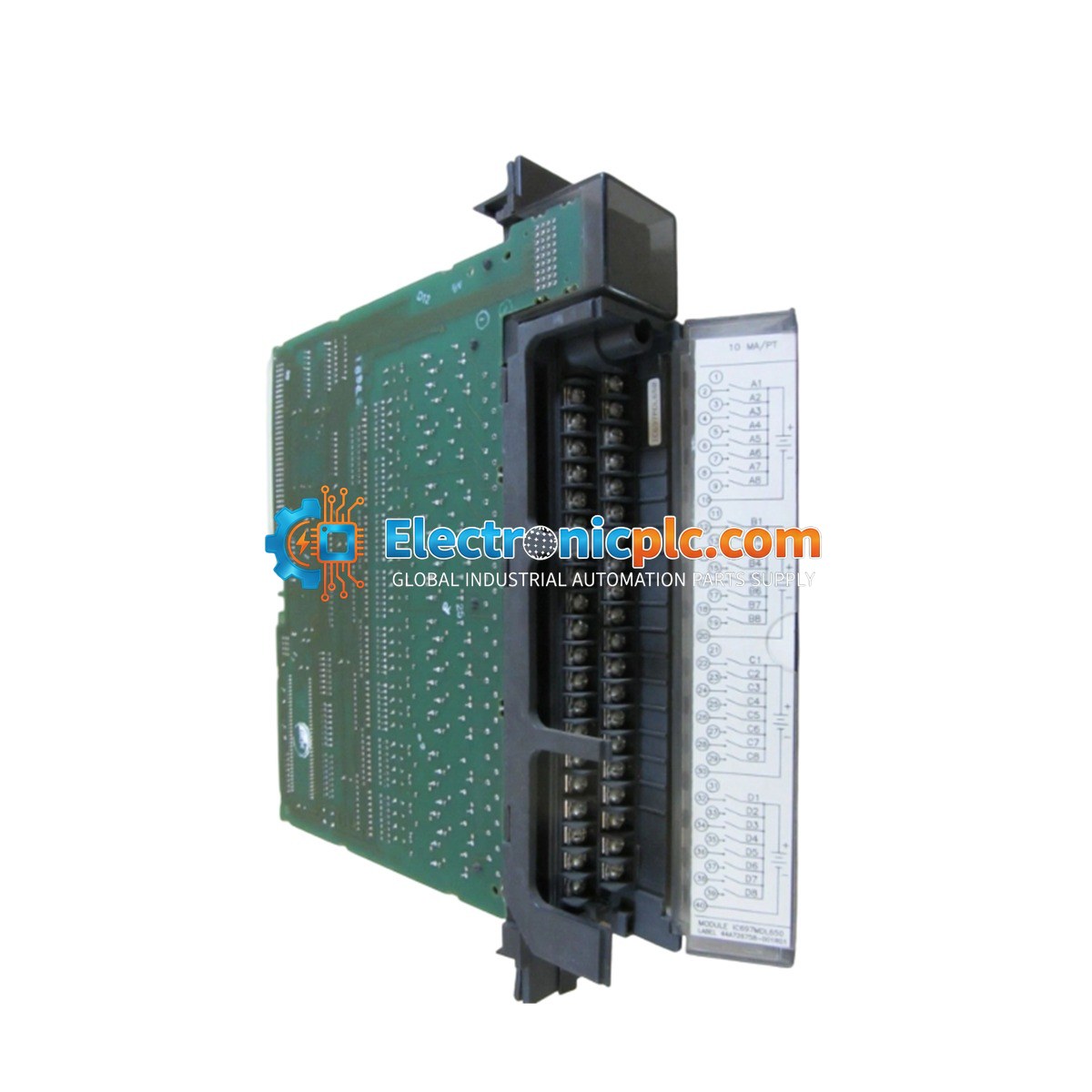

The IC697MDL650 is a high-density discrete input module engineered for the GE Fanuc Series 90-70 PLC system. This module provides 32 points of positive logic (sinking) inputs, specifically designed to interface with high-speed field devices in demanding industrial environments. It is essential for applications requiring rapid signal acquisition, such as monitoring limit switches, push buttons, and proximity sensors to optimize machine cycle times and ensure system reliability.

Features

• 32-point high-density input configuration for space-efficient rack utilization.
• Positive logic (sinking) input architecture.
• Integrated opto-isolation (1500 V Peak) to protect backplane and CPU components from electrical noise and voltage transients.
• Front-mounted LED indicators for real-time visual status monitoring of each input channel.
• Four isolated groups of eight inputs to simplify field wiring and segmentation.

Applications

The IC697MDL650 is widely deployed in sectors including automotive manufacturing, steel milling, and petrochemical processing. It is ideal for high-speed data acquisition tasks where granular monitoring of field devices is required to prevent unplanned downtime and maintain operational efficiency.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is fully seated in the backplane slot and secured with the provided mounting screws.
• Use shielded cables for field wiring to minimize EMI/RFI interference, especially in high-voltage industrial environments.
• Maintain proper ventilation within the cabinet to ensure the ambient temperature remains within the 0 to 60 deg C operating range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What is the input logic of the IC697MDL650?

The IC697MDL650 is a positive logic (sinking) module, meaning it detects current flowing from the field device into the input terminal.

How are the 32 inputs organized?

The inputs are partitioned into four groups of eight, each sharing a common power return, which facilitates organized and simplified field wiring.

What is the primary function of the LED indicators?

The front-mounted LEDs provide immediate visual verification of the logic state of each individual input point, which is critical for efficient troubleshooting during commissioning and maintenance.
