Description

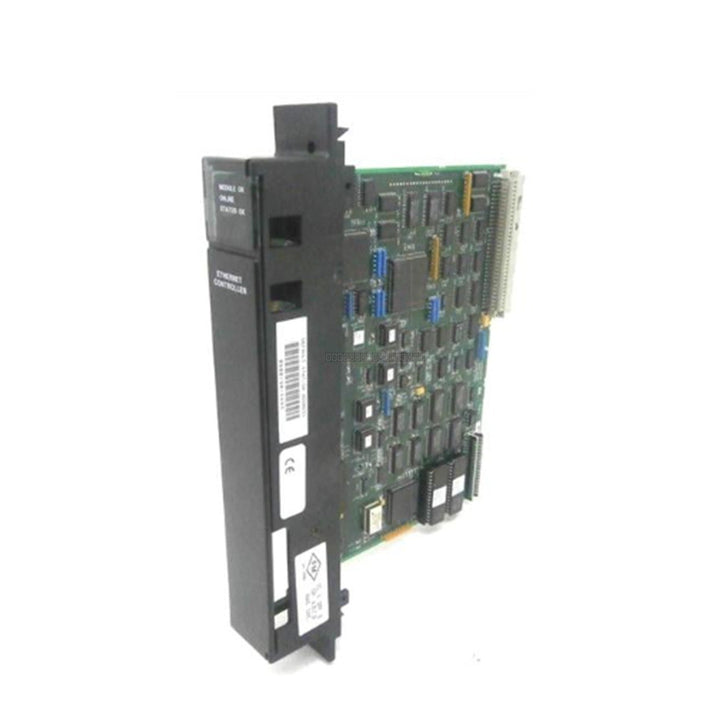

The IC697CMM741 is an Ethernet Controller module designed for the GE Fanuc Series 90-70 programmable logic controller (PLC) system. This module serves as a Local Area Network (LAN) interface, enabling high-speed communication and data exchange between the PLC and other networked devices or supervisory control systems. It is engineered to support robust industrial networking requirements within the Series 90-70 architecture.

Features

• Designed for integration with GE Fanuc Series 90-70 PLC systems.
• Supports both RAM and ROM memory types for operational flexibility.
• Equipped with 3 diagnostic LEDs for status monitoring.
• Includes battery backup support for RAM to ensure data retention during power cycles.
• Utilizes a standard D-Type 15-pin connector for network interfacing.
• Compatible with AUI or transceiver-style cabling configurations.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the IC697CMM741 module to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
• Seat the module firmly into the designated Series 90-70 backplane slot and secure it using the integrated locking mechanisms.
• Use shielded communication cables to minimize EMI (Electromagnetic Interference) in industrial environments.
• Verify that the network cabling (AUI or transceiver) is correctly seated in the 15-pin D-type connector before applying power.
• Check the status LEDs after power-up to confirm the module has successfully initialized and established a network connection.

FAQ

What is the primary function of the IC697CMM741?
This module acts as an Ethernet Controller for the GE Series 90-70 PLC, allowing the controller to communicate over an Ethernet-based LAN.

Does this module require a battery?
Yes, the module supports battery backup for its internal RAM to maintain data integrity during power loss.

What type of cable does this module use?
The module features a 15-pin D-type connector, which is designed to interface with standard AUI or transceiver cables commonly used in industrial Ethernet applications.
