Description

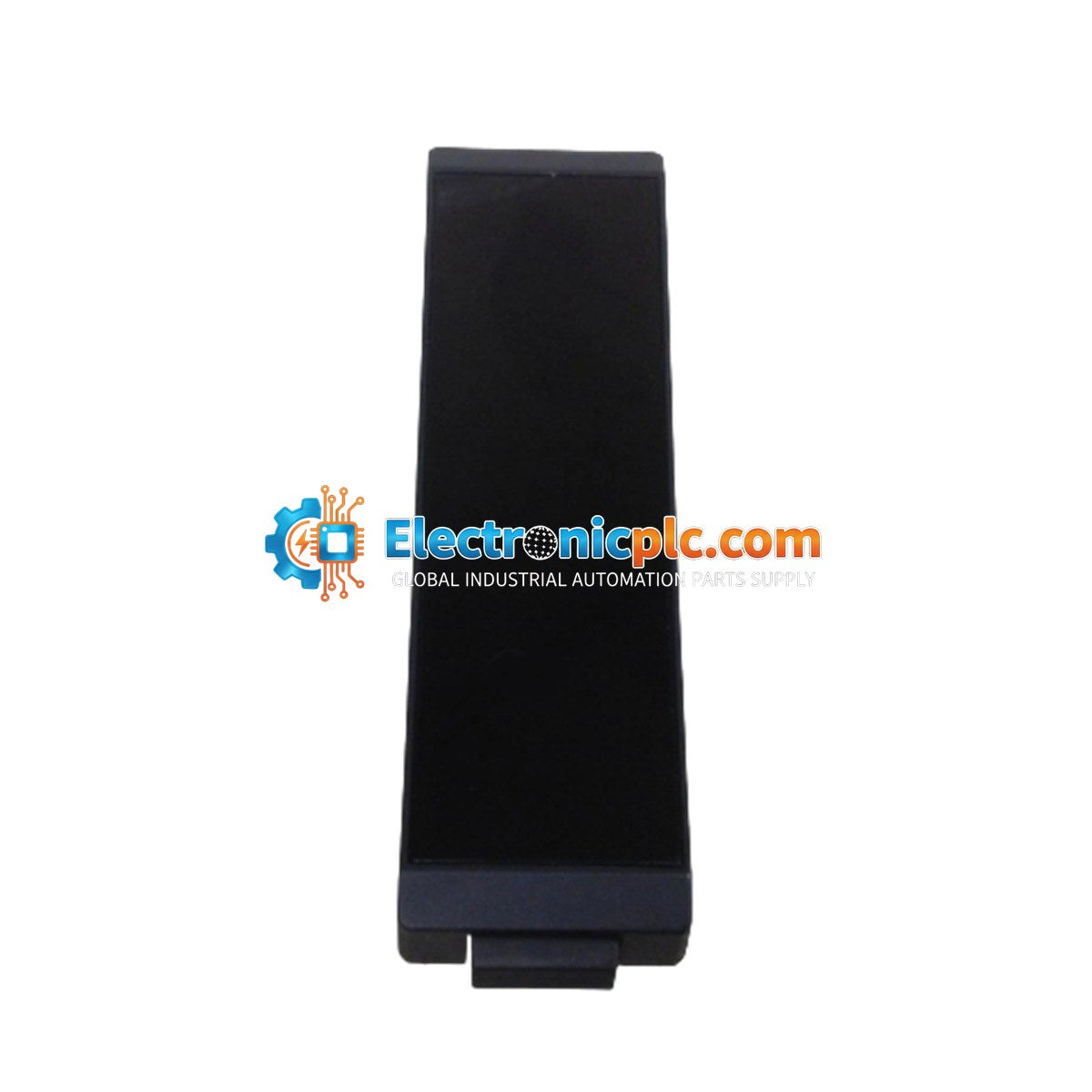

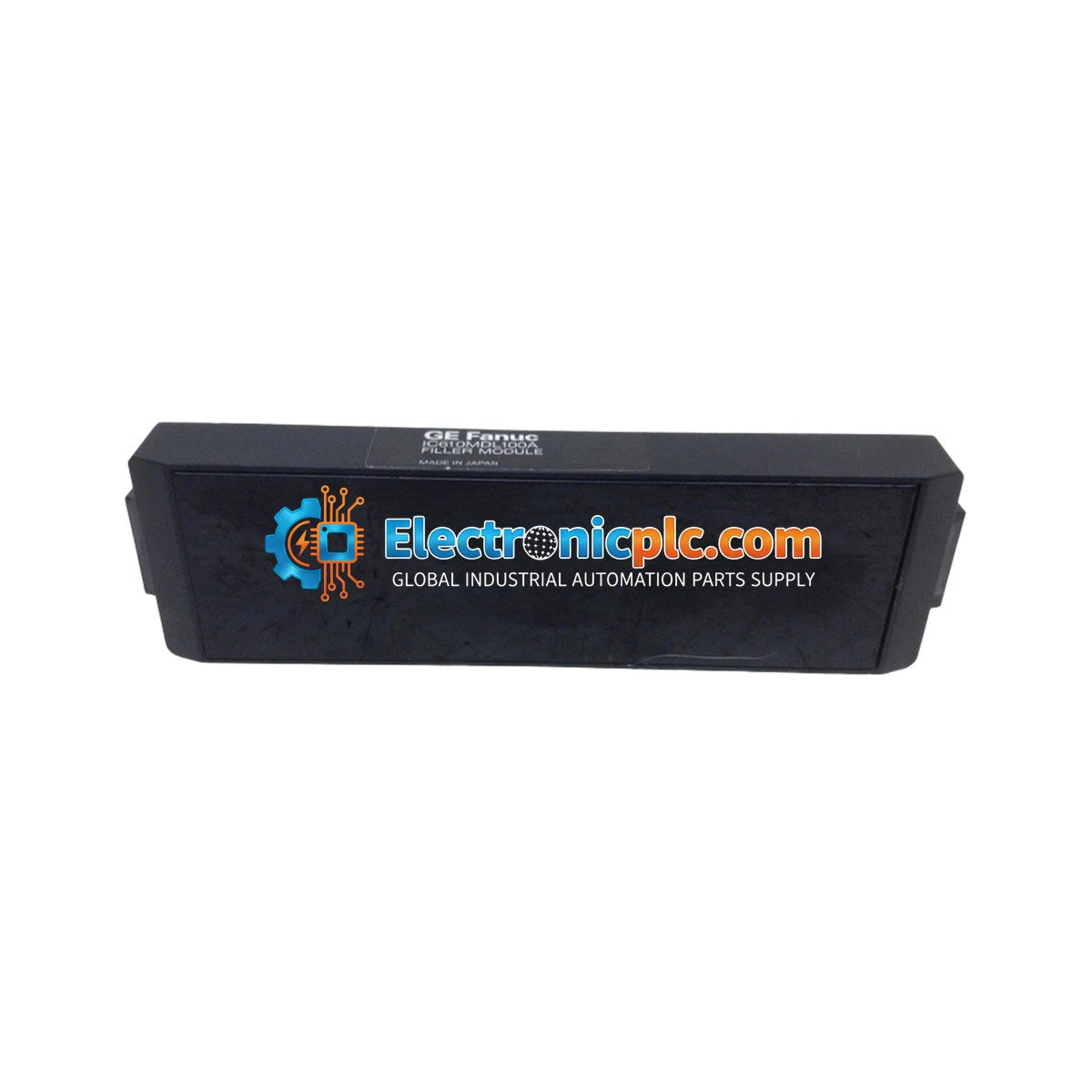

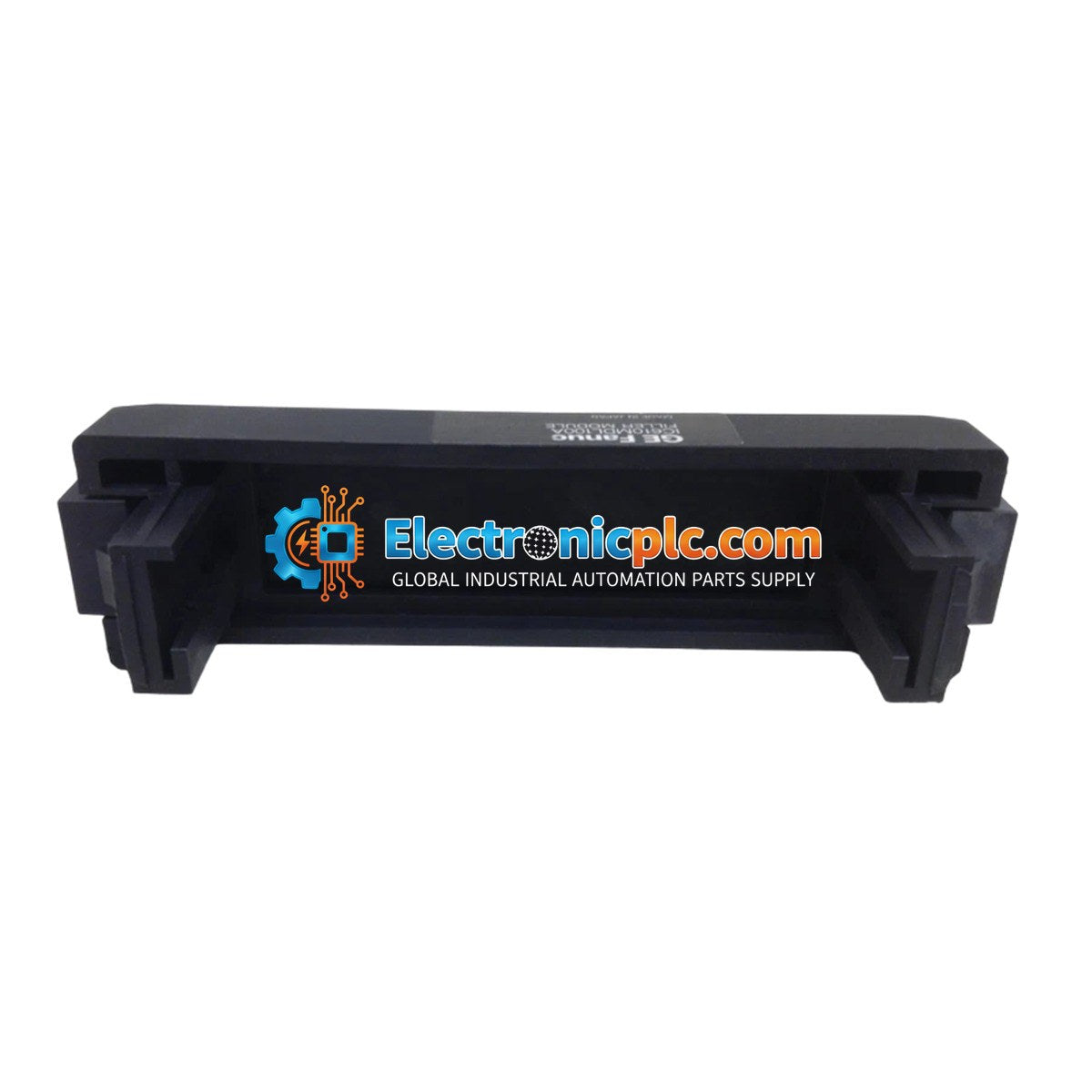

The GE Fanuc IC610MDL100 is a structural filler module designed specifically for the legacy Series One programmable controller product line. This component serves as a critical mechanical barrier for unpopulated chassis slots, ensuring the integrity of the rack environment. By sealing empty slots, the module prevents the ingress of conductive dust, debris, and humidity, which protects the active backplane from contamination. Furthermore, it plays a vital role in maintaining proper internal rack thermodynamics by optimizing airflow vectors, thereby preventing the overheating of adjacent active modules.

Features

• Designed specifically for Series One PLC chassis systems.
• Passive mechanical design requires no electrical connection or power consumption.
• Constructed from high-durability, industrial-grade black plastic.
• Features integrated heavy-duty retention clips for toolless, secure installation.
• Resists vibration and maintains structural integrity in harsh industrial environments.
• Protects sensitive backplane components from environmental contaminants.

Applications

This filler module is intended for use in any Series One rack system where vacant slots are present. Typical applications include oil and gas processing facilities, power distribution centers, and mining operations where environmental protection of control hardware is essential for long-term system reliability.

Technical Specifications

Installation Guidelines

• Ensure the rack power is off before inserting or removing any modules to maintain standard safety protocols.
• Align the filler module with the empty chassis slot guides.
• Press firmly until the integrated retention clips snap into place, ensuring a flush fit with adjacent modules.
• Regularly inspect the module during routine maintenance to ensure it remains securely seated and free of excessive dust buildup.
• Use only in designated Series One chassis slots; do not attempt to force into non-compatible hardware.

FAQ

What is the primary purpose of the IC610MDL100?

The IC610MDL100 is a filler module used to cover empty slots in a Series One rack. It protects the backplane from dust and debris while ensuring that cooling air is directed through active modules rather than escaping through empty chassis spaces.

Does this module require any wiring?

No, the IC610MDL100 is a purely passive mechanical component. It does not have electrical terminals and does not consume power from the PLC backplane.

Can this module be used in other GE Fanuc series?

This module is specifically engineered for the Series One product line. It is not designed for use in later GE Fanuc systems such as the 90-30 or 90-70 series.
