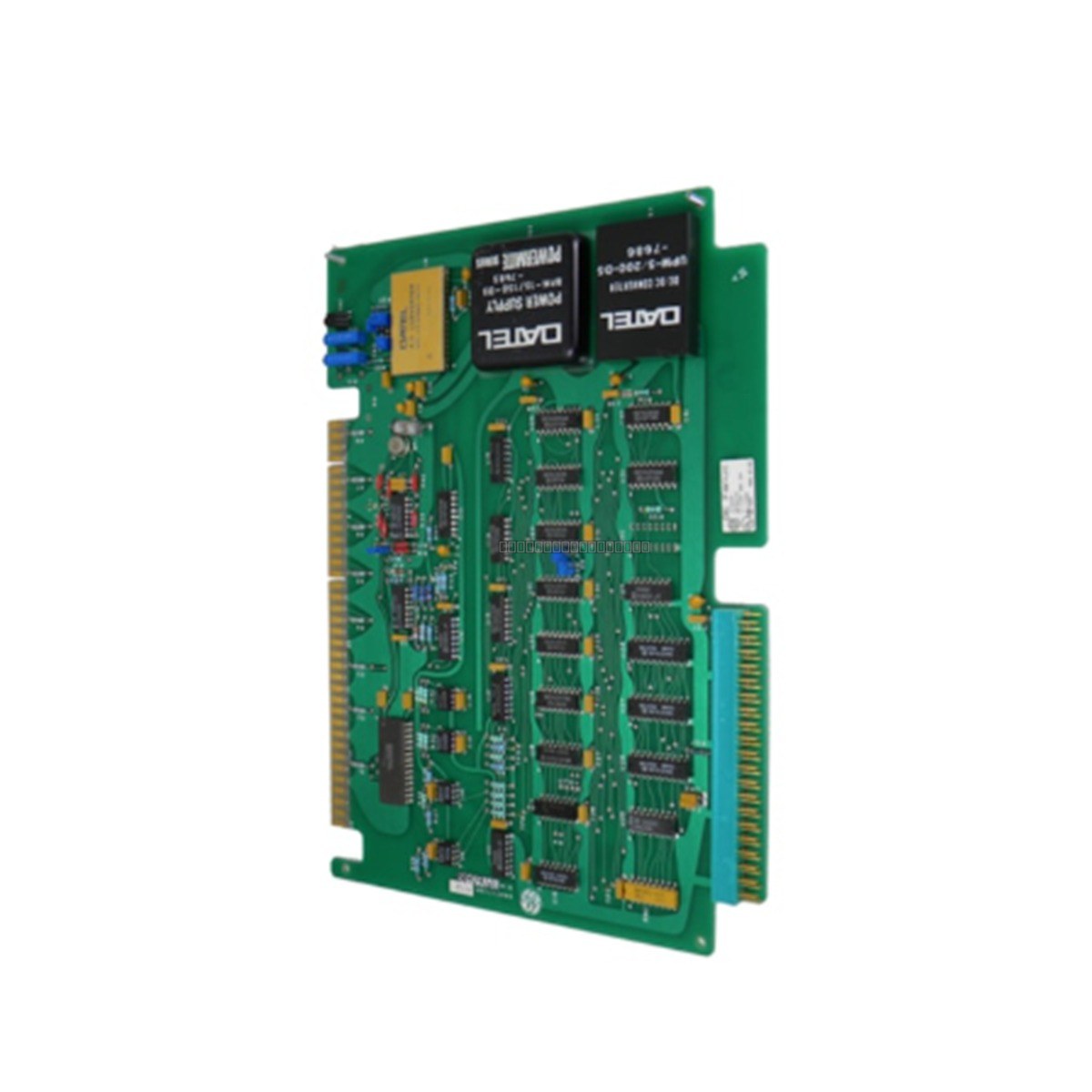

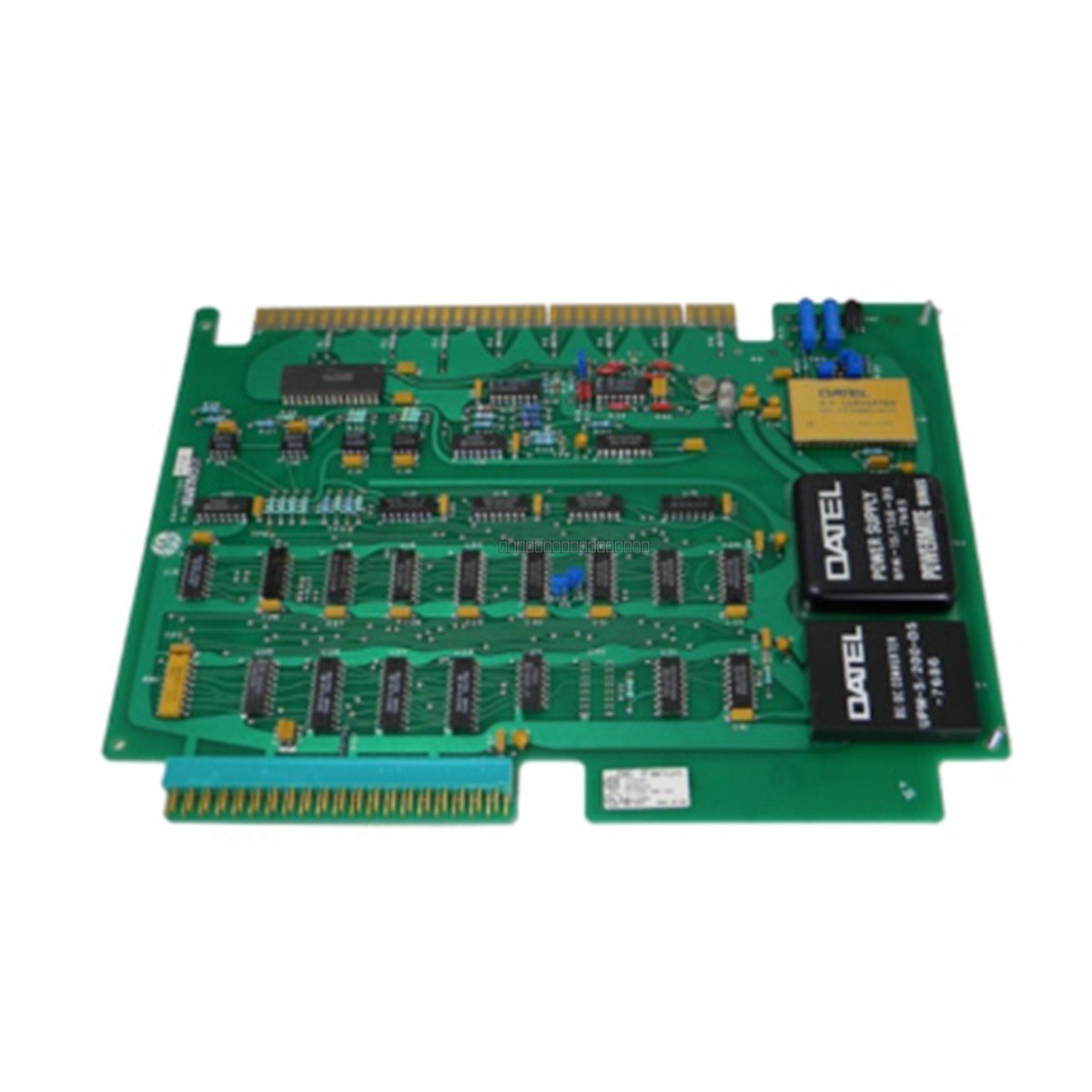

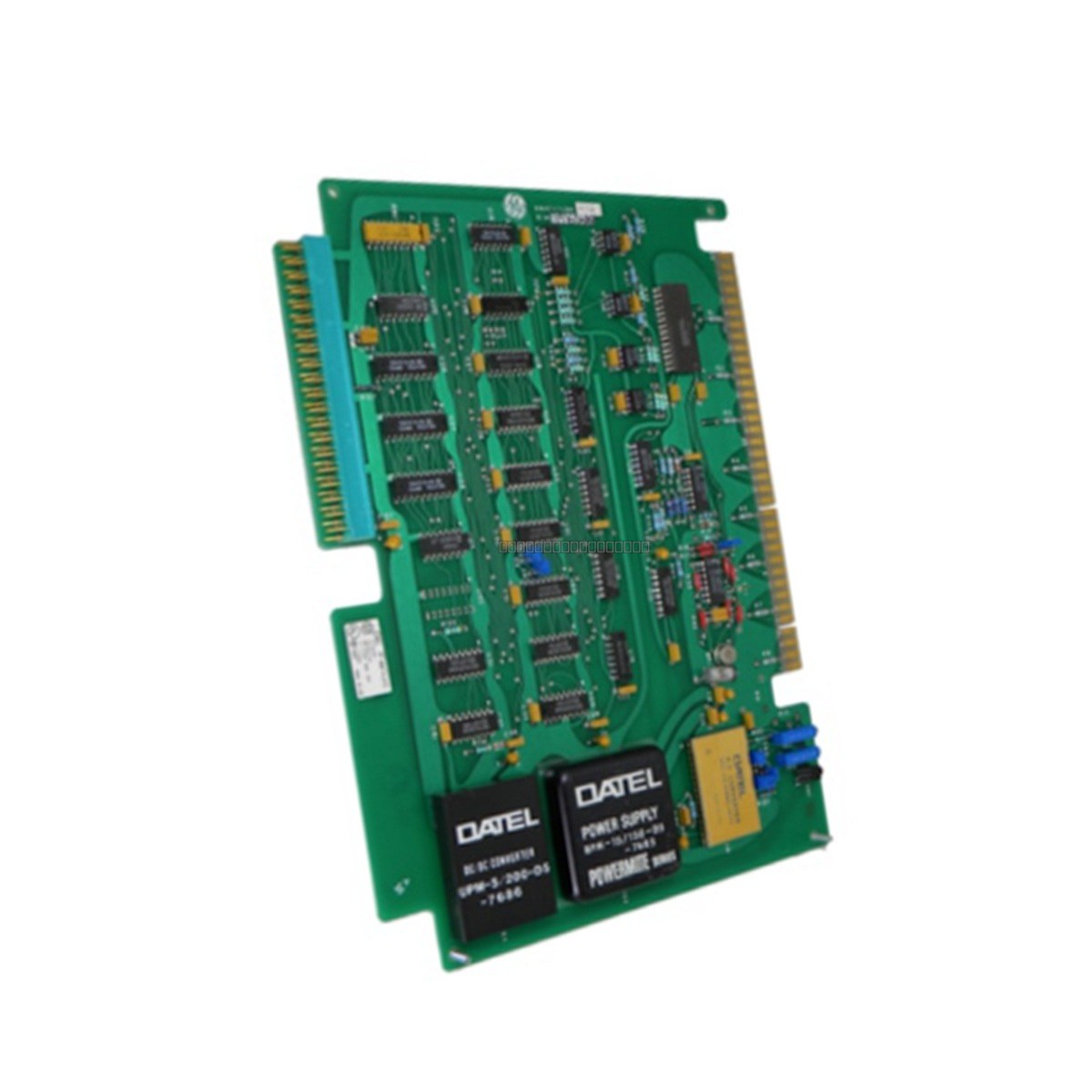

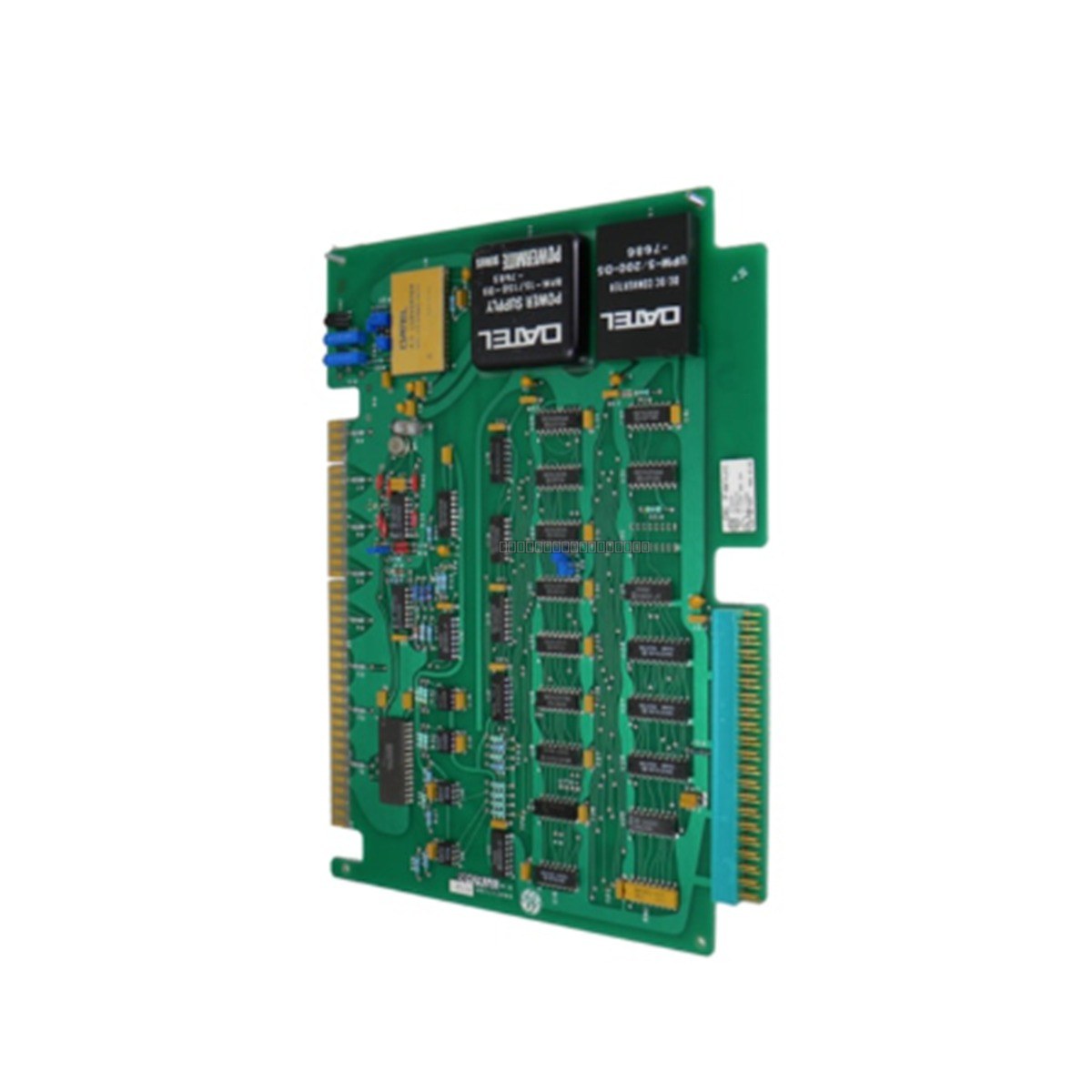

The IC600BF841 is an analog input module designed for the General Electric Series Six programmable logic controller (PLC) system. This module is engineered to interface analog signals with the control system, providing precise data acquisition for industrial automation processes.

Features

• Compatible with GE Series Six PLC architecture
• 4-point analog input configuration
• Supports 0-10VDC signal ranges
• Robust design for industrial control environments

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module.
• Verify that the module is fully seated in the designated backplane slot to ensure proper electrical contact.
• Use shielded twisted-pair cabling for analog signal inputs to minimize electromagnetic interference (EMI).
• Route signal wiring away from high-voltage power lines and inductive loads.
• Ensure proper grounding of the control cabinet to maintain signal integrity and system safety.
• Observe standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Is the IC600BF841 still in production?
No, the IC600BF841 has been discontinued by the manufacturer. We provide high-quality pre-owned or surplus units to support legacy systems.

What is the input range for this module?
This module is designed to accept a 0-10VDC analog input signal.
