Description

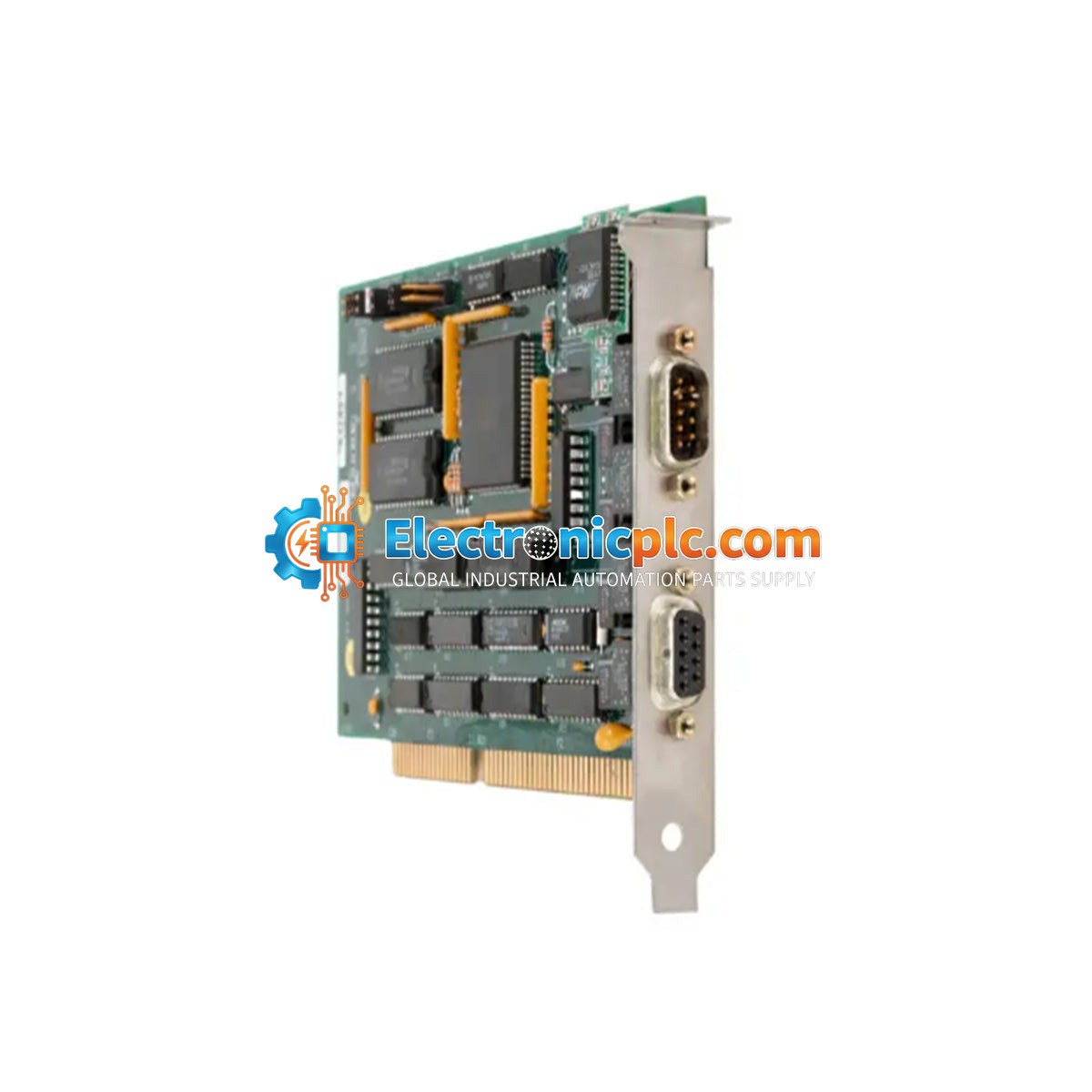

The Siemens Moore 16249-51-4 is an M-Bus interface module designed for integration into legacy industrial control systems. This module utilizes an ISA bus slot for communication and provides the necessary physical interface for M-Bus protocol connectivity. It is a specialized component typically used in older Moore Products Co. control architectures.

Features

• Interface Type: M-Bus
• Bus Architecture: ISA Slot
• Connectivity: 9-pin D-sub male connector and 9-pin D-sub female connector
• Compatibility: Designed for legacy Siemens Moore systems

Technical Specifications

Installation Guidelines

• Ensure the host system is powered down before inserting or removing the module from the ISA slot.
• Handle the module by the edges to prevent electrostatic discharge (ESD) damage to the board components.
• Ensure the module is fully seated in the ISA slot to prevent intermittent communication errors.
• Verify that the D-sub cable connections are secure and that the cable shielding is properly grounded to minimize EMI interference.

FAQ

Is this module still in production?

No, the Siemens 16249-51-4 has been discontinued by the manufacturer. We provide these units as refurbished or surplus spare parts to support legacy infrastructure.

What is the primary use of this module?

This module is used to provide M-Bus communication capabilities to legacy industrial controllers that utilize ISA bus architecture for internal expansion.
