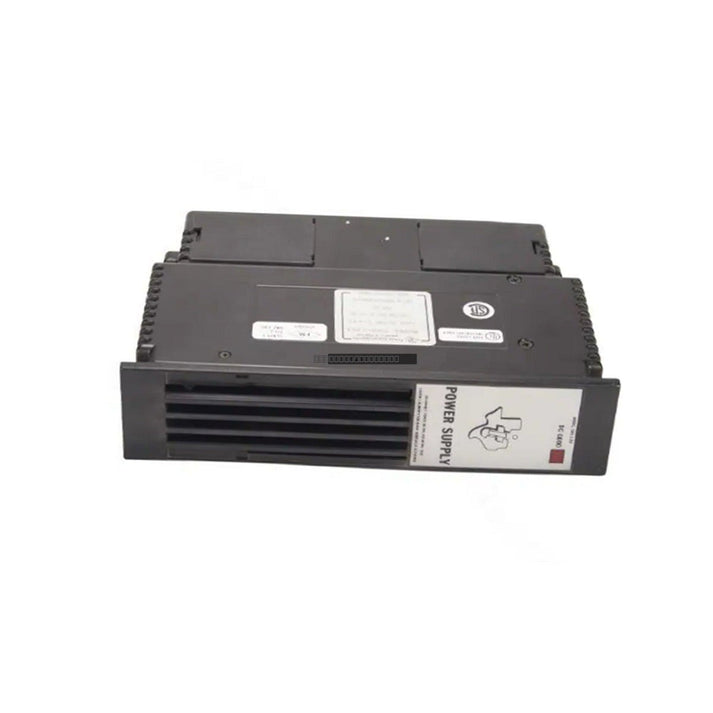

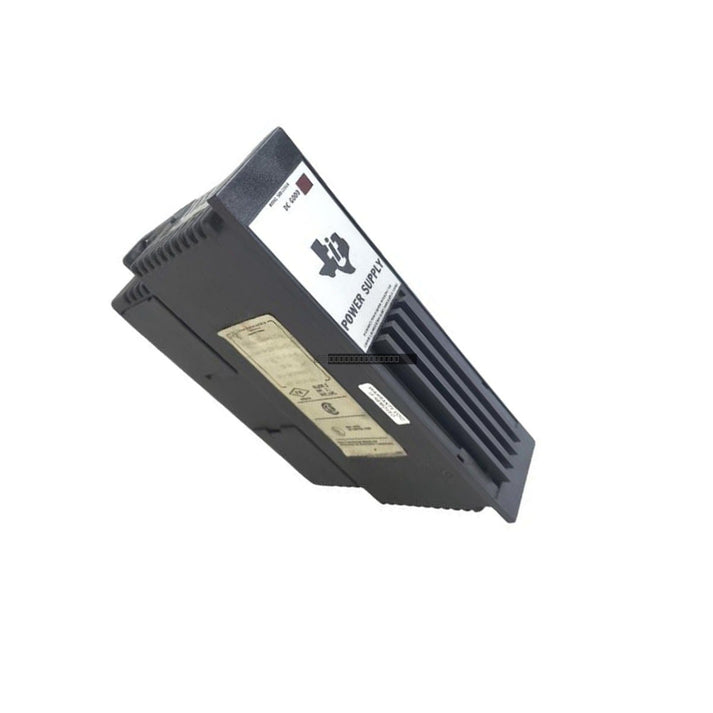

The Siemens 500-2151 is a dependable power supply module specifically designed for the SIMATIC TI500 PLC series. It provides consistent power to the backplane, supporting the logic requirements of the processor and the associated I/O modules within the subrack. This module is built for industrial durability, making it a standard choice for legacy systems operating in continuous-duty environments.

Features

• User-selectable input voltage range: 110 VAC or 220 VAC.
• Delivers a stable 3 A output current for backplane distribution.
• Integrated transient surge suppression and EMI filtering to protect downstream electronics.
• Class 1 Division 2 certification for safe operation in hazardous industrial locations.
• Built-in thermal overload and overvoltage protection mechanisms.

Applications

This module is widely utilized in heavy industrial sectors, including chemical processing, oil and gas extraction, and large-scale manufacturing automation. It serves as the primary power source for TI500 rack-based controller systems, ensuring reliable operation of critical control loops.

Technical Specifications

Installation Guidelines

• Ensure the PLC chassis is completely de-energized before inserting or removing the power supply module.
• Verify that the voltage selection switch is set correctly for your specific facility power grid before applying input voltage.
• Ensure proper grounding of the TI500 chassis to prevent electrical noise interference.
• Maintain adequate clearance around the module to allow for natural convection cooling, as the unit is designed for operation within standard industrial temperature ranges.
• Handle with care to avoid electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

Is the 500-2151 suitable for use in hazardous areas?

Yes, this module is certified for Class 1 Division 2 environments, provided it is installed according to local electrical codes and the manufacturer's guidelines for hazardous locations.

How do I switch between 110 VAC and 220 VAC?

The module features a user-selectable switch. Always confirm the switch position matches your input source voltage before powering on the unit to prevent damage.
