Description

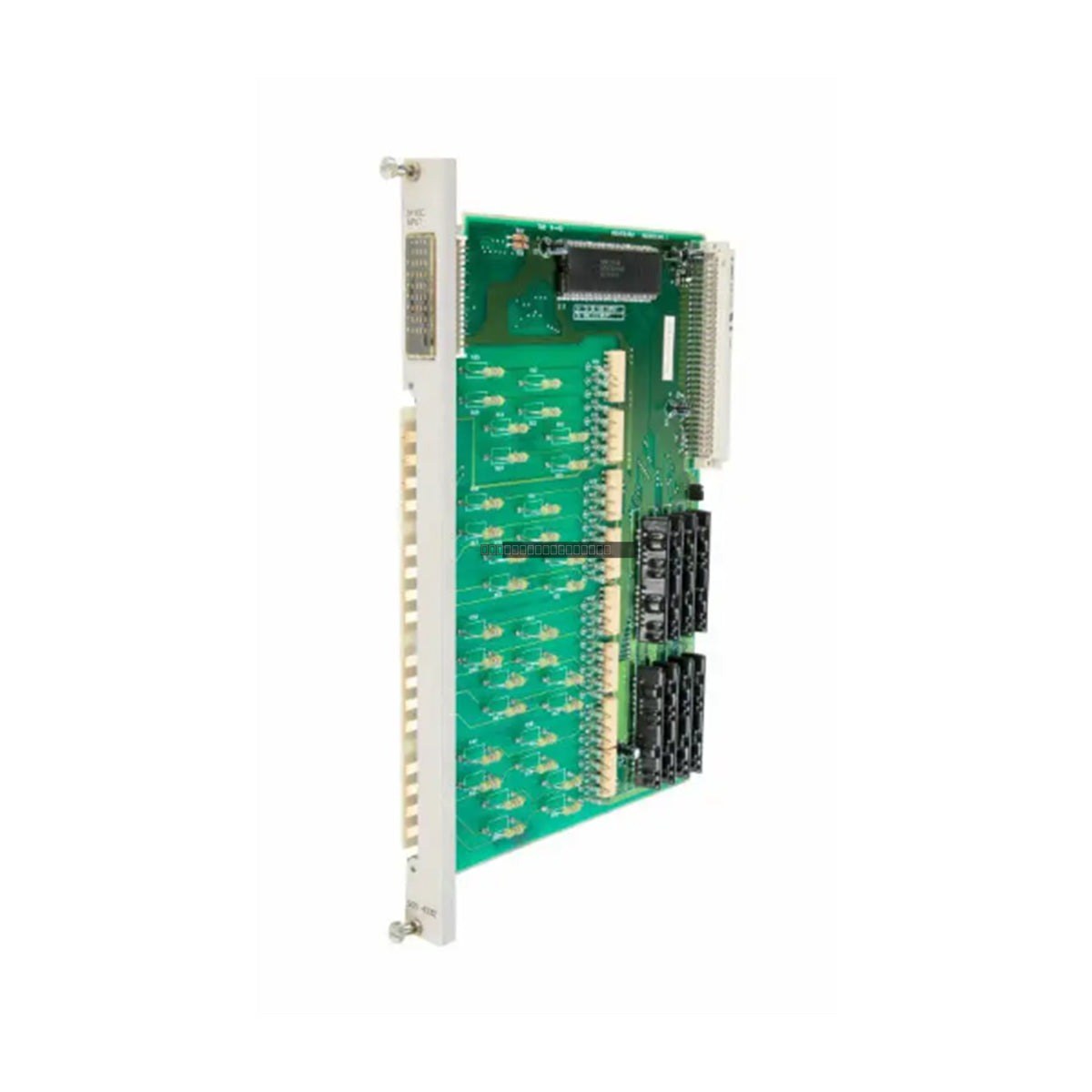

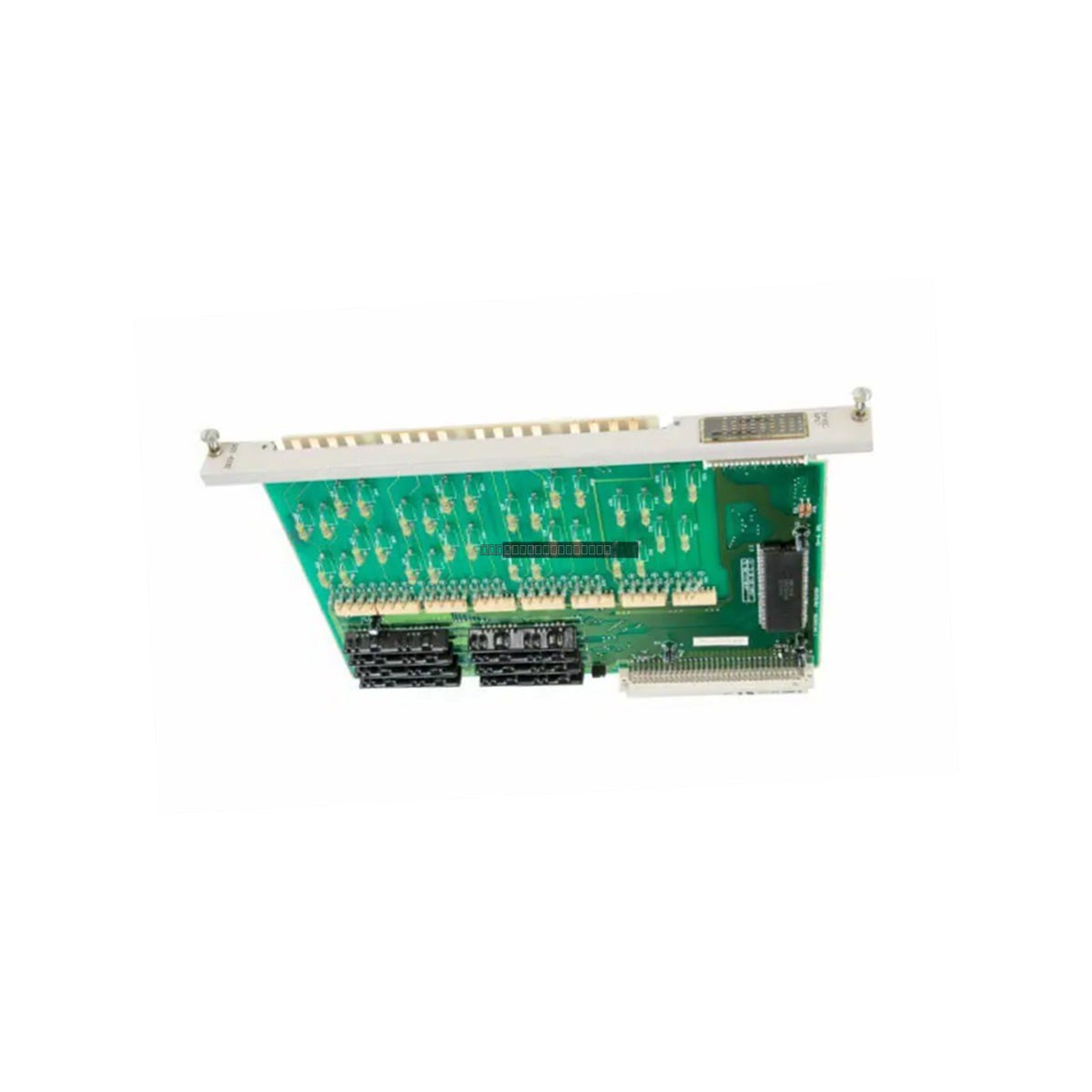

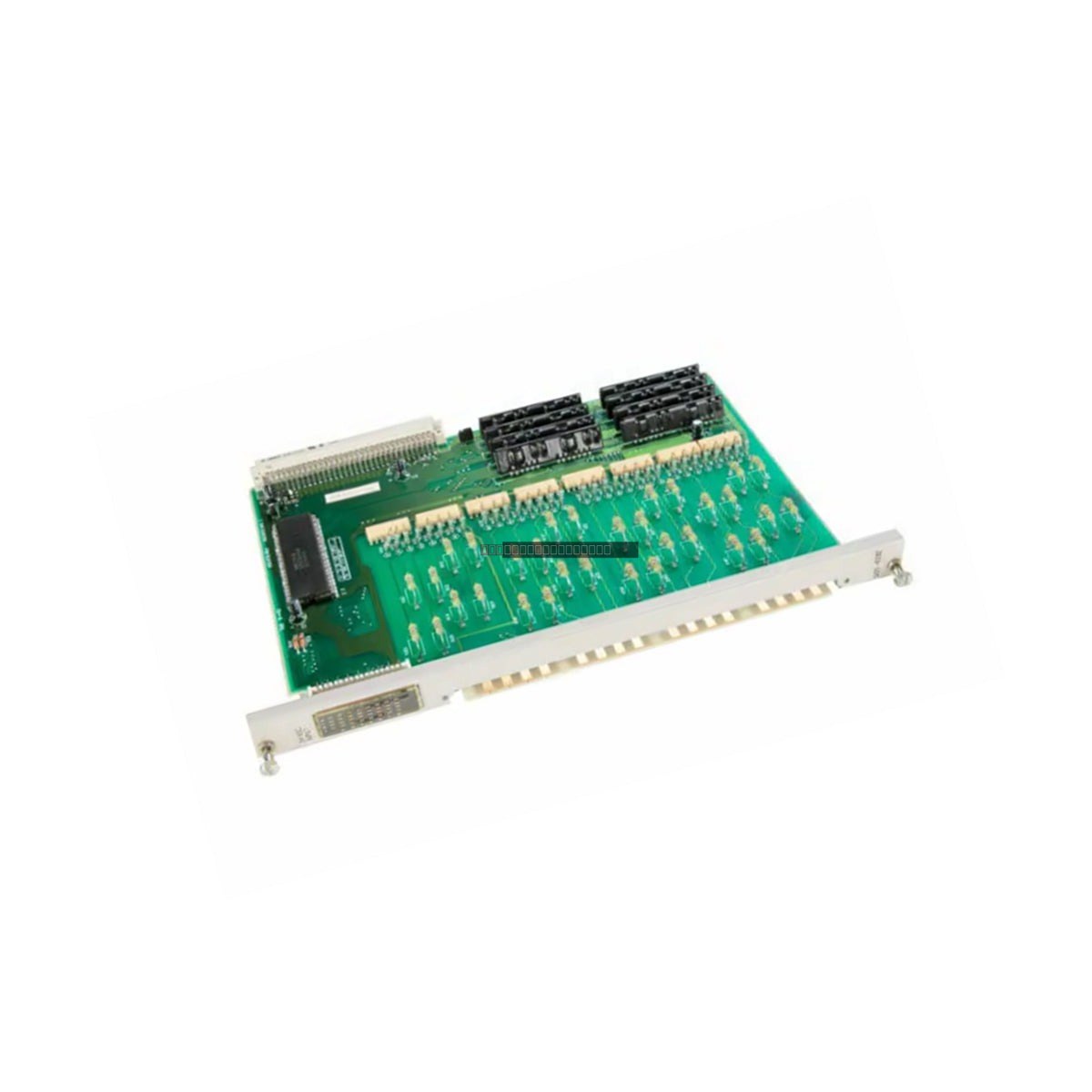

The Siemens 505-4332 is a high-density digital input module designed for the TI 505 PLC series. This module provides 32 individual input channels, specifically engineered to interface with 24 VDC field signals. It serves as a reliable solution for monitoring discrete status inputs in industrial control environments, effectively converting field-level voltage signals into processed data for the PLC backplane.

Features

• Provides 32 discrete input channels for high-density signal monitoring.
• Compatible with standard 24 VDC signal levels.
• Designed for seamless integration with the Siemens TI 505 series programmable controller architecture.
• Robust construction suitable for demanding industrial automation environments.
• Manufacturer-recognized spare part for legacy TI 505 system maintenance.

Applications

This module is widely utilized in industrial automation systems requiring the monitoring of multiple digital sensors, such as proximity switches, pushbuttons, and relay contacts. It is commonly deployed in manufacturing lines, process control systems, and machine automation where 24 VDC signal acquisition is required.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is fully disconnected before inserting or removing the module to prevent electrical damage.
• Verify that the field wiring voltage matches the 24 VDC specification of the module inputs.
• Use shielded cabling for input signal runs to minimize electromagnetic interference (EMI) in high-noise industrial areas.
• Ensure proper grounding of the module chassis to the PLC backplane to maintain signal integrity.
• Handle with care to avoid electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

Is the Siemens 505-4332 still in production?
No, this model has been discontinued by the manufacturer. We supply tested units suitable for maintenance and replacement in existing legacy systems.

What is the primary function of this module?
The 505-4332 is a digital input module used to interface 32 separate 24 VDC signals into a TI 505 PLC system.
