Description

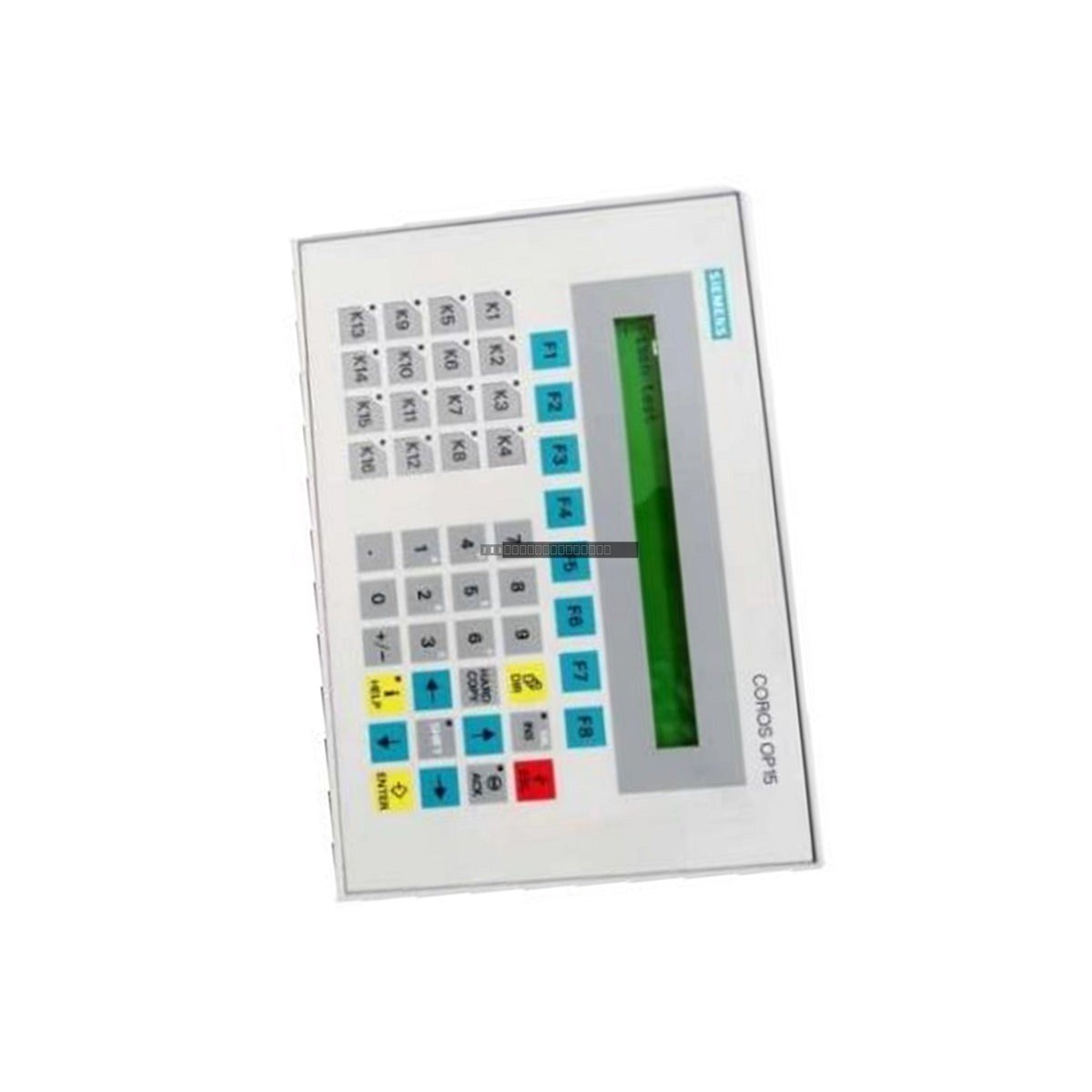

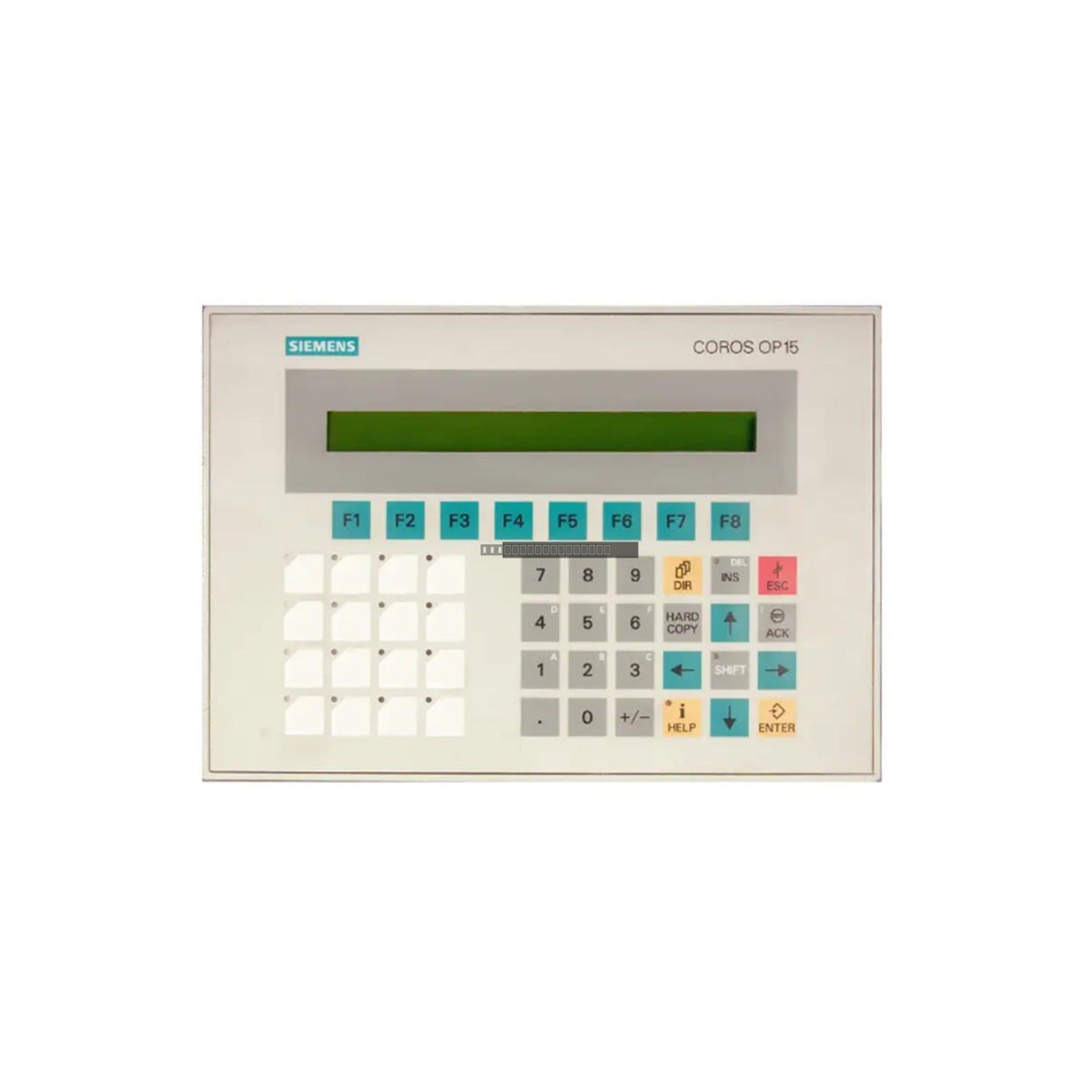

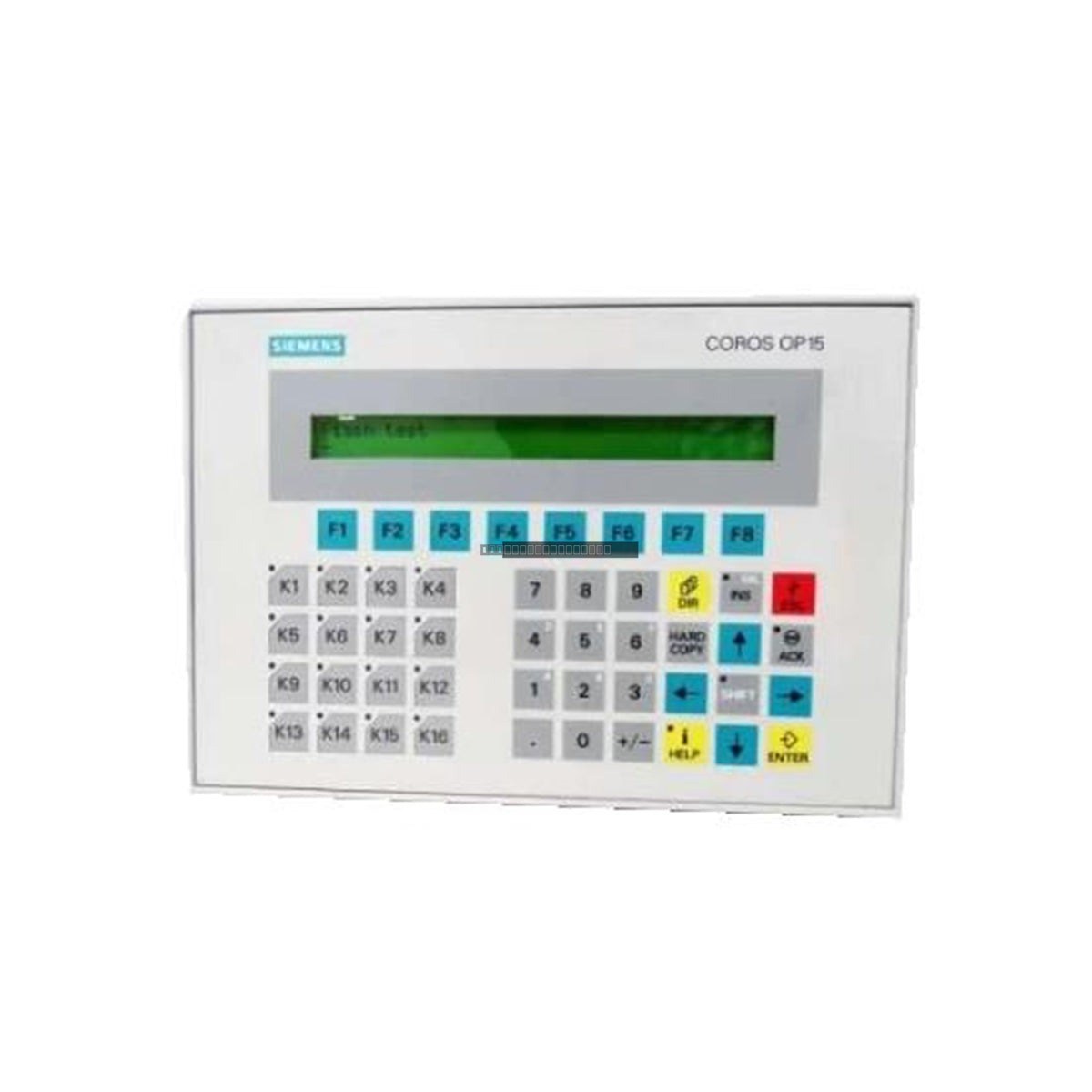

The Siemens 6AV3515-1EB30 is a robust HMI operator panel engineered for reliable machine-level visualization and control within legacy industrial automation environments. This unit features a clear 2-line alphanumeric display paired with a durable 48-button functional keypad, enabling operators to monitor real-time system variables, acknowledge alarms, and execute precise control commands. Designed for demanding industrial applications, this panel facilitates direct, low-latency access to PLC memory registers, assisting in the reduction of configuration errors and streamlining troubleshooting processes.

Features

• Tactile Keypad: Equipped with a 48-button membrane keyboard featuring tactile dome switches, designed for high-cycle durability and resistance to dust and oil ingress.
• Multi-Port Connectivity: Includes two V.24/TTY (SS1/SS2-A) female ports supporting 20 mA active/passive current loops and one RS422/RS485 female port for versatile fieldbus and serial communication.
• Industrial Design: Rugged construction suitable for deployment in heavy industries such as automotive manufacturing, chemical processing, and mineral handling.
• Optimized Communication: Isolated serial data channels ensure signal integrity and network stability, even in environments with significant electromagnetic interference.

Technical Specifications

Installation Guidelines

• Ensure the panel is mounted in a location that allows for adequate airflow to maintain operating temperatures within the 0 to 50 deg C range.
• Use shielded communication cables for all serial connections to minimize the impact of electromagnetic noise.
• Verify that the 24 VDC power supply is stable and properly grounded before connecting the unit to the PLC network.
• Always power down the system before inserting or removing communication cables to prevent electrical damage to the interface ports.
• Clean the membrane keypad periodically using only approved industrial cleaners to maintain tactile responsiveness and seal integrity.

FAQ

What type of communication protocols does this panel support?

The 6AV3515-1EB30 supports V.24/TTY (20 mA current loop) for legacy point-to-point connections and RS422/RS485 for multi-node master-slave networking.

Is this unit suitable for high-dust environments?

Yes, the 48-button membrane keypad is designed with tactile dome switches to prevent dust and oil from entering the internal circuitry, making it suitable for standard industrial shop-floor conditions.
