Description

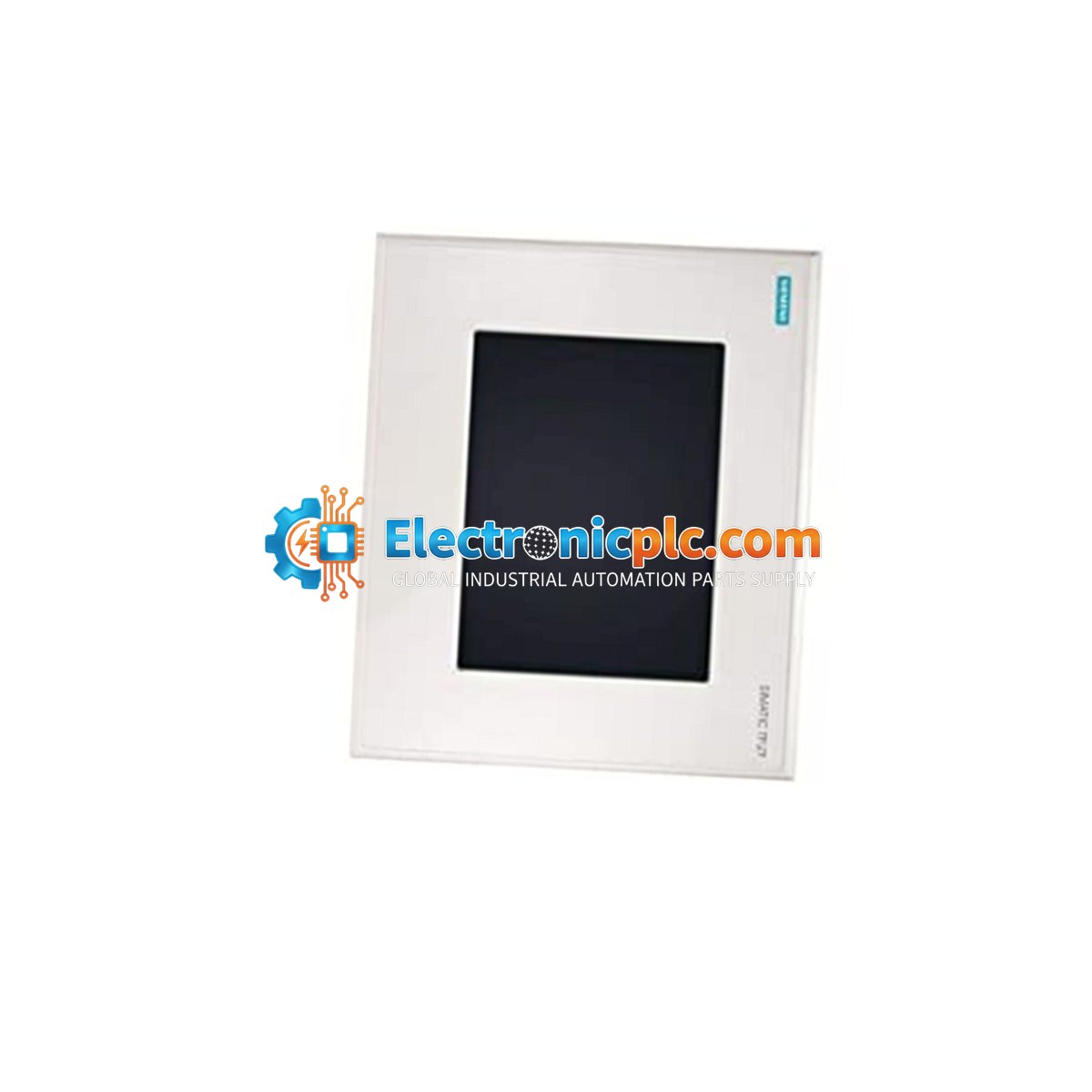

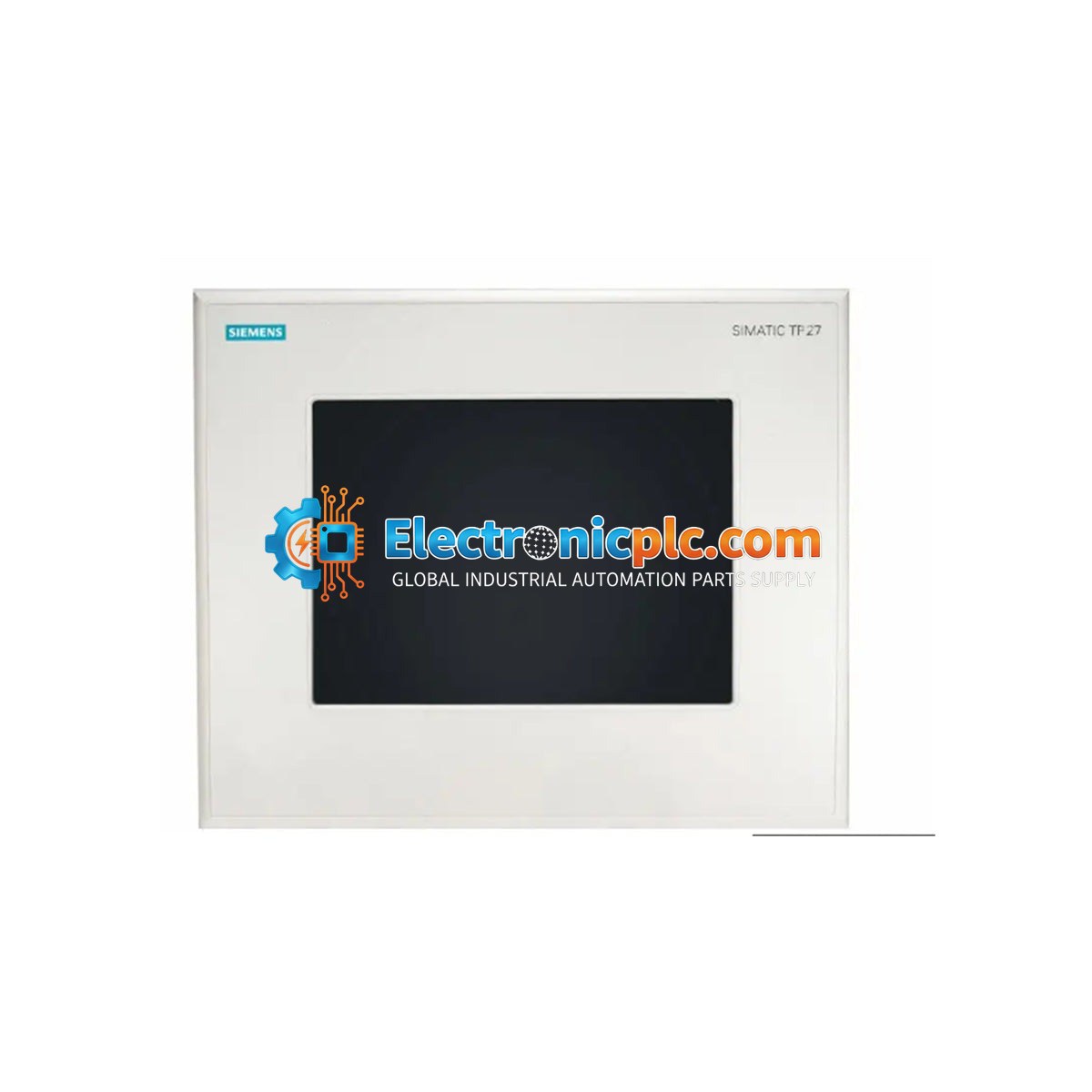

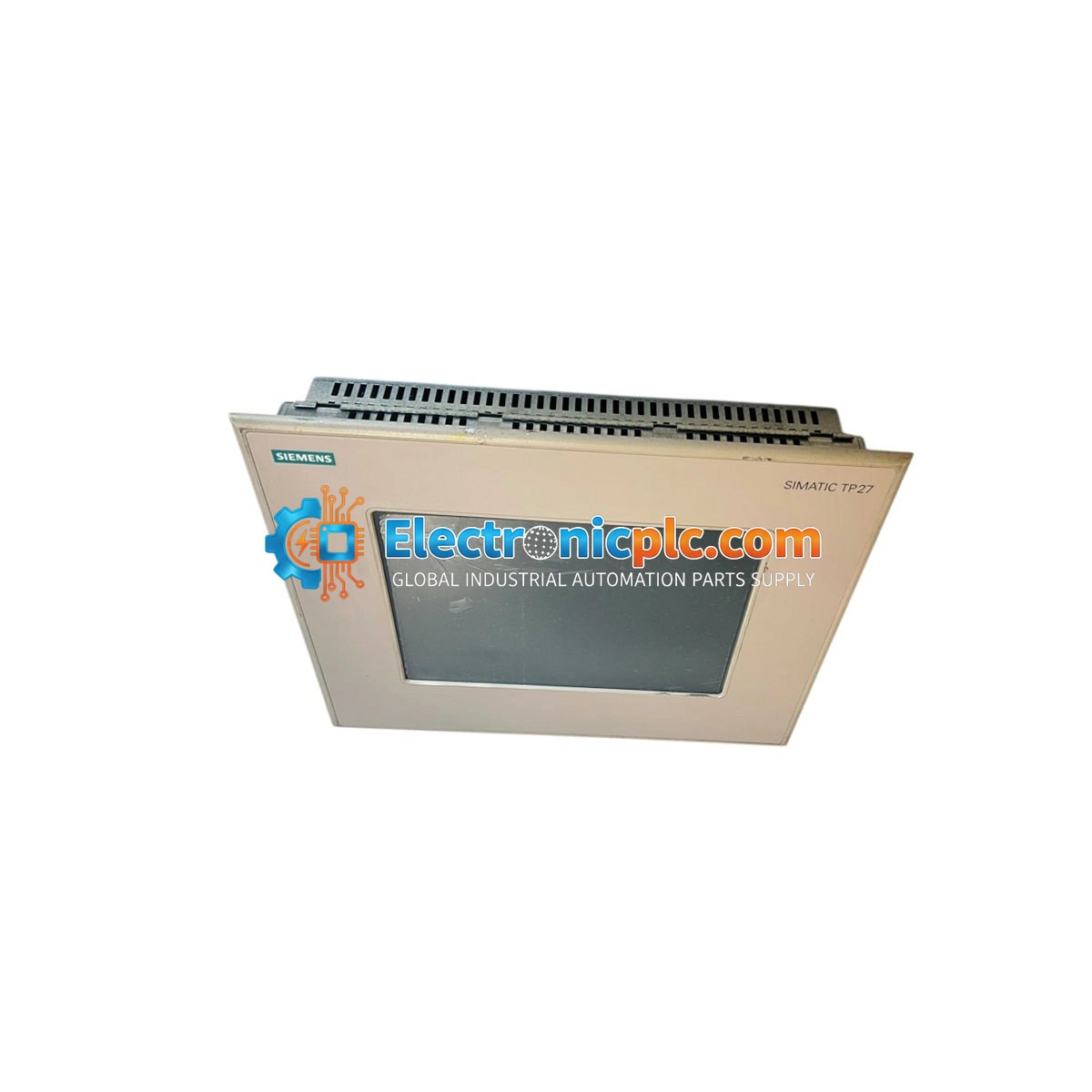

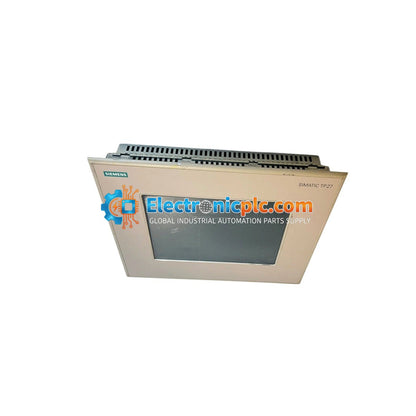

The Siemens 6AV3627-1QL00-0AX0 is a TP27-10 operator interface terminal designed for industrial visualization and control applications. This touch panel features a 10.4-inch STN color LC display, providing clear graphical feedback for machine operators. As part of the legacy Siemens SIMATIC HMI range, it is engineered for robust performance in demanding factory environments.

Features

• 10.4-inch STN color LC display for clear process visualization.
• Integrated touch-sensitive screen for intuitive operator input.
• Equipped with 1 MB of Flash-EPROM memory for project storage.
• Designed for integration with Siemens S5 and related automation systems.
• Compact, panel-mount design suitable for control cabinets and consoles.

Applications

This operator interface is typically utilized in manufacturing and process automation environments where local operator control and monitoring of PLC-based systems are required. It is commonly found in legacy machine control panels, assembly lines, and material handling systems.

Technical Specifications

Installation Guidelines

• Ensure the panel is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
• Use a properly sized cutout in the control cabinet door to ensure a secure seal and maintain IP rating.
• Verify that the power supply voltage matches the requirements specified on the device label before connection.
• Use shielded communication cables to minimize electromagnetic interference (EMI) in high-noise industrial areas.
• Always disconnect power before performing any wiring, maintenance, or module replacement to prevent electrical shock or damage to internal components.
• Handle with care to avoid damage to the touch-sensitive overlay or the LCD screen.

FAQ

Is the 6AV3627-1QL00-0AX0 still in production?

No, this model has been discontinued by Siemens. We provide refurbished or surplus units to support legacy systems that require this specific hardware.

What is the primary function of this unit?

This unit serves as an HMI (Human Machine Interface), allowing operators to monitor machine status, input commands, and view diagnostic information from the connected PLC.
