Description

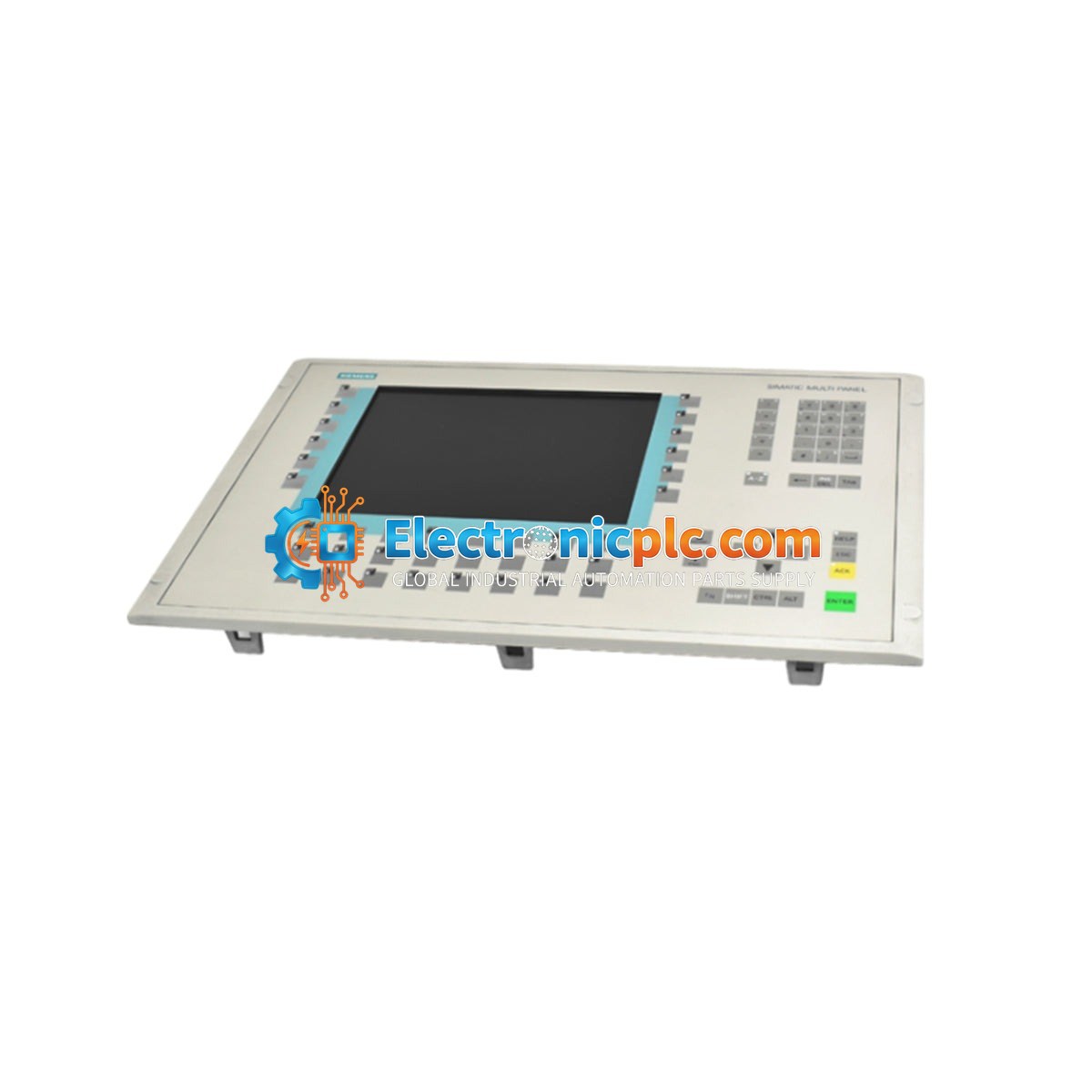

The Siemens 6AV6542-0AG10-0AX0 is a SIMATIC MP 270B Multi Panel designed for industrial operator interface applications. This unit features a 10.4-inch TFT color display and a membrane keypad, providing a robust solution for monitoring and controlling automated processes. As a legacy device, it is frequently utilized in established machine control systems requiring reliable human-machine interaction.

Features

• 10.4-inch TFT color display with 640 x 480 pixel resolution.
• Integrated membrane keyboard for tactile operator input.
• 4 MB of configuration memory.
• Configurable via Siemens ProTool software (Version V6.0 or higher).
• Integrated USB interface for peripheral connectivity.
• Designed for demanding industrial environments with a rated current consumption of 0.9 A.

Applications

• Packaging and palletizing systems for recipe management and error logging.
• Industrial kilns and ovens for multi-step temperature profiling.
• Water treatment and pump station monitoring.
• Injection molding machine cycle and pressure monitoring.
• Maritime machinery and engine control systems.

Technical Specifications

Installation Guidelines

• Ensure the panel is mounted in a clean, dry environment within an appropriate IP-rated enclosure.
• Verify that the mounting cutout dimensions are accurate to maintain the integrity of the front seal.
• Use a damp, soft cloth for cleaning the front membrane; avoid abrasive cleaners or solvents that may damage the display or seal.
• Ensure proper grounding of the panel chassis to minimize electromagnetic interference (EMI).
• Power down the system before connecting or disconnecting communication cables or peripheral devices.
• Maintain adequate ventilation around the rear of the unit to prevent overheating during operation.

FAQs

What is the 6AV6542-0AG10-0AX0?

The Siemens 6AV6542-0AG10-0AX0 is an industrial multi-panel with a 10.4-inch color display and functional keys, typically used with ProTool V6.0 or higher software for process visualization.

What is the difference between MP270 and MP270B?

The 6AV6542-0AG10-0AX0 is a Multi Panel 270B model. The 'B' designation generally indicates updated processor performance and memory specifications compared to the original MP270 series.

What is the memory capacity?

The device features 4 MB of configuration memory and supports up to 2,048 variables for process monitoring.
