Description

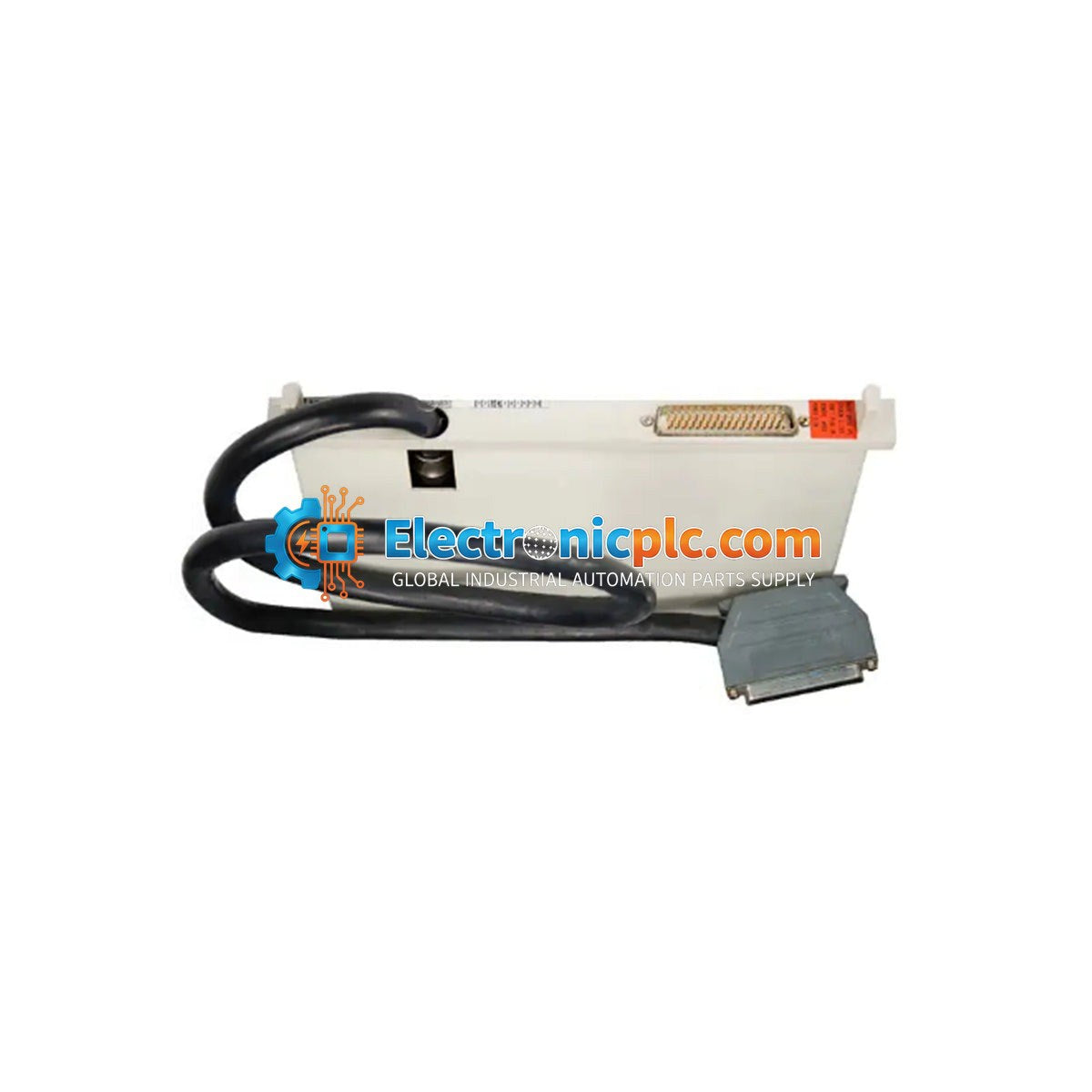

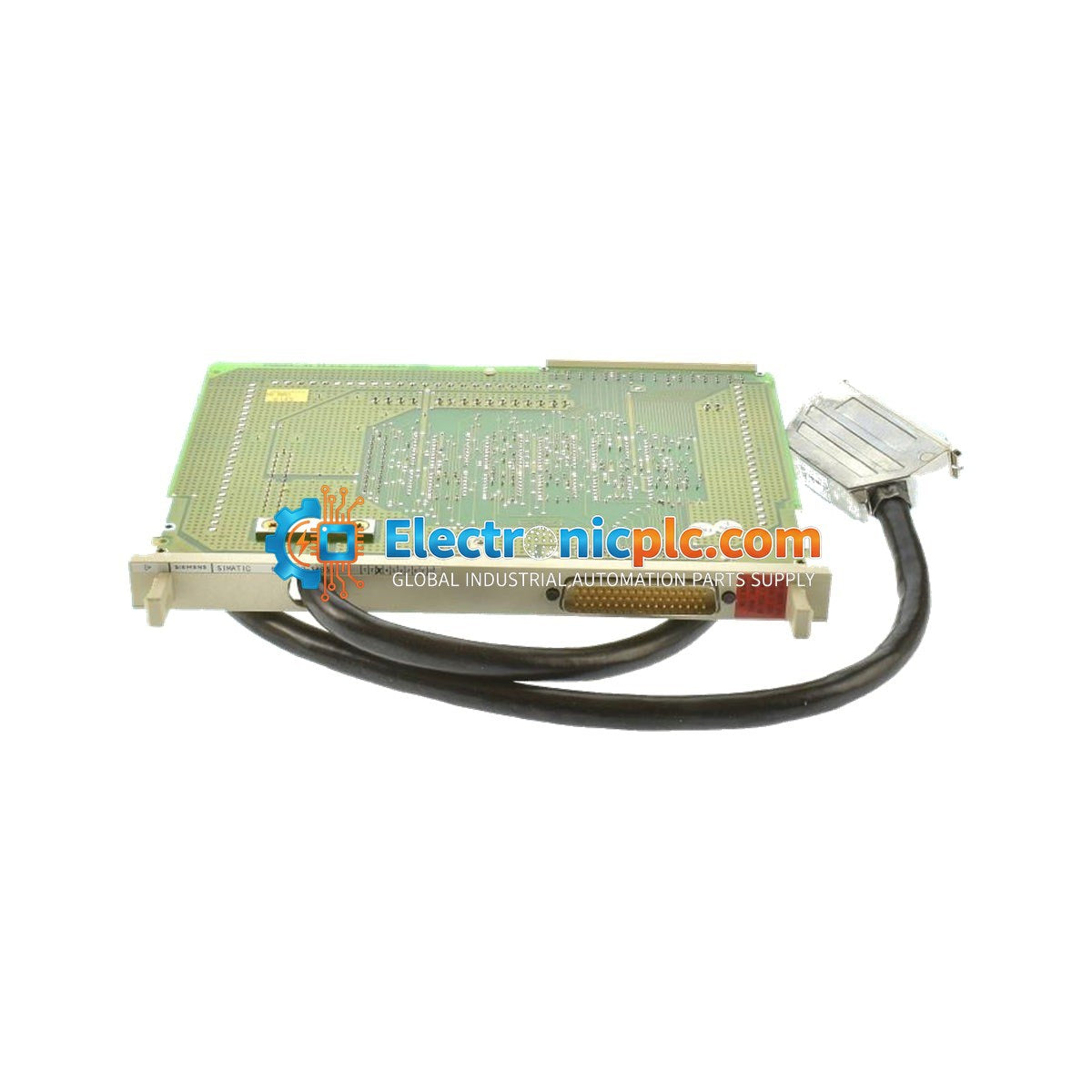

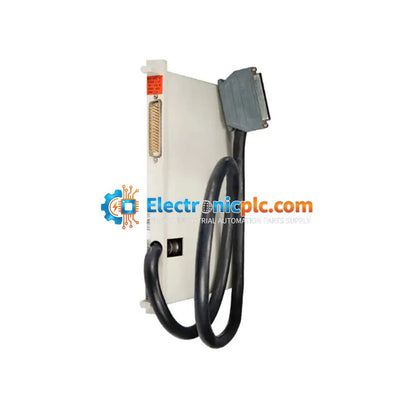

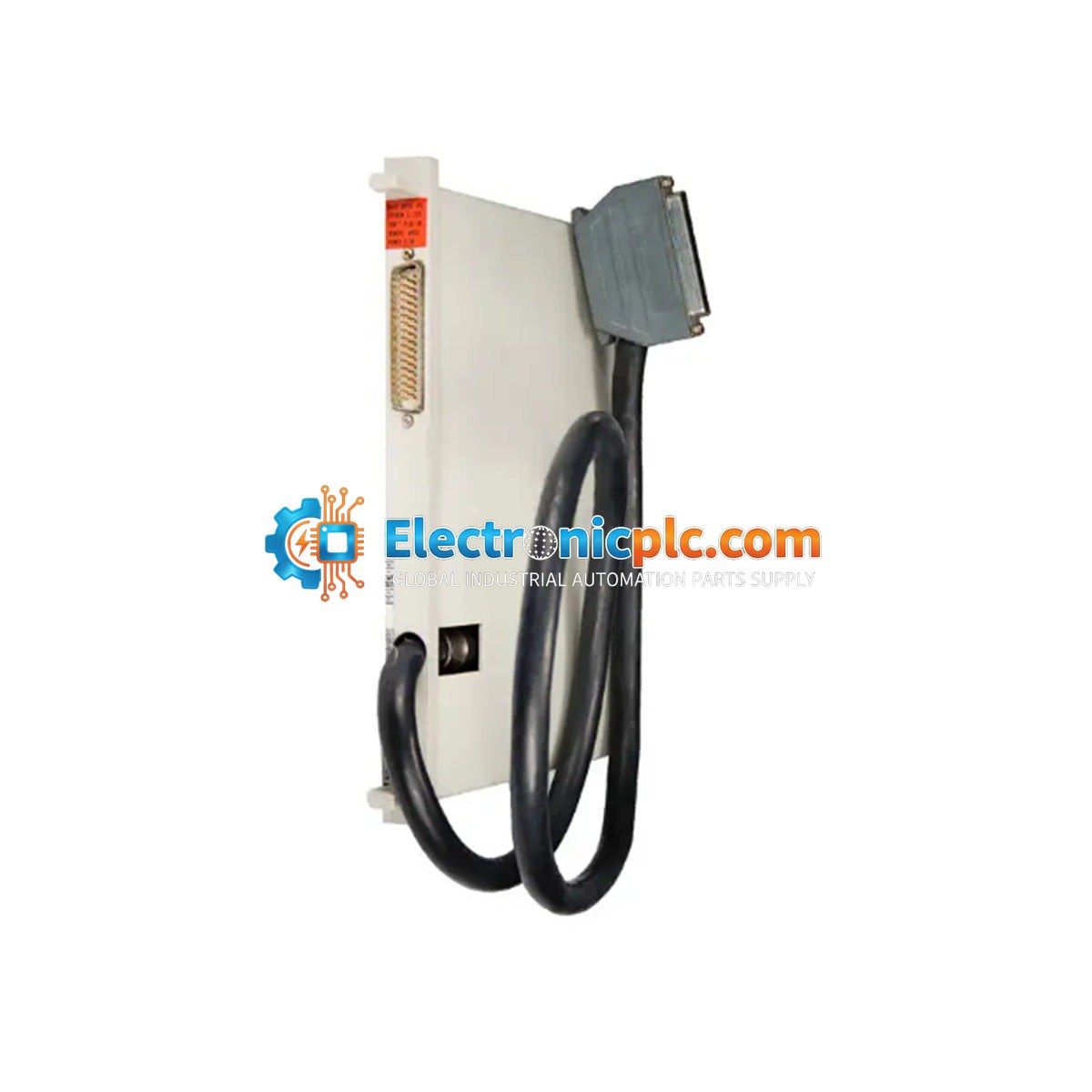

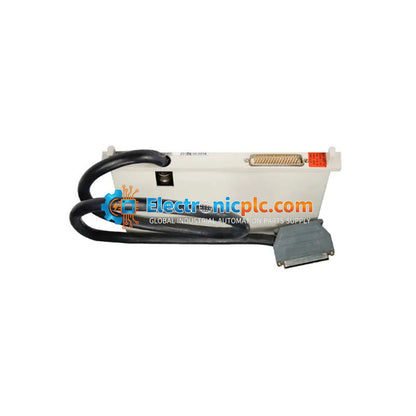

The Siemens 6ES5312-3AB31 is an IM312 interface module designed for the SIMATIC S5 automation system. This module facilitates communication and signal distribution within the S5 rack architecture. It is supplied with an integrated cable, measuring 0.95 meters in length, to ensure reliable connectivity between system components. Please note that this product was officially discontinued by the manufacturer as of October 1, 2005.

Features

• Original Siemens SIMATIC S5 interface module
• Includes pre-attached 0.95m connection cable
• Designed for integration into S5 rack-based automation environments
• Robust industrial design for legacy system maintenance

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is completely disconnected before attempting to install or remove the IM312 module.
• Handle the module by the edges to avoid electrostatic discharge (ESD) damage to the internal circuitry.
• Verify that the module is fully seated in the designated backplane slot to ensure proper bus contact.
• Route the integrated cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal degradation.
• Check for proper seating of the cable connector to prevent intermittent communication errors.

FAQ

Is the 6ES5312-3AB31 still supported by Siemens?

No, this product was discontinued by the manufacturer on October 1, 2005. Support is generally limited to secondary market availability and legacy system maintenance.

What does the IM312 module do?

The IM312 is an interface module used within the Siemens SIMATIC S5 system to manage communication and data exchange between different parts of the automation rack.
