Description

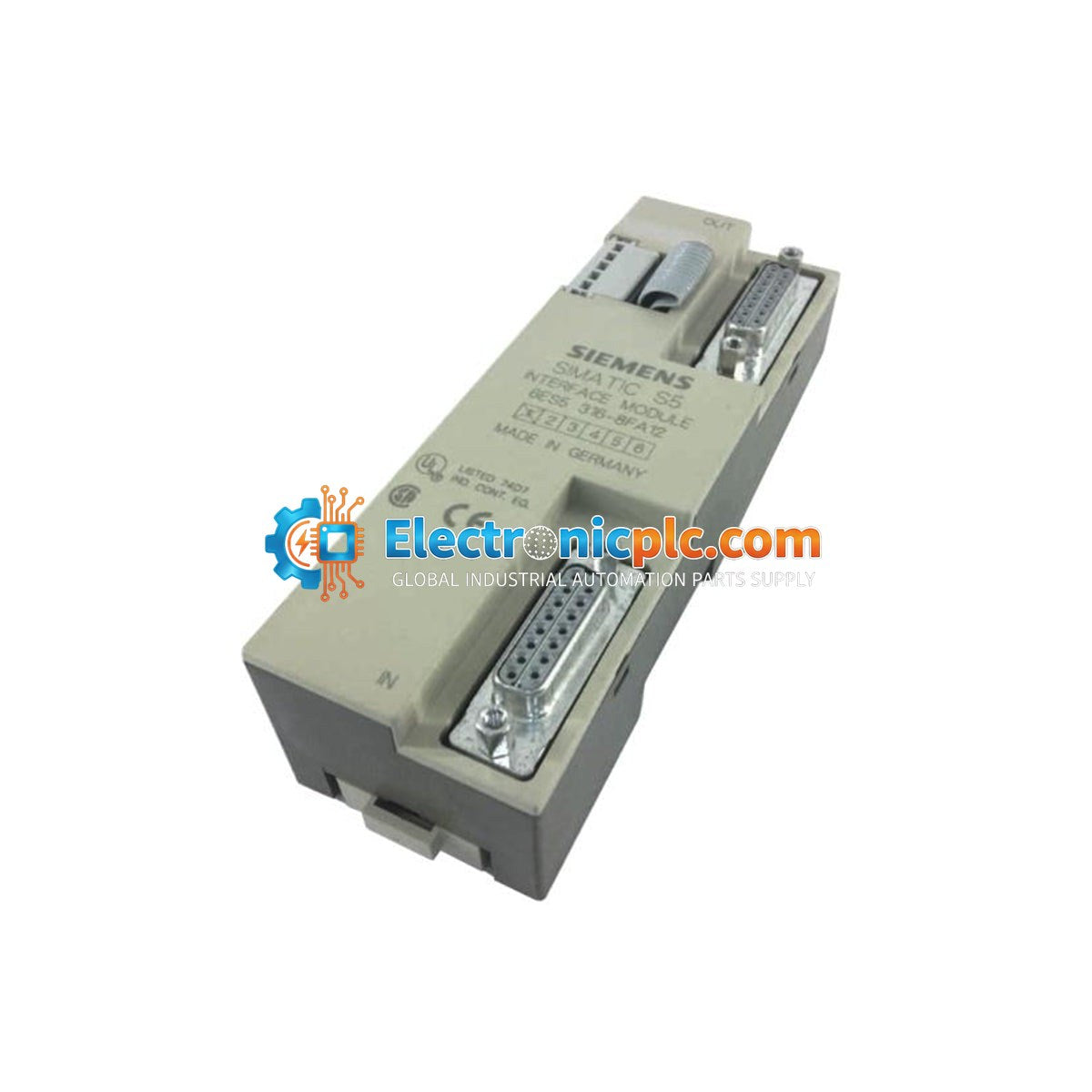

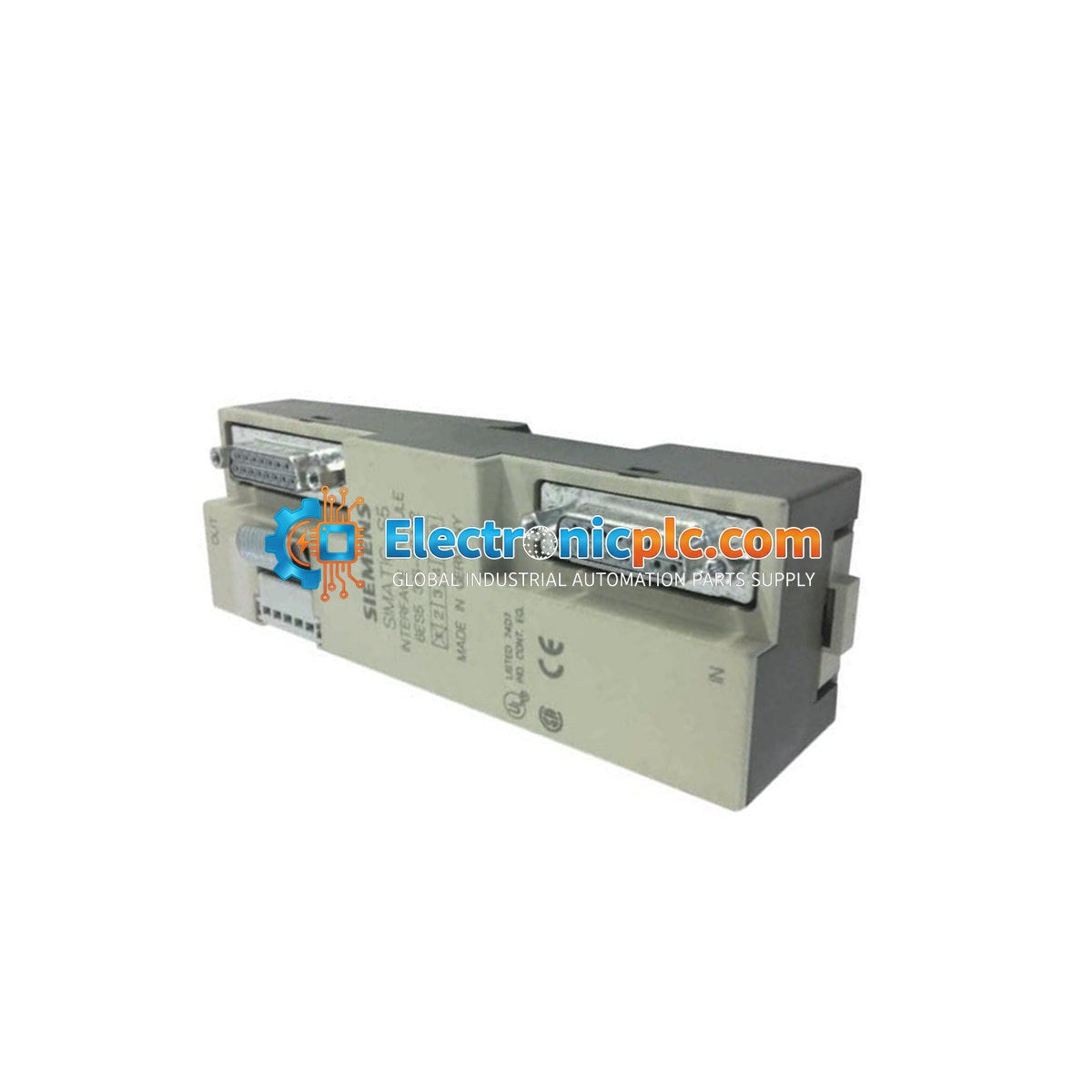

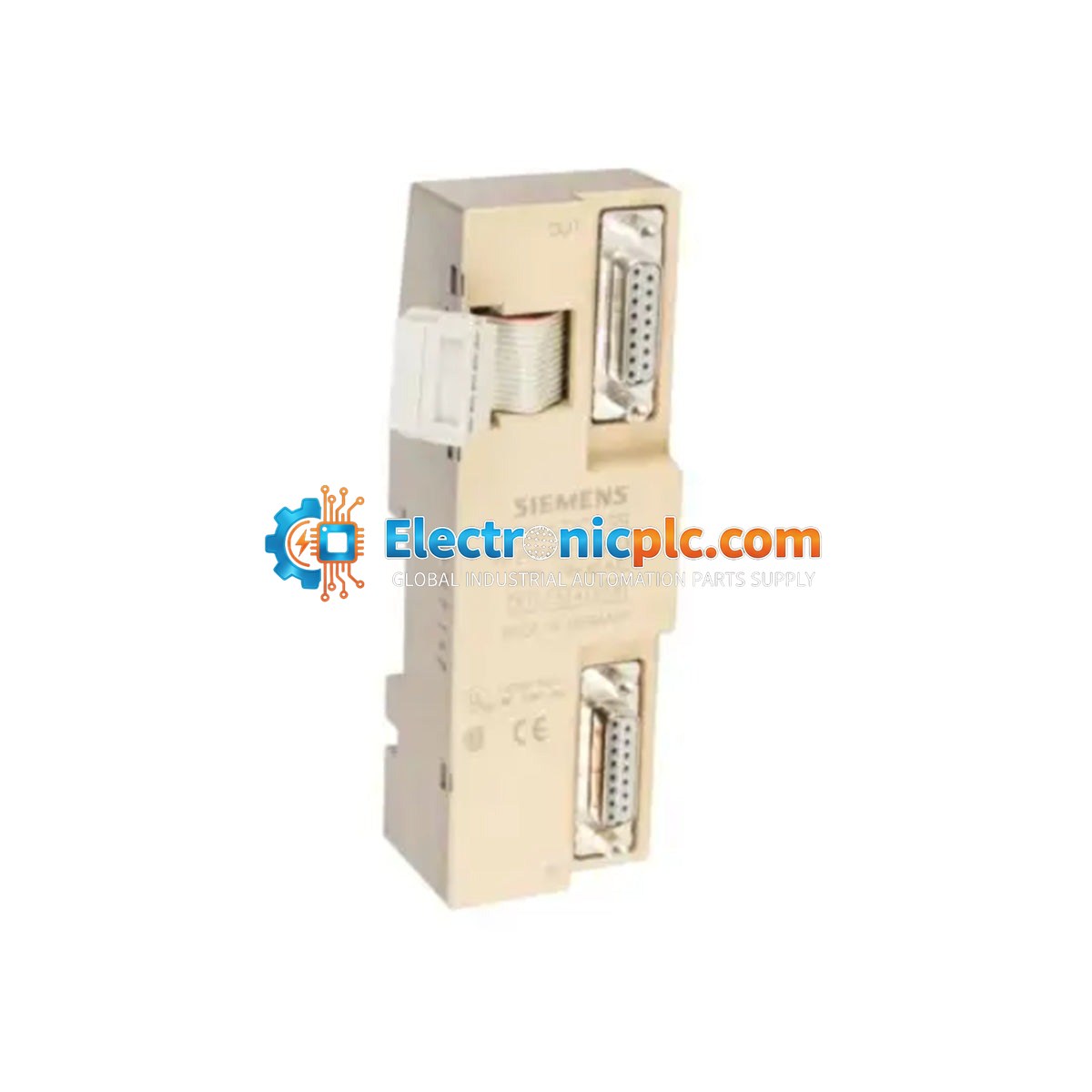

The Siemens 6ES5316-8FA12, also known as the IM316F, is an interface module designed for the Simatic S5 automation system. This module serves as an I/O expansion unit, specifically engineered to manage communication and data exchange across a 3-rack configuration. As a legacy component within the S5 series, this module is noted for its enhanced electromagnetic compatibility (EMC) resistance, ensuring stable operation in industrial environments where electrical noise may be present.

Features

• Designed for Simatic S5 PLC system expansion.
• Supports 3-rack I/O expansion configurations.
• Enhanced EMC resistance for improved signal integrity in high-interference environments.
• Compact form factor for efficient rack space utilization.
• Reliable interface for distributed I/O management.

Applications

The IM316F interface module is primarily utilized in legacy Siemens Simatic S5 control systems. It is typically employed in manufacturing, process automation, and heavy industrial applications where expansion of existing I/O racks is required to accommodate additional field sensors, actuators, or control devices.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is fully disconnected before inserting or removing the IM316F module to prevent electrical damage.
• Verify that the rack backplane connectors are free of debris or oxidation before seating the module.
• Ensure the module is firmly seated in the designated slot to maintain proper bus communication.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal circuitry or connector pins.
• Route signal cables away from high-voltage power lines to maintain the module's EMC performance.
• Verify that the rack configuration settings match the physical hardware setup during system commissioning.

FAQ

Is the 6ES5316-8FA12 still in production?

No, this module has been discontinued by the manufacturer. It is typically sourced as a spare part for maintenance of existing legacy S5 systems.

What is the primary function of the IM316F?

The IM316F acts as an interface module to facilitate the expansion of I/O capacity across a 3-rack setup within a Siemens Simatic S5 PLC architecture.
