Description

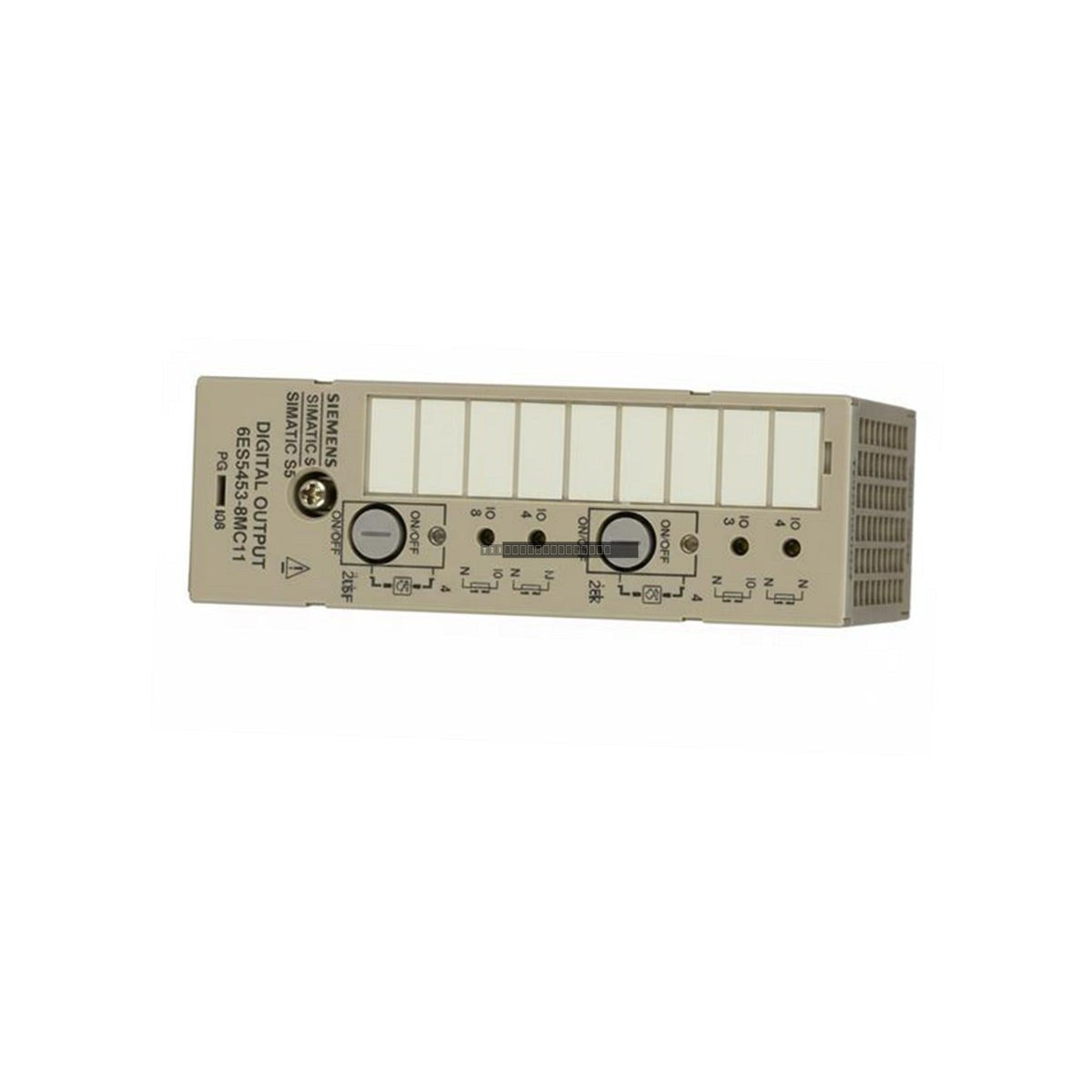

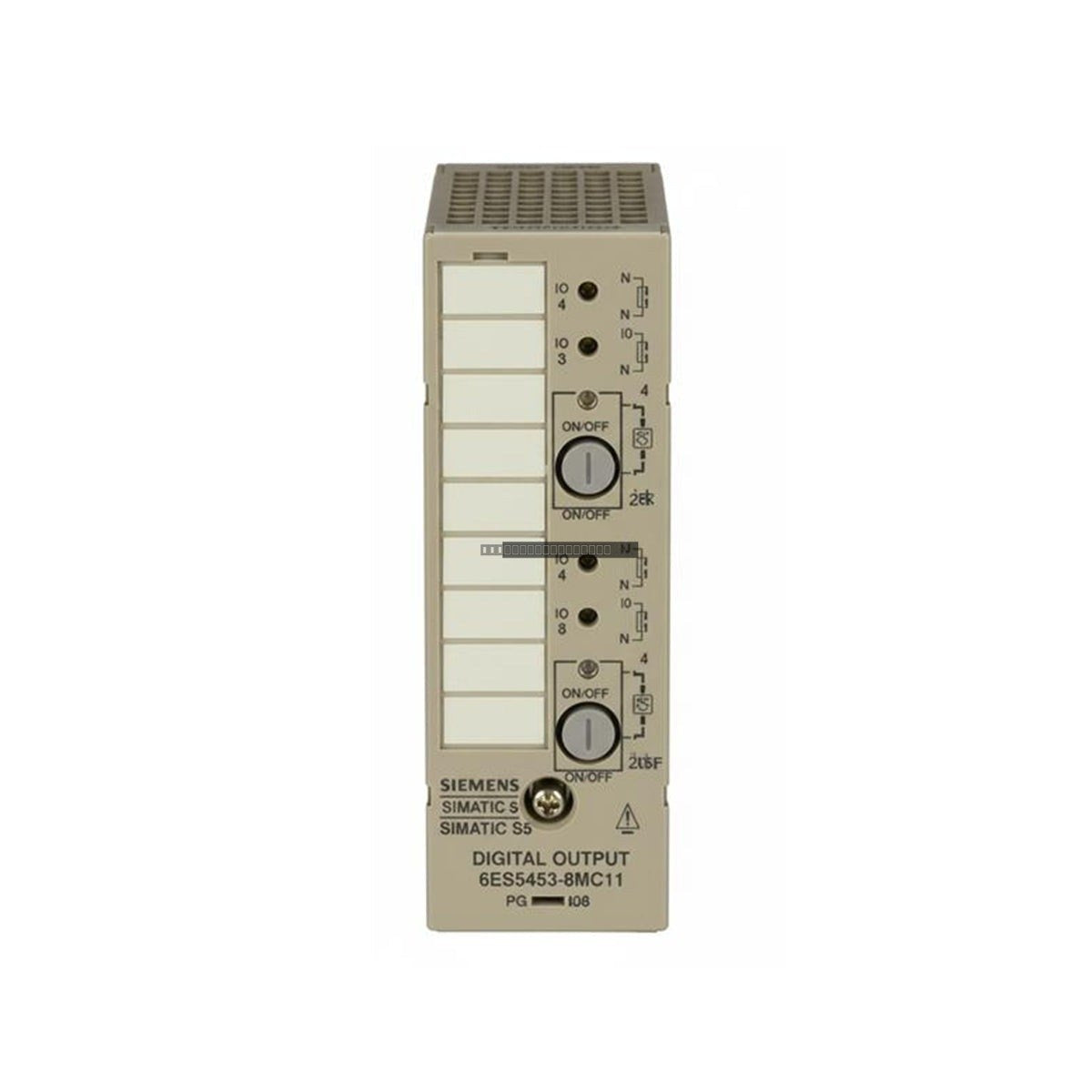

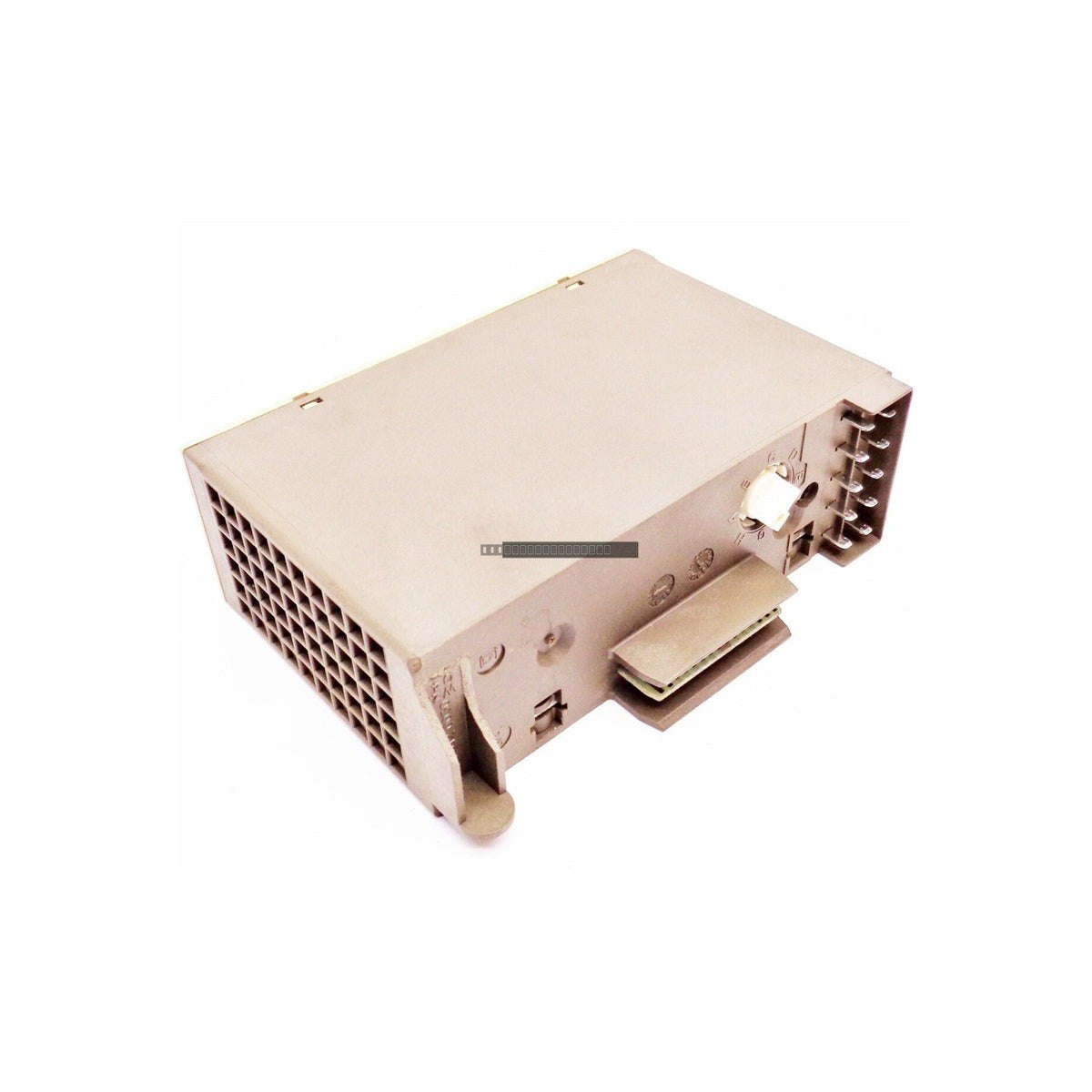

The Siemens 6ES5453-8MC11 is a specialized digital output module designed for integration with the SIMATIC S5-090, S5-095, and S5-100 programmable logic controller families. This module provides four independent channels of 115 VAC output, enabling the control of high-voltage industrial actuators, contactors, and solenoids. It serves as a vital interface component for maintaining legacy S5 automation systems, offering reliable signal switching and robust performance in demanding manufacturing and process control environments.

Features

• Four discrete 115 VAC output channels for independent load control.
• Optimized for seamless integration with S5-090, S5-095, and S5-100 backplane architectures.
• Engineered for high-voltage switching reliability in industrial applications.
• Compact design with efficient thermal management for continuous operation.
• Isolated output paths to reduce cross-talk and electrical interference.

Applications

This module is primarily utilized in legacy industrial automation infrastructure, including:

• Automated assembly line control.
• Packaging and material handling machinery.
• Localized process control and monitoring systems.
• Replacement and maintenance of existing SIMATIC S5 hardware installations.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical shock or damage to the backplane.
• Verify that the module is correctly seated in the designated S5 rack slot to ensure proper bus communication.
• Use appropriate wire gauges for 115 VAC connections and ensure all terminal screws are tightened to the specified torque.
• Maintain proper ventilation within the control cabinet to keep ambient temperatures within the 0 to 60 deg C range.
• Route high-voltage output wiring separately from low-voltage signal cables to minimize electromagnetic interference (EMI).

FAQ

Is this module compatible with modern S7 controllers?

No, the 6ES5453-8MC11 is specifically designed for the SIMATIC S5-090, S5-095, and S5-100 series and is not natively compatible with S7-series PLC systems.

What is the primary function of the 6ES5453-8MC11?

This module acts as a digital interface to switch 115 VAC loads, allowing the S5 PLC to control external AC-powered devices such as contactors and actuators.
