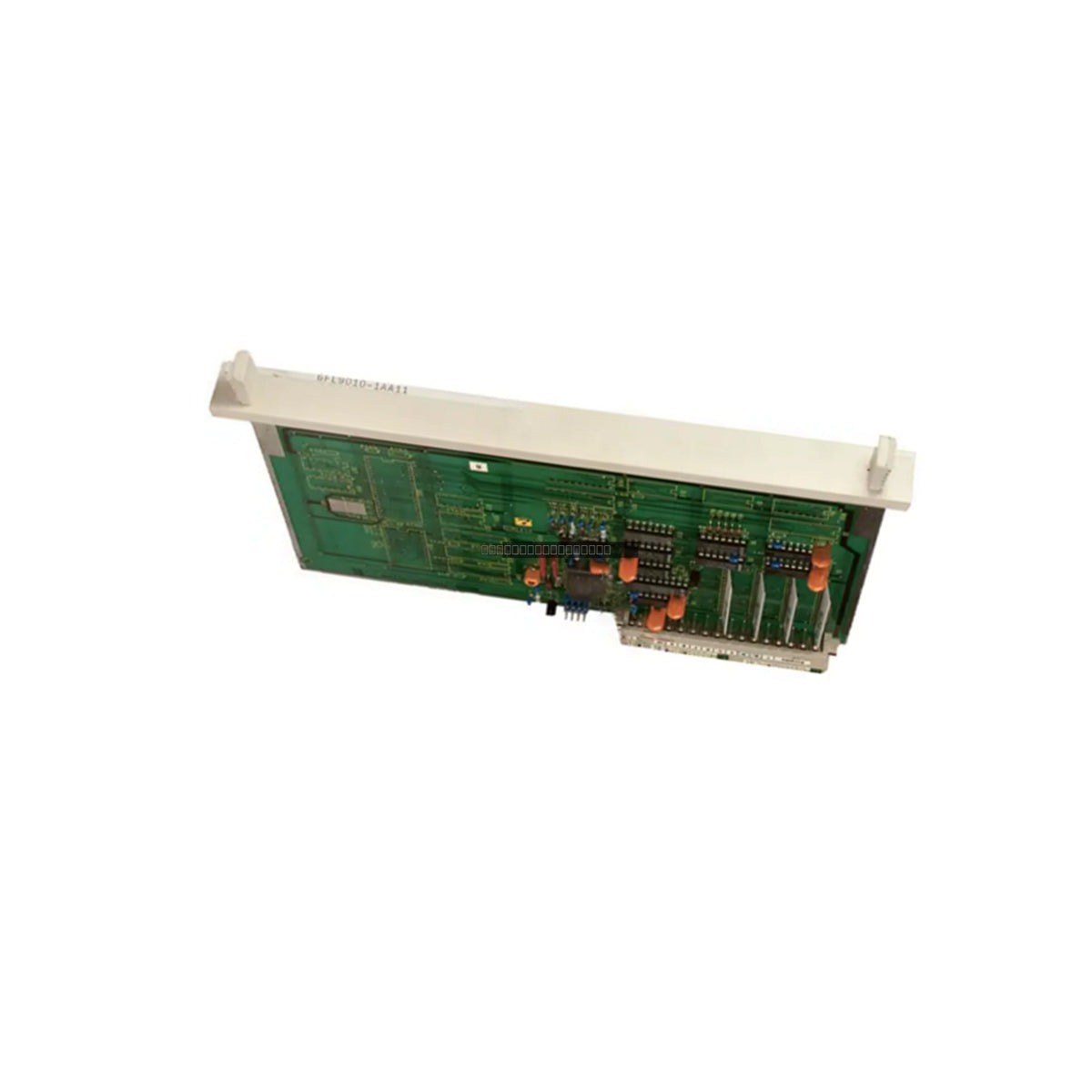

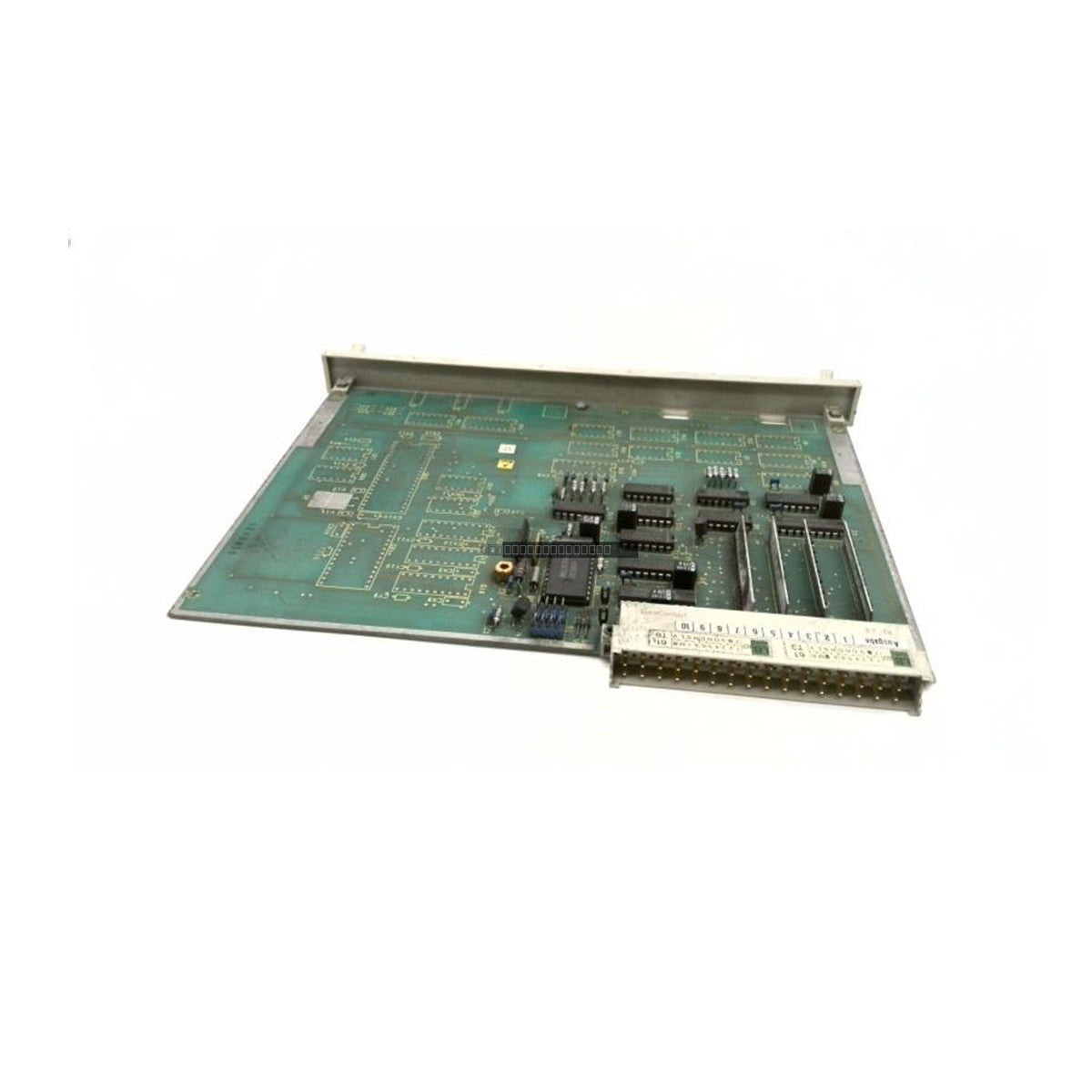

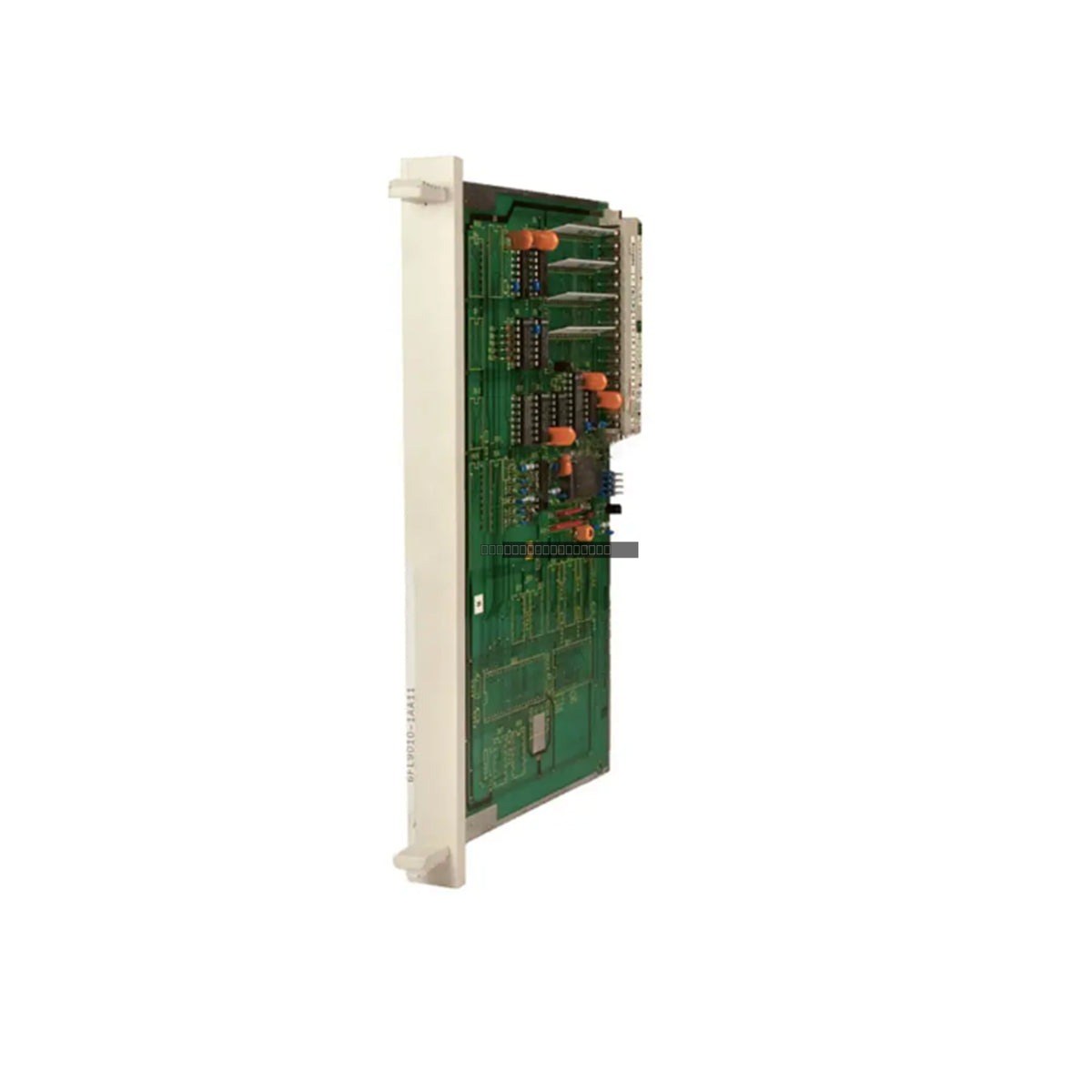

The Siemens 6FL9010-1AA11 is a dedicated real-time clock module engineered for integration within the SIMATIC S5 AG135 programmable logic controller (PLC) architecture. This component provides essential timekeeping and synchronization capabilities, ensuring that all modules within the automation rack maintain a consistent and accurate time reference for operational logging and process sequencing.

Features

• Provides precise system time synchronization for AG135 controller environments.
• Integrated quartz oscillator for high-accuracy drift compensation.
• Includes dedicated battery backup circuitry to preserve time and date registers during primary power loss.
• Robust PCB design with electromagnetic interference (EMI) shielding to ensure signal integrity in high-noise industrial environments.
• Standardized 48-pin backplane connector for reliable mechanical and electrical interfacing.

Applications

This module is typically utilized in complex automation systems where chronological accuracy is critical for diagnostic analysis and process control. Common installations include:

• Petrochemical and refinery process control systems.
• Thermal power generation plant automation.
• Large-scale manufacturing and mining processing facilities.
• Applications requiring accurate time-stamping for event logs and fault diagnostics.

Technical Specifications

Installation Guidelines

• Ensure the AG135 system rack is powered down before inserting or removing the clock module to prevent electrical damage.
• Verify the 48-pin connector is properly aligned with the backplane slot before applying pressure to seat the module.
• Handle the module using electrostatic discharge (ESD) safe practices to protect internal circuitry.
• Confirm that the battery backup is functional during installation to ensure time retention capability upon initial power-up.
• Route signal cables away from high-power field switches and heavy inductive loads to maintain signal stability.

FAQ

Does this module require external programming?

The 6FL9010-1AA11 is designed to interface with the S5 AG135 backplane to provide system-wide clock synchronization. Once seated and initialized, it manages timekeeping independently via its internal oscillator and backup battery.

What should I do if the time resets after a power outage?

If the module fails to retain the time during a power loss, the internal battery backup may have reached the end of its service life and likely requires inspection or replacement, depending on the specific revision of the hardware.
