Description

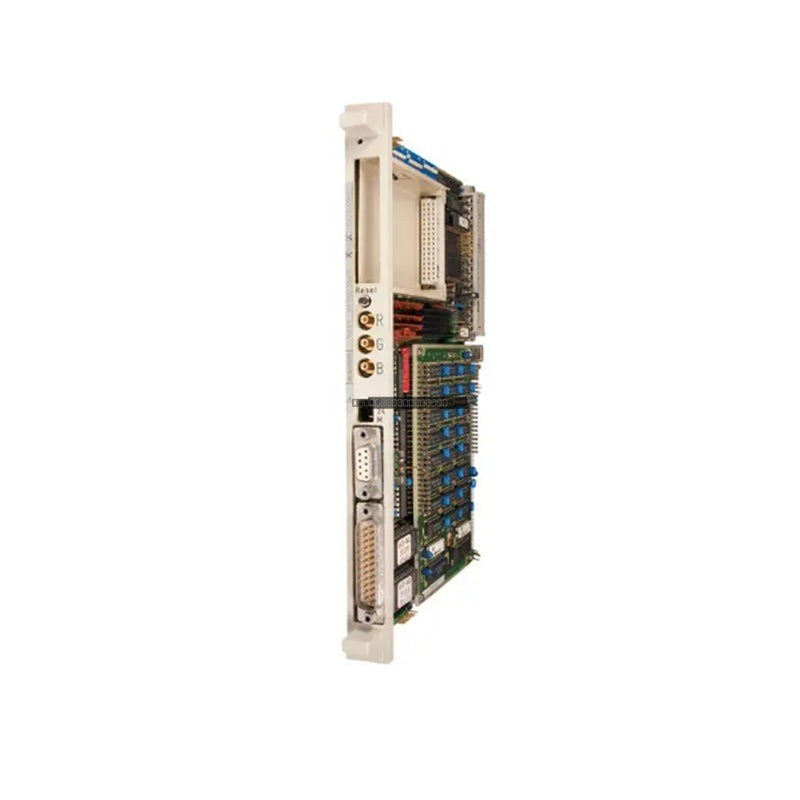

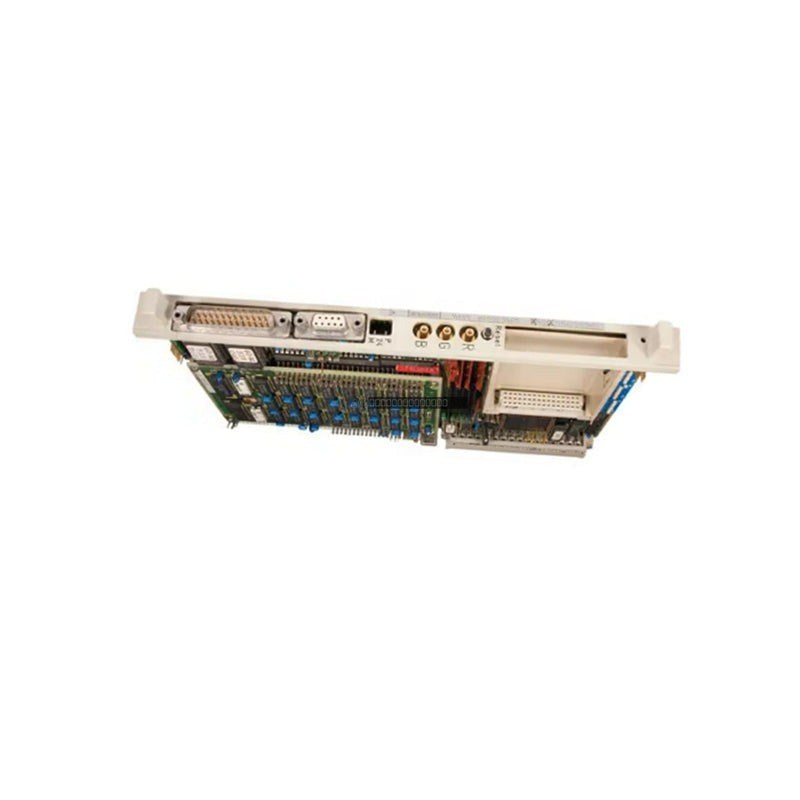

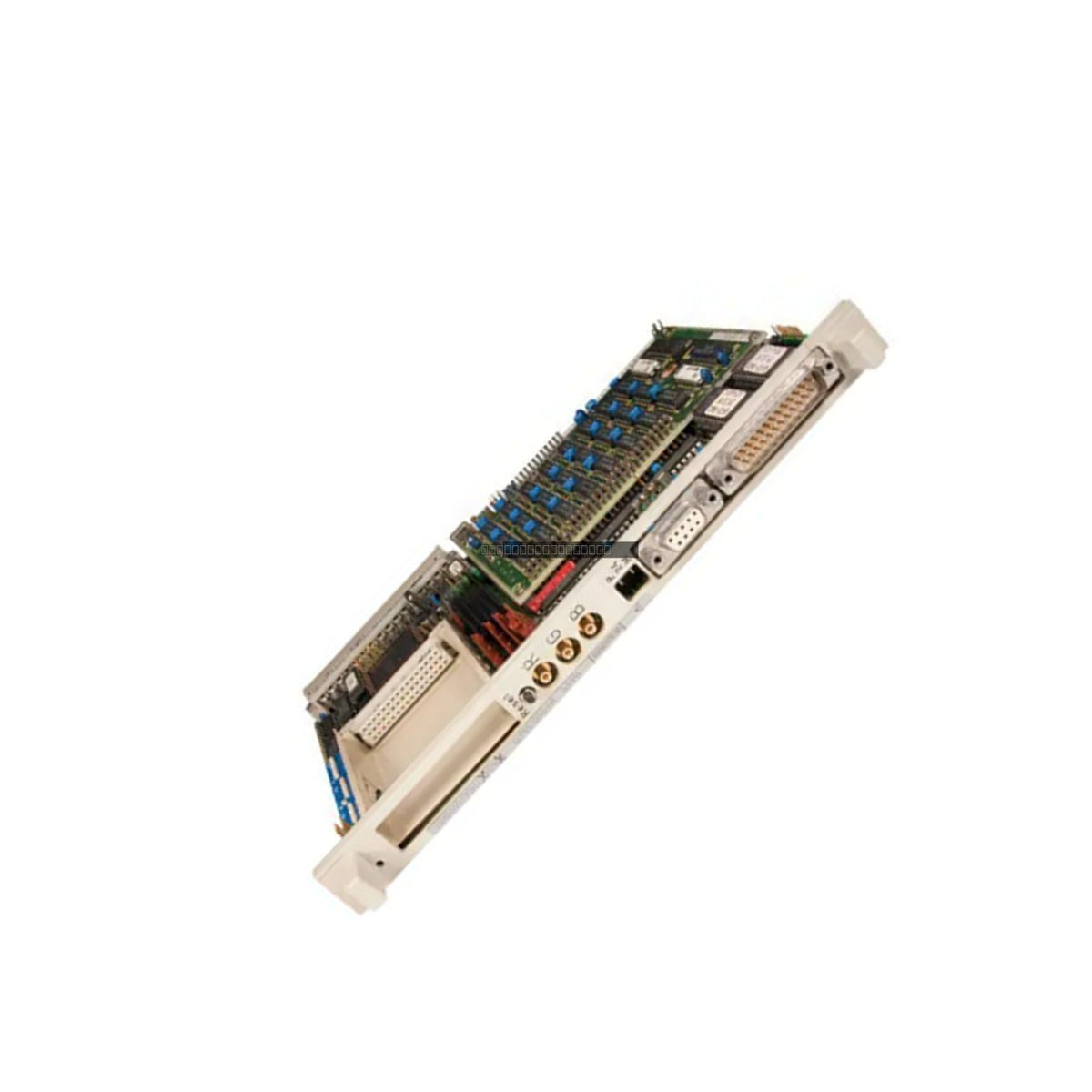

The Siemens 6FM1470-3AA21 is a specialized color display interface module engineered for the WF 470 intelligent processor subsystem within the Simatic S5 PLC environment. This module serves as a dedicated graphics controller, offloading visualization and monitoring tasks from the main CPU to ensure high-performance operator interface stability. It supports multi-language firmware, including English, German, French, and Russian, making it suitable for diverse industrial automation applications such as automotive assembly, steel processing, and heavy mining infrastructure.

Features

• Standalone microprocessor architecture for independent graphical rendering and data processing.
• Integrated memory expansion slot to support complex screen topologies and character sets.
• Direct Simatic S5 backplane interface for efficient I/O register mapping and command execution.
• Optimized for high-speed synchronization with industrial color CRT and flat-panel displays.
• Reduces system bottlenecks by handling visualization tasks independently of the primary control logic.

Applications

This module is typically deployed in Simatic S5-based control systems where real-time operator feedback is critical. It is widely utilized in environments requiring complex diagnostic displays, process monitoring, and localized operator interfaces to maintain continuous plant operation and minimize downtime.

Technical Specifications

Installation Guidelines

• Ensure the Simatic S5 rack power is fully disconnected before inserting or removing the module.
• Handle the PCB by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
• Verify that the module is correctly seated in the designated backplane slot to ensure proper bus communication.
• Maintain adequate ventilation within the cabinet to keep ambient temperatures within the specified 0-55 deg C range.
• Route video signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.

FAQ

Q: Does this module require external power?
A: No, the 6FM1470-3AA21 is powered directly through the Simatic S5 backplane with a nominal power consumption of 15 Watts.

Q: Can this module support custom language scripts?
A: The module comes with pre-installed firmware supporting English, German, French, and Russian. It is designed for use within the WF 470 subsystem architecture.
