Description

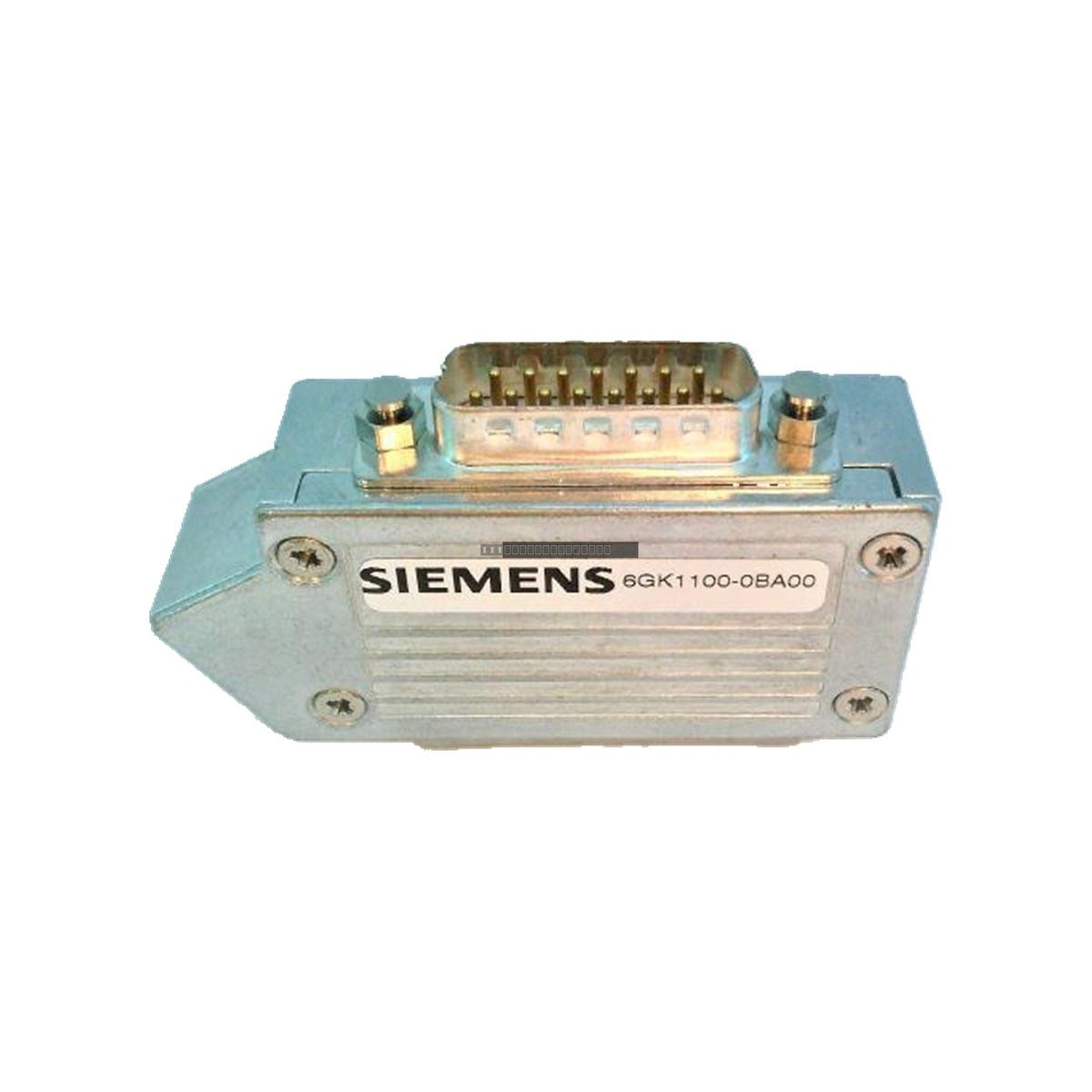

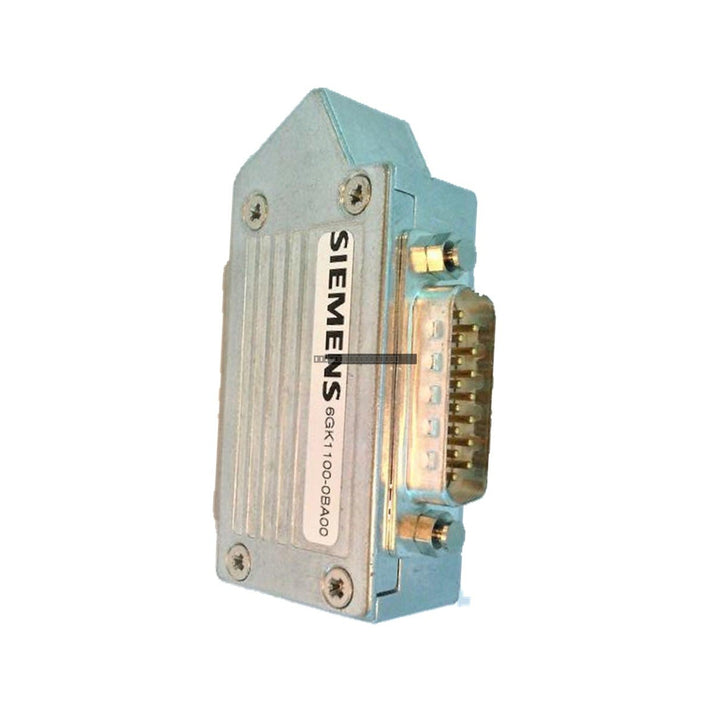

The Siemens 6GK1100-0BA00 is a dedicated transceiver plug designed for the Simatic Net communications ecosystem. This component serves as a critical interface bridge within Industrial Ethernet and related network architectures, facilitating stable data exchange between field-level devices and control systems. By providing a reliable physical connection, it minimizes signal degradation and communication interruptions in demanding industrial environments, such as manufacturing plants and automated processing facilities.

Features

• Designed for seamless integration within the Siemens Simatic Net product family.
• Features a pass-through design for efficient inline signal routing.
• Equipped with a 15-pin male Sub-D connector and a 15-pin female Sub-D connector.
• Robust mechanical housing built to withstand vibration and environmental stress in control cabinets.
• Passive integration design ensures low-attenuation signal transmission.

Applications

This transceiver plug is typically deployed in industrial network infrastructures where reliable 15-pin Sub-D connectivity is required. It is commonly utilized in PLC-to-workstation communication, legacy LAN topology maintenance, and distributed I/O network setups across heavy industry and infrastructure automation sectors.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the transceiver plug to prevent electrical arcing or data corruption.
• Align the 15-pin connectors carefully to avoid bending pins during insertion.
• Secure the connection using the integrated mounting hardware to ensure contact stability under vibration.
• Route communication cables away from high-voltage power lines and sources of strong electromagnetic interference to maintain signal integrity.
• Verify that the cable shielding is properly grounded at the cabinet entry point if required by your specific network configuration.

FAQ

Is the 6GK1100-0BA00 an active device?
No, this is a passive transceiver plug designed for signal routing and interface adaptation.

What is the primary connector type for this module?
The module features a standard 15-pin Sub-D interface with a male-to-female pass-through configuration.

Can this be used in high-temperature environments?
The module is rated for operation within a standard industrial temperature range of 0 to 60 deg C.
