Description

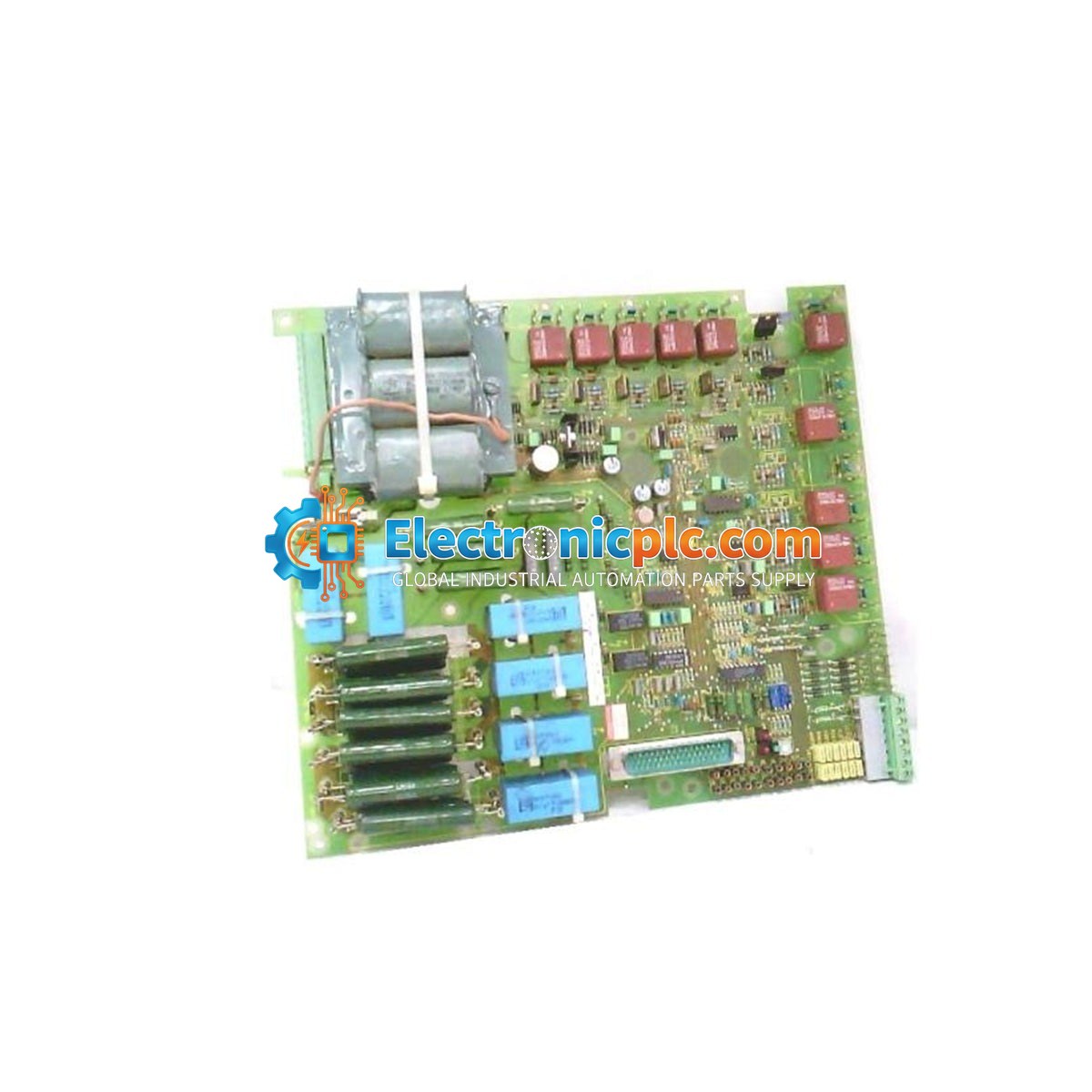

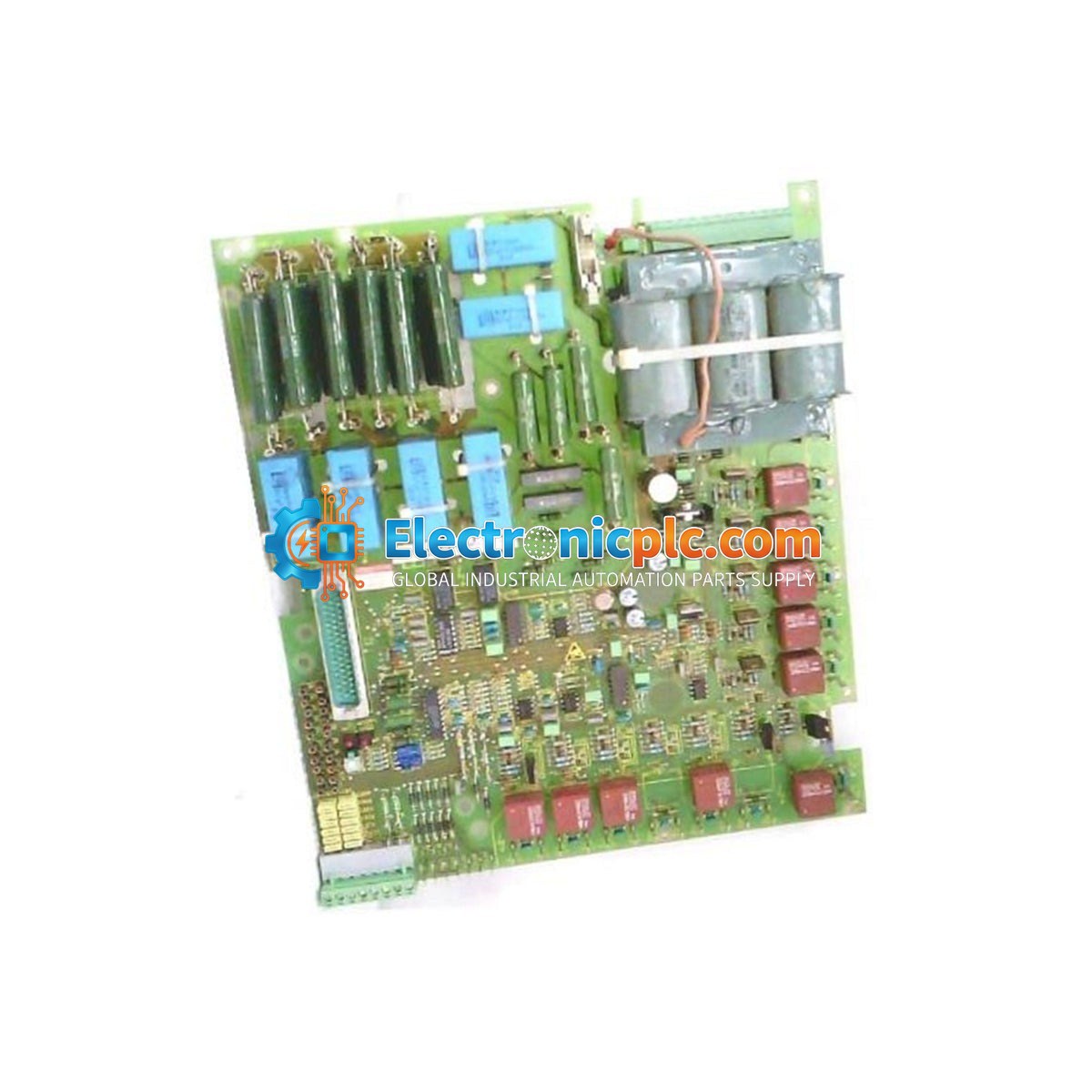

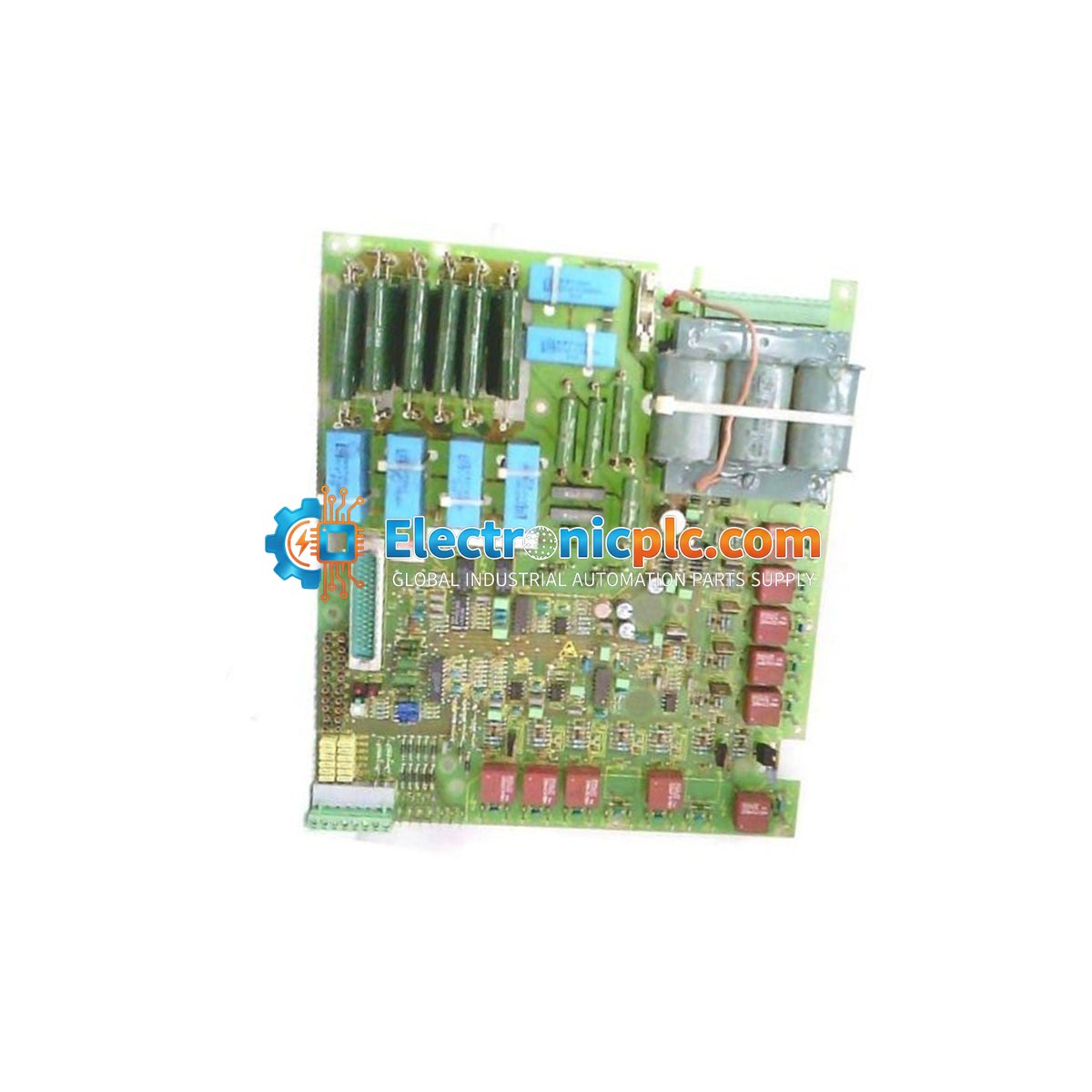

The Siemens 6QN5501-0BA is a specialized electronic module PC board engineered for SITOR thyristor power control systems. This component serves as a critical control interface for power semiconductors, managing complex switching and regulation tasks in high-voltage DC or AC power conversion applications. It is designed to ensure precise gate firing and thermal stability, effectively mitigating harmonic distortion and electrical surges to maintain continuous operation in demanding industrial environments.

Features

• Designed specifically for integration with Siemens SITOR thyristor power systems.
• High-speed signal conditioning and isolation to protect low-voltage logic from transient switching noise.
• Supports advanced diagnostic feedback for real-time monitoring of thyristor states.
• Robust PC board architecture built for vibration resistance and long-term mechanical reliability.
• Standardized mounting points for seamless installation in industrial power cabinets.

Applications

The 6QN5501-0BA is typically deployed in heavy industrial sectors requiring precise power regulation, including steel manufacturing, electrochemical refining, and large-scale power distribution systems.

Technical Specifications

Installation Guidelines

• Ensure all power to the SITOR cabinet is disconnected and locked out before attempting to install or remove the module.
• Handle the PC board using ESD-safe practices to prevent damage to sensitive internal components.
• Verify that all mounting hardware is securely fastened to ensure proper grounding and vibration resistance.
• Inspect connector interfaces for debris or oxidation before seating the module.
• Ensure adequate ventilation within the enclosure to maintain operating temperatures within the specified 0-55 deg C range.

FAQ

What is the primary function of the 6QN5501-0BA?

This module acts as a control interface for SITOR thyristor power systems, managing gate firing and providing diagnostic monitoring for power semiconductors.

Is this module compatible with all SITOR systems?

The 6QN5501-0BA is designed for specific SITOR thyristor power control applications. Please verify your system's technical documentation or existing part number to ensure compatibility before installation.

What precautions should be taken during installation?

Always power down the system, follow standard electrostatic discharge (ESD) handling procedures, and ensure the module is firmly seated in its designated slot to maintain reliable electrical contact.
