Description

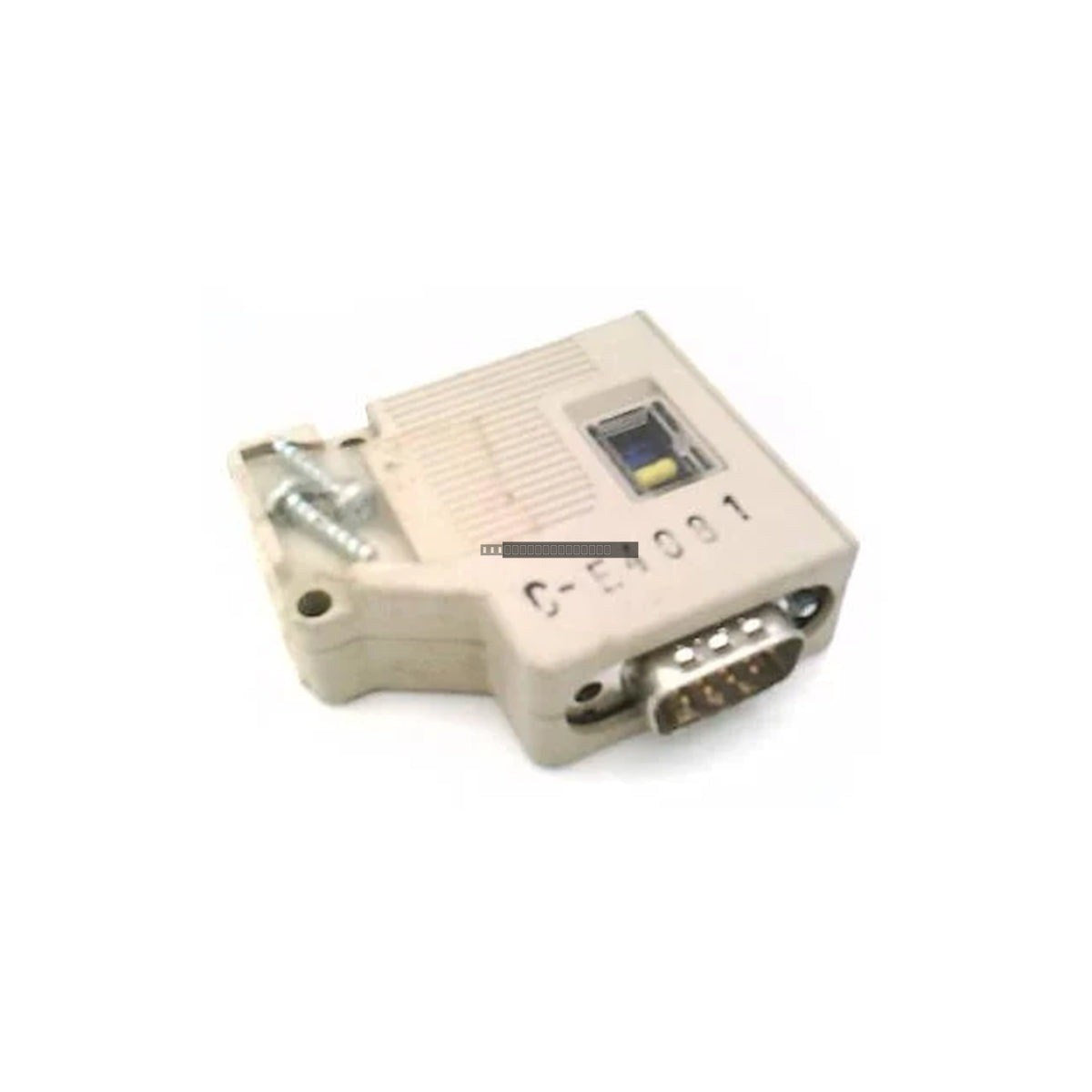

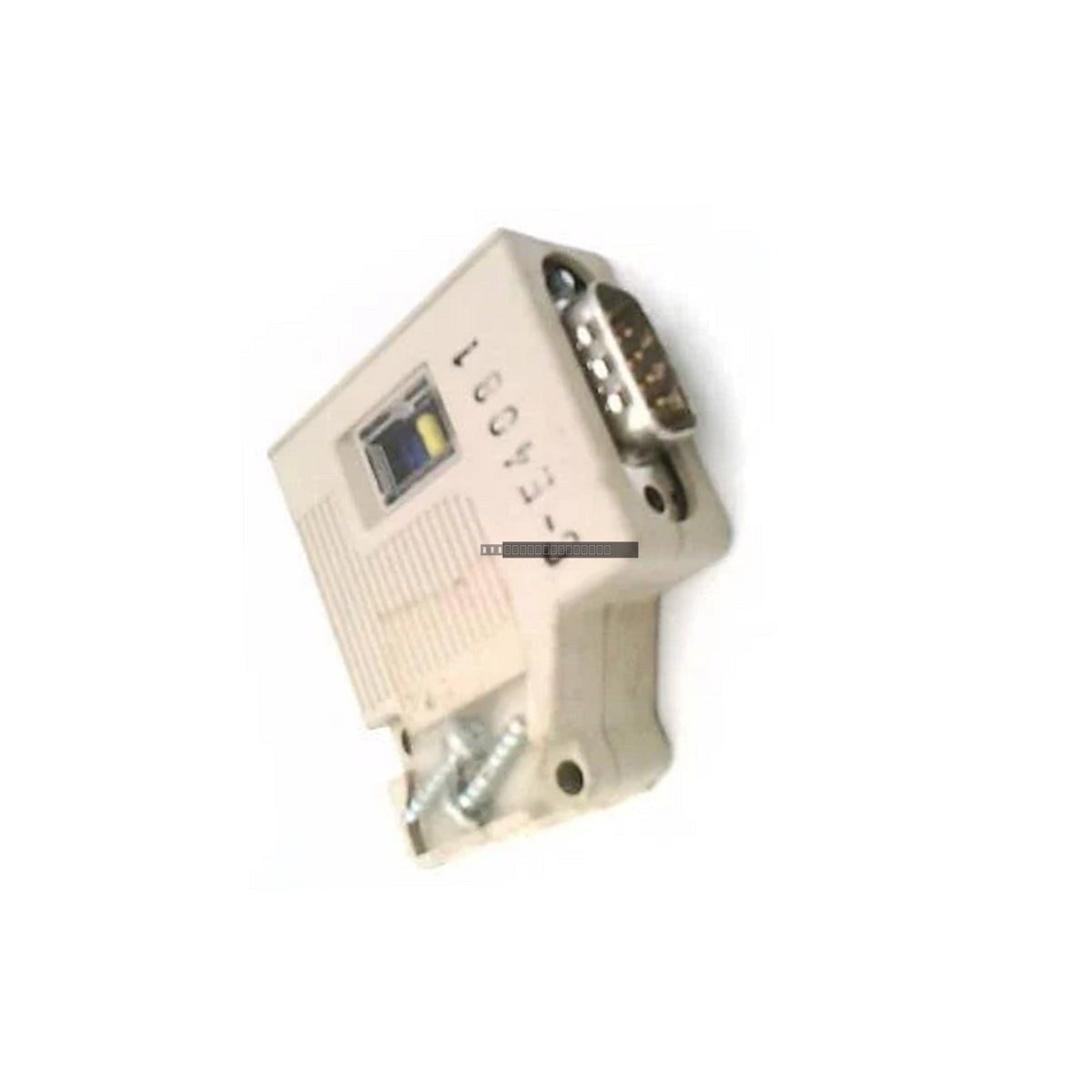

The Siemens 6ES5762-1AA12 is a specialized bus connector designed for reliable PROFIBUS network connectivity within SIMATIC S5 automation systems. This component serves as a critical interface for SINEC L2-DP protocols, ensuring robust data transmission between central controllers and decentralized field devices. Featuring a durable beige housing and an integrated diagnostic viewing window, this connector is engineered to maintain signal integrity and provide vibration-resistant performance in demanding industrial environments.

Features

• Designed for PROFIBUS DP and SINEC L2-DP communication protocols.
• Integrated diagnostic viewing window for rapid status verification.
• Compact, low-profile mechanical design suitable for high-density control cabinet installations.
• Robust construction provides shielding against electromagnetic interference (EMI).
• Supports standard RS-485 transmission speeds for consistent network performance.
• Passive, non-powered design for simplified integration into existing legacy architectures.

Applications

This bus connector is widely utilized in legacy industrial automation systems, including automotive manufacturing, chemical processing facilities, and material handling infrastructure. It is essential for maintaining stable communication links in decentralized periphery systems where reliable fieldbus connectivity is required to prevent unplanned downtime.

Technical Specifications

Installation Guidelines

• Ensure the PROFIBUS cable is properly stripped and terminated according to standard RS-485 wiring practices to maintain shielding integrity.
• Verify that the connector is securely seated on the device port to prevent intermittent signal loss due to vibration.
• Use the integrated diagnostic window to confirm bus status during commissioning and routine maintenance.
• Ensure the installation environment remains within the specified temperature range of 0 degC to 60 degC.
• Always power down the associated network segment before inserting or removing the connector to prevent potential electrical shorts or data corruption.

FAQ

What is the primary function of the 6ES5762-1AA12?
This module acts as a physical interface connector for PROFIBUS networks, specifically within the SIMATIC S5 ecosystem, to facilitate stable communication between controllers and field devices.

Is this connector powered?
No, the 6ES5762-1AA12 is a passive device and does not require an external power supply.

What is the recommended successor for this part?
The manufacturer-recommended successor for this connector is the 6ES7 972-0BA42-0XA0.
