Description

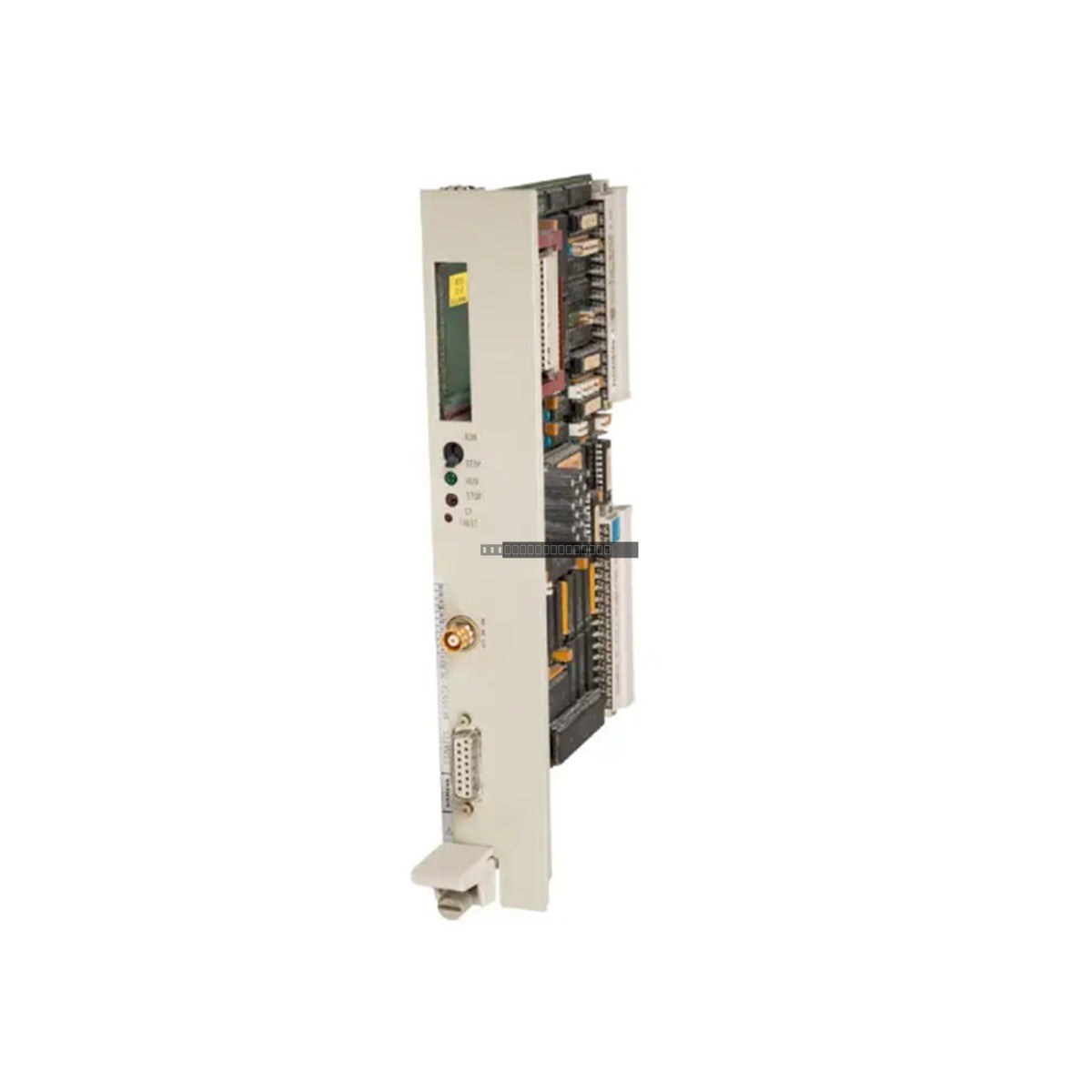

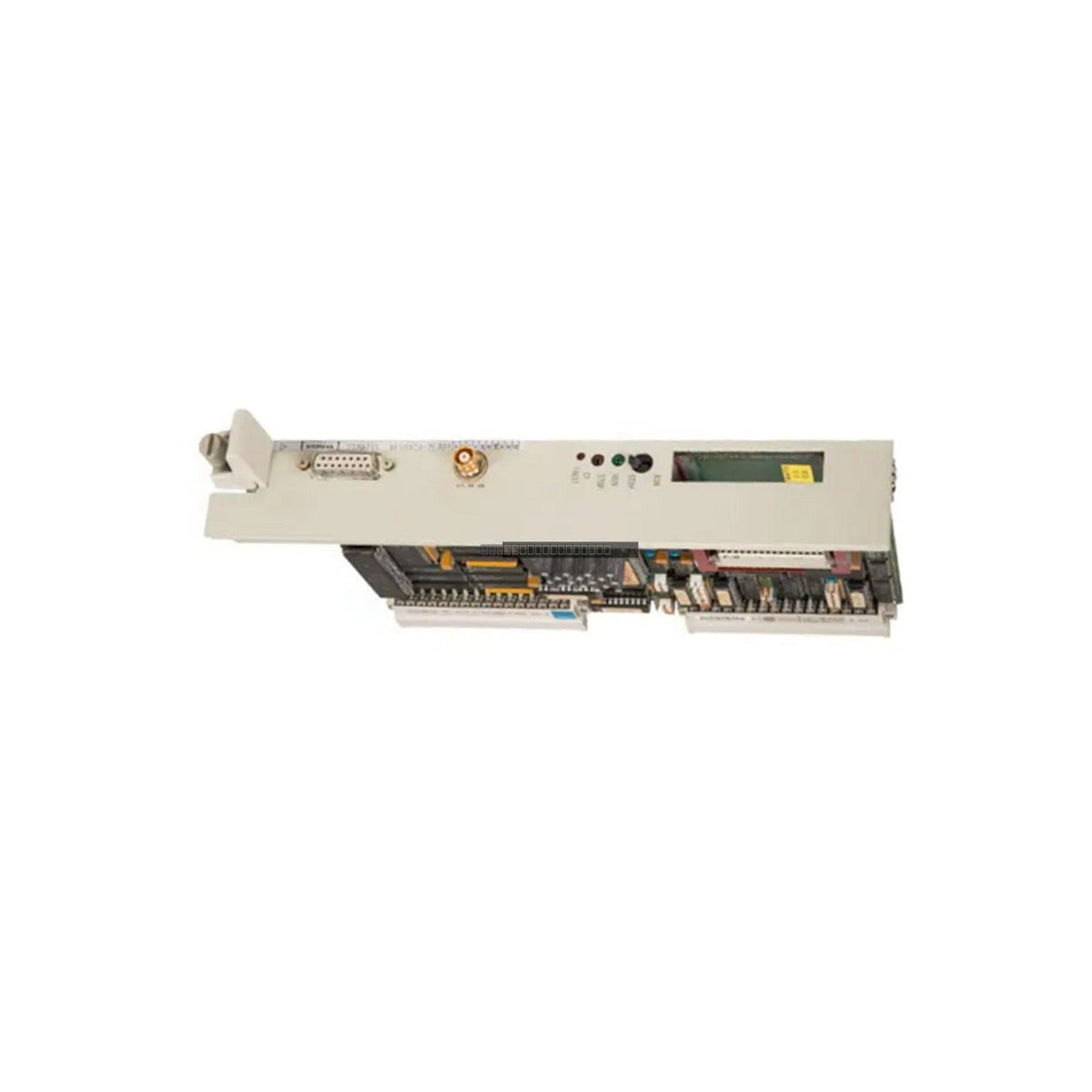

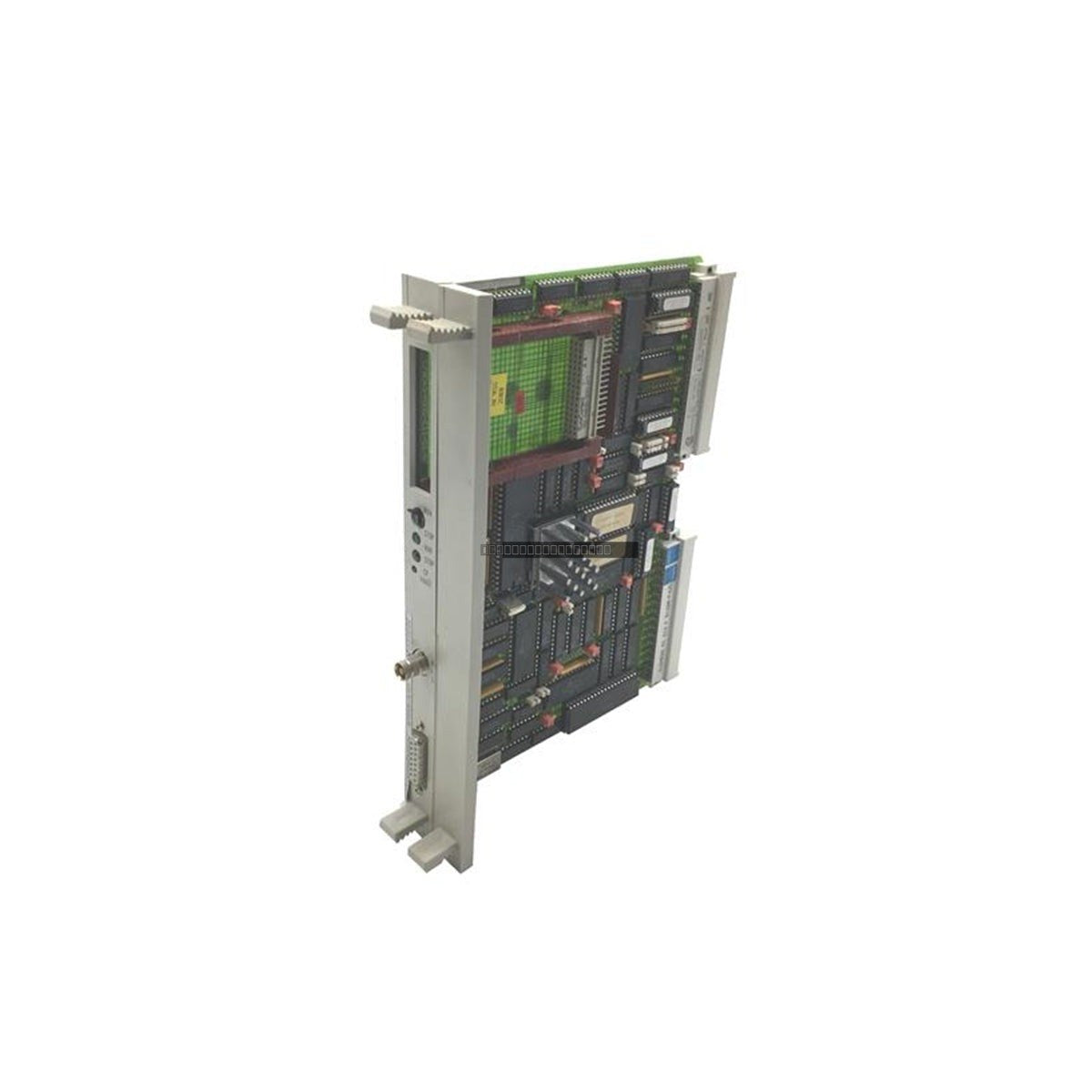

The Siemens CP526-II (6ES5526-3LG01) is a specialized communications processor and graphics module engineered for the Simatic S5 automation platform. This module serves as a critical interface component, facilitating HMI connectivity and serial data processing within legacy industrial control architectures. By offloading complex graphic visualization and communication protocol management from the central processing unit, the CP526-II optimizes backplane bus performance and ensures reliable, real-time data exchange for monitoring and control applications.

Features

• Designed specifically for integration with Siemens Simatic S5 PLC systems.
• Combines communications processing with graphical output capabilities to support HMI terminal operations.
• Reduces CPU overhead by managing data visualization and serial communication tasks independently.
• Features industrial-grade shielding and noise filtering to maintain signal integrity in high-EMI environments.
• Supports standard serial TTY and V.24 interface protocols for legacy device connectivity.

Applications

The CP526-II is primarily utilized in legacy manufacturing, chemical processing, and power generation facilities where Simatic S5 systems remain in operation. It is commonly deployed to drive industrial monitors and terminal units, providing operators with essential process feedback and graphical status representations.

Technical Specifications

Installation Guidelines

• Ensure the PLC power is completely disconnected before inserting or removing the module from the S5 rack.
• Verify that the module is properly seated in the designated backplane slot to ensure reliable electrical contact.
• Use appropriate shielded cabling for all serial TTY/V.24 connections to minimize electromagnetic interference.
• Maintain adequate clearance around the module to allow for proper airflow and cooling within the control cabinet.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal electronic components.

FAQ

Is the CP526-II compatible with modern S7 systems? No, this module is specifically designed for the legacy Simatic S5 platform and is not natively compatible with S7 series controllers.

Does this module require external power? No, the CP526-II draws its required 5 VDC power directly from the Simatic S5 backplane bus.
