Description

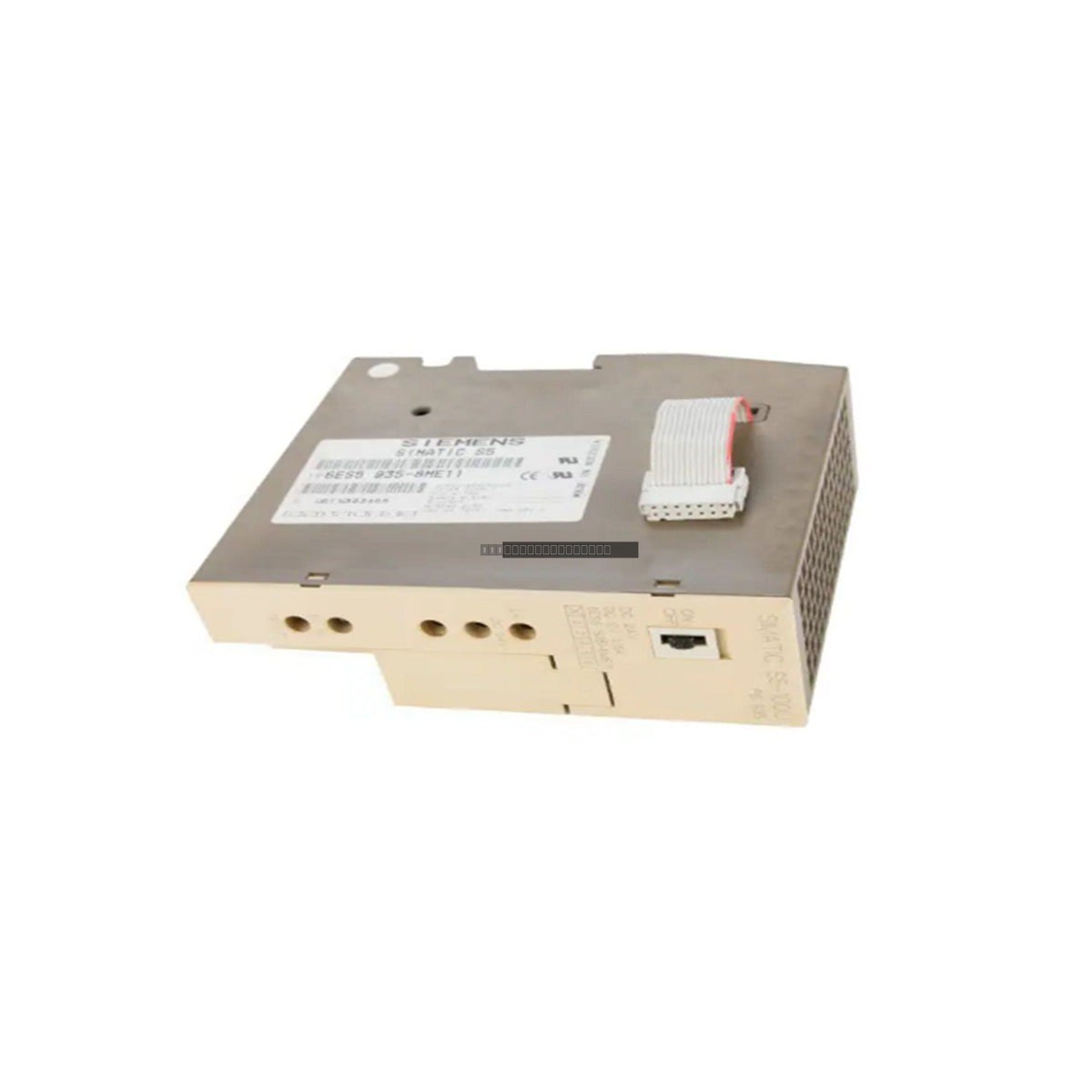

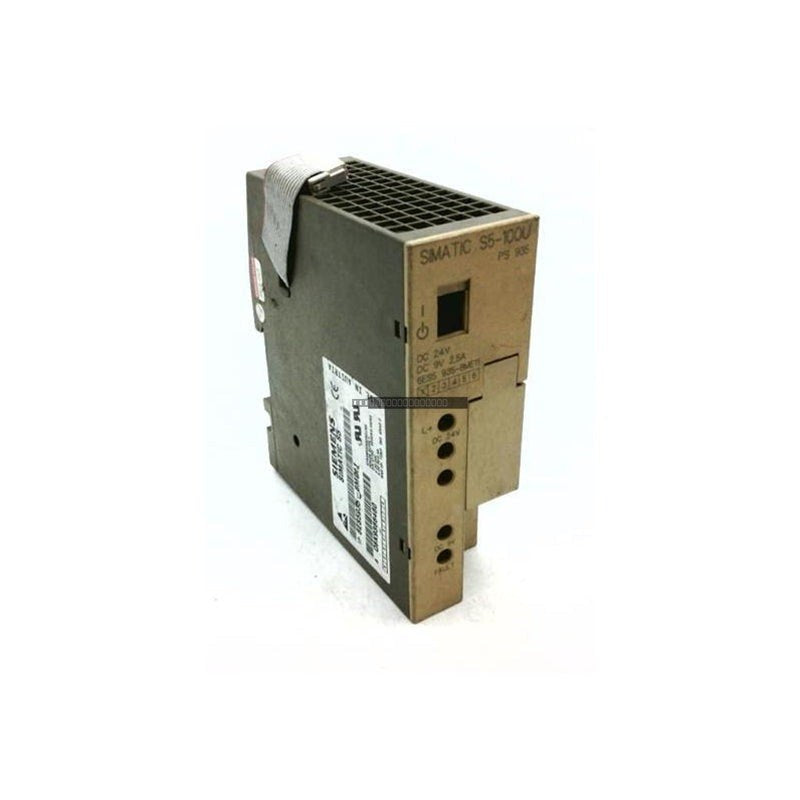

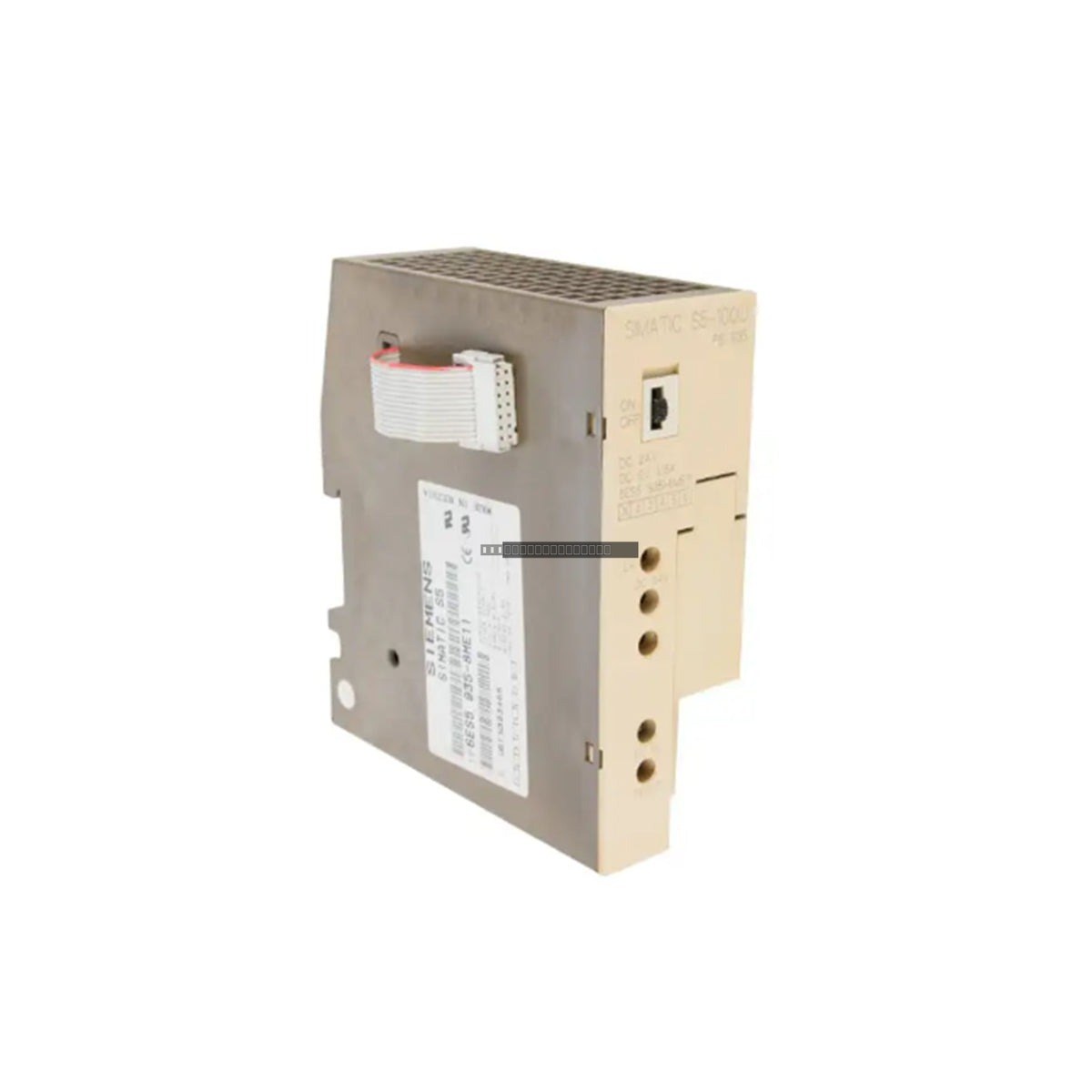

The Siemens Simatic S5 PS 935 power supply module, identified by order code 6ES5935-8ME11, is a dedicated power conversion unit engineered for the Simatic S5-090, S5-095, and S5-100U programmable logic controller systems. It provides stable, regulated DC voltage to the CPU and associated I/O modules, ensuring reliable operation of legacy automation infrastructure in demanding industrial environments.

Features

• Designed specifically for seamless integration with S5-100U backplane architectures.
• High-efficiency switching regulator design for consistent DC output.
• Robust electromagnetic shielding to protect control signal integrity.
• Optimized for low thermal dissipation during continuous operation.
• Direct mounting configuration for simplified installation in S5-100U chassis.

Applications

This power supply is utilized in various industrial automation sectors, including automotive assembly lines, water treatment facilities, and automated packaging systems. It is essential for maintaining the uptime of legacy S5-based control systems by preventing voltage-drop-related errors and system resets.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is completely powered down before inserting or removing the power supply module.
• Verify that the module is correctly seated in the S5-100U backplane slot to ensure proper bus contact.
• Maintain adequate clearance around the module to allow for natural convection cooling.
• Ensure that the input power source matches the rated industrial AC voltage specifications.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.

FAQ

What systems is the 6ES5935-8ME11 compatible with?

This module is designed for the Siemens Simatic S5-090, S5-095, and S5-100U PLC series.

Is this module hot-swappable?

No, it is recommended to power down the PLC rack before installing or removing this module to prevent electrical damage to the backplane or the unit itself.
